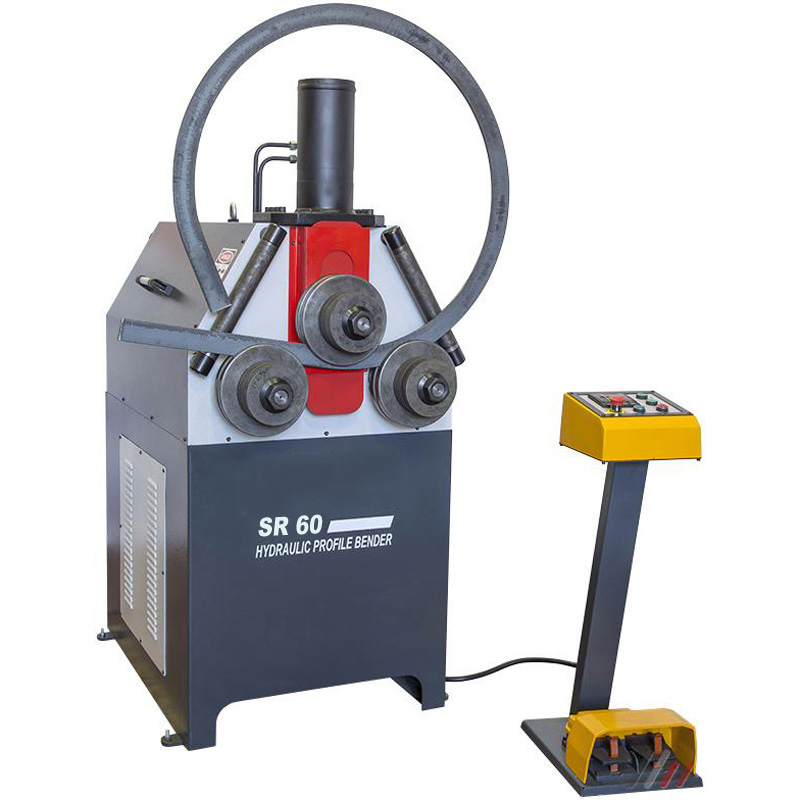

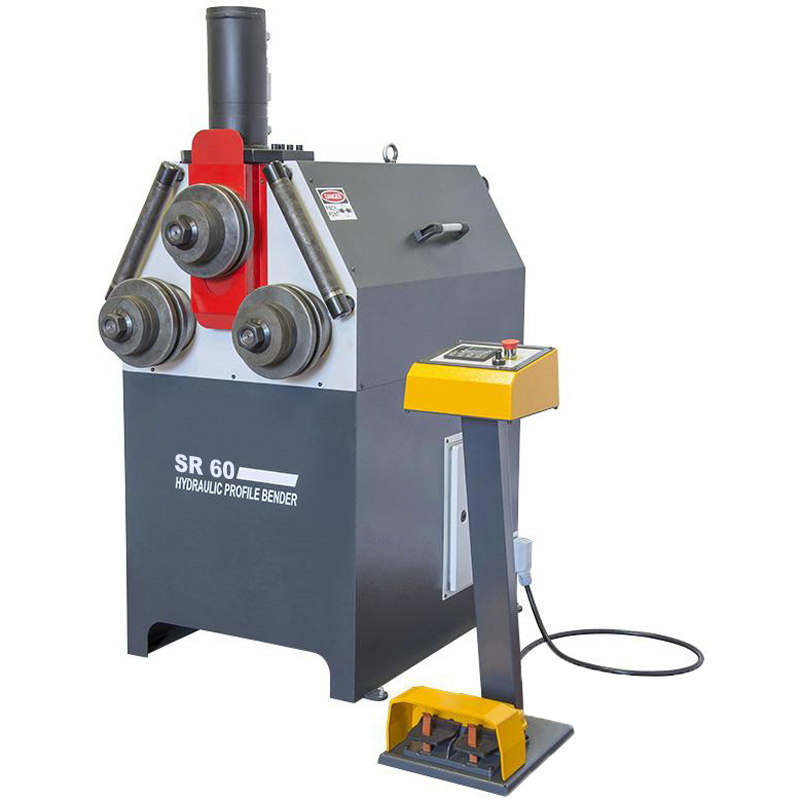

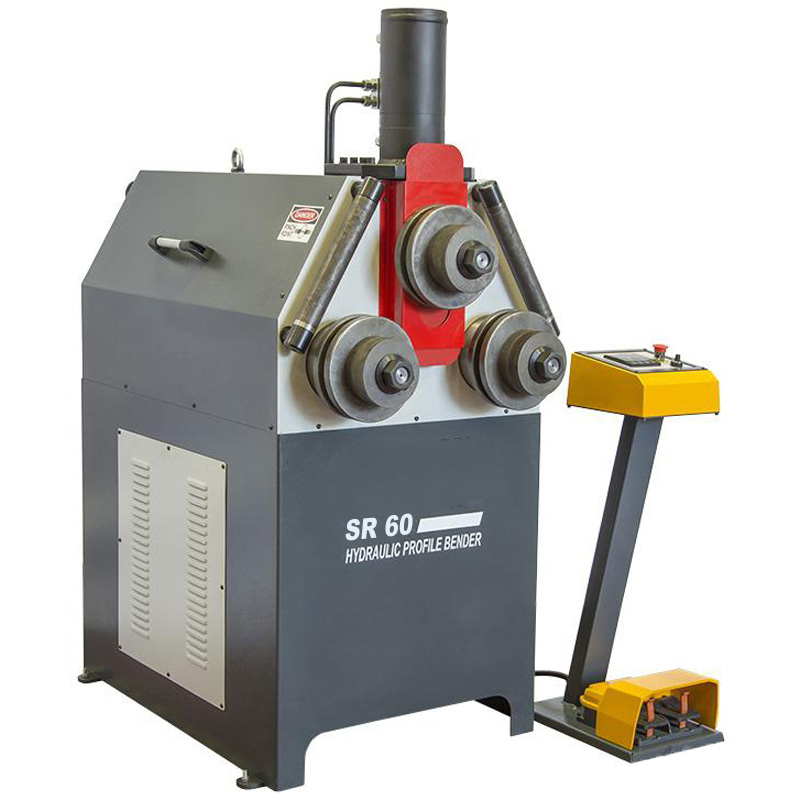

Description
Standard Features
- Steel frame
- Reducer driven gear system
- All three rolls powered
- Top roll up and down movement hydraulically
- Bottom rolls fixed and powered
- Rolls and shafts are made of SAE 1050 quality steel
- All rolls and shafts are hardened and grinded
- Able to bend flat bars and box sections with standard rolls
- Digital Read out for top roll
- Standard rolls are interchangeable
- Standard guide rolls
- Horizontal and vertical working position
- Manufactured in Europe
- Complies with CE Standards
Additional Accessories
- Pipe bending rolls for different sizes
- Angle bending rolls (leg in and Leg Out)
- Aluminium bending rolls made of DELRIN
- Angle guide rolls
- Speed variator
Technical Specifications
Model | SR60 |
Shaft diameters Ø mm | 60 |
Top Roll Diameter Ø mm | 215 |
Hydraulic Power ton | 20 |
Working Speed m/min | 5 |
Reduced Power kW | 3 |
Hydraulic Motor kW | 3 |
Length mm | 850 |
Width mm | 1140 |
Height mm | 1650 |
Weight kg | 900 |
Capacity Table
1
|
|
80×20 40×10 |
1200 400 |
Standard Rolls |
2
|
|
120×25* 50×10 |
600 400 |
Standard Rolls |
3
|
|
50×50 20×20 |
800 400 |
Standard Rolls |
4
|
|
Ø 50 Ø 20 |
800 400 |
Optional Rolls |
5
|
|
Ø 100×2 Ø 60×2 |
1600 500 |
Optional Rolls |
6
|
|
3”x3,2 1”x2,6 |
1600 500 |
Optional Rolls |
7
|
|
80x40x3 40x20x2 |
1400 500 |
Optional Rolls |
8
|
|
70×3 40×2 |
1600 500 |
Optional Rolls |
9
|
|
70x70x7 40x40x5 |
1000 500 |
Optional Rolls |
10
|
|
70x70x7 40x40x5 |
1200 600 |
Optional Rolls |
11
|
|
80×9 40×5 |
1000 400 |
Standard Rolls |
12
|
|
80×9 40×5 |
1200 500 |
Standard Rolls |
13
|
|
80×9 40×5 |
1000 400 |
Standard Rolls |
14
|
|
UPN 100 UPN 60 |
800 500 |
Optional Rolls* |
15
|
|
UPN 100 UPN 60 |
1200 600 |
Standard Rolls* |
