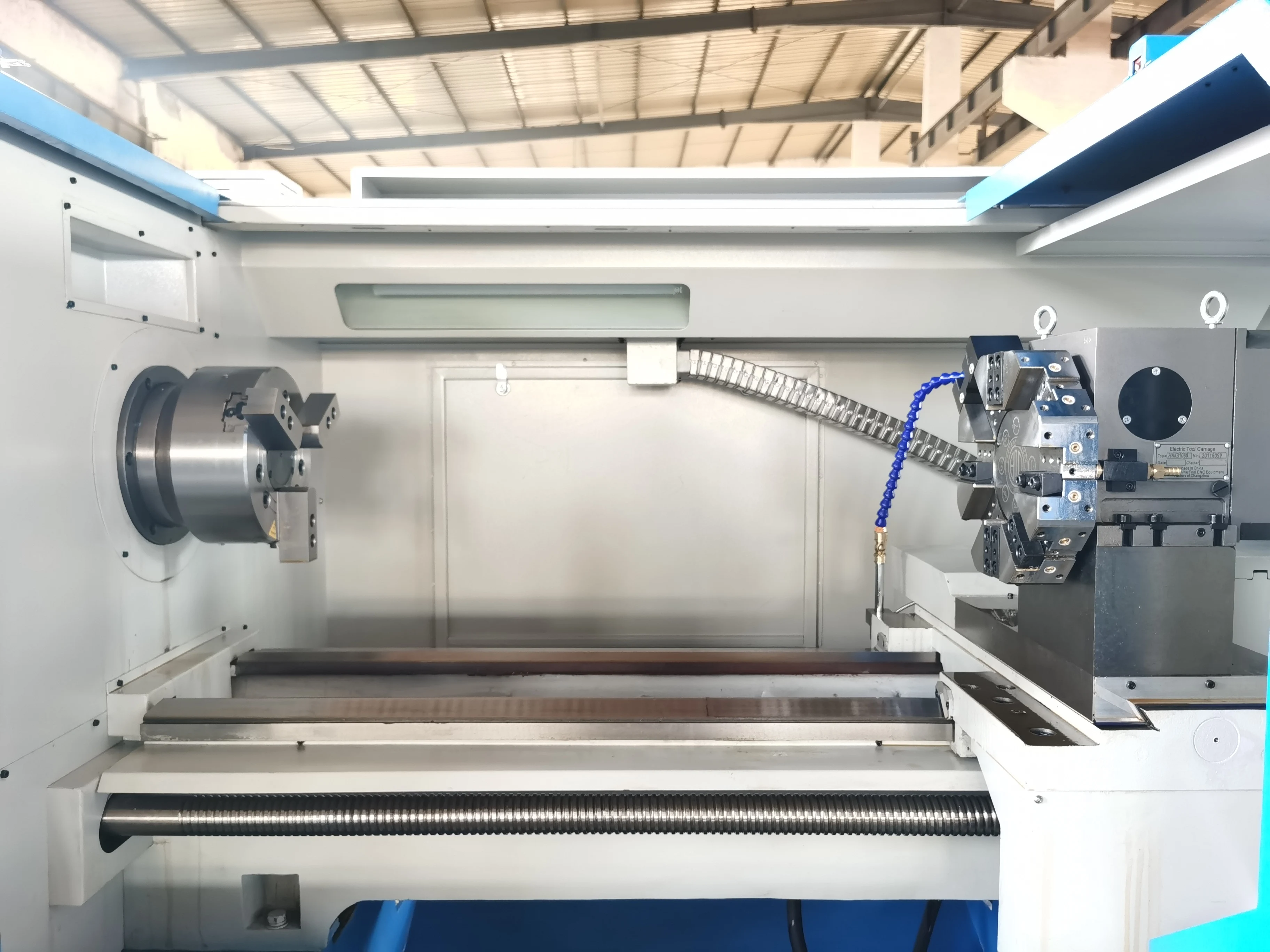

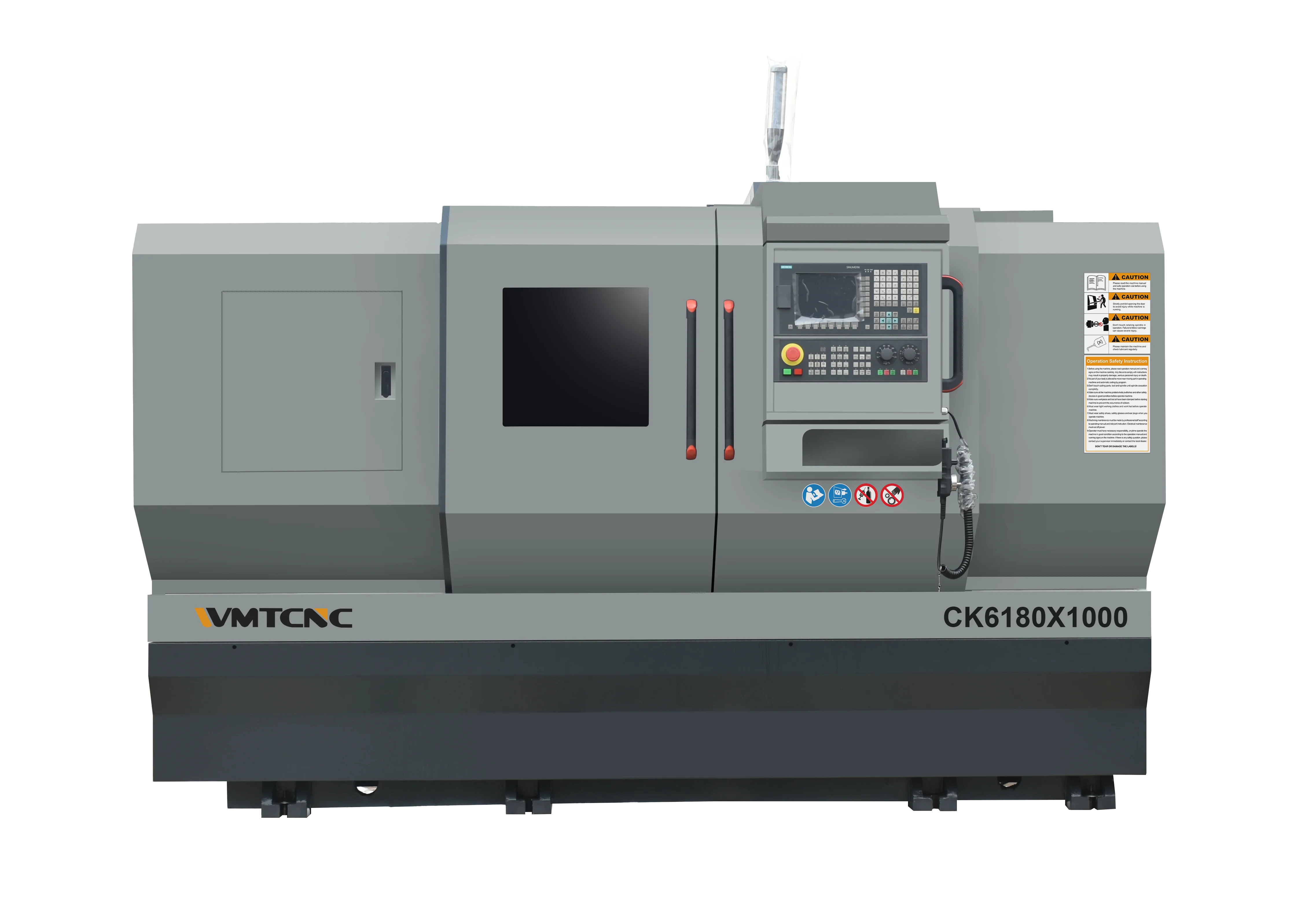

CK6180 CNC Lathe Machine with Fanuc Control
A$31,447.64
- USD: $21,262.50
- GBP: £16,877.97
- EUR: €19,654.65
- JPY: ¥3,183,462
- CNY: ¥147,758.17
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
CK6180 CNC Lathe Machine with Fanuc Control
1. Heavy duty model suitable for large workpiece.
2. High precision CNC flat bed lathe with hard rail.
3. The bed ways are induction hardened, with hardness around HRC50.
4. Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
5. Good quality grinding grade ball screw ensure positioning accuracy is more stable.

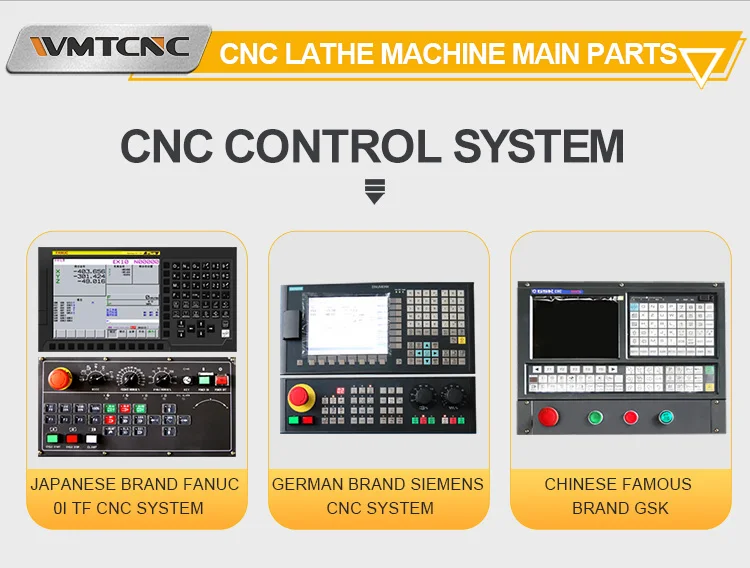

6. Siemens, Fanus, Syntec, Fagor controller as optional.
7. Monoblock cast iron base ensure high rigidity of the whole machine.
|
MODEL
|
CK6180
|
|||
|
Distance between centers
|
1000mm
|
1500mm
|
2000mm
|
3000mm
|
|
Max. swing over bed
|
Φ800mm
|
|||
|
Max. swing over cross slide
|
Φ560mm
|
|||
|
Width of bed
|
460mm
|
|||
|

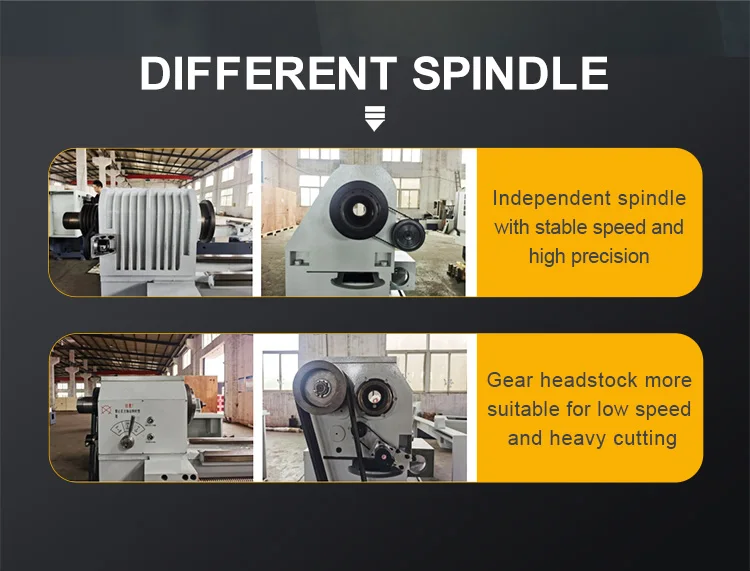

Spindle
|
||||
|
Spindle speed range
|
150-1600rpm
|
|||
|
Spindle bore
|
Φ 86mm (105mm as optional)
|
|||
|
Spindle nose
|
A2-8 (105mm for A2- 11)
|
|||
|
Taper of spindle bore
|
Φ90mm 1:20 (105mm for 115mm 1:20)
|
|||
|

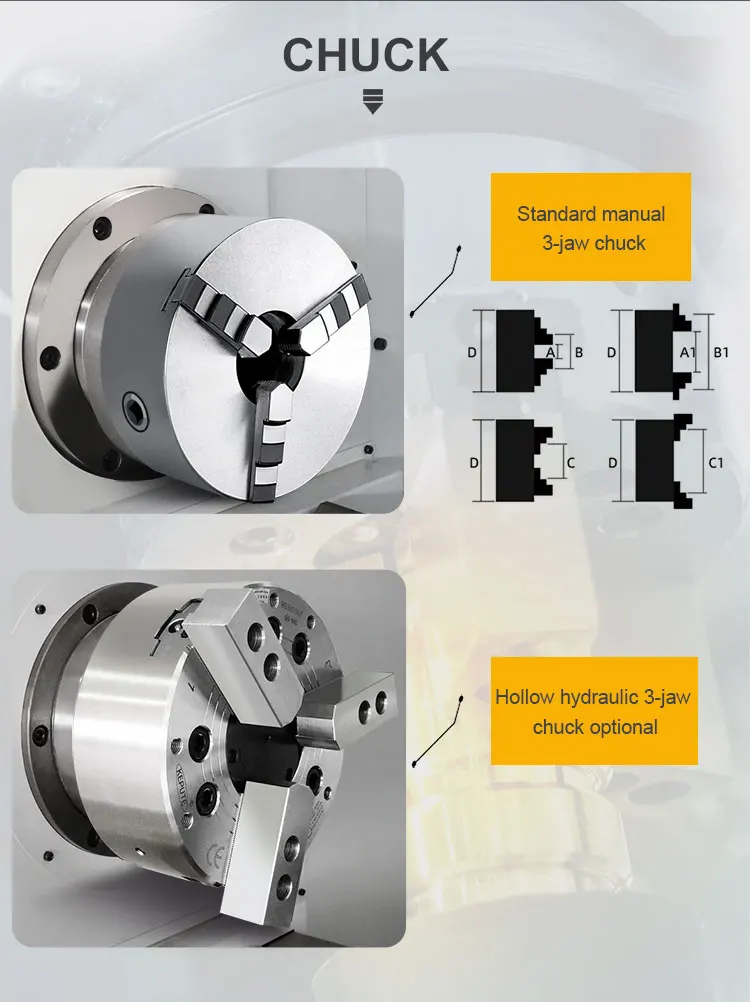

Chuck diameter
|
Φ250mm (105mm for 320mm)
|
|||
|
Stroke & Feeding Speed
|
||||
|
X axis travel
|
380mm
|
|||
|
Z axis travel
|
1000mm
|
1500mm
|
2000mm
|
3000mm
|
|
X/Z axis Rapid traverse
|
6/8 m/min
|
|||
|

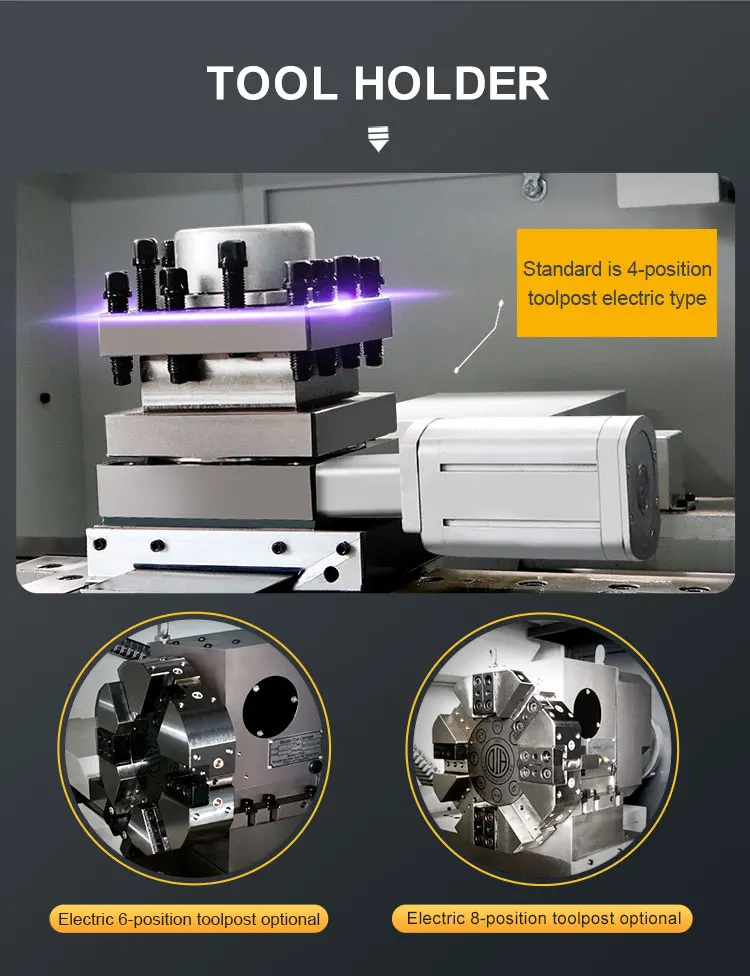

Turret
|
||||
|
Type
|
Electrical turret
|
|||
|
Tool station number
|
4
|
|||
|
Tool holder
|
30x30mm
|
|||
|

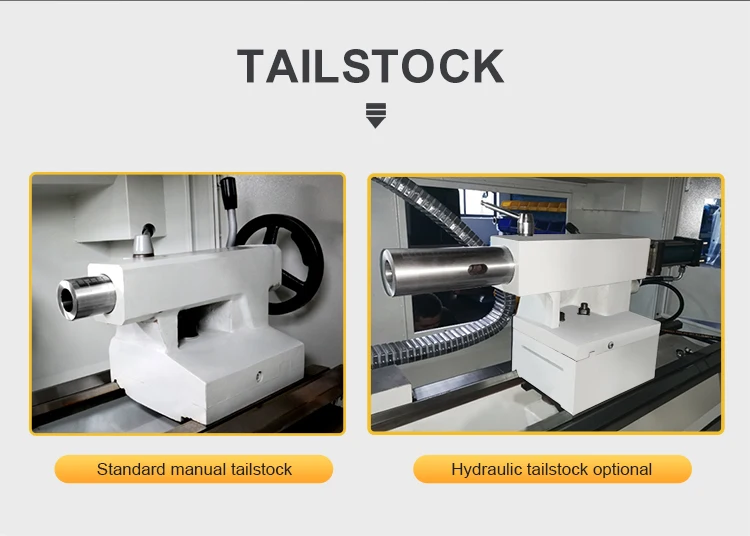

Tailstock Sleeve
|
||||
|
External diameter
|
Φ100mm
|
|||
|
Max. travel
|
235mm
|
|||
|
Taper of bore
|
MT5
|
|||
|
Motor
|
||||
|
Spindle motor power
|
11 KW
|
|||
|
Coolant pump power
|
250W
|
|||
|
Machine Dimensions
|
||||
|
Overall dimension(L×W×H)
|
3000/3320/3830/4830x1600x1830mm
|
|||
|
Packing size(L×W×H)
|
3300/3520/4030/5030x1800x2030mm
|
|||
|
Net/Gross weight
|
3800/4100kg
|
4300/4600kg
|
4700/5000kg
|
5100/5400kg
|
Specification
Additional information
| Weight | 100 kg |
|---|
