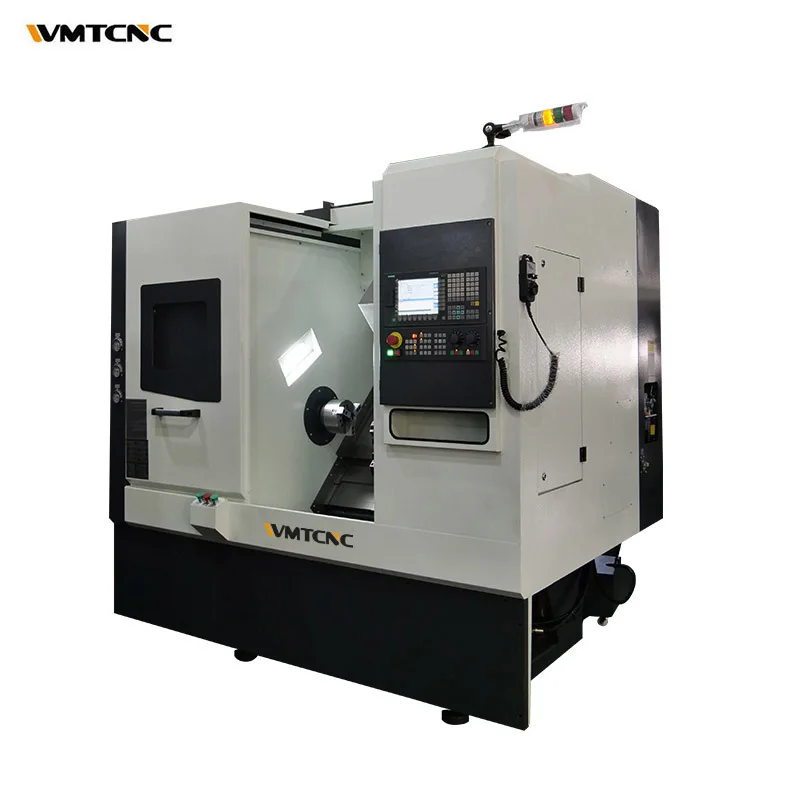

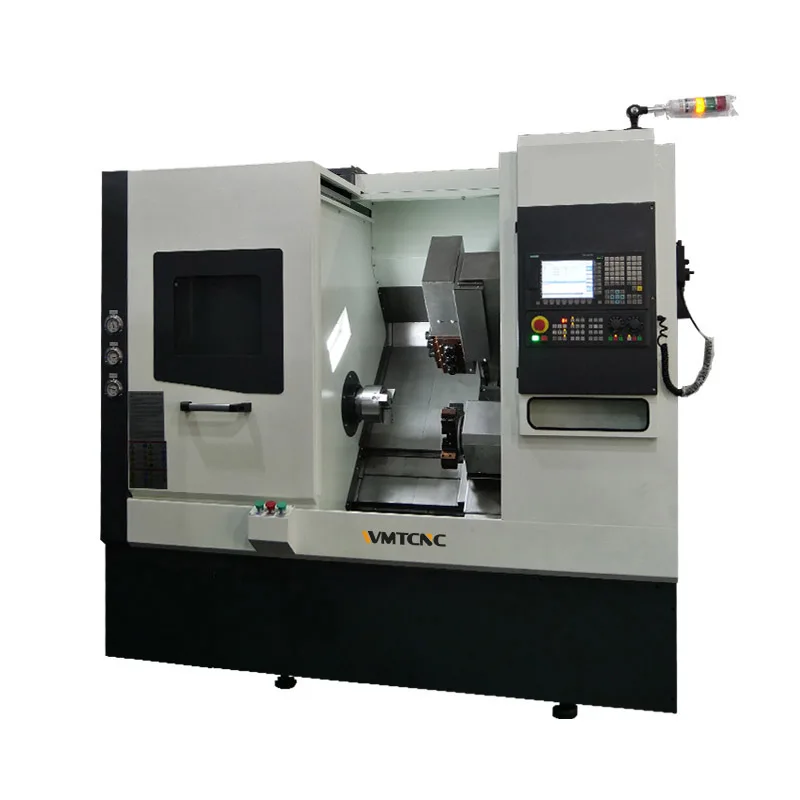

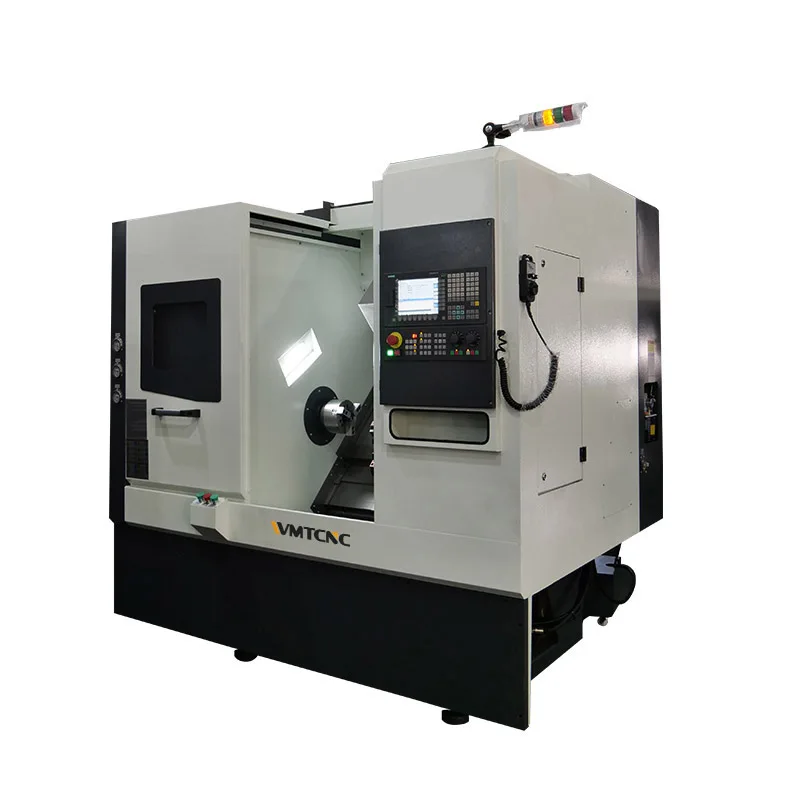

High Precision SGL450 Slant Bed CNC Lathe Machine with CE
A$31,447.64
- USD: $21,262.50
- GBP: £16,877.97
- EUR: €19,654.65
- JPY: ¥3,183,462
- CNY: ¥147,758.17
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
SGL450 Slant Bed CNC Lathe Machine with CE
|
Specification
|
Unit
|
SGL450
|
||
|
Capacity
|
Chuck/collet
|
Hydraulic Collet *Hydraulic Chuck 6″,*8″
|
||
|
Max. swing dia. over bed
|
mm
|
φ400
|
||
|
Max. length of workpiece
|
mm
|
Collet 430, *Chuck 400
|
||
|
Max. swing dia. over silde
|
mm
|
φ160
|
||
|
Spindle
|
Spindle bore
|
mm
|
φ55
|
*φ62
|
|
Max. dia. of through-hole
|
mm
|
φ46
|
*φ52
|
|
|
Spindle nose
|
A2-5
|
*A2-6
|
||
|
Max. Spindle speed
|
rpm
|
4500
|
*2000 *4000
|
|
|
Main motor power
|
kW
|
5.5/7.5
|
||
|
Axis
|
X travel
|
mm
|
450
|
|
|
Z travel
|
mm
|
410
|
||
|
X/Z rapid traverse
|
m/min
|
25/25
|
||
|
Toolpost
|
Type
|
Gang type
|
||
|
No. of tool stations
|
No.
|
5~9
|
||
|
OD tool and bore tool shank
|
mm
|
20X20/φ25
|
||
|
Structure
|
Inclined bed degree
|
45 ̊
|
||
|
Guideway type
|
LM
|
|||
|
Others
|
Power capaticy
|
kVA
|
12
|
|
|
Dimensions(LxWxH)
|
mm
|
2000X1800X1950
|
||
|
Weight (about)
|
kg
|
2800
|
||
|
Note: “*”means optional, “LM” means linear guideway.
|
||||
