Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

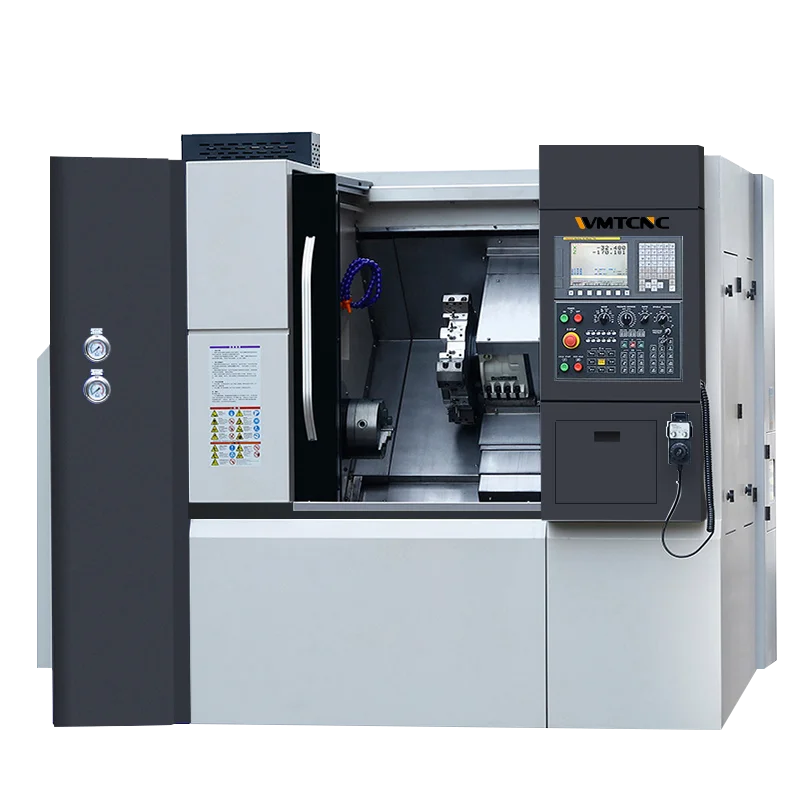

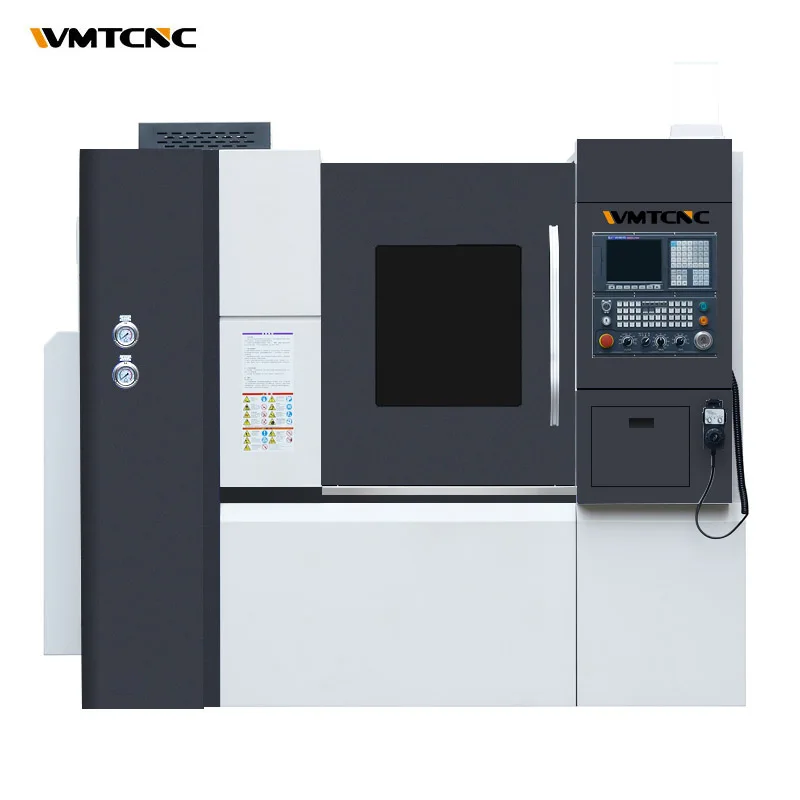

SHL450/320 CNC Slant Bed Lathe Machine from China

Main Features:

1. SHL lathes have a heavy-duty cast base with “true align” slant bed design.

2. The machine bed, headstock and turret are aligned on the same plane.

3. This design reduces heat built-up and resulting thermal expansion.

4. You can expect to produce highly accurate parts with extremely fine surface finishes.

5. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.

6. PLUS, properly aligned and balanced components.

7. Ture slant bed extremely minimizes the impact of thermal expansion to precision.

8. 45 degree slant bed is more convenient for scrap iron.

9. Better dynamics and higher precisions.

10. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.

11. Increasing the versatility and automation of the lathe.

12. Better water-resistant and scrap-iron-resistant.

Specification		Unit	SHL450/320
Capacity	Chuck size	inch	8″
	Max. swing dia. over bed	mm	Ø450
	Max. length of workpiece	mm	320
	Max. swing dia. over slide	mm	Ø220
Spindle	Spindle bore	mm	Ø62
	Max. dia. of through-hole	mm	Ø52
	Spindle nose	type	A2-6
	Spindle speed	rpm	4000
	Spindle speed	rpm	*2000
	Main motor power	kW	7.5/11
Axis	X axis travel	mm	250
	Z axis travel	mm	320
	X/Z rapid traverse	m/min	20/20
Turret	No. of tool stations	nos	8,*12
Turret	Tool shank size	mm	25X25,*20X20
Structure	Slant bed degree		45
Structure	Guideway type		LM
Others	Power capacity	kVA	15
	Overall dimension (LxWxH)	mm	2290X1600X1810
	Weight (about)	kg	3300
