Name: ▷ Buy New WMTCNC Variable Speed MPV290 Combination Lathe Milli Machine For Turning Milling Drilling With 220V/50HZ/Single-phase domestic () - Available at MachineryGenie.com
SKU: 1005004897713784
Price: 3091.50 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

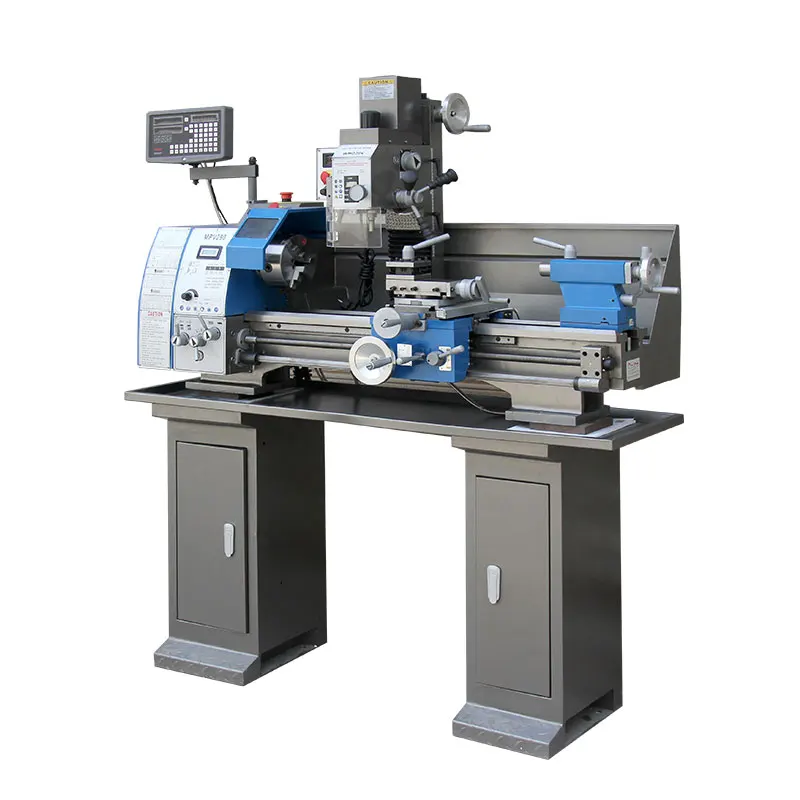

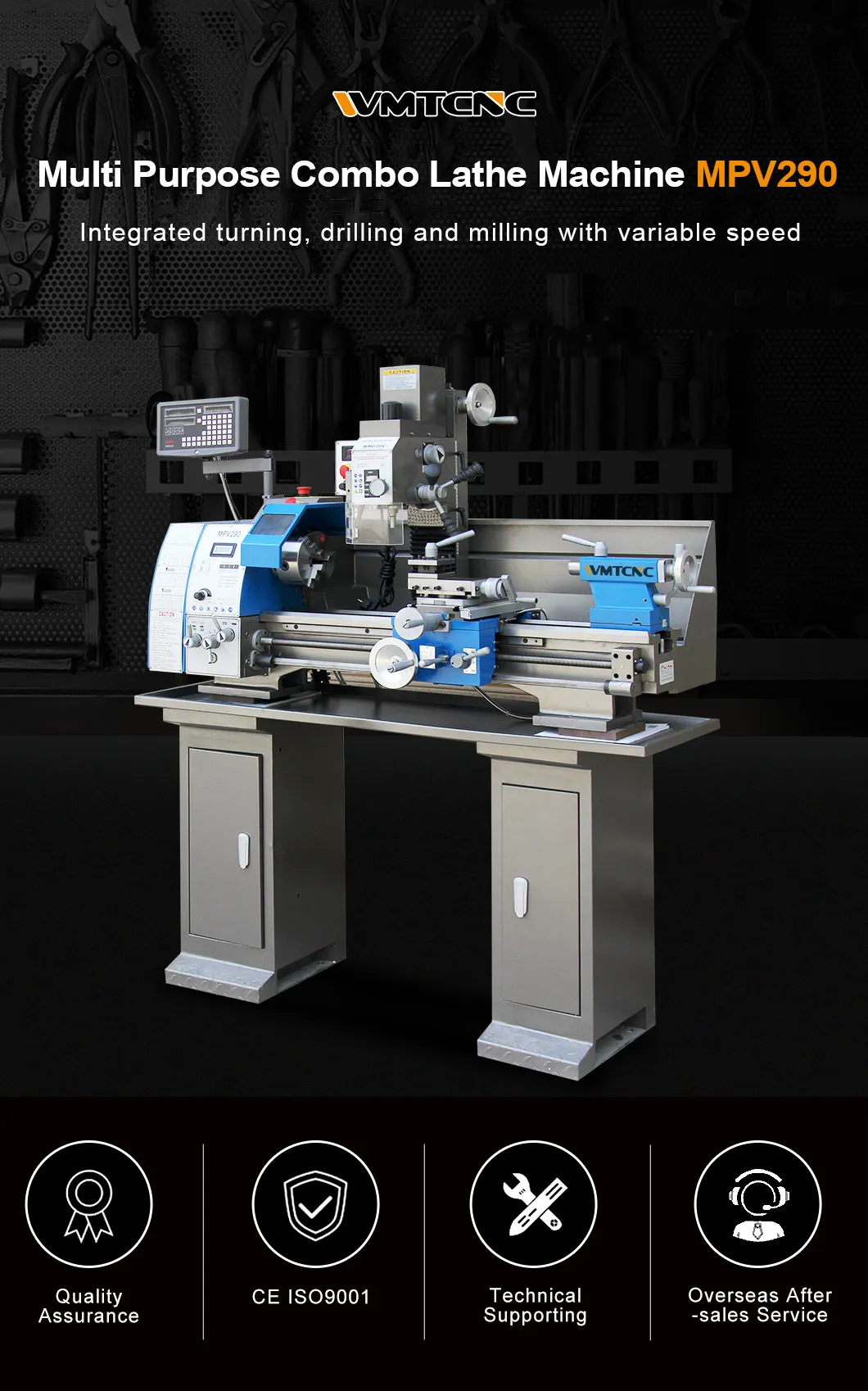

WMTCNC Variable Speed MPV290 Combination Lathe Milling Machine For Turning Milling Drilling With 220V/50HZ/single-phase domestic plug Voltage

Configuration Requirements:

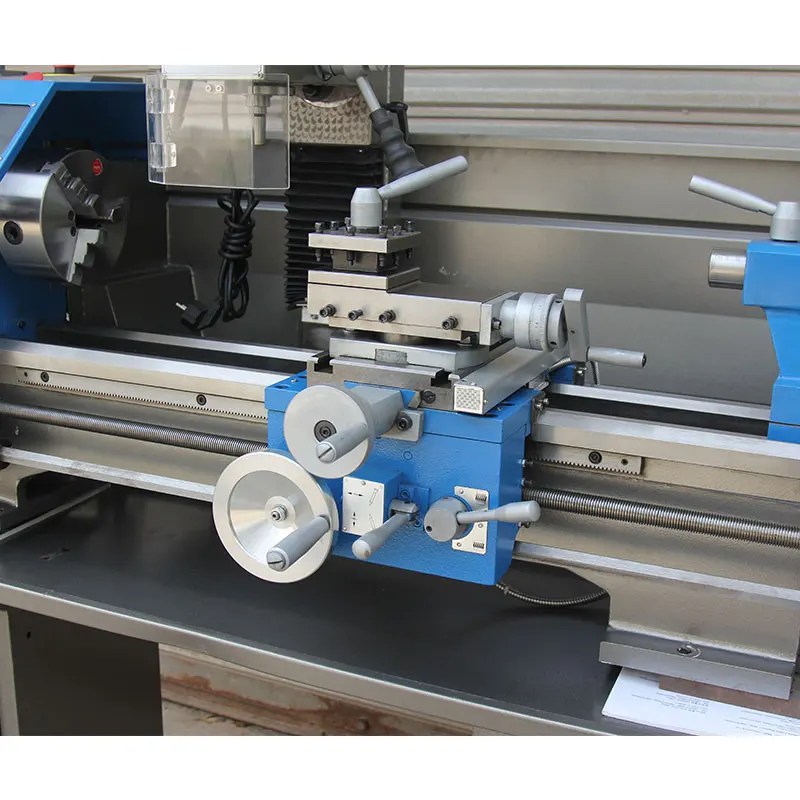

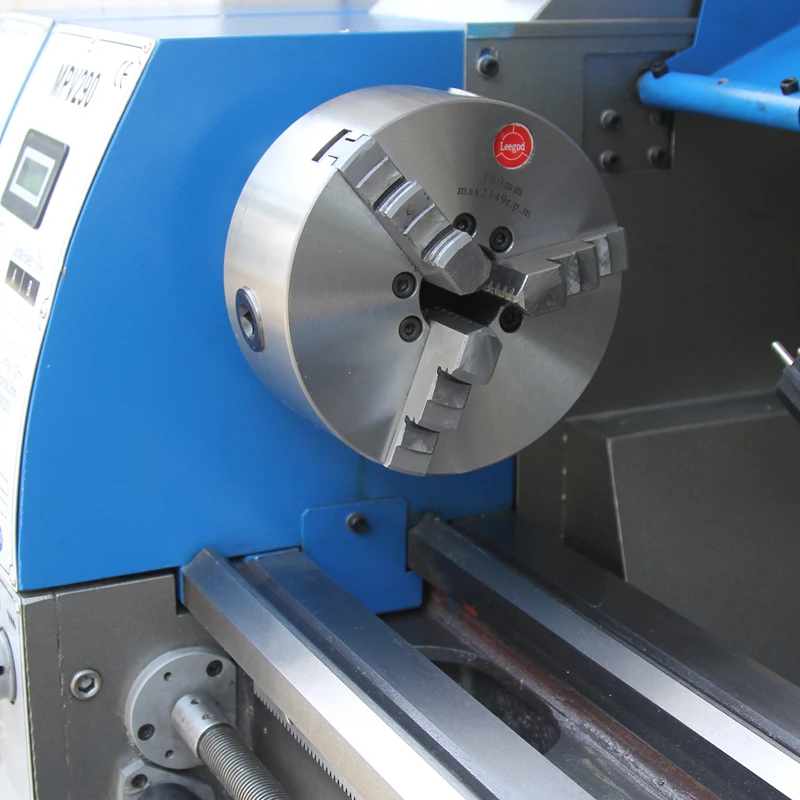

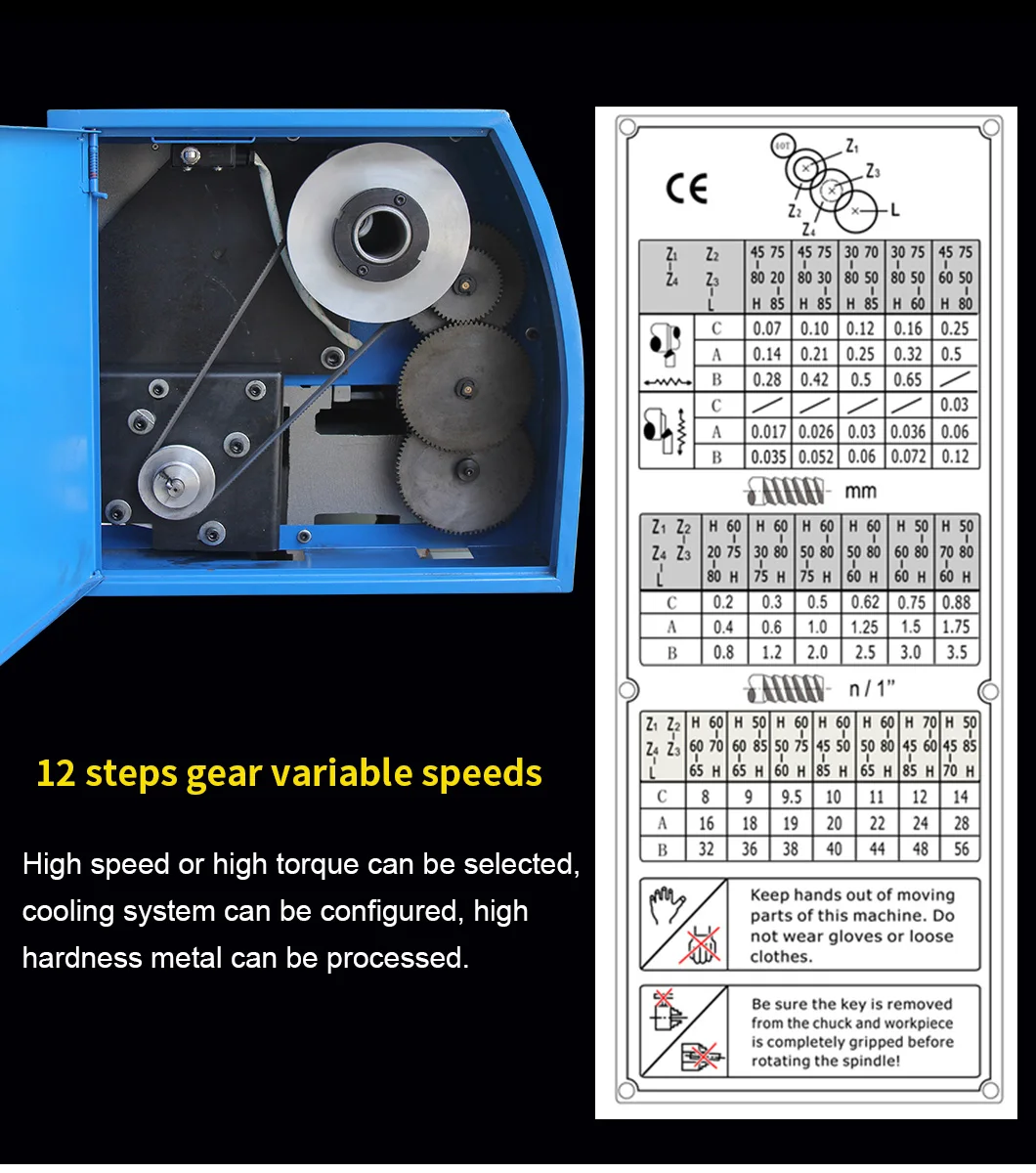

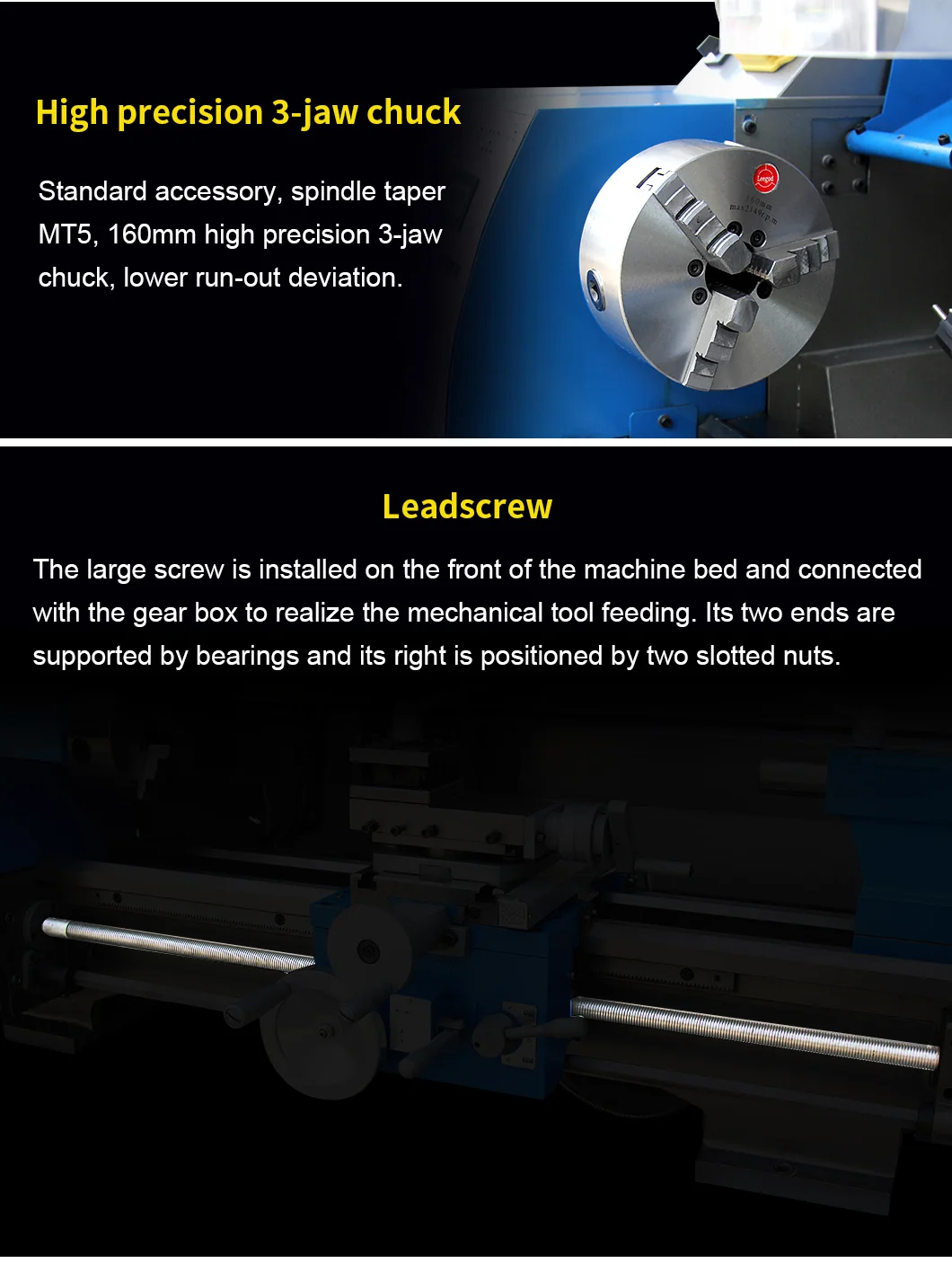

Combined lathe MPV290×700 has arc head shape, with chuck protective cover (with power off device), 3-jaw chuck, oil pan, chip guard, dead center, Change gears, Tool box with tools and other complete sets of accessories.

Drill chuck and spindle: HK20V drilling chuck and MT2 spindle.

Voltage: 220V/50HZ/single-phase domestic plug.

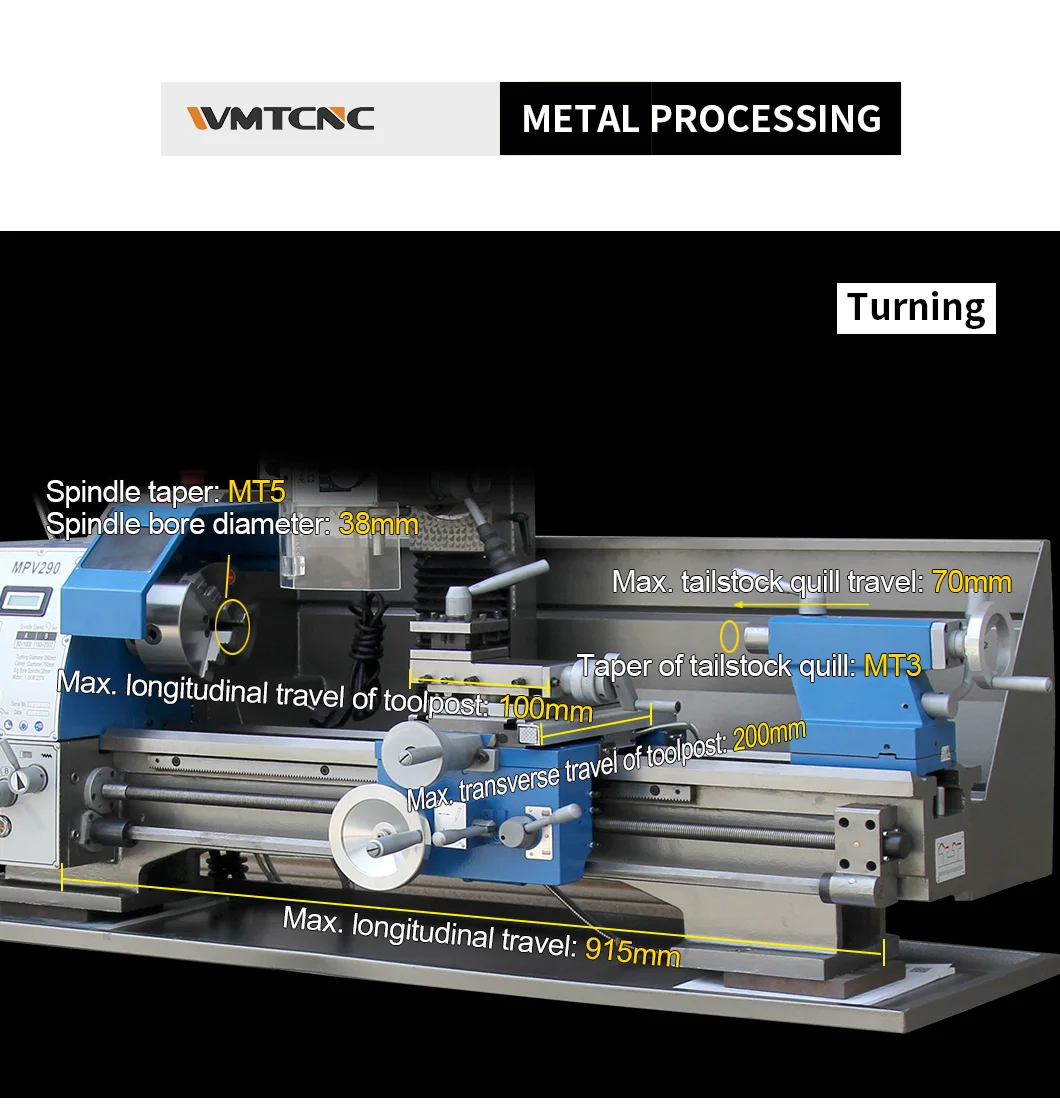

Specification	MPV290
Max.swingoverbed	290mm
Max.swingovercrossslide	165mm
Distancebetweencenters	700mm
Spindletaper	MT5
Widthofbed	180mm
Spindlebore	38mm
Rangeofspindlespeeds（variablespeed）	80-2000rpm
Rangeofcrossfeed	0.01-0.10mm/rev
Rangeoflongitudinalfeed	0.085-0.832mm/rev
Rangeofinchthreads	8-56T.P.I
Rangeofmetricthreads	0.2-3.5mm
Topslidetravel	70mm
Crossslidetravel	160mm
Tailstockquilltravel	70mm
Taperoftailstockquill	MT3
Motorpower	1.5kw
Drillingandmillinghead	ZAY7020V
Spindletaper	MT2
Spindletravel	52mm
Rangeofspindlespeeds（variablespeed）	50-2250rpm
Max.distancefromspindlenosetotable	380mm
Max.distancefromspindletocolumm	190mm
Motorpower	750w

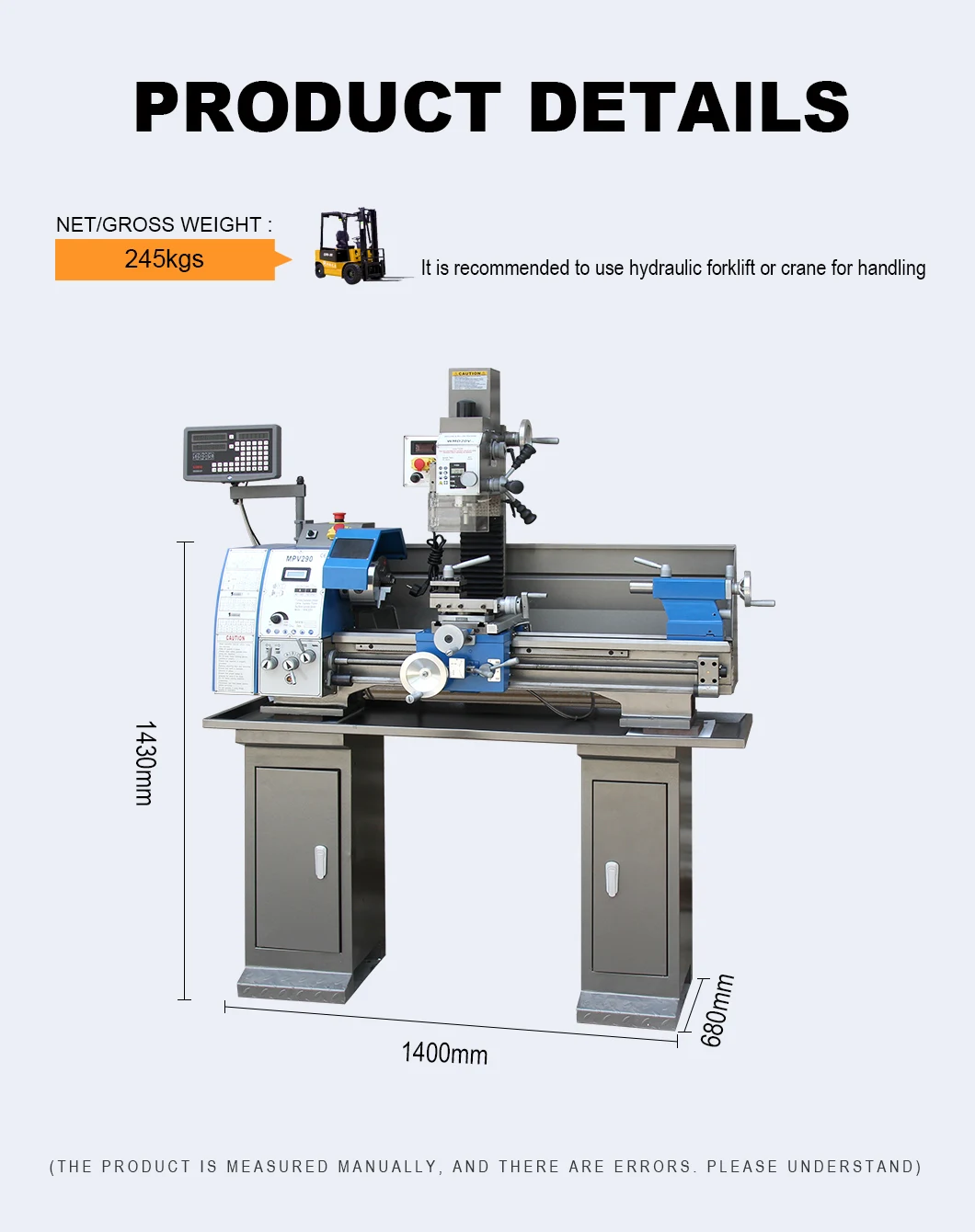

Packingsize（formachine）	1450×700×1040mm
Packingsize（forstand）	800x580x415mm
N.W	325kgs
