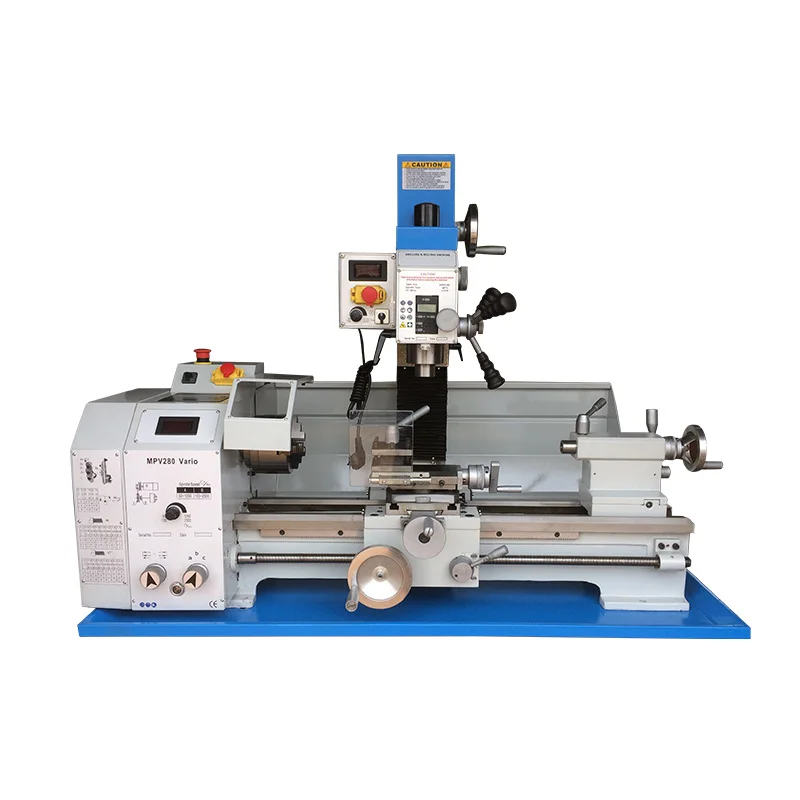

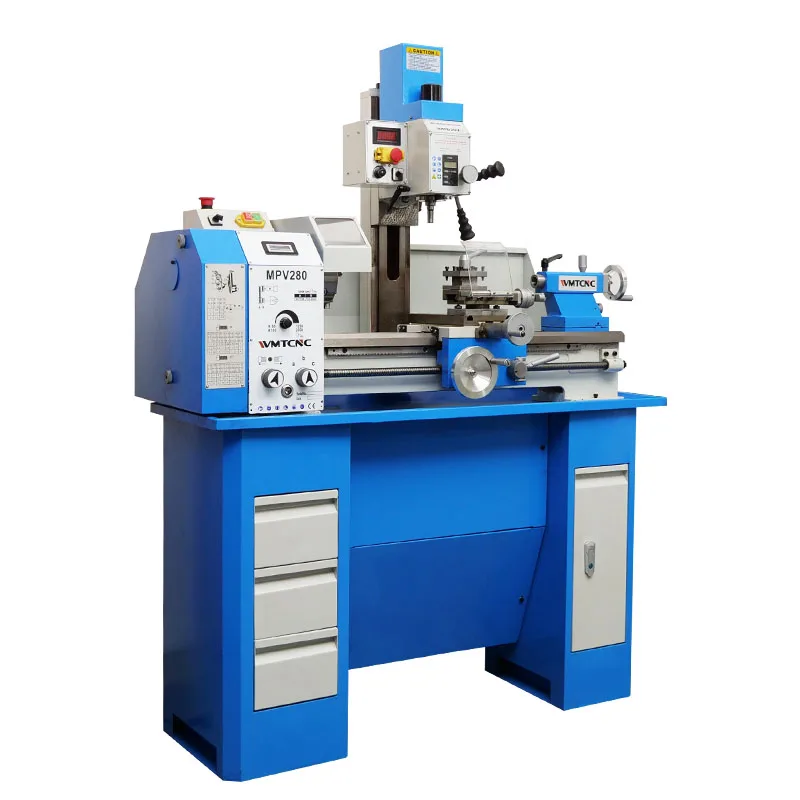

Name: ▷ Buy New WMTCNC MPV280 Multi Purpose Machine Lathe Drilling Milling Combined Function () - Available at MachineryGenie.com
SKU: 1005005856912516
Price: 3105.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Feature:
1. Adjustable height drill/mill head increases capacity
2. Fine feed handle and clutch for precision milling
3. Spindle is supported by high precision bearing
4. Headstock is constantly oiled during operation

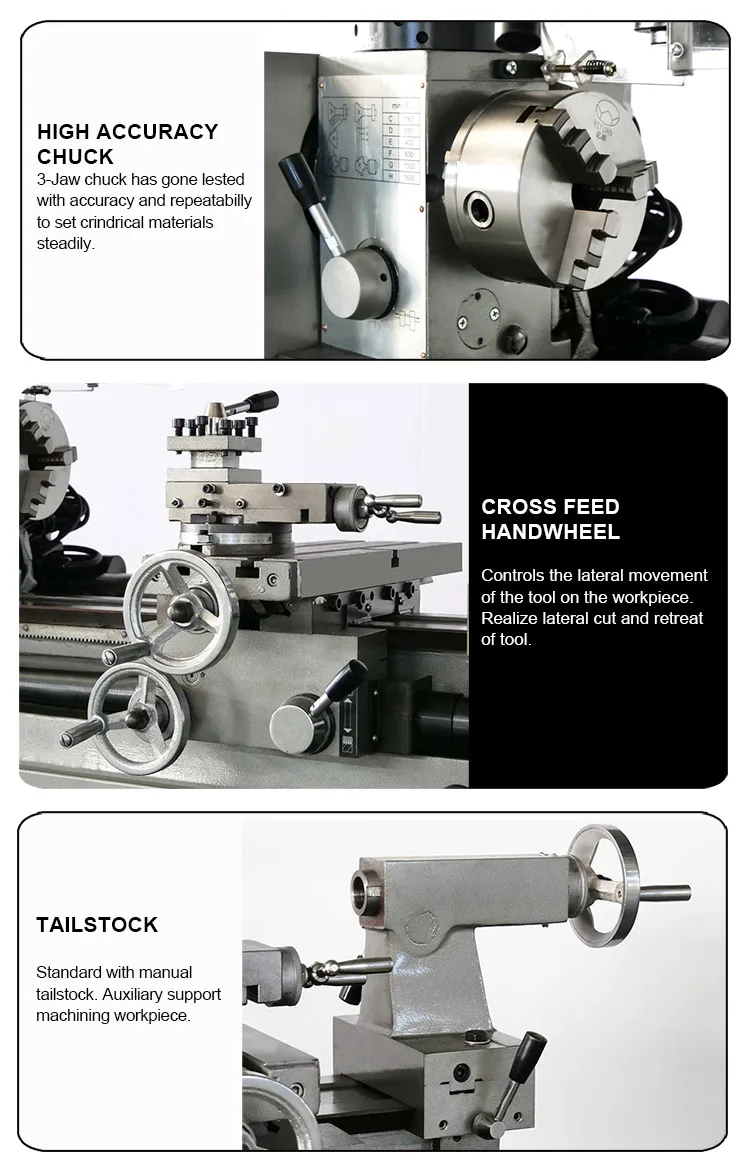

5. T-slot cross slide
6. Adjustable gibs for the slideway
7. Power longitudinal & cross feed
8. Gearbox gets left and right hand threads to cut
9. Tailstock can offset for turning taper

Specification

AT300-5

Max. swing diameter over bed

300mm

Max.distance between centers

470mm

Max. cross travel of worktable

160mm

Spindle bore

26mm

Spindle taper

MT4

Range of spindle speed

160-1600r/min

Top slide travel

80mm

Metric thread range

0. 5-3mm

Inch thread range

11-40 1/n”

Quill travel

40mm

Quill taper

MT3

Motor power

0.55kw

Max.drilling capacity

15mm

Spindle speed

125-1600r/min

Spindle taper

MT3

Spindle stroke

80mm

Spindle nose to table

170-250mm

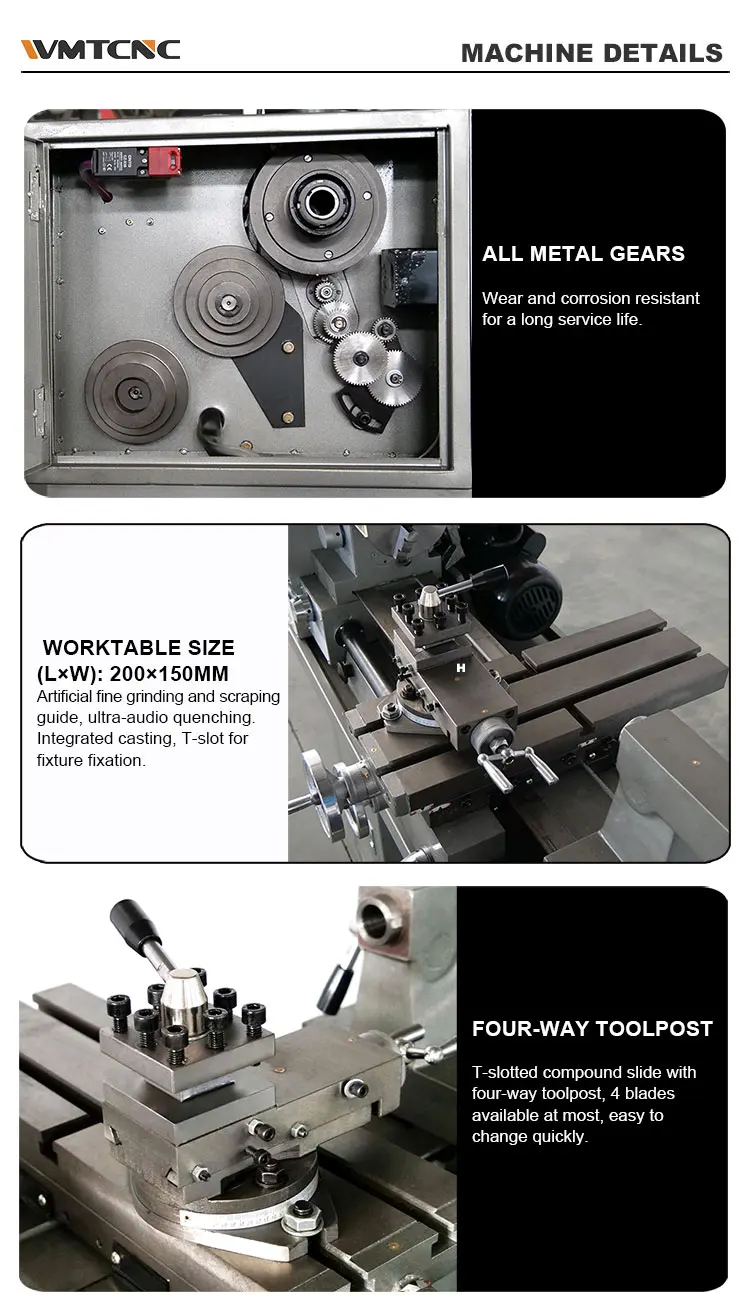

Working table size

425*150mm

Head rotation in vertical

360°

Motor power

N/A

Packing size

1160*580*600

N.w/G.w

190kg

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
