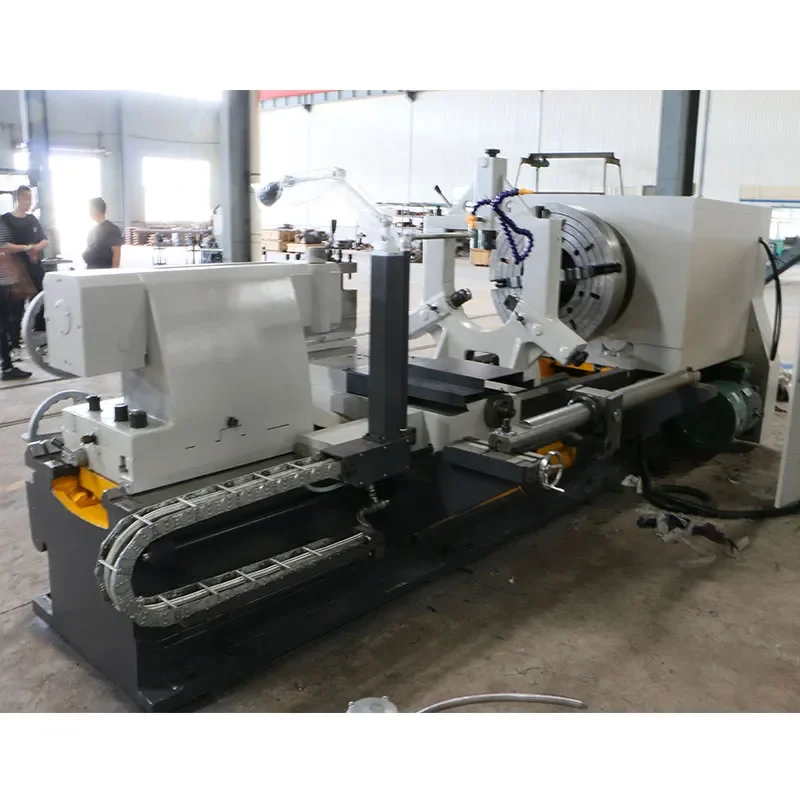

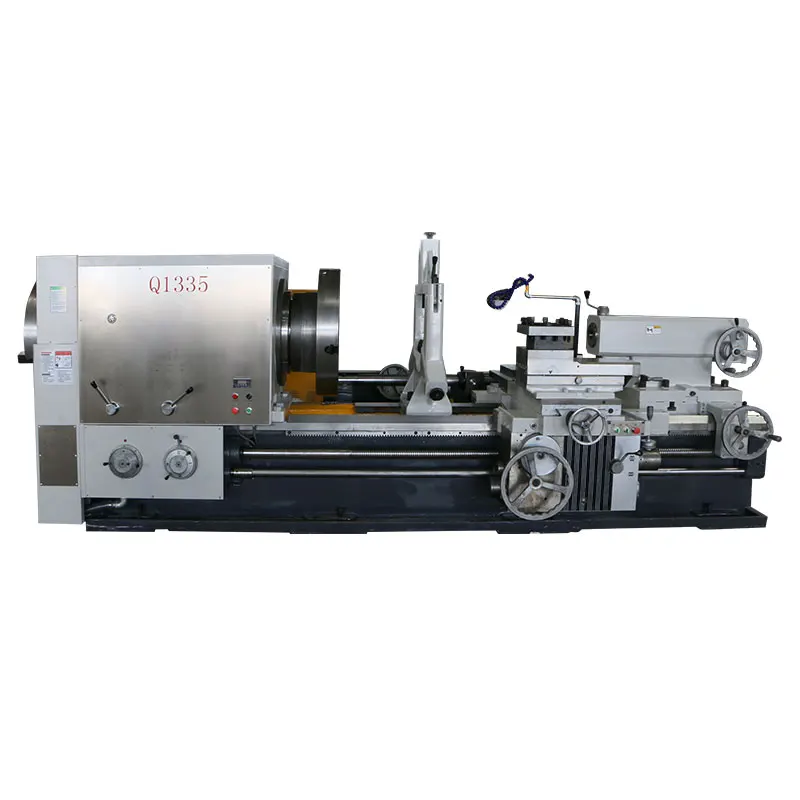

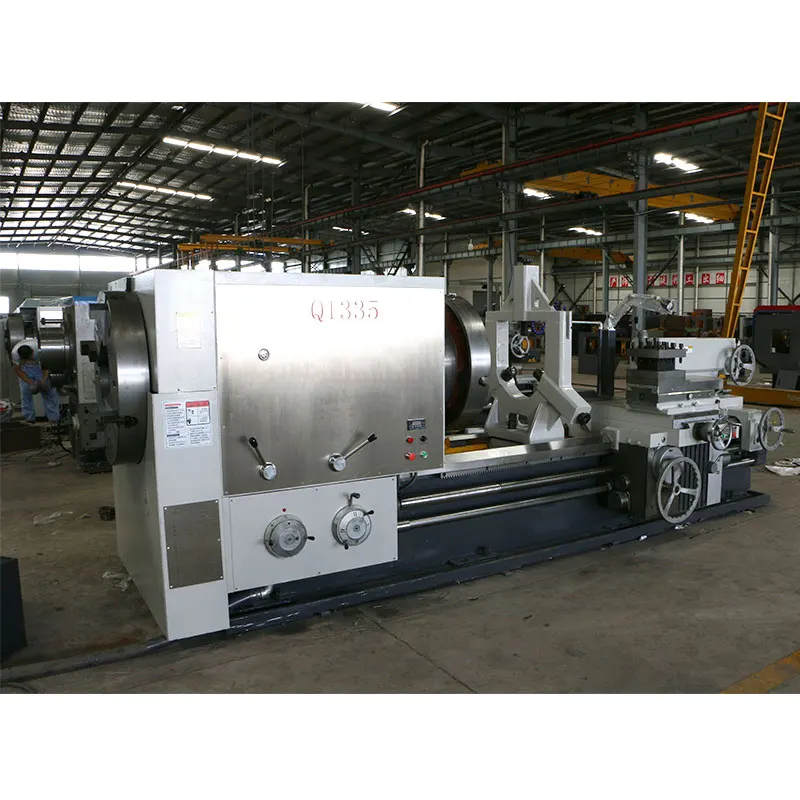

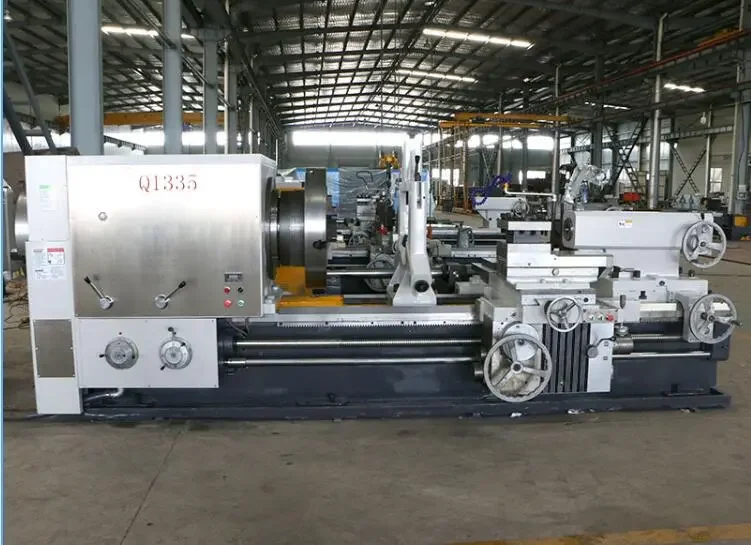

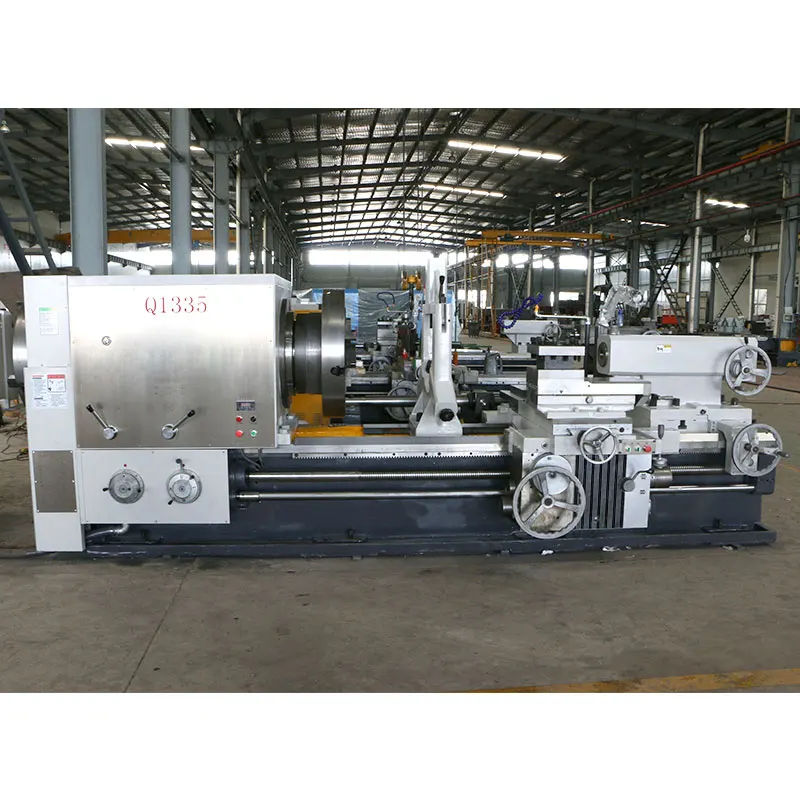

Q1335 (360mm Big Spindle Bore) Pipe Threading Lathe Machine with CE Protection
A$86,795.49
- USD: $58,684.50
- GBP: £46,583.20
- EUR: €54,246.83
- JPY: ¥8,786,355
- CNY: ¥407,812.55
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
|
（Item） |
（Unit） |
Q1335 |
Q1343 |
Q1353 |
|
Max dia.swing over bed
|
mm
|
1000
|
1200
|
|
|
Max dia.swing over cross slide
|
mm
|
610
|
810
|
|
|
Max.length of work-piece
|
mm
|
1500
|
||
|
Width of bed
|
mm
|
755
|
||
|
Spindle bore
|
mm
|
360
|
440
|
540
|
|
Power of spindle motor
|
Kw
|
22
|
||
|
Spindle speed
|
r/min
|
6-200
VF2 steps |
5-180
VF2 steps |
5-180
VF2 steps |
|
Z axis feed grade/range
|
mm/r
|
32/0.1-1.5
|
||
|
X axis feed grade/range
|
mm/r
|
32/0.05-0.75
|
||
|
Carriage rapid traverse speed
|
mm/min
|
3740
|
||
|
Cross slide rapid traverse speed
|
mm/min
|
1870
|
||
|
Metric thread grade/range
|
mm
|
23/1-15
|
||
|
Inch thread grade/range
|
T.P.I
|
22/28-2
|
||
|
Traverse of cross slide
|
mm
|
520
|
||
|
Max. Traverse of turret
|
mm
|
300
|
||
|
Tailstock quill travel
|
mm
|
300
|
||
|
Tailstock quill Dia./taper
|
mm
|
Φ140/莫氏6号（MT6#）
|
||
|
Chuck
|
Φ850
4-jaw eletric |
Φ1000
4-jaw eletric |
||
|
Overall dimensions(L*W*H)
|
mm
|
5000×2100×1680
|
5000×2100×1680
|
5000×2100×1700
|
|
Net weight
|
T
|
12.8
|
13
|
15
|
