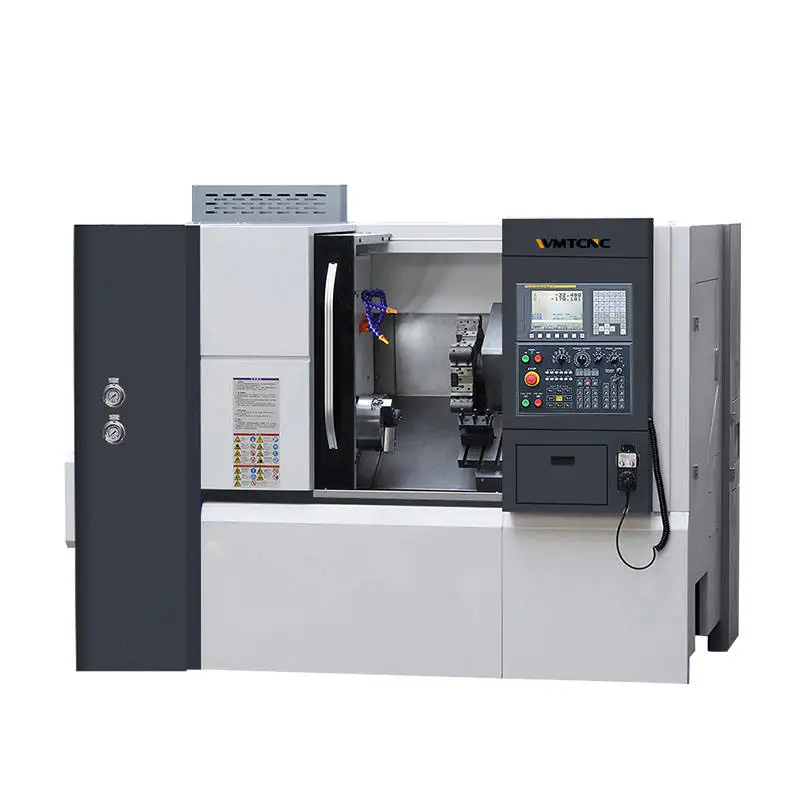

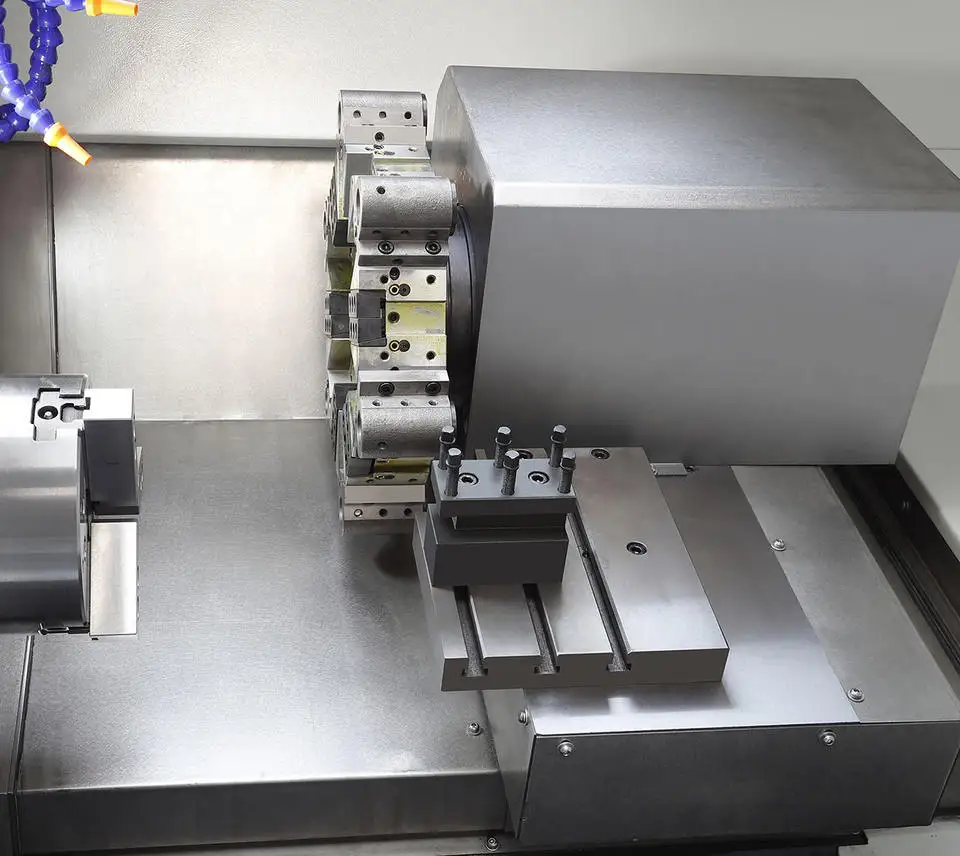

SHL400/350 CNC Torno Machines Slant Bed Lathe with 8-Station Servo Turret

Main Features:

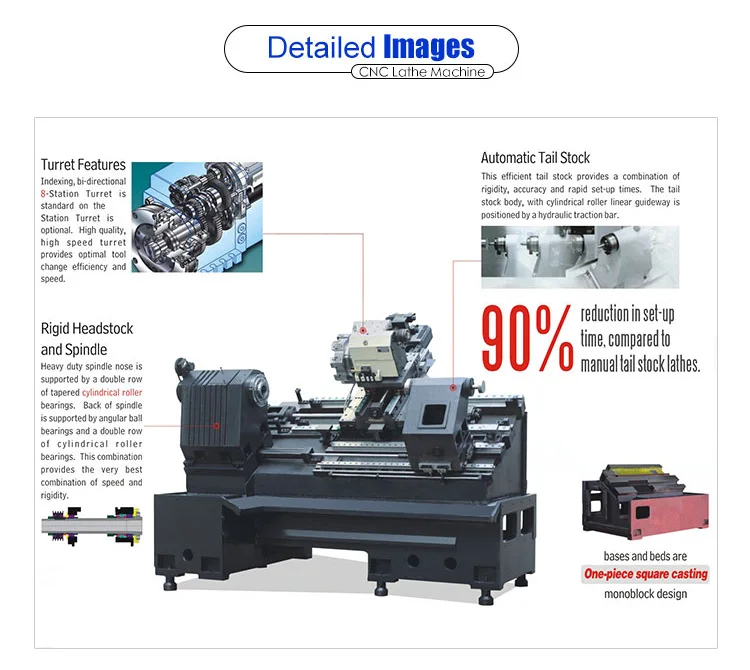

1. SHL lathes have a heavy-duty cast base with “true align” slant bed design.

2. The machine bed, headstock and turret are aligned on the same plane.

3. This design reduces heat built-up and resulting thermal expansion.

4. Additional resulting efficiencies from the “true align” design are greater rigidity and smoother operation which provides a variety of benefits.

5. You can expect to produce highly accurate parts with extremely fine surface finishes.

6. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.

7. PLUS, properly aligned and balanced components.

8. The SHL400 CNC slant bed lathe features a mono-block bed/ spindle design for increased rigidity, vibration damping and small footprint.

9. Ture slant bed extremely minimizes the impact of thermal expansion to precision.

10. 35 degree bed slant is more convenient for scrap iron;

11. Better dynamics and higher precision;

12. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable;

13. Increasing the versatility and automation of the lathe;

14. Better water-resistant and scrap-iron-resistant.

Specification		Unit	SHL400/250 (/350)
Capacity	Chuck size	inch	6″, 8″, 10″
	Max. swing dia. over bed	mm	Ø400
	Max. length of workpiece	mm	250,*350
	Max. swing dia. over slide	mm	Ø210
Spindle	Spindle bore	mm	Ø55	*Ø62	*Ø81
	Max. dia. of through-hole	mm	Ø46	*Ø52	Ø70
	Spindle nose	type	A2-5	*A2-6	*A2-8
	Spindle speed	rpm	4500	2000	*1600
			*5000	*4000	*2500
	Main motor power	kW	5.5/7.5
Axis	X axis travel	mm	250
	Z axis travel	mm	250,*350
	X/Z rapid traverse	m/min	20/25

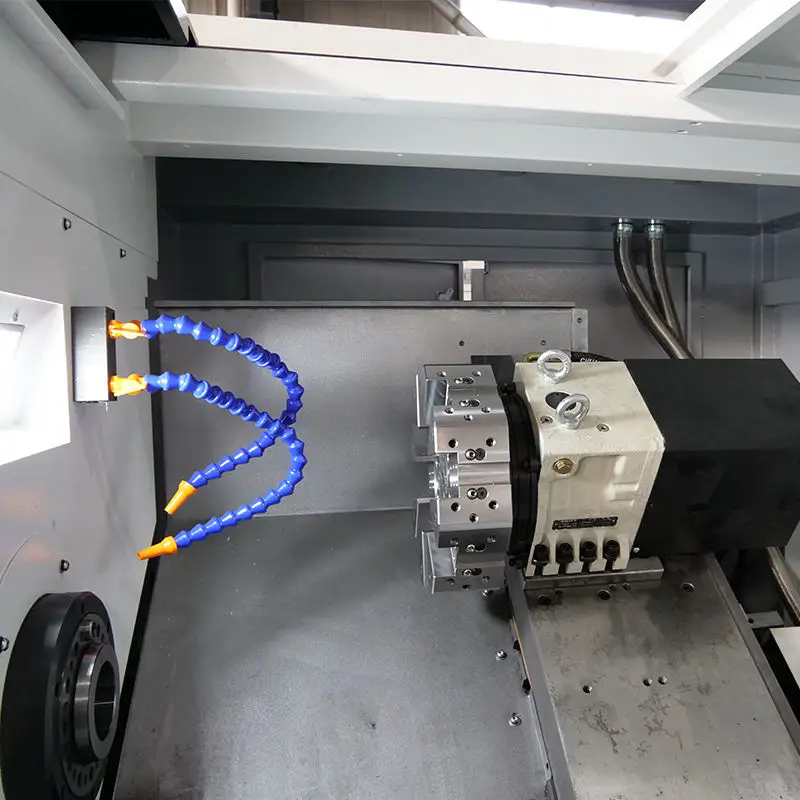

Turret	No. of tool stations	nos	8,*12
	Tool shank size	mm	20X20,*25X25
Structure	Slant bed degree		35
	Guideway type		LM
Others	Power capacity	kVA	13
	Overall dimension (LxWxH)	mm	2520X2050X1960
	Weight (about)	kg	2500
