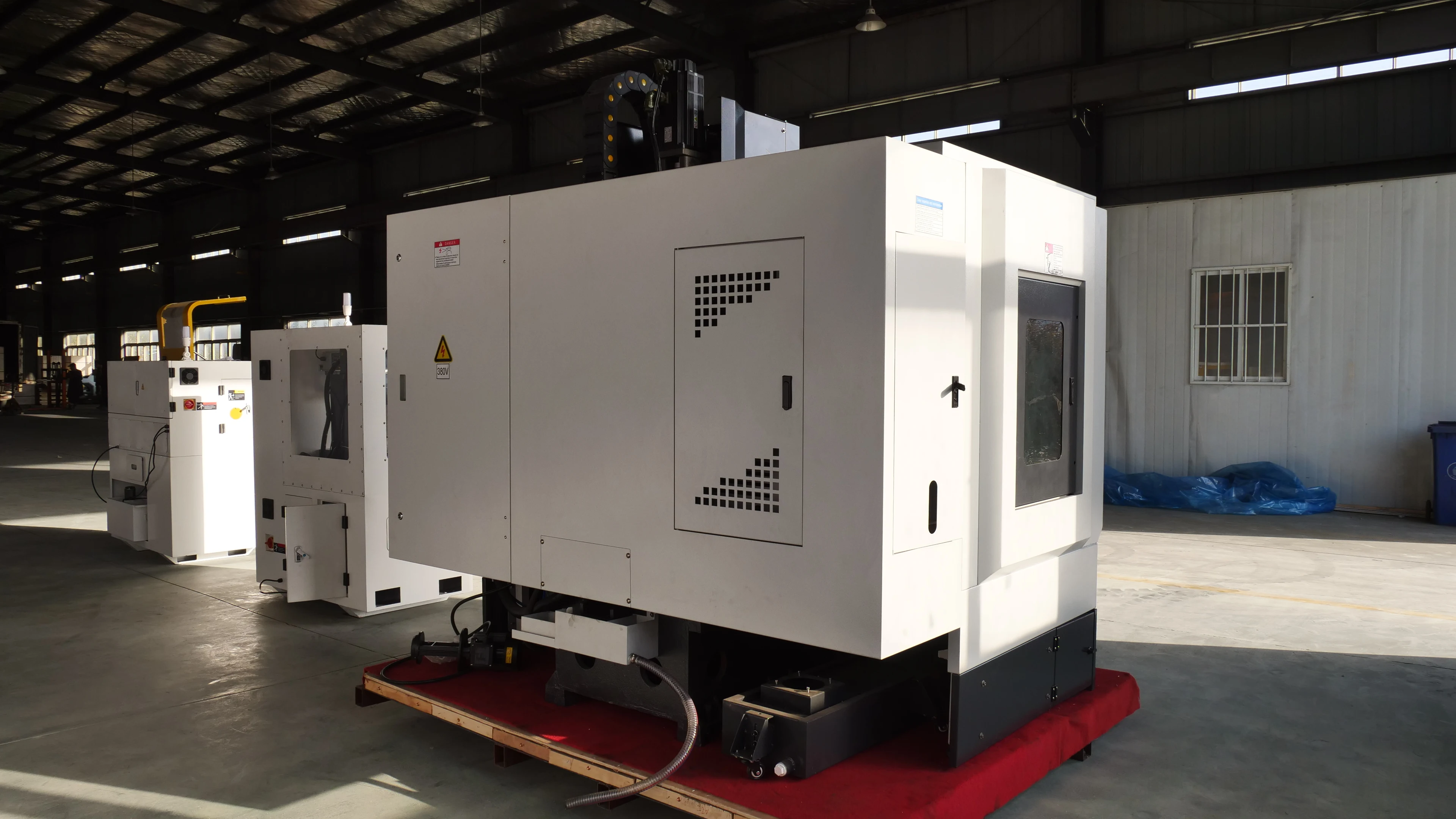

Hot Selling XH7126 CNC Milling Machine with CE
€21,489.08
- USD: $23,247.00
- AUD: A$34,382.76
- GBP: £18,453.25
- JPY: ¥3,480,585
- CNY: ¥161,548.93
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]

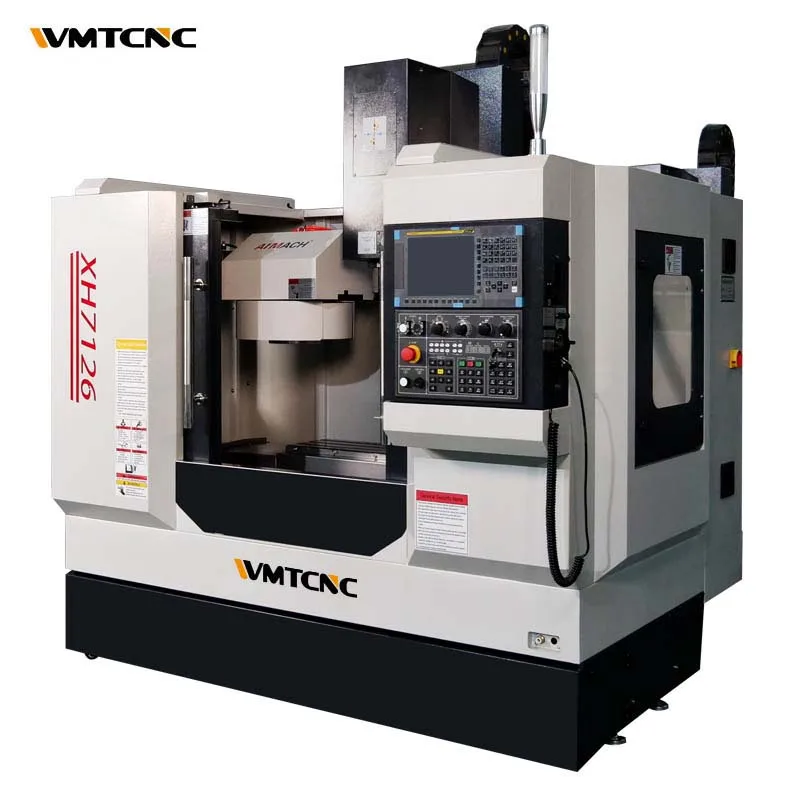

XH7126 CNC Milling Machine with CE
Features:
1.High Precision hard guideway and screw.
2.Taiwan-made spindle unit,6000,8000rpm speed available.
3.Reliable Control System: Fanuc,Siemens,Mitsubishi,GSK.
4.Automatic Central Lubrication System.
5.Taiwan OKADA Funnel Type 10T/12T ATC can be choosen.
|
Specification
|
XH7126
|
|
Worktable size（LxW）
|
800x260mm
|
|
T-slot (NxWx D)
|
3/14/80mm
|
|
X axis travel
|
450mm
|
|
Y axis travel
|
320mm
|
|
Z axis travel
|
450mm
|
|
Distance from spindle nose to worktable surface
|
90-470mm
|
|
Distance from spindle center to column
|
360mm
|
|
Rapid feed speed（X/Y/Z)
|
15/15/15m/min
|
|
Spindle taper
|
BT40
|
|
Spindle speed range
|
6000rpm
|
|
Main motor power
|
3.7kw
|
|
AC servo motor torque（X/Y/Z)
|
6/6/7.7N.m
|
|
Over size(LxWxH)
|
2100x1800x1960mm
|
|
N.W
|
2400kgs
|
Specification
Additional information
| Weight | 100 kg |
|---|
