Name: ▷ Buy New Hot Selling VMC1580L Heavy Duty 4 Axis Vertical Machining Center with CE () - Available at MachineryGenie.com
SKU: 1005005353503903
Price: 101115.00 JPY
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

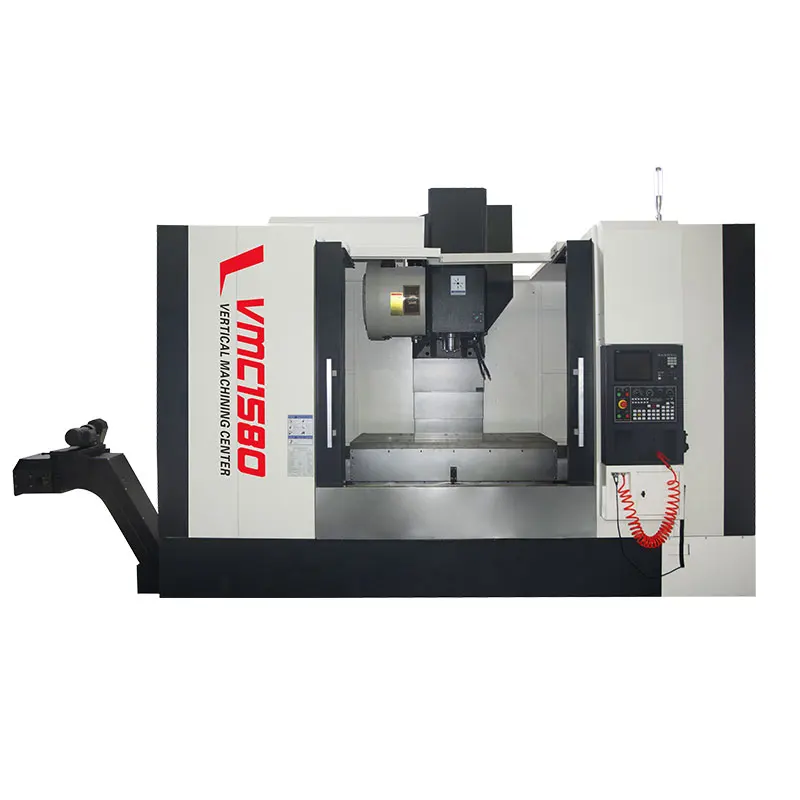

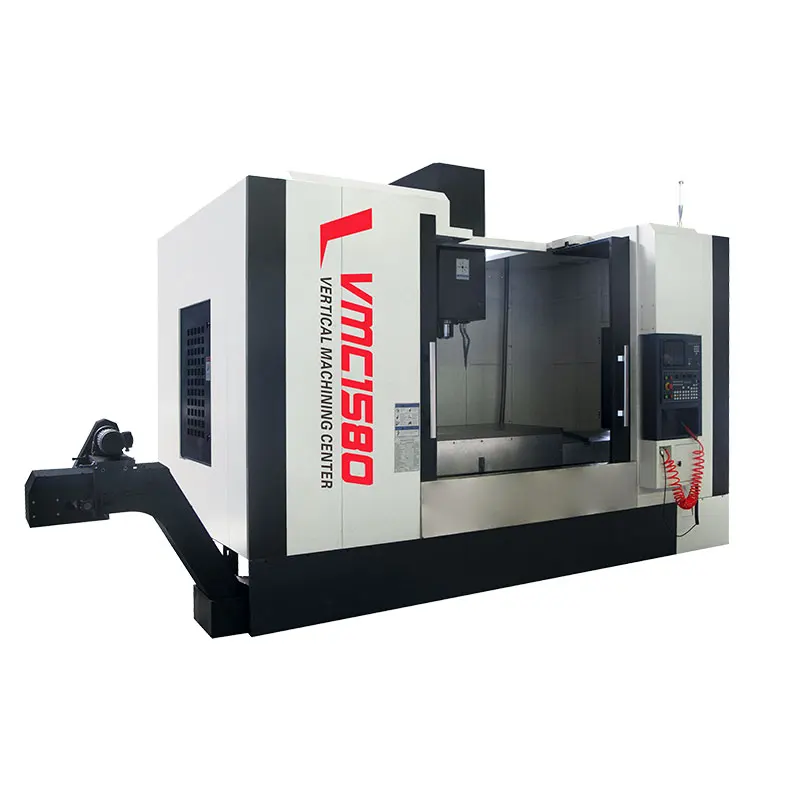

VMC1580L Heavy Duty 4 Axis Vertical Machining Center with CE

Specification	VMC1580L
Worktable size(LxW)	1600x800mm
T-slot (NxWx D)	7x22x110mm
X/Y/Z axis travel	1500/800/700mm
Distance from spindle center to column	865mm
Distance from spindle nose to worktable surface	185-885mm
Spindle taper	BT50
Spindle power	15/18.5kw
Max.spindle speed	6000rpm
Max.feed speed	8m/min
Rapid feed speed(X/Y/Z)	20/20/12m/min
X/Y/Z axis ball screw	5010
Tool magazine capacity	24t
Tool change time(T-T)	3.5s
Positioning accuracy(X/Y/Z)	±0.015mm
Re-positioning accuracy(X/Y/Z)	±0.010mm
LxWxH	4300x3600x3200mm
Max.loading of worktable	1500kgs
Machine weight	15000kg
