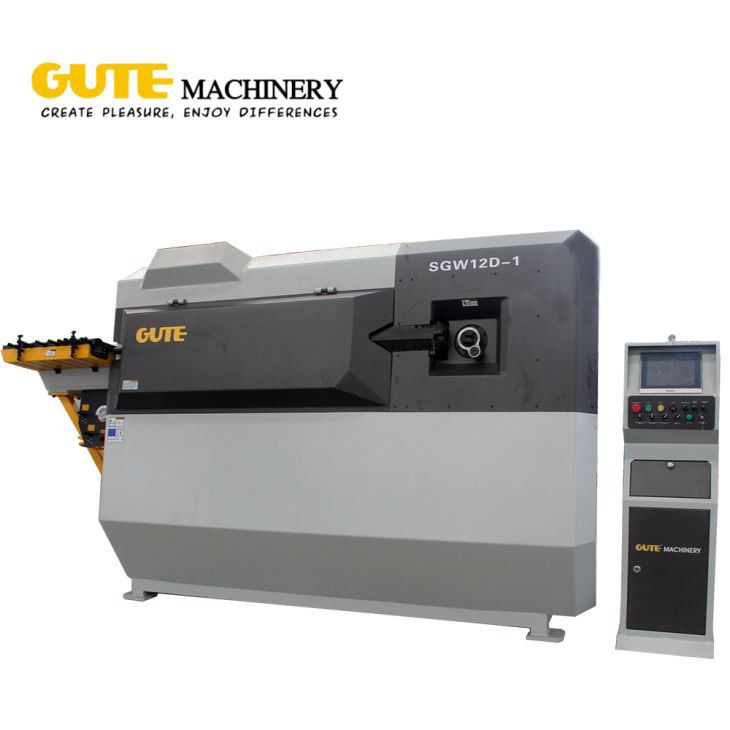

GUTE Machinery SGW12D-1 Cnc Steel Bar Stirrup Benders

Contact this seller for accurate pricing

In stock

Automatic rebar stirrup bending machine,steel wire bender hine equipped with imported PLC system and servo motor, which can perform steel bar straightening, sizing, bending process and cutting etc. For the machine, the max bending diameter of steel bar is 12mm, it also can transfer steel bar to…

  Chat Now
SKU: GUTE-SGW12D-1-1 Categories: , Brand:

Description

Product Details


Automatic rebar stirrup bending machine,steel wire bender hine equipped with imported PLC system and servo motor, which can perform steel bar straightening, sizing, bending process and cutting etc. For the machine, the max bending diameter of steel bar is 12mm, it also can transfer steel bar to many types of geometrical shapes. The stirrup benders are extensively used in construction, large-scale reinforcing bar process factories etc.

Features:

1.Adopts servo controlling system to make the steel bar bending automatically .

2.Easy to operate because all the operating buttons are on the station.

3.Continuously bend various stirrup of plane figure;

4.Electrical control system adopts CNC system

5.High efficiency and accurate processing precision.

6.Lower noise and increase the durability and service life of the machine

7.Widely used in construction industry and rebar manufacturing enterprise.

CNC STEEL BAR STIRRUP BENDER SGW12D-1

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

6-12 mm

5-11 mm

DOUBLE WIRE BENDING

6-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)

MAX. BENDING ANGLE

180°

MAX. LENGTH OF STIRRUP SIDE

900 mm

MIN. LENGTH OF STIRRUP SIDE

90 mm

MAX. BENDING SPEED

1050°/sec

MAX. TRACTION SPEED

75-100 m/min

TRACTION SERVICE MOTOR POWER

13KW

BENDING SERVICE MOTOR POWER

7KW







Hot Tags: cnc steel bar stirrup benders, manufacturers, suppliers, price
