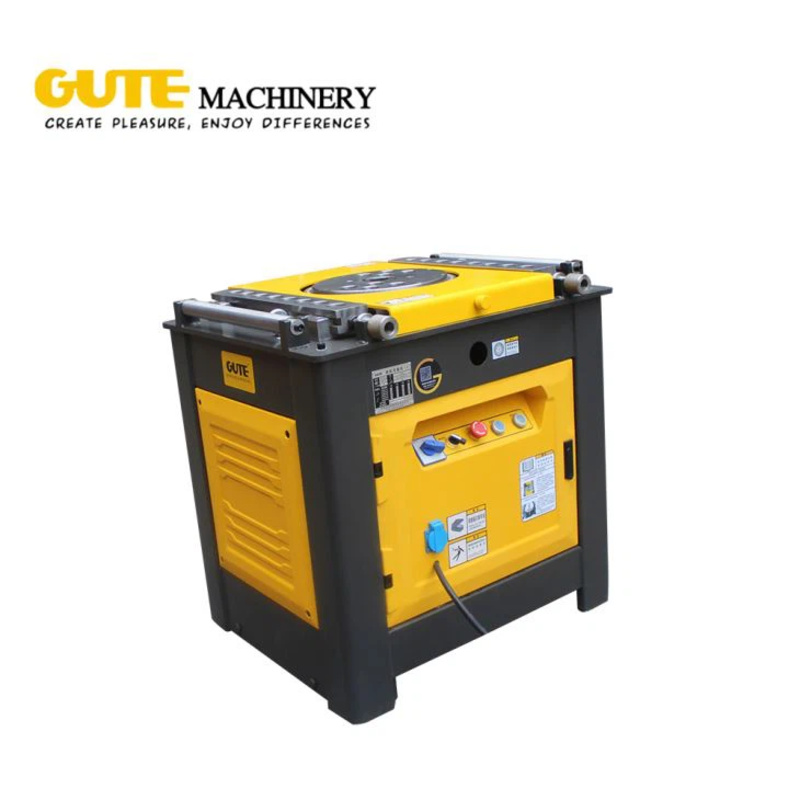

Gute Machinery GW50C-4 Manual Bar Bending Machine

Contact this seller for accurate pricing

In stock

Gute Machinery GW50C-4 Manual Bar Bending Machine

  Chat Now

Description

• GW50C bar bending machine adopts the fully enclosed GEAR BOX for less distortions even under the condition of heavy loads.

• GEARS, GEAR SHAFTS, WORKING DISK, STOP GAUGE, SADDLES, PILE HEAD and PILE HEAD BUSHES made of forged high-quality alloyed steel with proper heat treatment (quenching/ tempering/ high frequency) and 2 mm thick external case to ensure high performances also under heavy loads and long working life(10 years warranty for inside bending gear).

• Dust proof BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.

• Insert-pin type disk and movable saddles for a precise adjusting of the bending angle.

• CE Certification (2006/42/EC – 2006/95/EC).

MOTOR TYPES

GW50C-4 (automatic) • MOTOR TYPE: YEJ 112M-4 DUST PROOF (Brake motor)

• MOTOR POWER: 4,0 kw-4P GW50C-1 (manual)

• MOTOR TYPE: Y 112M-4 DUST PROOF

* Both kinds of motors automatic and manual have 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

FREQUENCY OPTIONS: 50Hz / 60Hz

STEEL BAR BENDER GW50C AUTOMATIC / MANUAL

Bending Capacity

6-42mm (ob ≤450N/mm2)

6-40 mm (ob ≤650N/mm2)

Operation

Automatic(GW50C-4)

Manual(GW50C-1)

Type of Motor

YEJ 112M-4 (Brake motor)

Y 112M-4

Motor Power

4 KW-4P

4 KW-4P

Motor Rotation Speed

1440 R/min

1440 R/min

Speed of Working Disk

9 R/min

9 R/min

Noise Value (1m away)

≤75dB(A)

≤75dB(A)

Weight

476 Kg.

465Kg.

Dimension

1000*800*900 mm

1000*800*900 mm

Certification

ISO 9001:2008

Packaging & Shipping

Production Flow

overseas partner

Attachments (PDF)


Specification

Additional information

Weight 476 kg
Dimensions 100 × 800 × 900 cm
