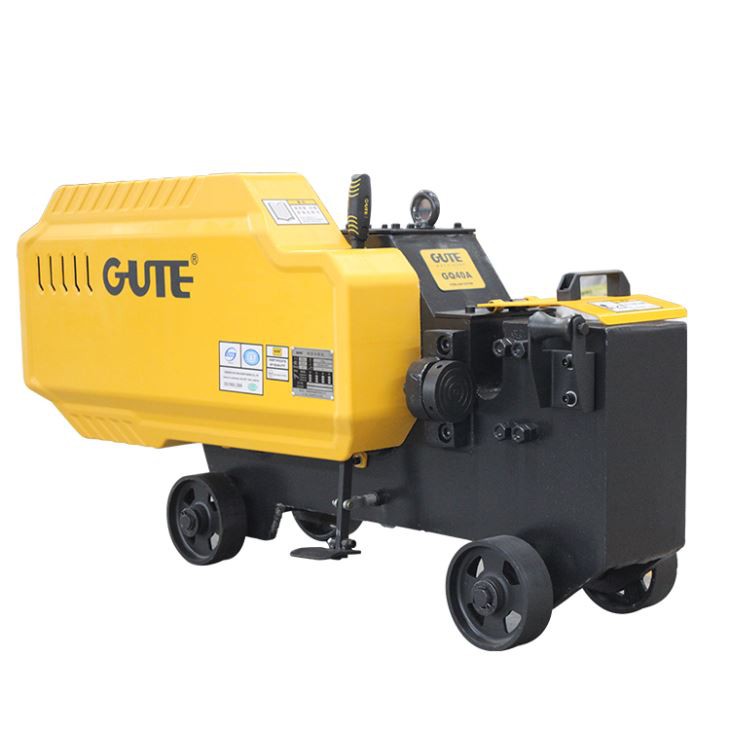

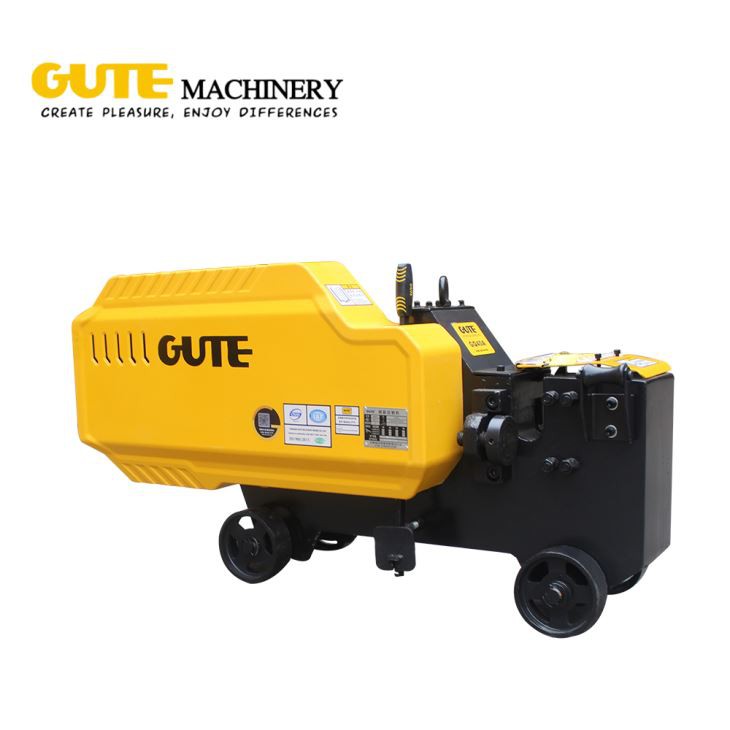

GUTE Machinery GQ40 Electric Bar Cutter

Contact this seller for accurate pricing

In stock

Features (GQ40):

Cutting Diameter: 6-36mm

Motor Power: 3kw-2p

Cutting Speed: 32T/min

Weight: 400kg

  Chat Now
SKU: GUTE-GQ40-E Categories: , Brand:

Description

Product Details


PRODUCT DESCRIPTION

1.High hardness blade base and connection rod. Using high speed standard motor, high quality and steady performance, longer service life

2.All the gear shafts are produced by our own CNC processing center, high accuracy of size and excellent quality

3.All gears are extra thick and heavy, the whole machine is extra thick

4.Crank shaft is made by Cr40, high hardness and corrosion resistance, can work in heavy duty

5.Specification of rebar cutting machine

STEEL BAR CUTTER GQ40

CUTTING CAPACITY

6-36 mm (ob ≤450N/mm2)

6-34 mm (ob ≤650N/mm2)

FLAT STEEL

32 x 32 mm



ANGLE STEEL

50 x 50 mm



TYPE OF MOTOR

Y100L-2



MOTOR POWER

3 KW-2P



MOTOR SAFETY

IP44, IP54, IP55



MOTOR ROTATION SPEED

2860 R/min



CUTTING SPEED

32 T/min



WEIGHT

380 Kg.



EXTERNAL DIMENSIONS

1280 X 460X 700mm



CERTIFICATION

2006/42/EC – 2006/95/EC
