Gute Machinery SGW12T CNC STEEL BAR STIRRUP BENDER

Contact this seller for accurate pricing

In stock

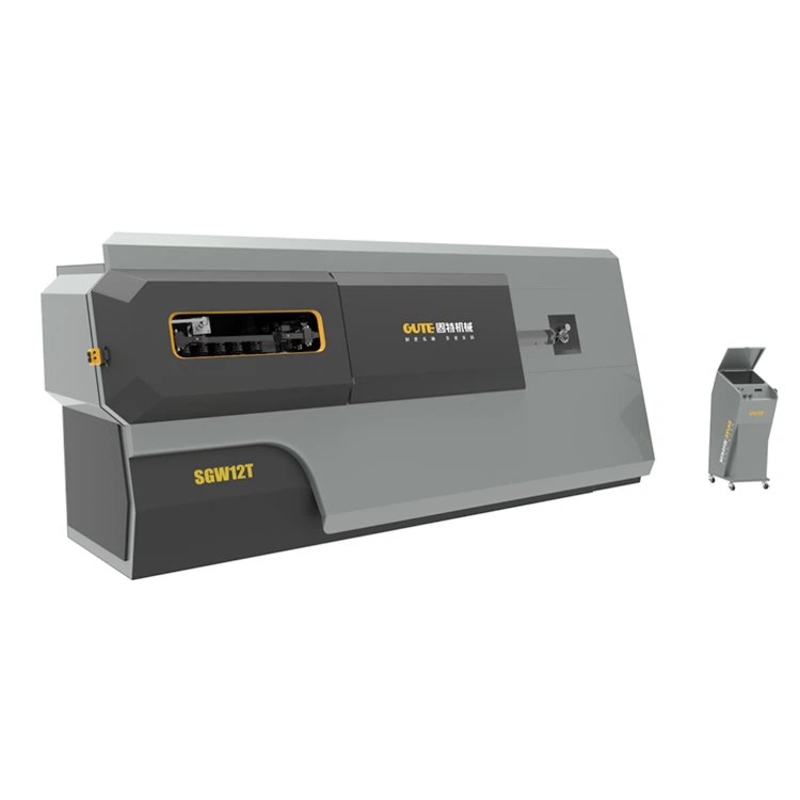

Gute Machinery SGW12T CNC STEEL BAR STIRRUP BENDER

  Chat Now

Description

Technical Data:

TENSILE STRENGTH

Kg/Mm2 45

Kg/Mm2 65

SINGLE WIRE BENDING

5-13 Mm

5-12mm

DOUBLE WIRE BENDING

5-10 Mm

5-8 Mm

OPERATION

Automatic Wire Feeding System(CNC)

MAX. BENDING ANGLE

180°

MAX. LENGTH OF STIRRUP SIDE

1000 Mm

MIN. LENGTH OF STIRRUP SIDE

90 Mm

MAX. BENDING SPEED

1050°/Sec

MAX. TRACTION SPEED

75-100 M/Min

BENDING DIRECTION

Bi-Direction

TRACTION SERVICE MOTOR POWER

22KW

BENDING SERVICE MOTOR POWER

7.5KW

TOTAL POWER

42KW

AERAGE ELECTRIC CONSUMPTION

6 KW/H

L×W×H

5250×1760×2170mm

WEIGHT

5.3T

Introduce:

▲1600 stirrups production per for hour and each batch can be yield up to 8tons.

▲Automatic straightening system, better straightening effect

▲1 years free warranty service.

▲The electric components are of famous brands such as Schneider and Chint the power is provided by servo motor, with high efficiency and accuracy Support multi – language interactive interface, simple operation.

▲ Draw the steel coil in a straight line and bending with cutting.

▲sheet metal panel, observing the door with a standard 5mm, long service life, more wear-resisting.

▲IKO bearings imported from Japan are used in key parts to ensure service life.

▲Straightening wheel made of alloy steel service life is longer.

Function:

▲This machine can process horseshoes, stirrup, circles, hooks H-shaped steel, long straight bar and so on hundreds of shapes.

▲Process §5-13mm single wires and §5-10mm double wires for deformed steel coil.

COMPONENT PARTS:

Automatic pre-straightening mechanism

▲The pre-adjusting mechanism is composed of 16 pre-adjusting wheels, which are divided into upper and lower two groups to be adjusted and controlled by a servo motor. The pre-adjusting wheel is double-slotted and can be double-wired.

▲The preset wheel is made of forging alloy tool steel, which is resistant to wear and impact.

There is also a feeding device, which is convenient for the first time.

Automatic Straightening Mechanism

▲Automatically complete the straightening of rebar and round steel

▲The straightening mechanism is composed of 18 straightening wheels, which are divided into two upper and lower groups to be adjusted and controlled by a servo motor. The straightening wheels are flat grooves and can be double-line straightened.

Pay-Off

▲Each machine with 2 pcs pay-off.

▲Each pay-off Maximum carrying capacity 2,500KG bar.

▲Be able to dis-assemble and easy to transport.

▲You can customize the pay-off with brake.

Automatic Collector

▲Automatic collection of finished stirrups.

▲The collection quantity can be set.Easy to pack finished products.

Easy to pack finished products

Electrical Cabinet:

▲Equipped with 22KW high-power servo motor to ensure the smooth operation of traction

Pneumatic Element

▲pneumatic components adopt famous brand Airtac of Taiwan , ensure the service life

▲Split thickening blade design, thickness up to 40mm, easy to use for many times

▲The adoption of multi-split type blade which ensures a double lifetime compared with normal one piece blade

Site Layout

Site layout

Main Components

NO

Name

Brand

1

Electrical components

Schneider, Omron

2

PLC

Delta

3

Air compressor

Jaguar

4

Round frame

Load 2.5 tons

5

Cylinder and components

AirTAC

6

Bending bearing

IKO

7

Traction, bending

Servo motor EURA

8

touch screen

Kinco

9

Reducer

Great Wall

SCOPE OF SUPPLY:

1

Wire pay-off (2.5 tons capacity)

2 PCS

2

Central machine

Wire straightening units

2 UNITS

Wire feeding unit

1 UNIT

Wire bending unit

1 UNIT

Wire cutting unit

1 UNIT

Electric cabinet

1 UNIT

Air compressor

1 UNIT

3

ontrol console

1 UNIT

4

Spare parts

1 SET

5

Tools

1 SET

6

User’s guide

1 SET

7

Auto-material collection device (Choice)

1 SET

Differences Compare Other Models

SGW12T

SGW12D-1

SGW12D-2

SGW12A-1

SGW12D-4

SGW14D-1

SGW16D

Automatic straightening

X

X

X

X

X

X

Max.Bending

Single Wire

12mm

12mm

12mm

12mm

12mm

13mm

16mm

Max.Bending

Double Wire

10

10mm

8mm

8mm

10mm

10mm

12mm

Min.Bending

Length

90mm

90mm

90mm

140mm

90mm

90mm

90mm

Max.Bending

Length

(Hoop Bending)

1m

1m

1m

1m

10m

1m

10m

Bending Direction

Bi-Direction

Bi-Direction

Bi-Direction

Single-Direction

Bi-Direction

Bi-Direction

Bi-Direction

Machine Total

Power

42kw

33KW

31KW

25.5KW

48KW

45KW

65KW

Electric Parts

Brand

Schneider

Schneider

Chinese CHIT

Chinese CHIT

Schneider

Schneider

Schneider

Pay-off

Capacity

2.5T

2.5T

2.5T

2.5T

2.5T

2.5T

3.0T

Machine

Weight

5300kg

3500Kg

3300Kg

1500Kg

5700Kg

3600Kg

5500Kg

About Us

GUTE Service Around The World

Attachments (PDF)


Specification

Additional information

Weight 5300 kg
Dimensions 525 × 176 × 217 cm

Reviews (0)

Be the first to review “Gute Machinery SGW12T CNC STEEL BAR STIRRUP BENDER”

Your email address will not be published. Required fields are marked *

Reviews

There are no reviews yet.

Store Policies

Inquiries

General Inquiries

There are no inquiries yet.
