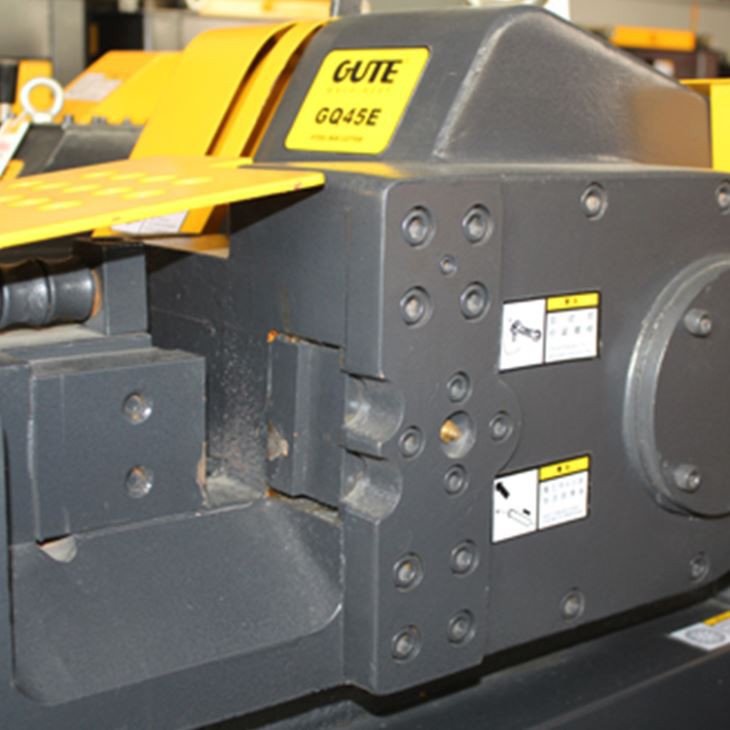

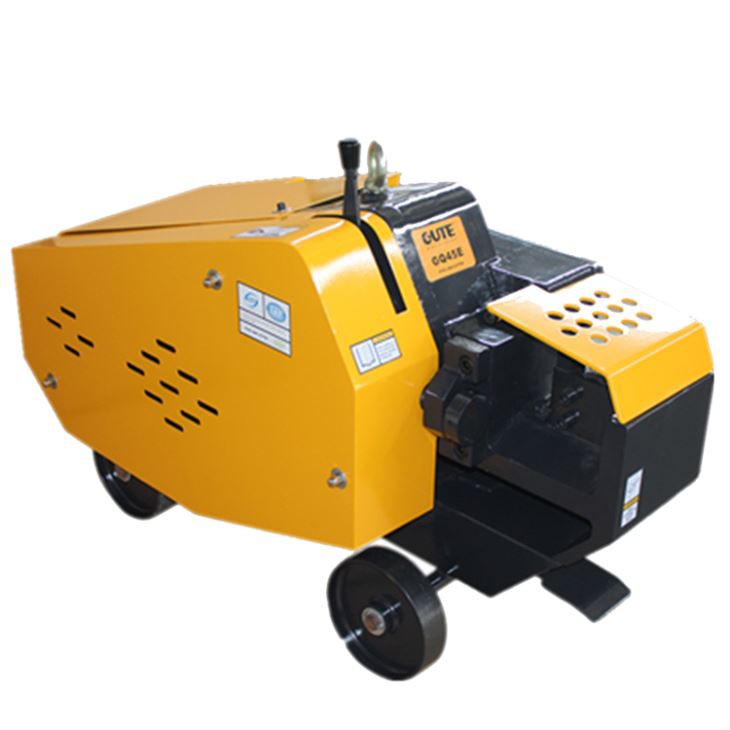

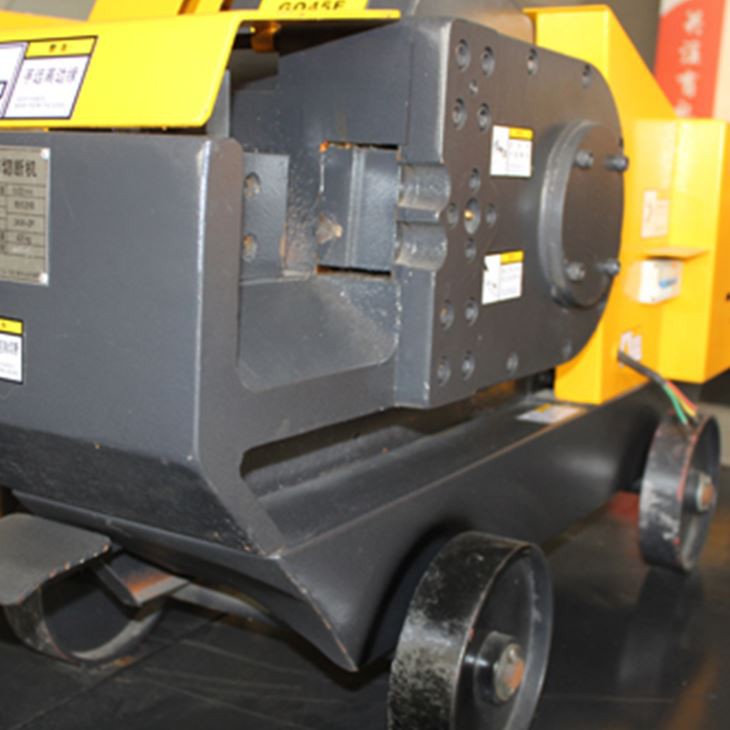

Name: ▷ Buy New GUTE Machinery GQ40 Iron Bar Cutting Machine (Gute Machinery) - Available at MachineryGenie.com
Brand: Gute Machinery
SKU: GUTE-GQ40-I
Availability: InStock

Description

Product Details


•GQ40 adopts SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment and 12mm thick external case to ensure reliable performances also under heavy loads and long working life.

•Thick and durable BLADES (4 edges) to ensure accurate cutting with all kinds of steel bar.

•CE Certificated dust proof MOTOR with aluminium shell.

•CE Certification (2006/42/EC – 2006/95/EC).

MOTOR TYPE

GQ40

• MOTOR TYPE: Y100L-2

* Motors has 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

FREQUENCY OPTIONS: 50Hz / 60Hz

STEEL BAR CUTTER GQ40
CUTTING CAPACITY	6-36 mm (ob ≤450N/mm2)	6-34 mm (ob ≤650N/mm2)
FLAT STEEL	32 x 32 mm
ANGLE STEEL	50 x 50 mm
TYPE OF MOTOR	Y100L-2
MOTOR POWER	3 KW-2P
MOTOR SAFETY	IP44, IP54, IP55
MOTOR ROTATION SPEED	2860 R/min
CUTTING SPEED	32 T/min
WEIGHT	380 Kg.
EXTERNAL DIMENSIONS	1280 X 460X 700mm
CERTIFICATION	2006/42/EC – 2006/95/EC
