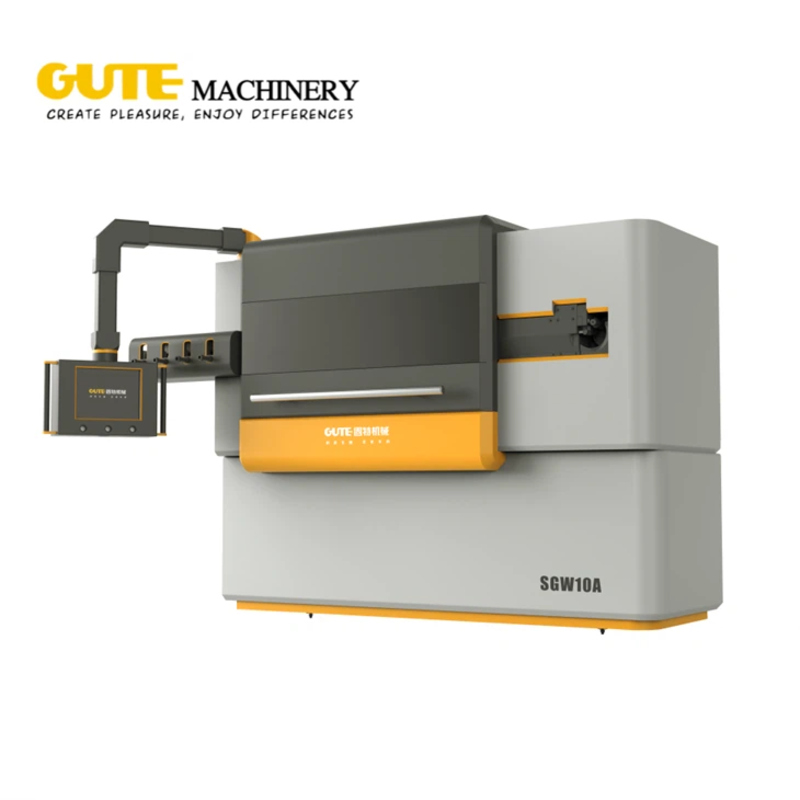

Gute Machinery SGW10A CNC STEEL BAR STIRRUP BENDER

• 1200-2400 stirrups production per for hour, 1200 stirrups for 8mm single-wire,2400 stirrups for double-wire.
• 1 years free warranty service.
• The electric components are of famous brands such as CHINT and MEAN WEL. The power of traction and bending is provided by servo motor, with high efficiency and accuracy Support multi – language interactive interface, simple operation.
• Each transmission system adopts standard reducer transmission, with stable structure and high transmission efficiency.
• Lightweight and compact body, more convenient and easy to transport and install.
• The production system structure does not require air source and hydraulic pressure, it can be used immediately after plugging in, and the use cost is lower, convenient and fast.

Function:

This machine can process stirrup square, rectangular, circles, hooks, long straight bar and so on hundreds of shapes.

Process §4-10mm single wires and §4-8mm double wires for deformed steel coil.

• The equipment is composed of pre-adjustment assembly, traction assembly, straightening assembly, shearing and bending assembly and other parts.

• Pre-adjustment assembly. Pre-adjustment assembly: It consists of four sets of pre-adjustment wheels that can adjust the distance, so as to realize the horizontal straightening of different types of steel bars. The double-groove bearing is used as the pre-adjustment wheel, which not only ensures the service life, but also makes it economical.

• Traction assembly: It consists of two sets of traction wheels and pressure wheels. The servo motor drives the standard reducer to drive directly. It runs smoothly and has low noise. The traction wheels are made of alloy steel to ensure their service life. At the same time, heavy-duty series rolling bearings are used. As a pressing wheel, it has good economy under the premise of ensuring the service life.

• Straightening assembly: It consists of five sets of pre-adjusting wheels, each set of pre-adjusting wheels can adjust the distance, and can realize vertical straightening of different types of steel bars. Flat groove bearings are used as pre-adjusting wheels to ensure service life. Under the premise, it has good economy.

• Shearing and bending assembly: composed of a shearing module and a bending module, which can realize the shearing and bending of steel bars. The servo motor drives the standard reducer to drive directly. The bending operation is stable and the noise is low. The shearing blade and bending The mold and bending wheel are made of alloy steel to ensure their service life.

1. Pay-Off(Additional Options)

Type1 pay-off Maximum carrying capacity 1,500KG bar.

Type2 pay-off Maximum carrying capacity 2,500KG bar.

Be able to dis-assemble and easy to transport.
