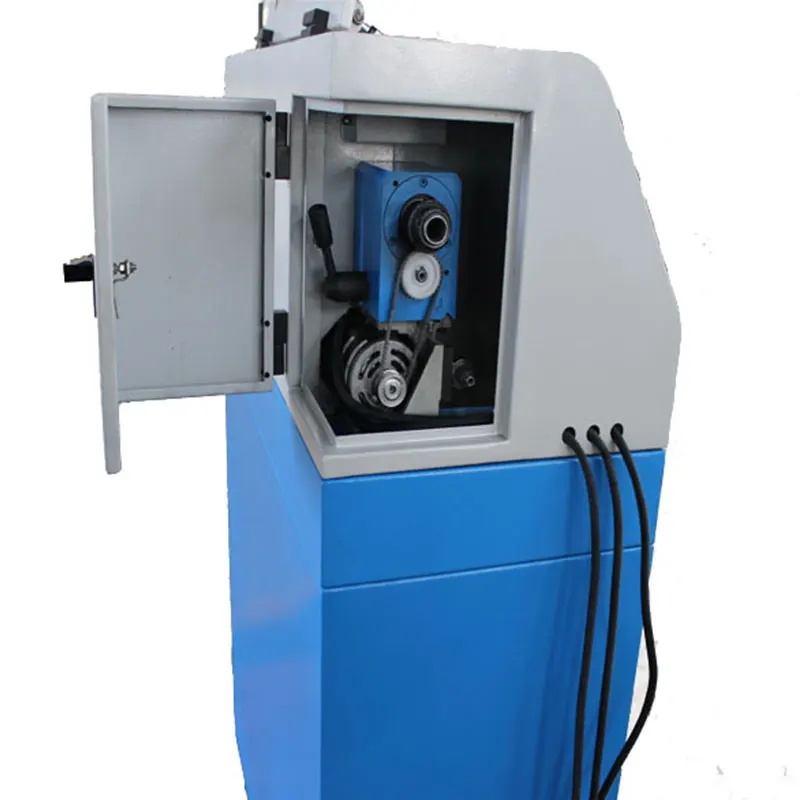

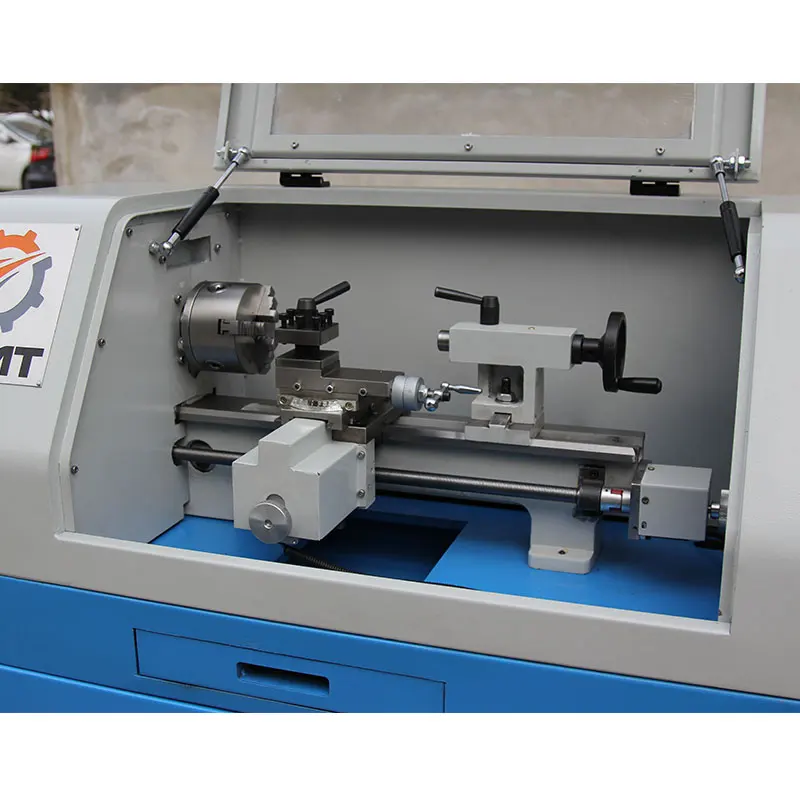

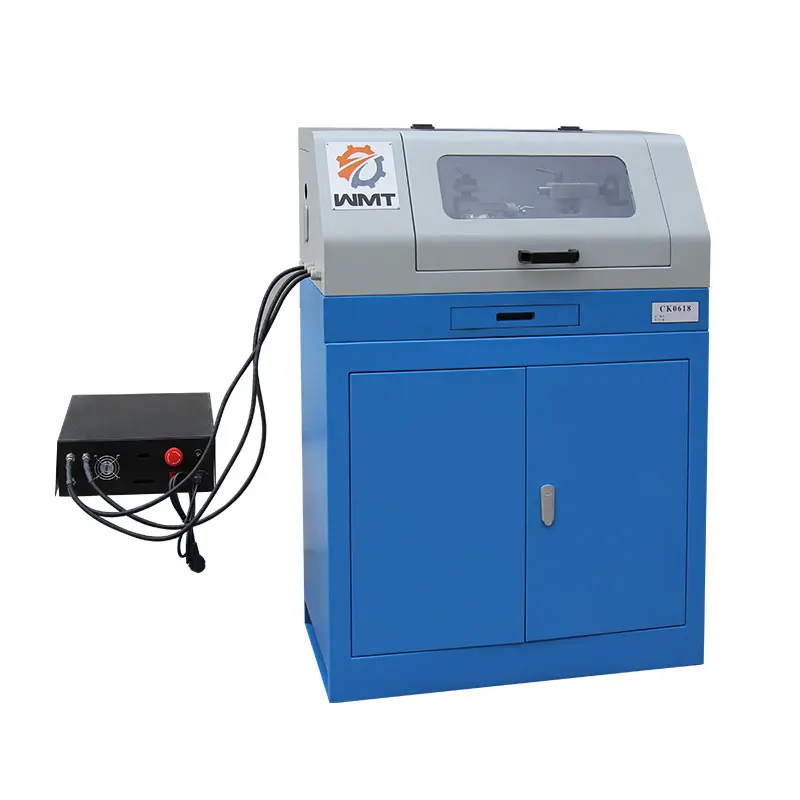

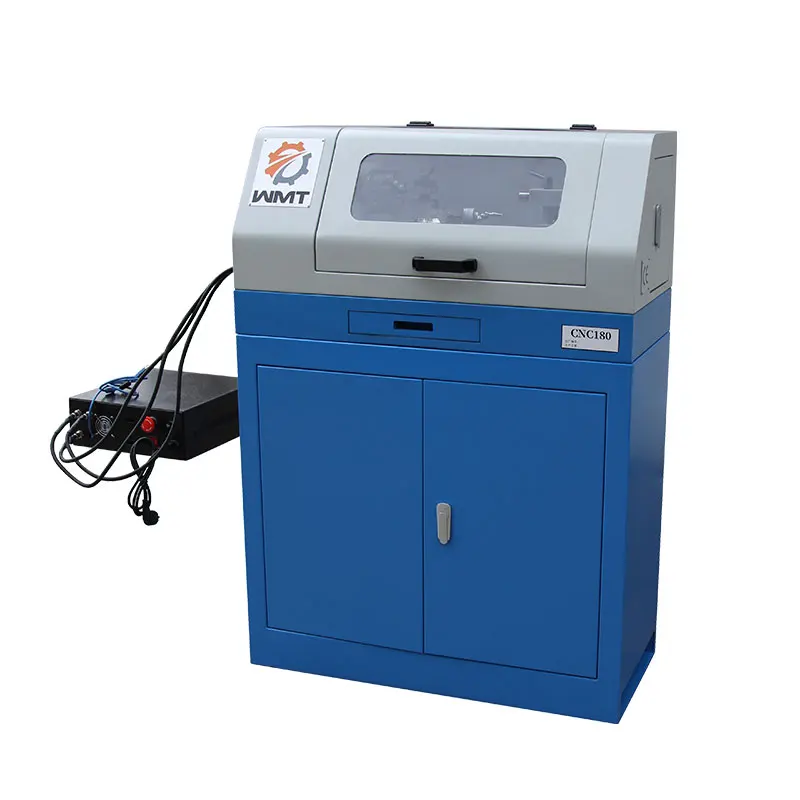

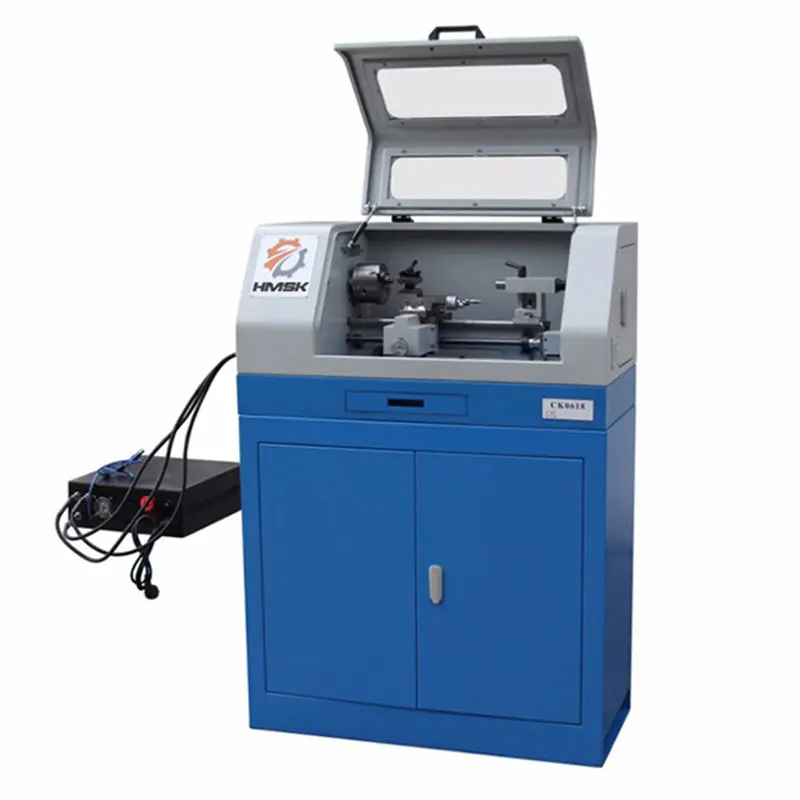

Name: ▷ Buy New CNC180 Mini Lathe Flat Bed Type Servo Main Motor with GSK928TCA Controller () - Available at MachineryGenie.com
SKU: 4000931338634
Price: 7358.85 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

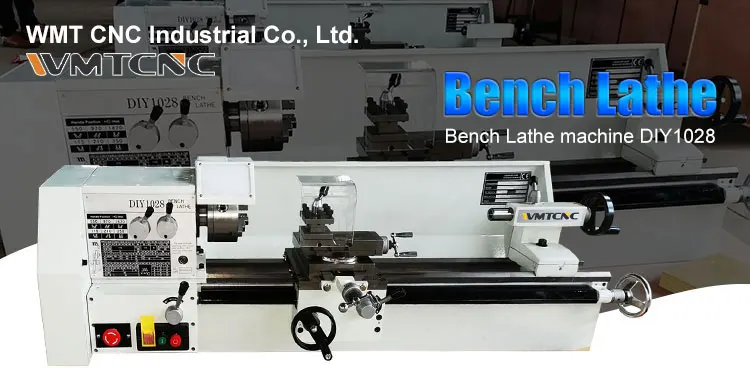

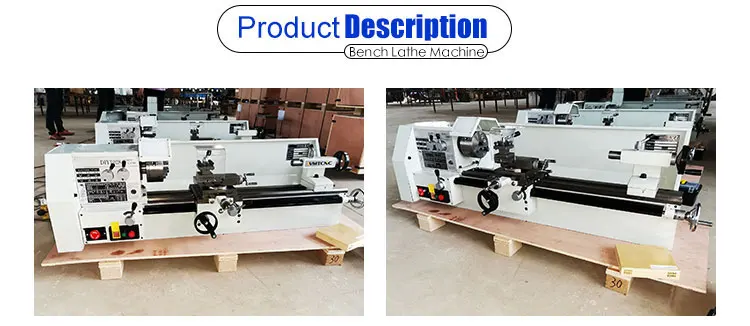

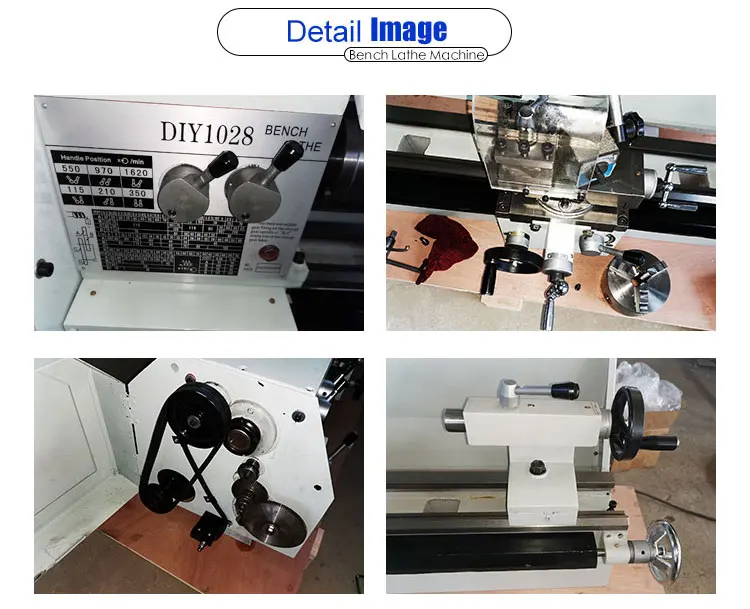

DIY1028 700mm Desktop Lathe Machine for Metal Cutting

Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 125-2500rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.

Specification	DIY1018/DIY1028(BVB25/BVB25L)
Distance between centers	450/ 700mm
Swing over bed	Φ250mm
Taper of spindle bore	MT4
Spindle bore	Φ27mm
Step of spindle speeds	6 steps
Range of spindle speeds	115-1620rpm
Range of inch threads	8-56T.P.I
Range of metric threads	0.2 -3.5mm
Travel of cross slide	140mm
Taper of tailstock quill	MT3
Main Motor	750W
Packing size	1260/1510×570×580mm
Net/gross weight	151kg / 171kg
