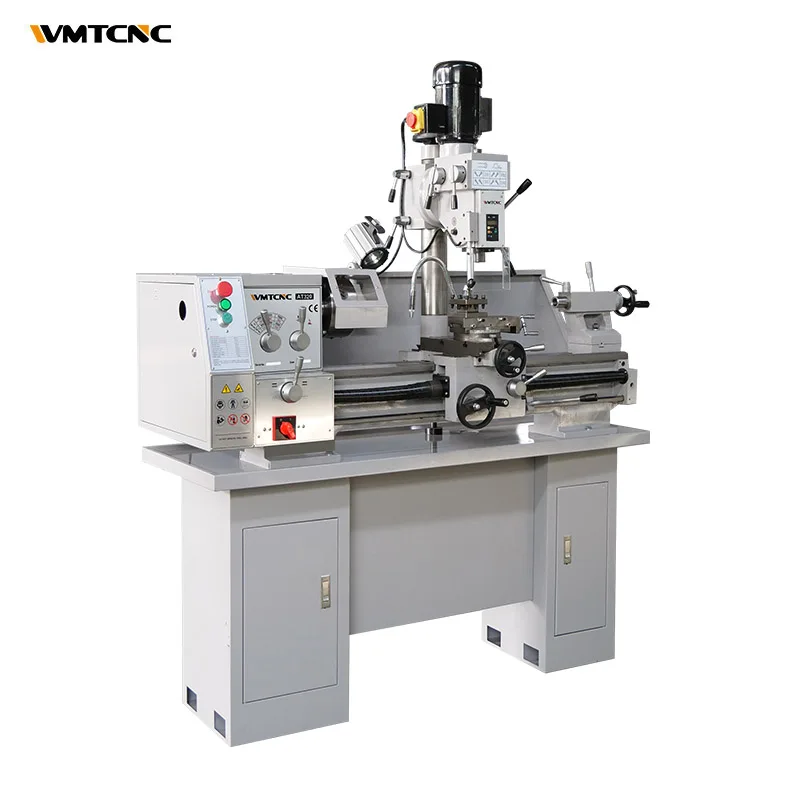

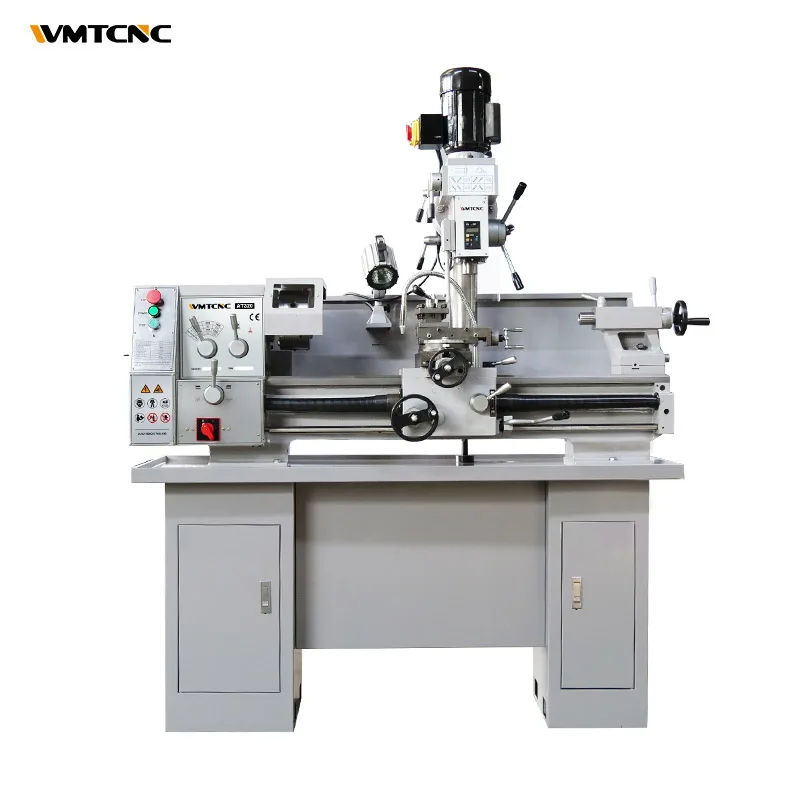

Name: ▷ Buy New AT320 3 in 1 Lathe Multi Purpose Lathe Drill Mill Machine for Hobby Users () - Available at MachineryGenie.com
SKU: 1005005856676592
Price: 3510.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Features:

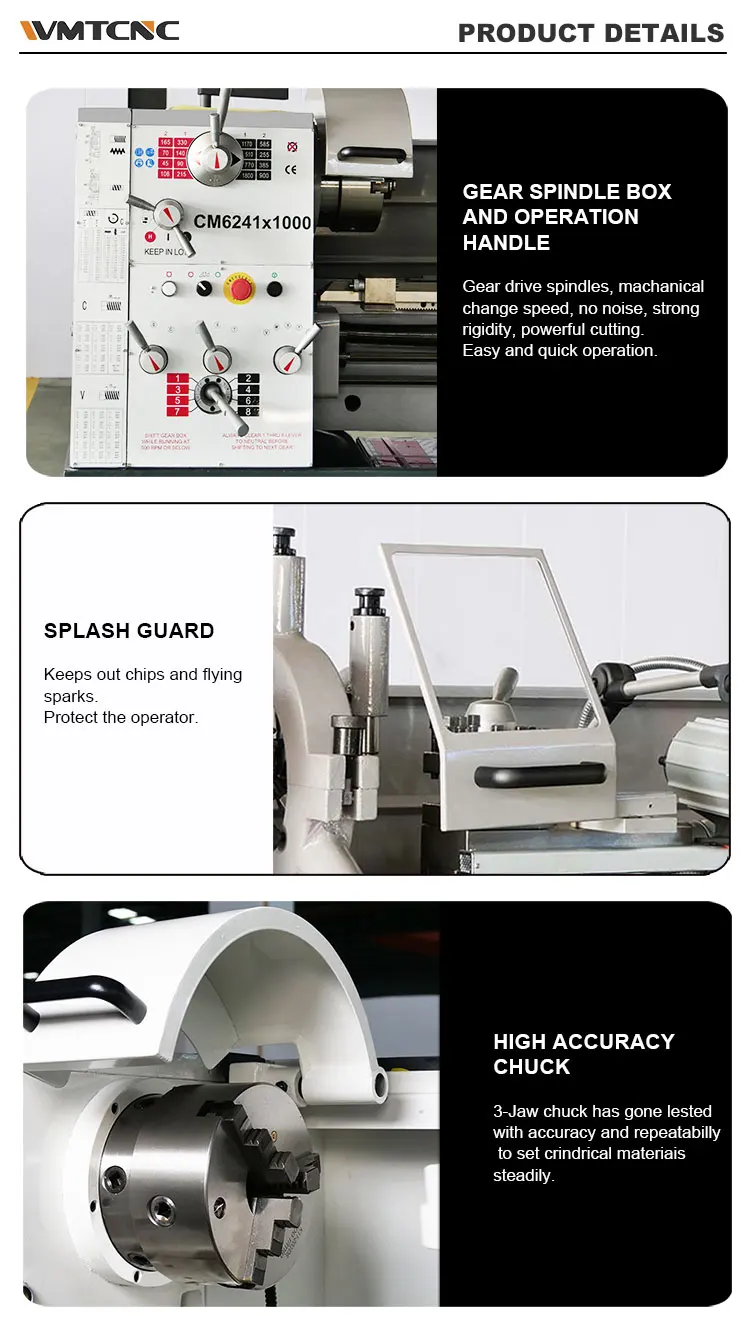

1. The bed rails are quenched and precision ground;
2. The spindle is supported with precision roller bearings;

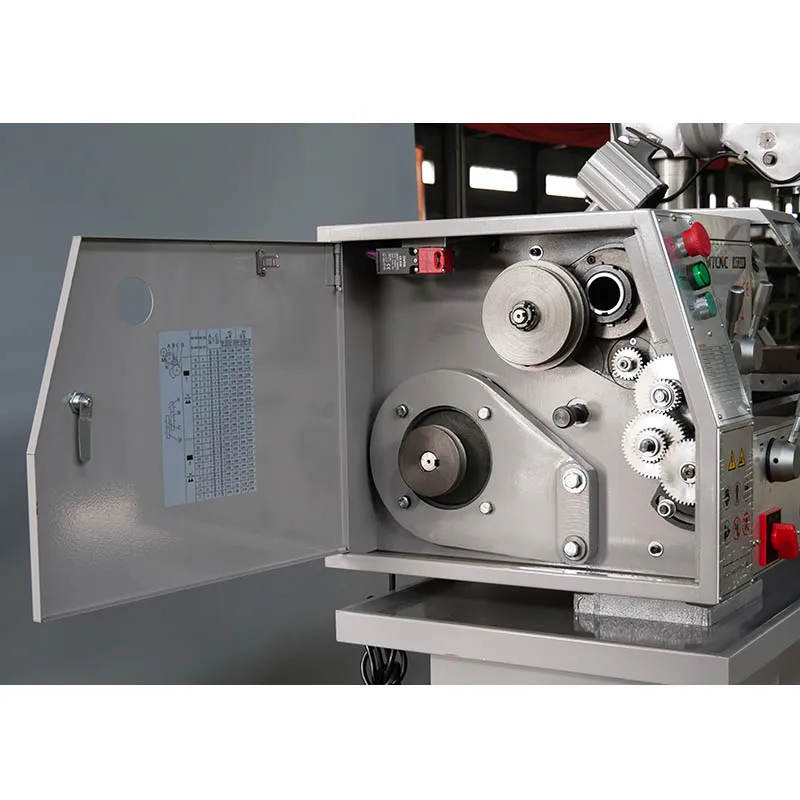

3. Head stock gears are made of high quality steel ground and hardened;
4. Monoblock cast iron base ensures high rigidity of the whole machine;
5. The variable speed model can realize the spindle speed of 3000 rpm.

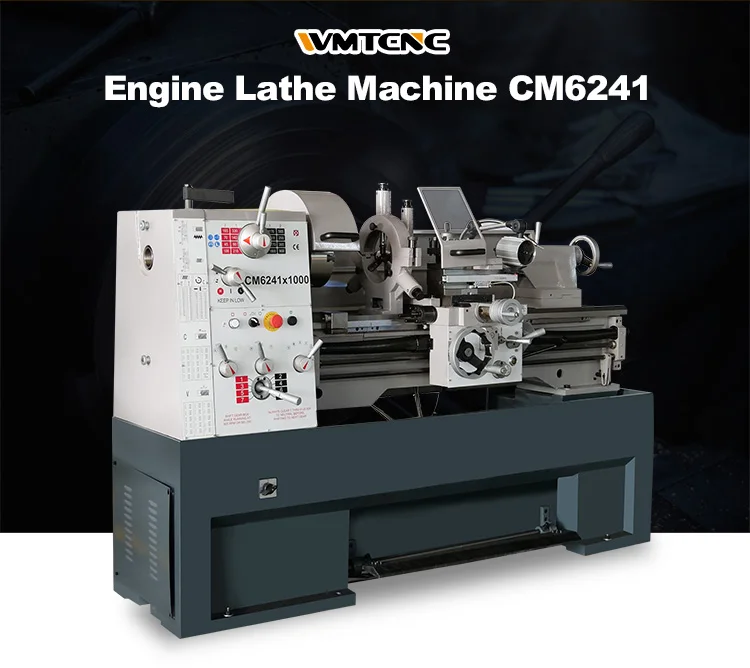

Specification	CM6241×1000/1500mm
Max. swing over bed	410mm
Max. swing over cross slide	255mm
Max. swing in gap	580mm
Effective length of gap	190mm
Width of bed	250mm
Distance between centers	1000mm/1500mm
Center height	205mm
Spindle nose	D1-6
Spindle bore	52mm
Spindle taper	MT6
Range of spindle speed	16 changes: 45-1800r/min, 30-50r/min or 50-3000r/min
Travel of compound rest	102mm
Max. travel of cross slide	210mm
Leadscrew pitch	4T.P.I.
Max. section of tool	20×20mm
Longitudinal feeds range	0.05-1.7mm/rev(0.002”-0.067”/rev)
Cross feeds range	0.025-0.85mm/rev(0.001”-0.0335”/rev)
Metric threads range	39 kinds, 0.2-14mm
Inch threads range	45 kinds, 2-72T.P.I.
Diametrical pitches range	21 kinds 8-44D.P.
Module pitches range	18 kinds, 0.3-3.5M.P.

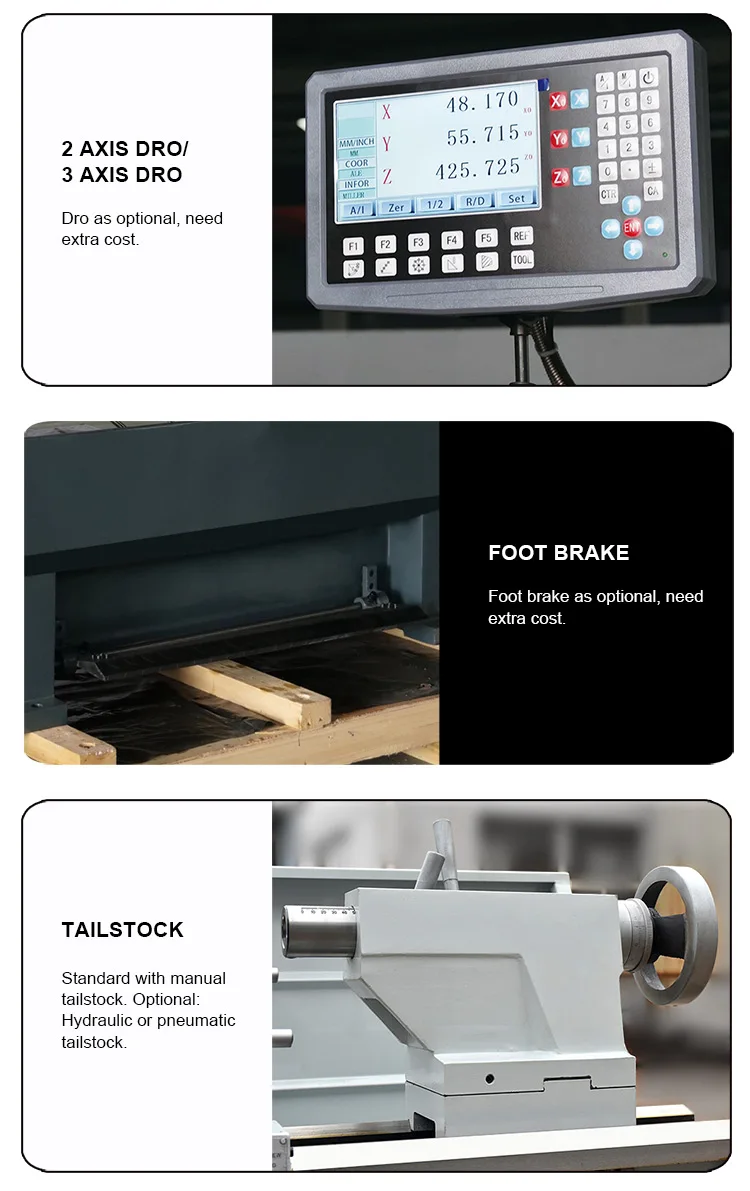

Tailstock quill diameter	50mm
Tailstock quill travel	120mm
Tailstock quill taper	MT4
Main motor power	2.2/3.3kw(optional 3.0/4.5kw)
Coolant pump motor	90w
Overall dimension	1940/2440×850×1300mm
Packing size	2060/2560×900×1640mm
N.w/G.w	1500/1750kg

FAQ

1: How is the warranty?

A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What’s the MOQ?
A4: One set only.Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
