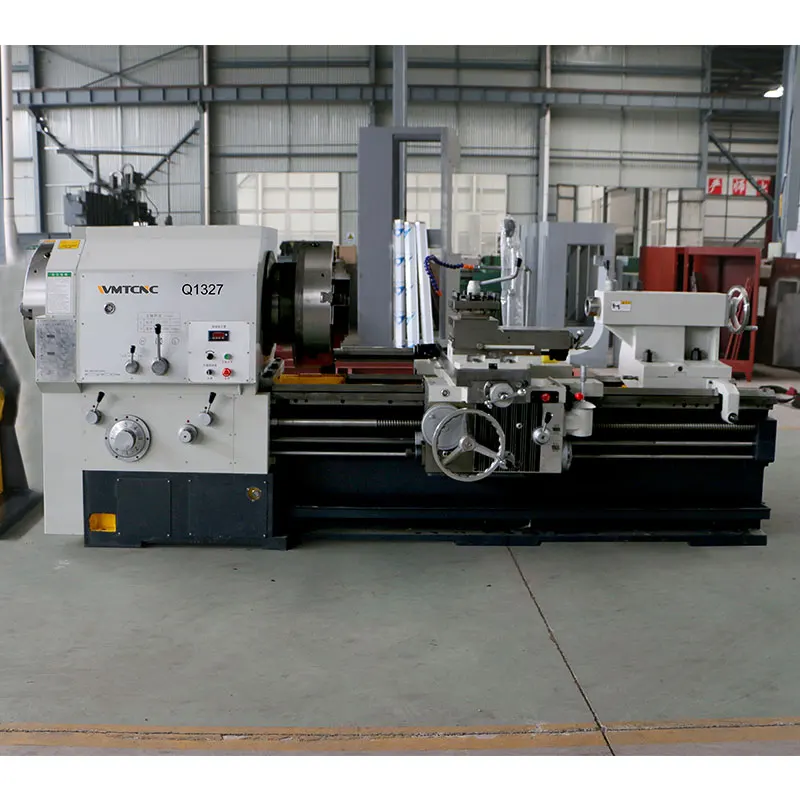

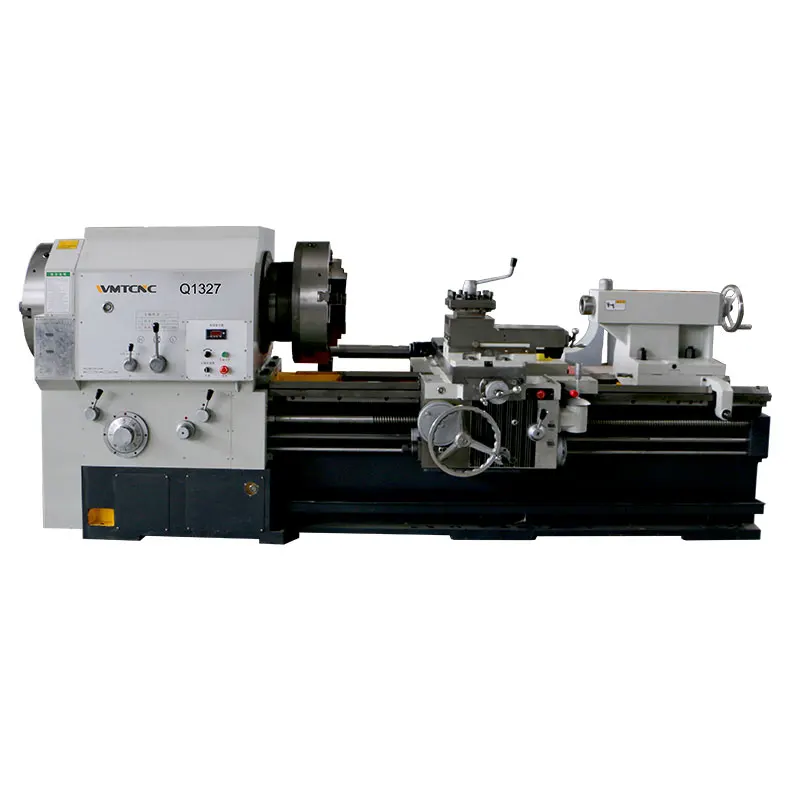

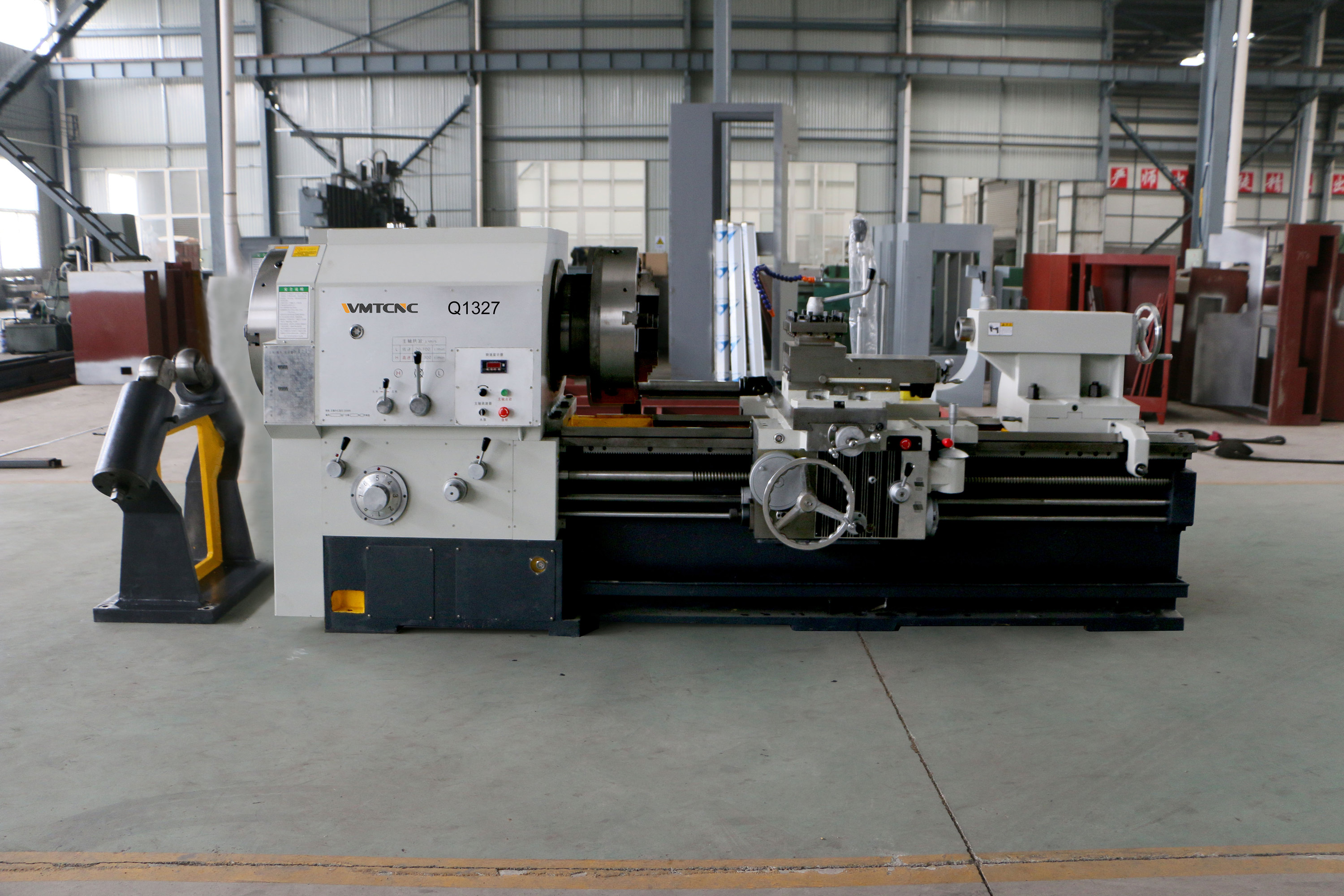

280mm Big Bore Manual Lathe Pipe Threading Lathe Machine Q1327 with CE Stanfard
A$90,149.91
- USD: $60,952.50
- GBP: £48,383.51
- EUR: €56,343.33
- JPY: ¥9,125,925
- CNY: ¥423,573.42
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
Features

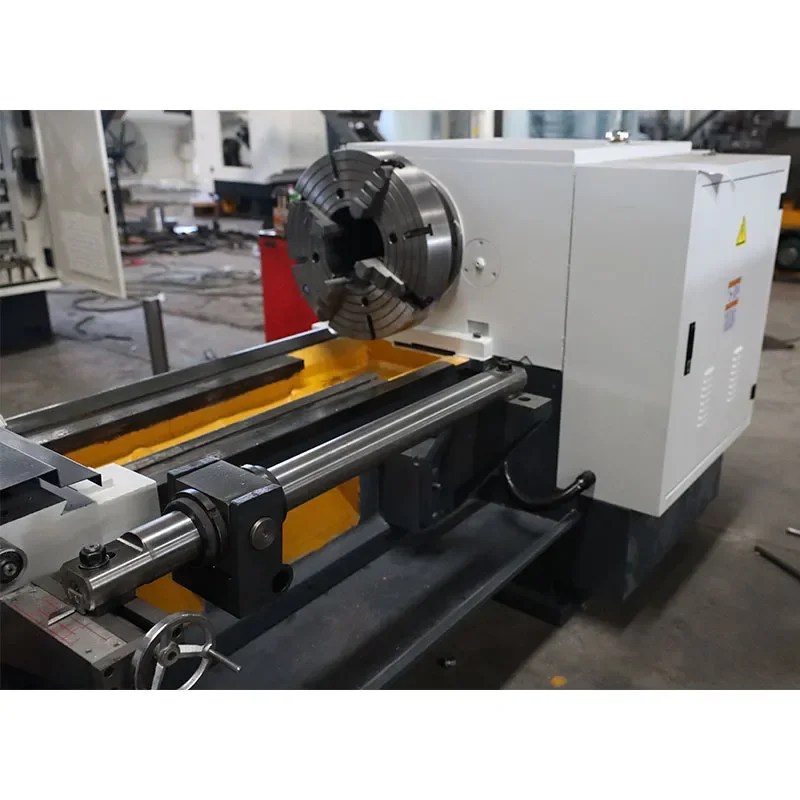

1. Big spindle bore and double chuck allows clamp and process big diameter pipes;
2. Integral machine bed adopts high strength iron to realize high rigidity and precision;
3. Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

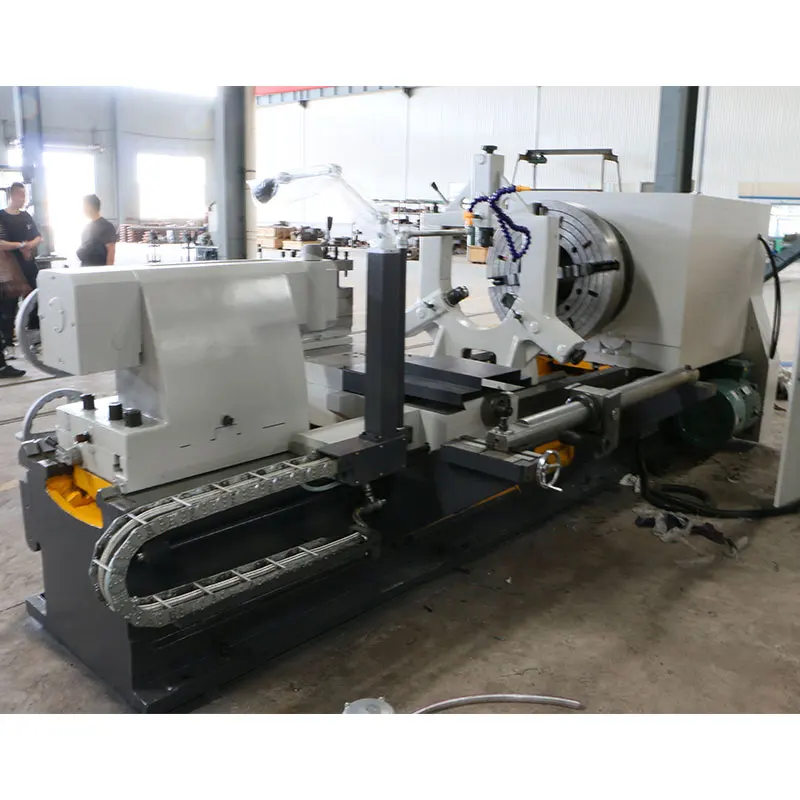

4. Equipped with taper guide bar device this enables the machine to process taper threads.
This lathe machine is mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks, this machinery is equipped with taper guide bar device which enables this series to process taper thread.
|
Item
|
Q1325
|
Q1327
|
Q1330
|
|
Max dia.swing over bed
|
800mm
|
||
|
Max dia.swing over cross slide
|
480mm
|
||
|
Max.length of work-piece
|
1500mm
|
||
|
Width of bed
|
550mm
|
750mm
|
|
|
Spindle bore
|
255mm
|
280mm
|
305mm
|
|
Power of spindle motor
|
11kw
|
15kw
|
|
|
Spindle speed
|
12-642rpm
VF2 steps |
20-300rpm
VF2 steps |
20-300rpm
VF2 steps |
|
Z axis feed grade/range
|
26/0.07-1.33
|
40/0.1-3
|
40/0.1-3
|
|
X axis feed grade/range
|
22/0.02-0.45
|
40/0.05-1.5
|
40/0.05-1.5
|
|
Carriage rapid traverse speed
|
4000rpm
|
3740rpm
|
|
|
Cross slide rapid traverse speed
|
2300rpm
|
1870rpm
|
|
|
Metric thread grade/range
|
52/1-224
|
30/1-30
|
30/1-30
|
|
Inch thread grade/range
|
40/2-28
|
27/28-1
|
27/28-1
|
|
Module thread grade/range
|
53/0.5-120
|
||
|
DP thread grade/range
|
24/1-28
|
||
|
Traverse of cross slide
|
320mm
|
520mm
|
|
|
Max. Traverse of turret
|
200mm
|
300mm
|
|
|
Tailstock quill travel
|
250mm
|
300mm
|
|
|
Tailstock quill Dia./taper
|
Φ100/MT5#
|
Φ140/MT6#
|
|
|
Chuck
|
Φ630 4-jaw manual
|
Φ630 4-jaw manual
|
|
|
Overall dimensions(L*W*H)
|
3657×1757×1740mm
|
5000×2100×1600mm
|
5000×2100×1600mm
|
|
Net weight
|
3.8t
|
4.2t
|
4.3t
|
Specification
