Name: ▷ Buy New WMTCNC Desktop CNC Lathe Machine CNC210 With Siemens808D With All Standard Accessories For School Training () - Available at MachineryGenie.com
SKU: 1005004890362648
Price: 9652.50 AUD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

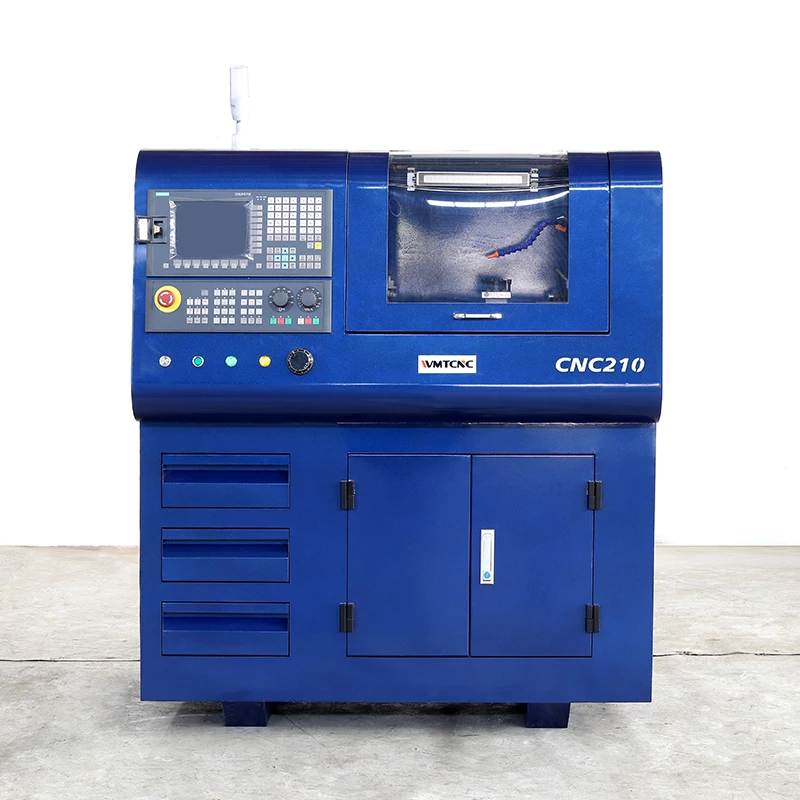

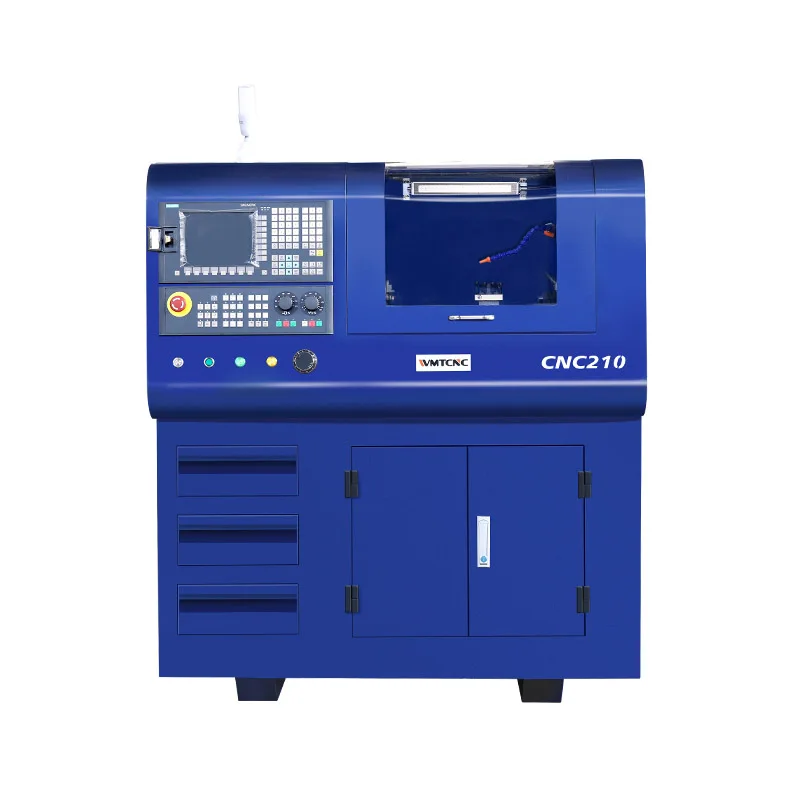

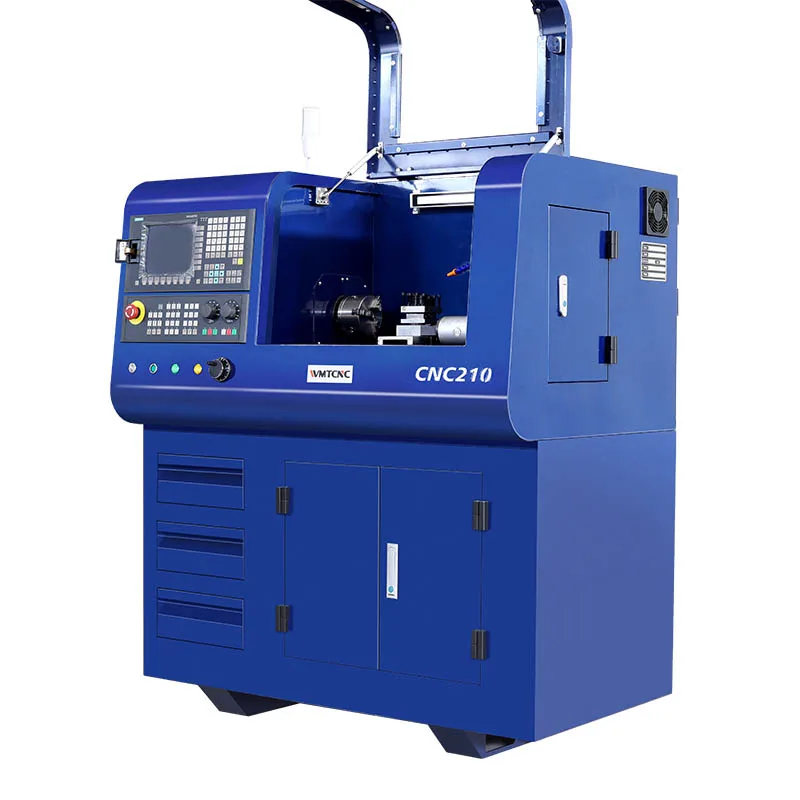

WMTCNC Desktop CNC Lathe Machine CNC210 With Siemens808D With All Standard Accessories For School Training

Configuration Requirements:

Work lamp

Coolant system

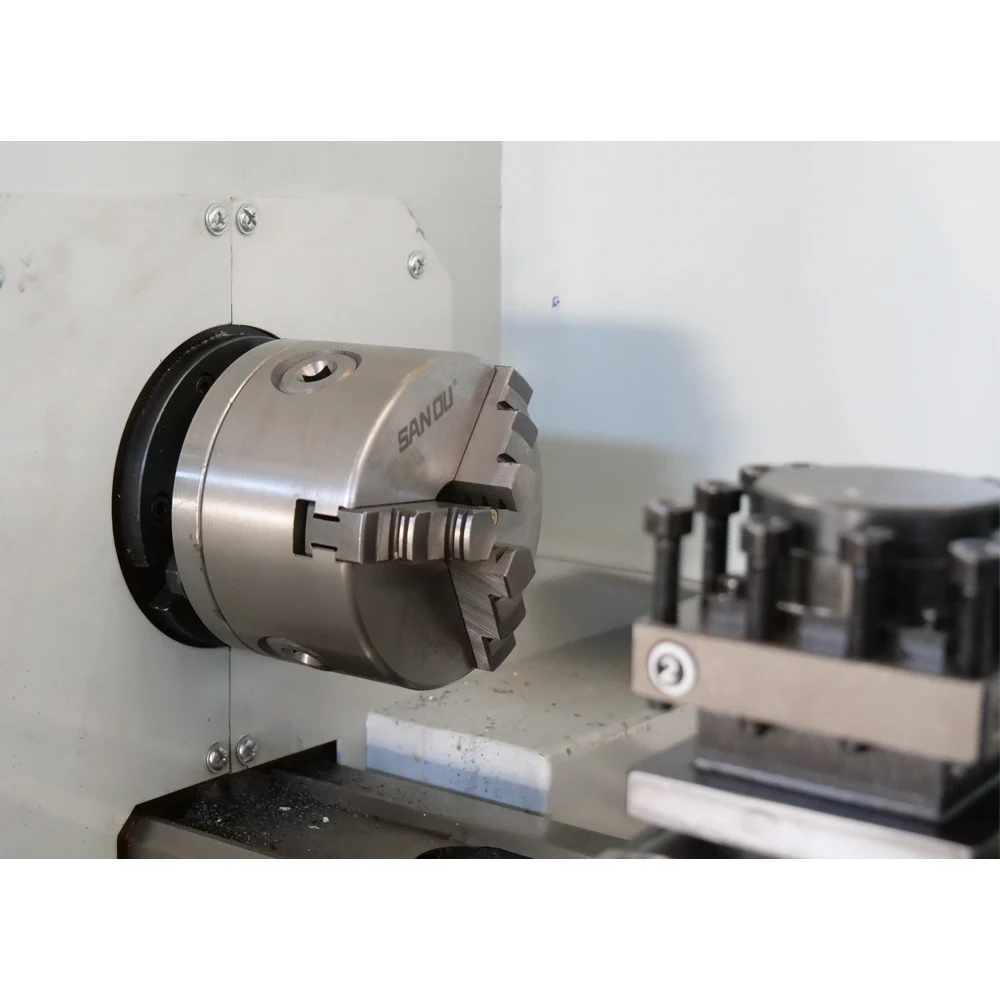

Manual 3-jaw chuck

Electrical handwheel

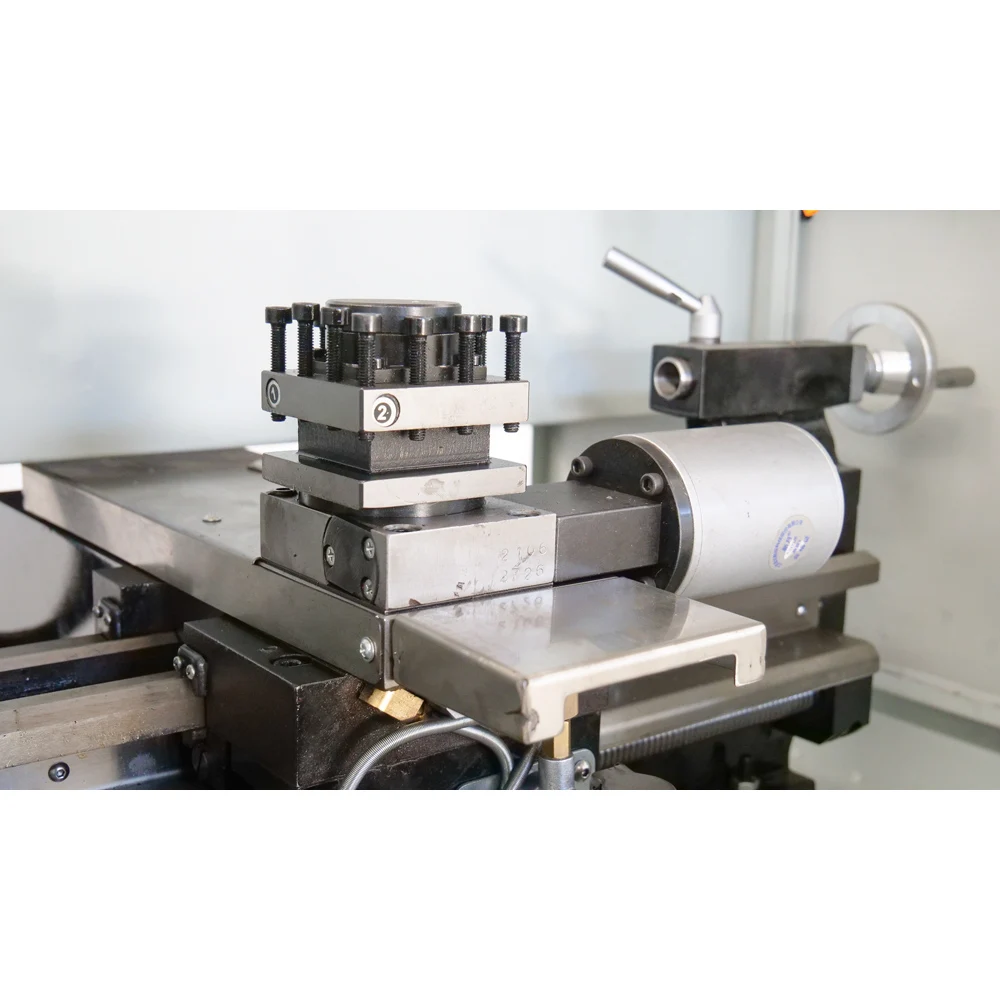

4-position electrical toolpost

Manual lubrication system

X/Z feeding motor and main motor: servo motor

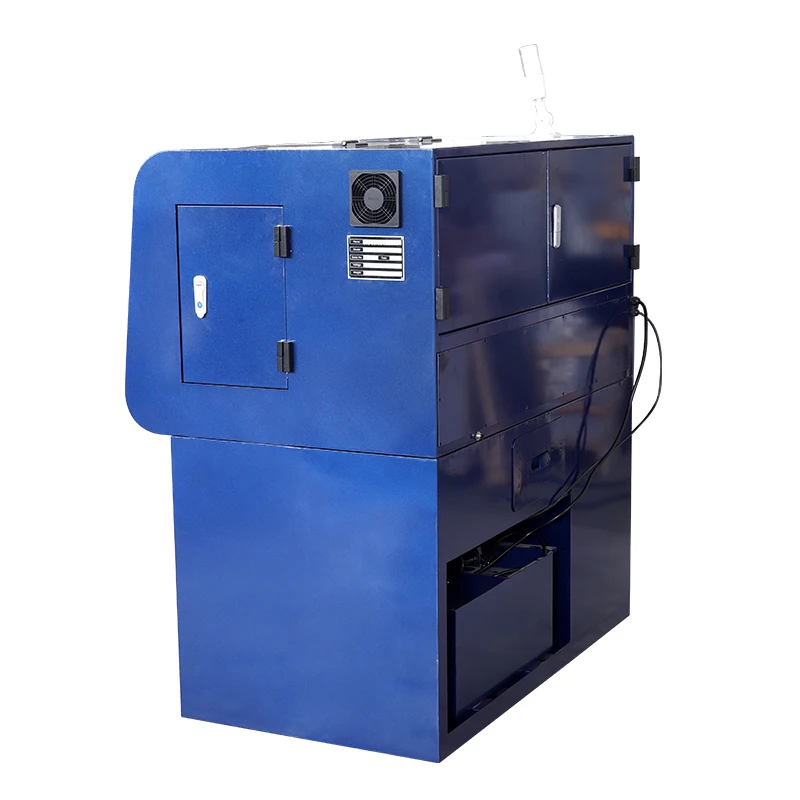

Machine stand with drawer

Voltage:110V/60HZ/1HP

Main Features:

1.X/Z feeding motor and main motor: servo motor.

2.Machine stand with drawer.

3.Lower noise and high precision.

4.Suitable for educational training and mould machining.

5.Small size and cheap price.

Specification	CNC210
Max. swing over bed	210mm
Distance between centers	400mm
Rail width	100mm
Spindle bore dia.	26mm
Spindle taper	MT4/5C(Optional)
Spindle speed	3000rpm

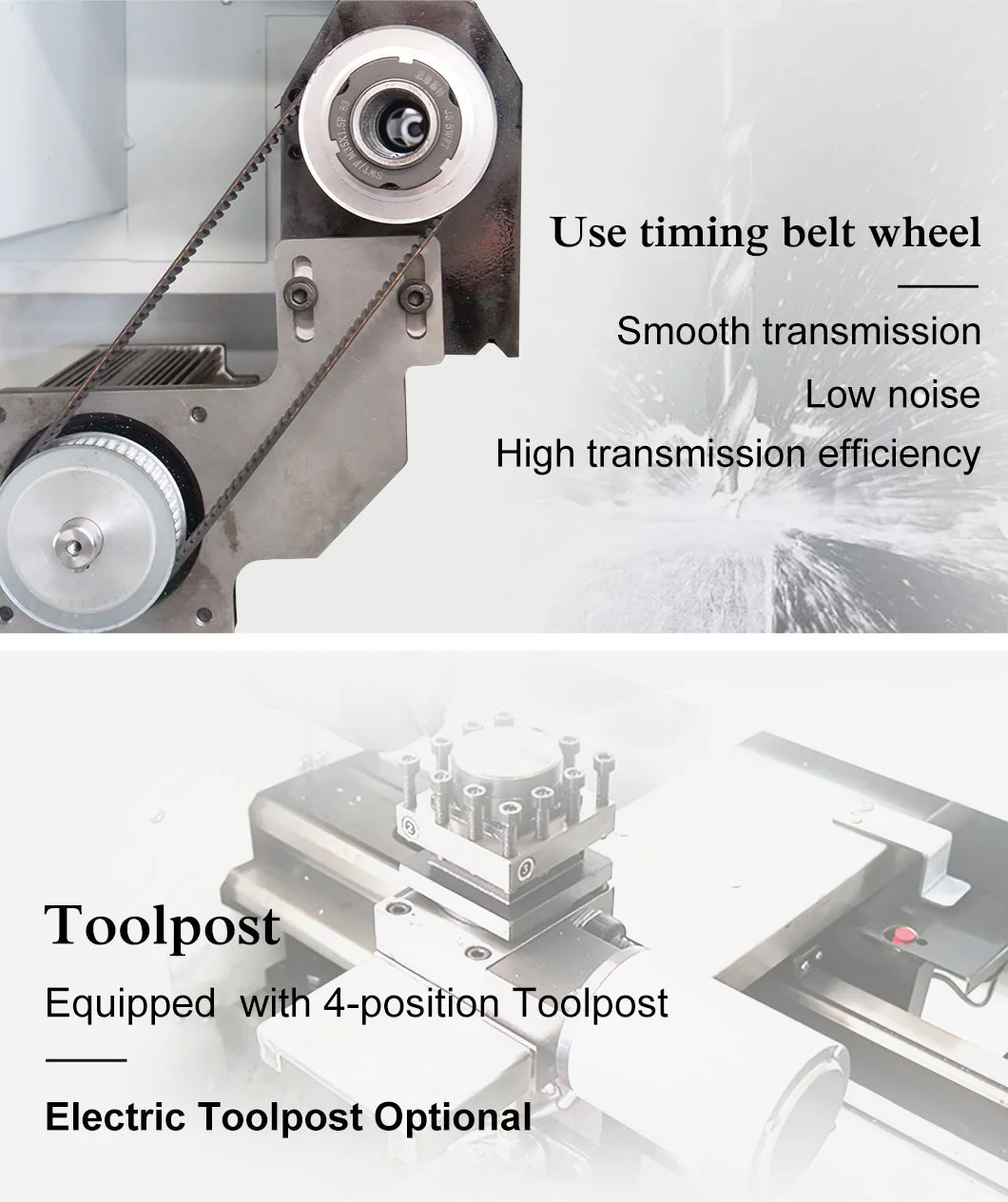

Tool post	4-position electrical toolpost
X-axis travel	105mm
Z-axis travel	300mm
X rapid speed	5000mm/min
Z rapid speed	5000mm/min
Spindle motor power	1.2kw
Main motor type	Srevo motor
Controller system	After 990TDB
X motor torque	1.9N.m
Z motor torque	1.9N.m
Min. setting unit	0.001mm
Tailstock dia.	22mm
Tailstock travel	50mm
Tailstock taper	MT2
Packing size(without stand)	1170X700X860mm
Overall size	1300X800X1500mm
N.W(without stand)	200kgs
N.W	230kgs
Voltage	110V/60HZ/1HP
