Name: ▷ Buy New XK7116 CNC Milling Machine with CE () - Available at MachineryGenie.com
SKU: 1005005340128944
Price: 17820.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

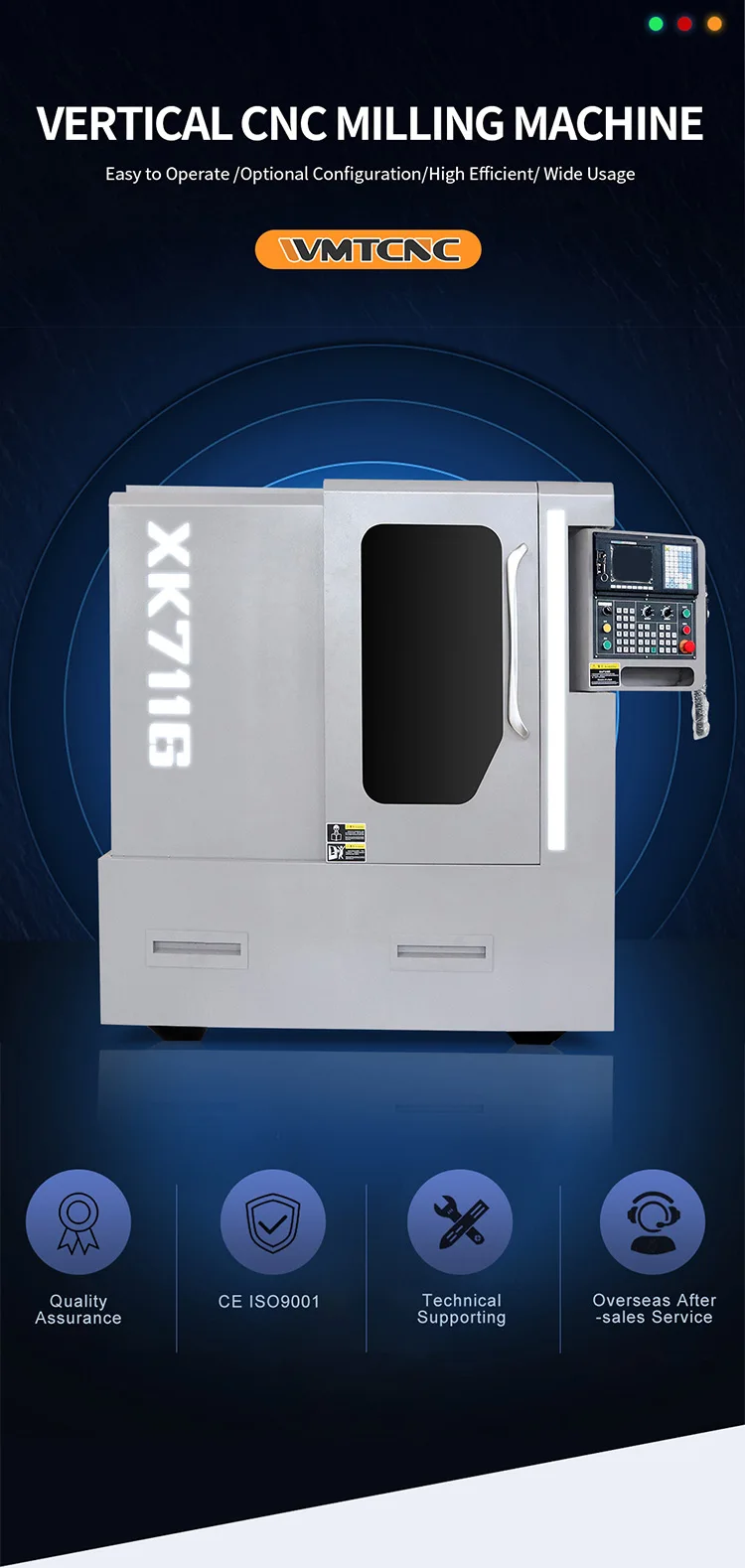

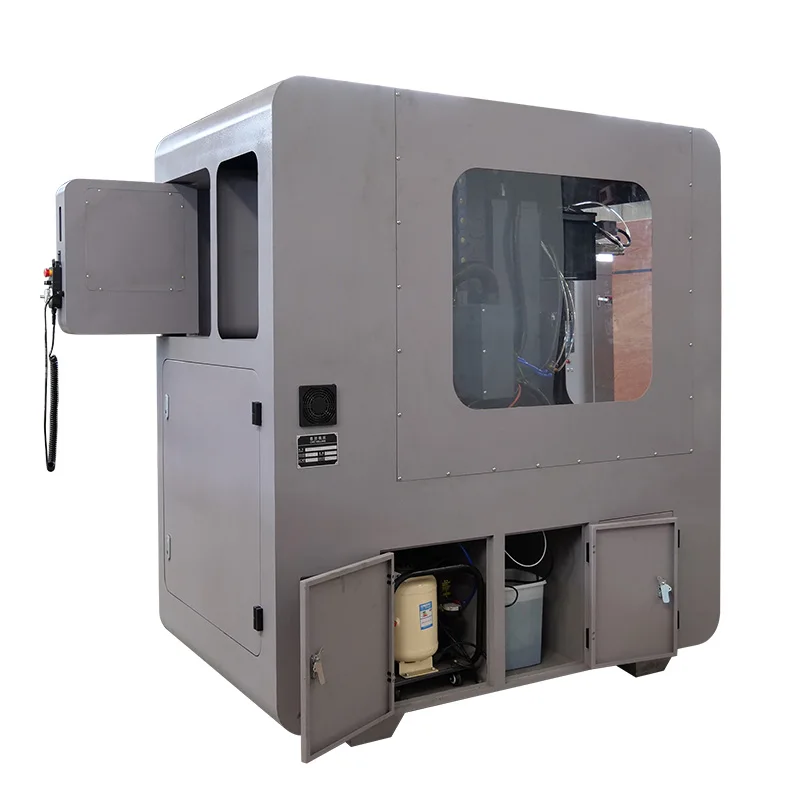

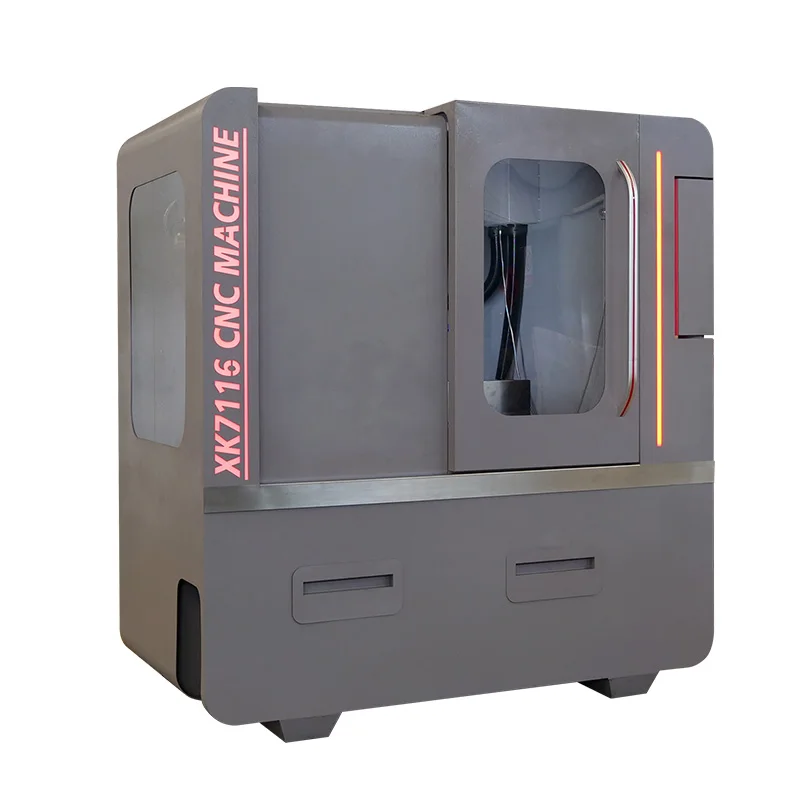

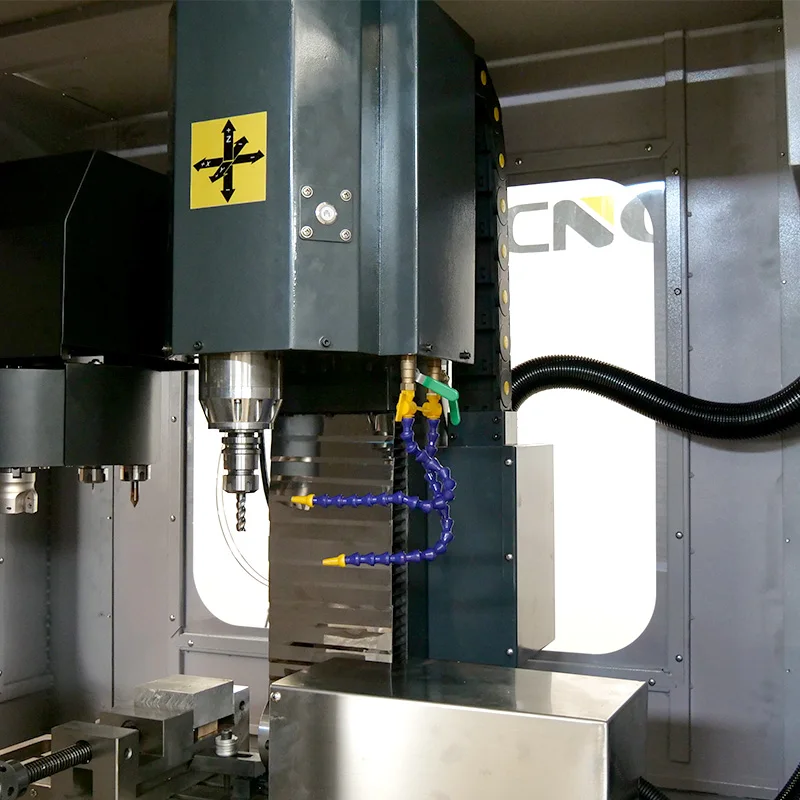

XK7116 CNC Milling Machine with CE

Features:
1.Servo main motor.
2.Suitable for casting and steel processing
3.Lower noise and high precision
4.Vertical controller panel with easy operation and beauty
4.Rigid tapping function

Specification	XK7116
X axis travel	350mm
Y axis travel	160mm
Z axis travel	400mm
Spindle nose to table distance	476.4mm
Spindle center to column distance	161mm

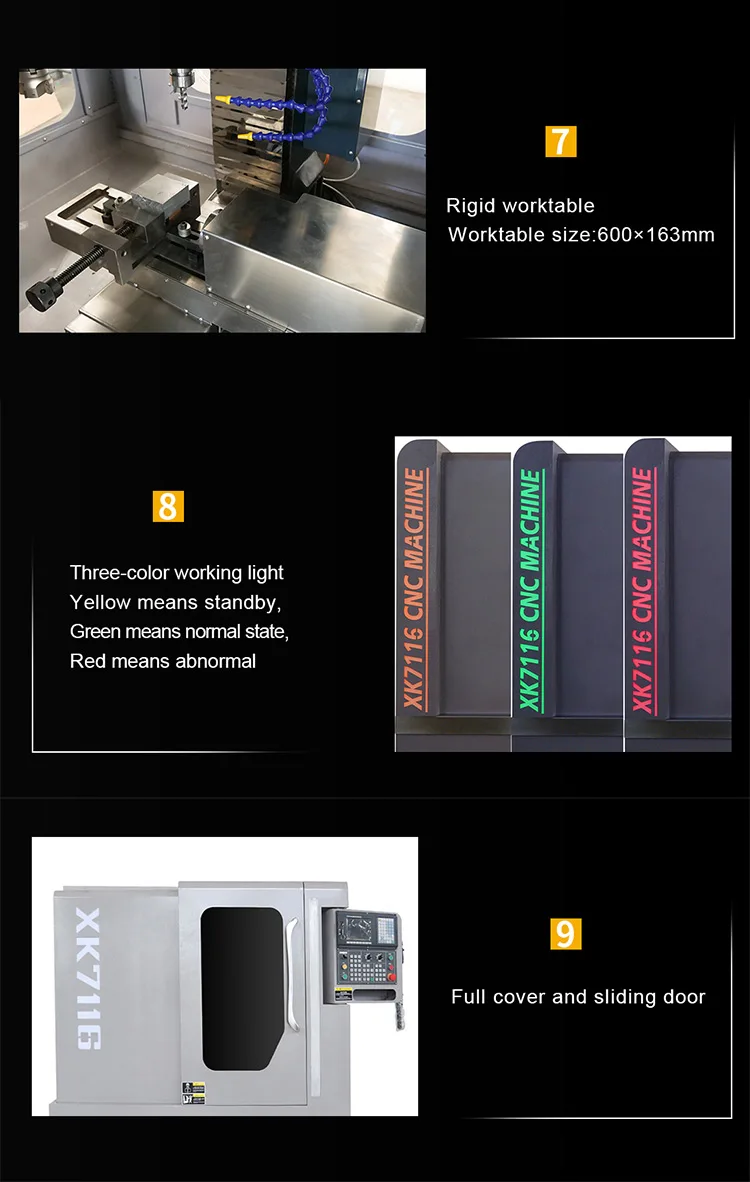

Worktable size	600X163mm
Main motor	3KW
Spindle speed	18000r/min
Coolant system	liuquid cooling
Change tool way	Pnumetic
Spindle taper	BT30
ATC Type	Umbrella type

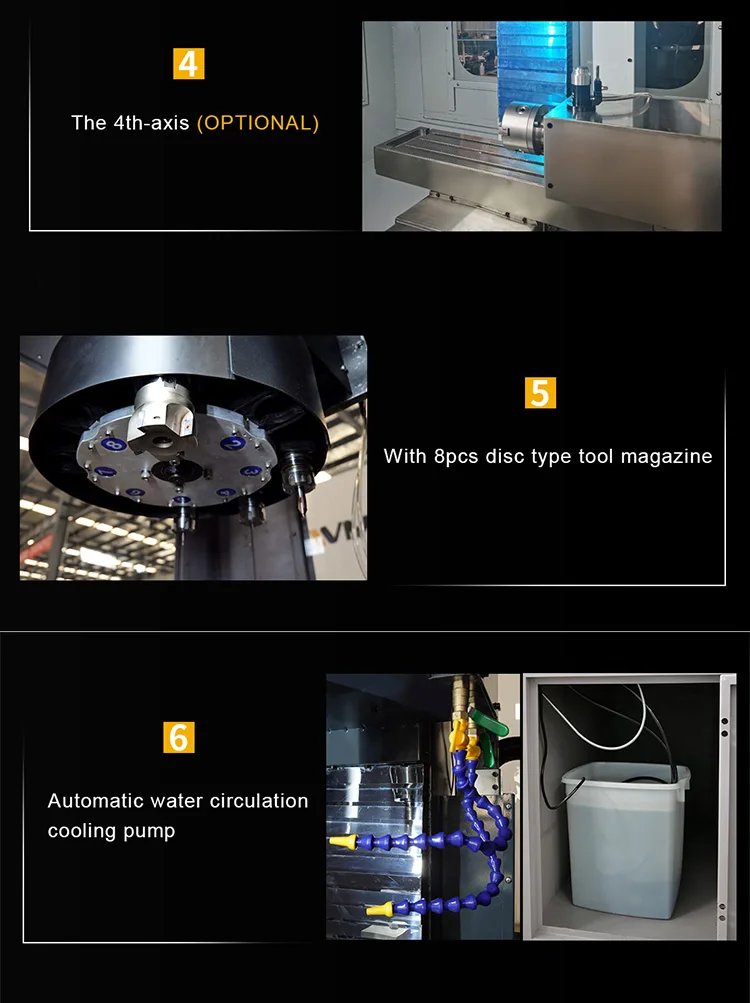

Capacity of ATC	8T
Air compressor pressure	12L
Lubricating pump capacity	1L
Working light	10W
Cooling pump	40W

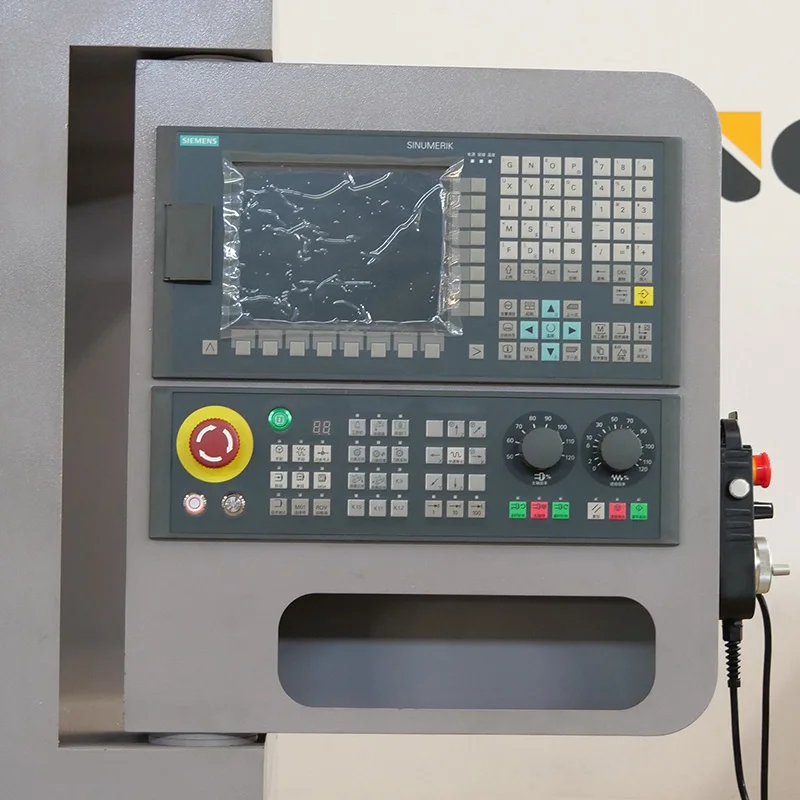

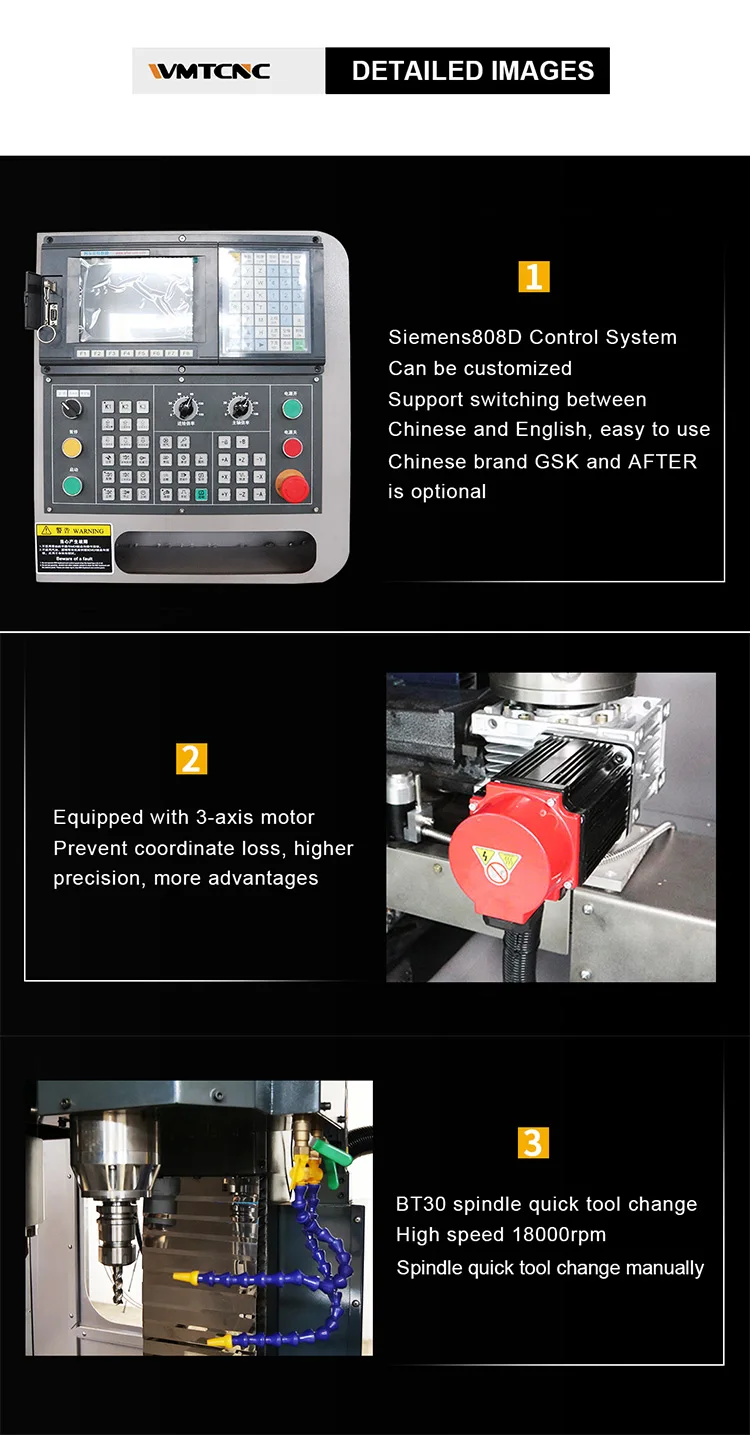

Controller system	after1500MDC-4
XY axis servo motor torque	2.4N.M
Z axis servo motor torque	4N.M
XYZ fast moving speed.	8
XY Linear guideway	（Taiwan HIWIN）15mm
Z linear guideway	（Taiwan HIWIN）20mm
X axis ball leadscrew	（Taiwan TBI）1605
YZ axis ball leadscrew	（Taiwan TBI）2005
