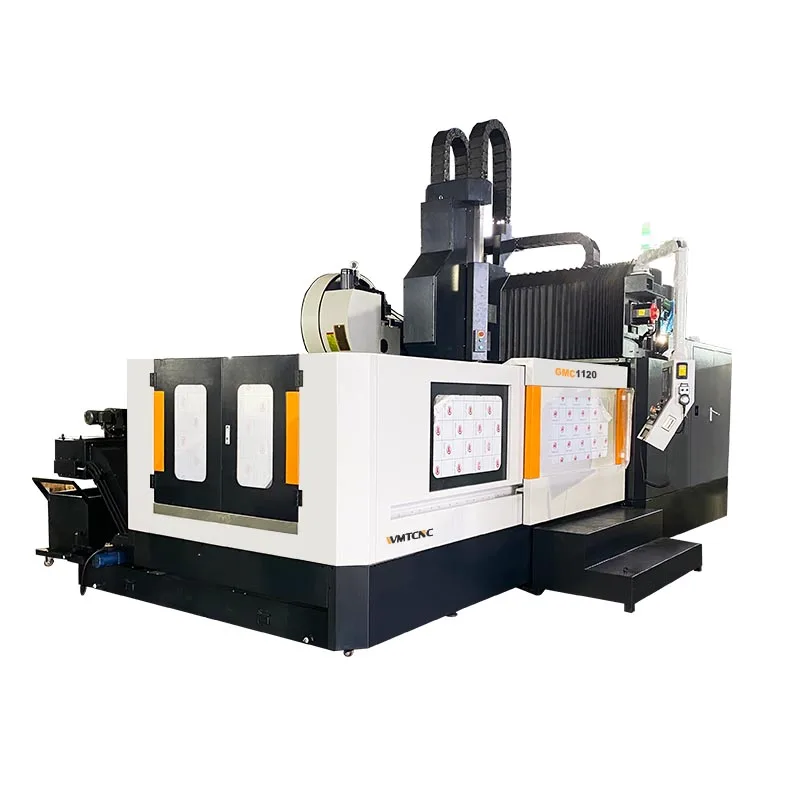

GMC1120 Heavy-Duty Accuracy CNC Gantry Milling Machine from China
€134,961.93
- USD: $146,002.50
- AUD: A$215,940.48
- GBP: £115,895.39
- JPY: ¥21,859,773
- CNY: ¥1,014,606.11
Description
Attention please!!!
New Design GMC1120 Heavy-Duty Accuracy Cnc Gantry Milling Machine from China
|
Specification |
GMC1120 |
|
Worktable |
|
|
Worktable size (L×W) |
2000×1000mm |
|
T-slots size (N×W×D) |
7-22x125mm |
|
Travel |
|
|
X/Y/Z axis travel |
2050/1100/600mm |
|
Capacity |
|
|
Distance from spindle nose to worktable surface |
160-760mm |
|
Distance between two columns |
1250mm |
|
Spindle |
|
|
Spindle taper |
BT50 |
|
Spindle power |
15/18.5kw |
|
Max. spindle speed |
7000rpm |
|
Spindle torque |
143N·m |
|
Feed |
|
|
Rapid feed speed (X/Y/Z) |
20/20/12m/min |
|
Ball screw (diameter+lead) |
|
|
X/Y/Z axis ball screw |
6320/5012/5020 |
|
X/Y/Z guideway type |
X/Y:roller linear guideways, Z:box guideway |
|
Tool magazine |
|
|
Tool magazine capacity |
24T |
|
Max. length of tool |
350mm |
|
Tool change time (T-T) |
3s |
|
Positioning accuracy (GB standard) |
|
|
Positioning accuracy（X/Y/Z） |
0.03mm |
|
Re-positioning accuracy（X/Y/Z） |
0.018mm |
|
Machine dimension |
|
|
L×W×H |
6800×4000×3900mm |
|
Machine weight |
|
|
Max. loading of worktable |
4t |
|
N.W |
19t |
Specification
