New Desigh CNC Lathe Machine Automatic CK6132 CNC Lathe Machine with Fanuc Control
$9,301.50
- AUD: A$14,444.95
- GBP: £7,752.61
- EUR: €9,028.04
- JPY: ¥1,462,270
- CNY: ¥67,870.25
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
Main Features:

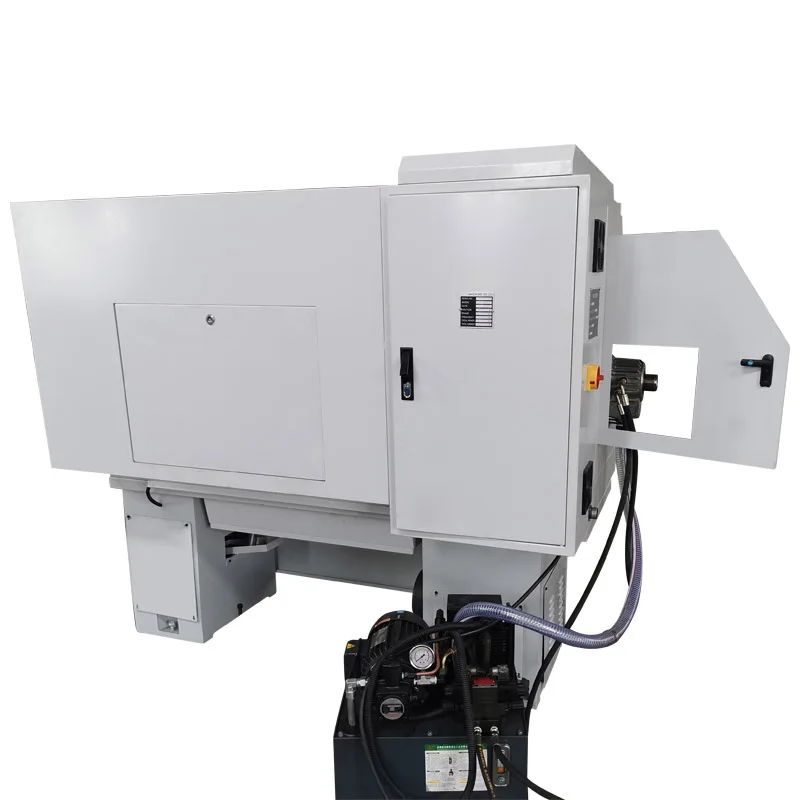

1. The half and full enclosure, you can select.
2. Hardened by induction, the machine bed and carriage has a long durability.

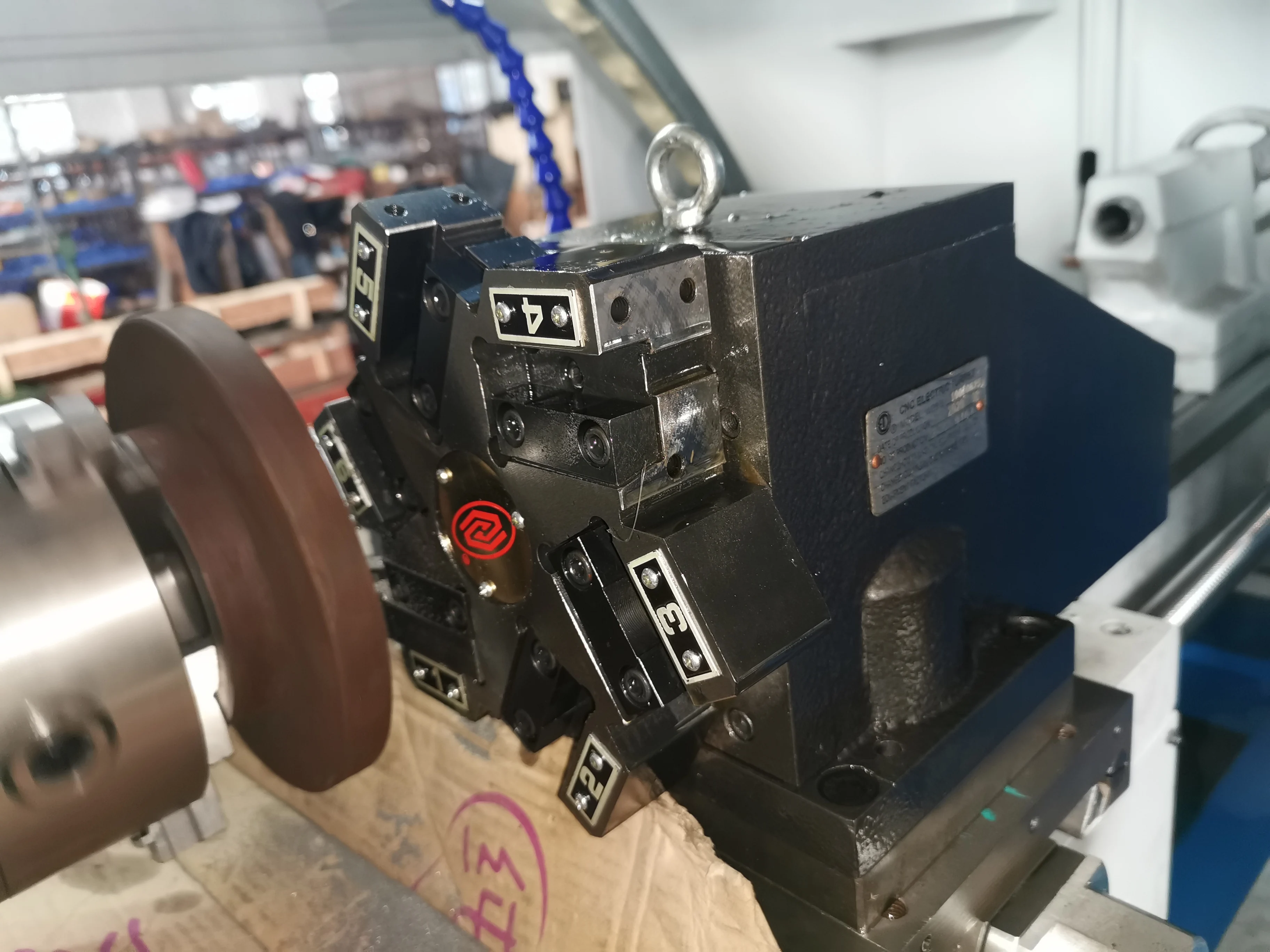

3. Electric turret and gang-tools turret can be both installed.
4. Manual lubrication or auto lubrication is up to you.
5. 4-position electrical tool post as standard, 6-position is for optional selection.
6. Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc..
with high efficiency and accurate processing.
7. The bed way has been finely grinned after ultra-tone quenching.
8. It is applied to various line like automobile, valve, electric tools and hardware, etc.
|
Model
|
CK6132×500/750/1000mm
|
|
Swing over bed
|
Dia. 320mm
|
|
Swing over carriage
|
Dia. 150mm
|
|
Distance between centers
|
500/750/1000mm
|
|
Spindle bore
|
40mm
|
|
Spindle nose
|
A2-5
|
|
Rail width
|
206mm
|
|
Taper of spindle bore
|
MT5
|
|
chuck
|
152mm
|
|
Taper of spindle outside
|
D4
|
|
Range of speed (Variable)
|
150-2500 rpm
|
|
X axis travel
|
180mm
|
|
Z axis travel
|
500/750/1000mm
|
|
X/Z rapid speed
|
4/7m per min.
|
|
X/Z screw
|
2004/4006
|
|
Station of toolpost
|
4 or 6
|
|
Max. section of tool
|
20*20mm or 16*16mm
|
|
Stroke of tailstock sleeve
|
120mm
|
|
Dia./hole of tailstock sleeve
|
45mm/MT3
|
|
Main motor power
|
2.2kw or 3.7KW
|
|
Coolant pump power
|
180w
|
|
Overall dimenstion (L*W*H)
|
1780/1920/2170*1220*1800mm
|
|
Packing size (L*W*H)
|
1980/2120/2370*1420*2000mm
|
|
Net weight
|
800/900/1050 kg
|
|
Gross weight
|
950/1050/1200 kg
|
