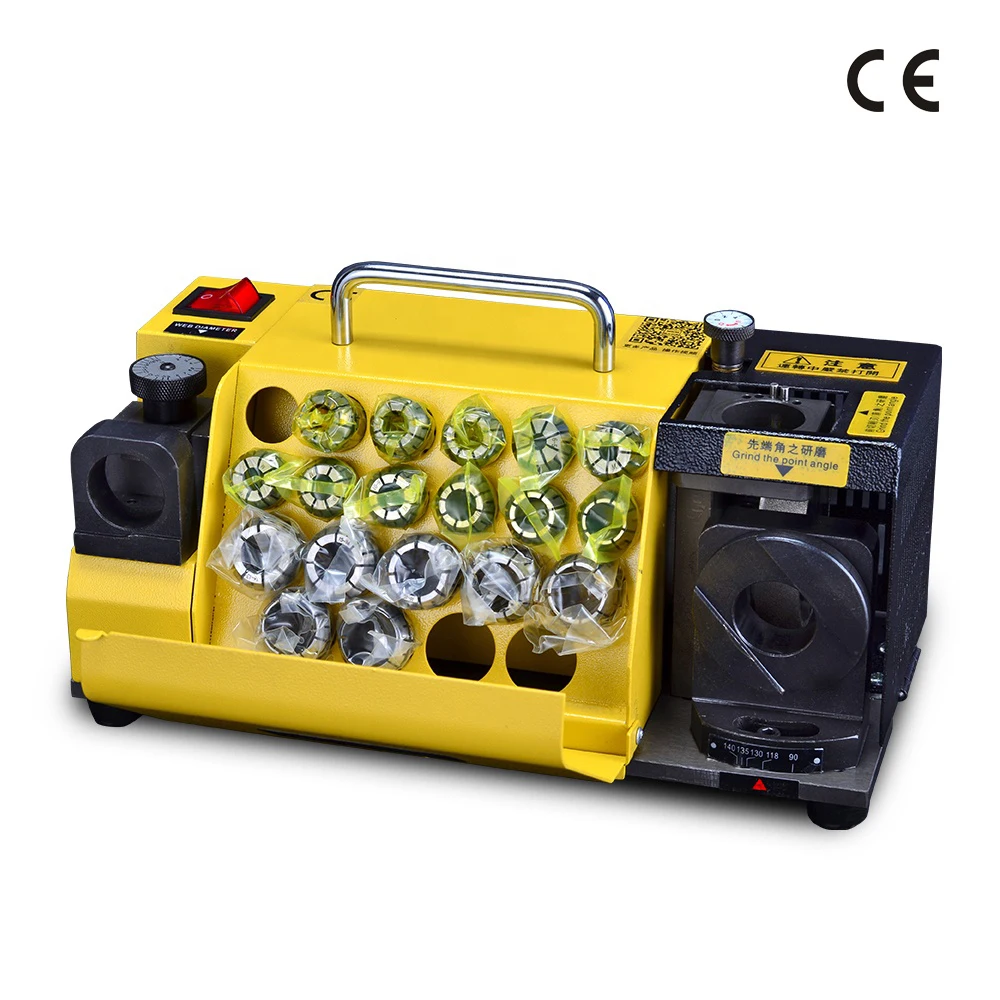

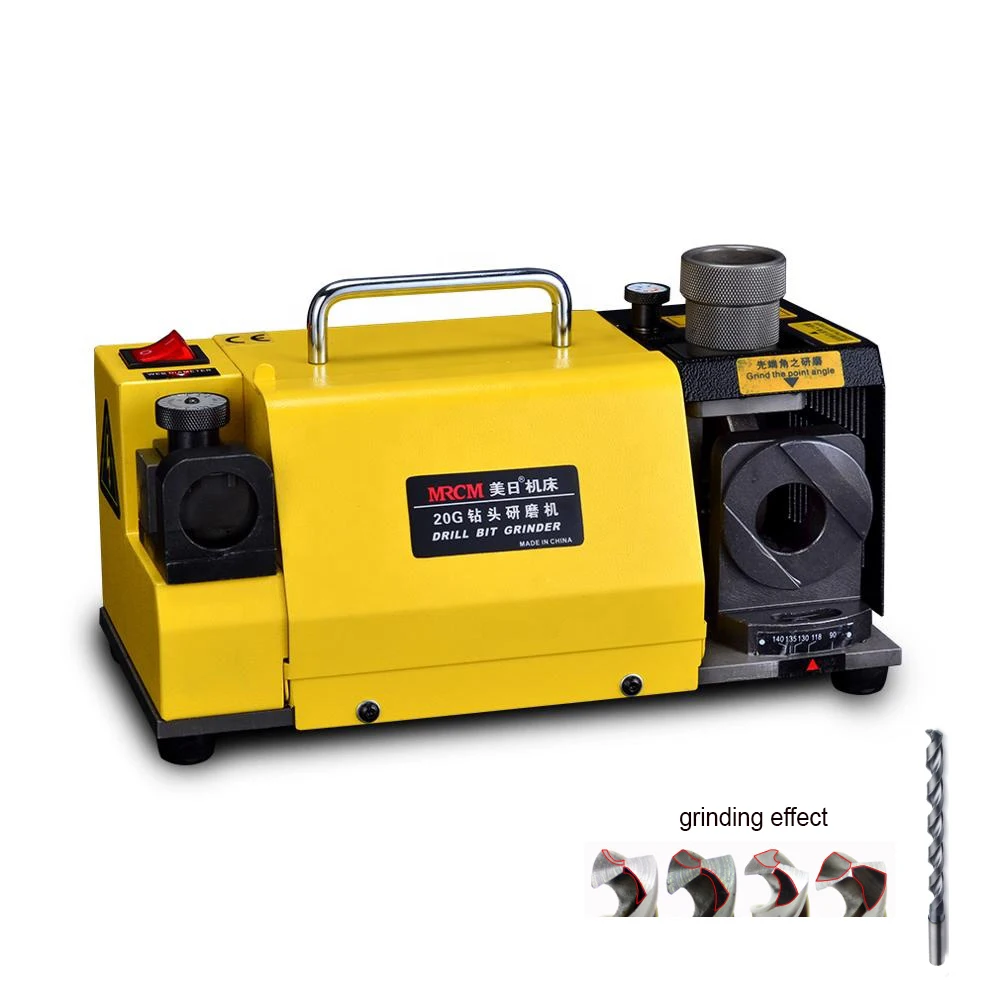

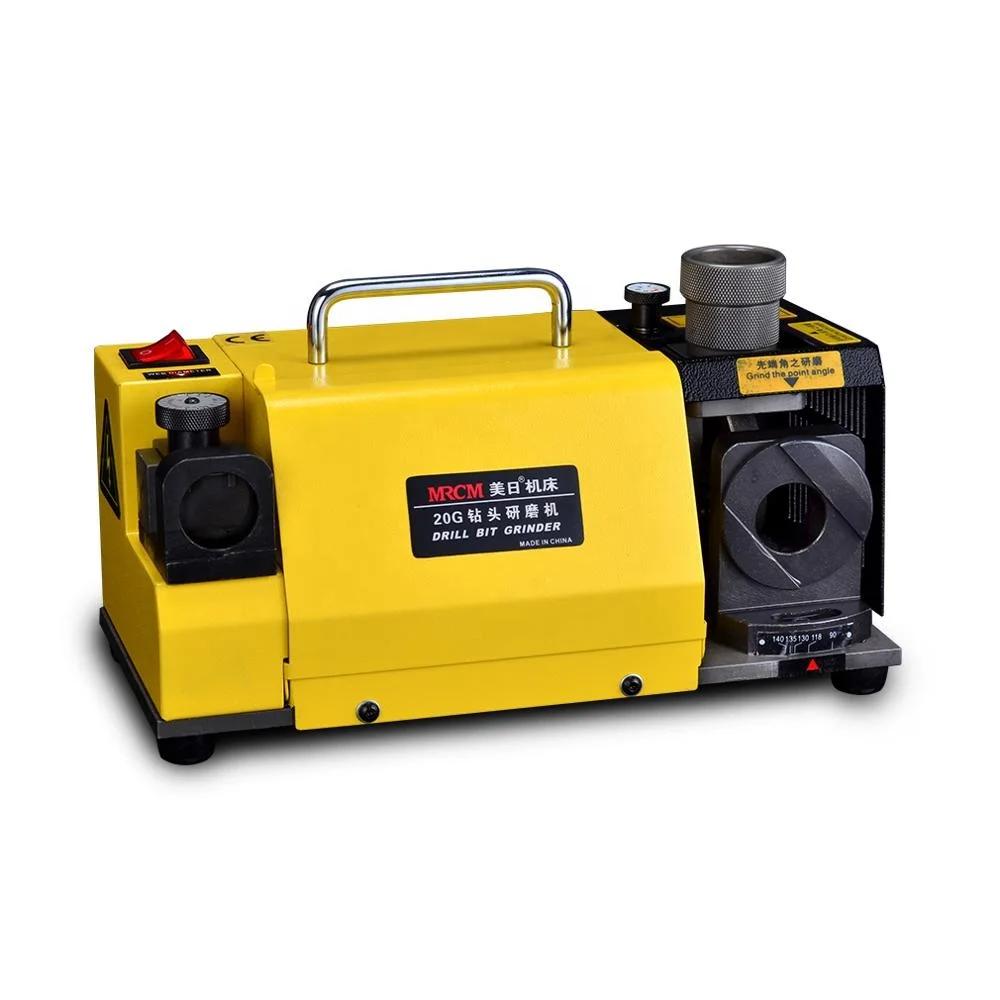

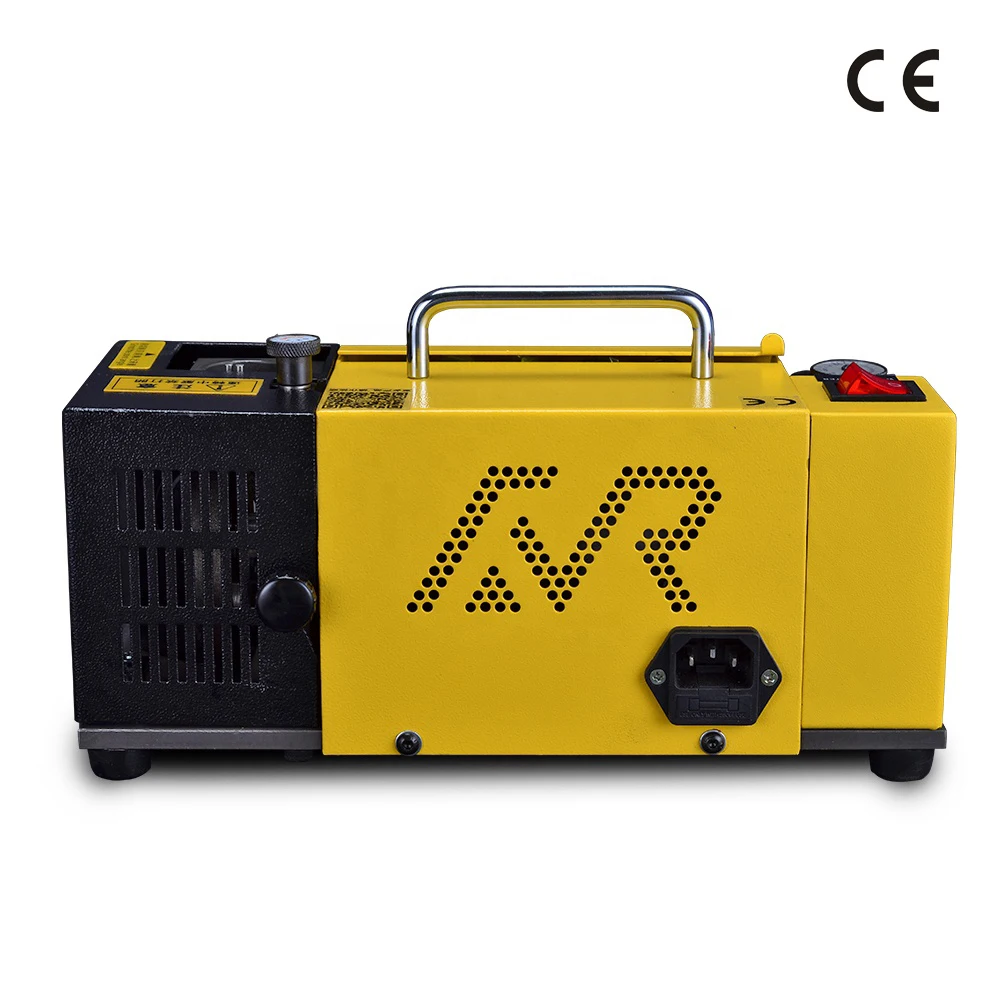

MR-20G Drill Bit Sharpener Grinder 2mm to 20mm Twist Drill Bit grinder With CBN Wheel MRCM Brand For Sales – SDC
$760.00
- AUD: A$1,180.26
- GBP: £633.44
- EUR: €737.66
- JPY: ¥119,478
- CNY: ¥5,545.49
Description
1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.

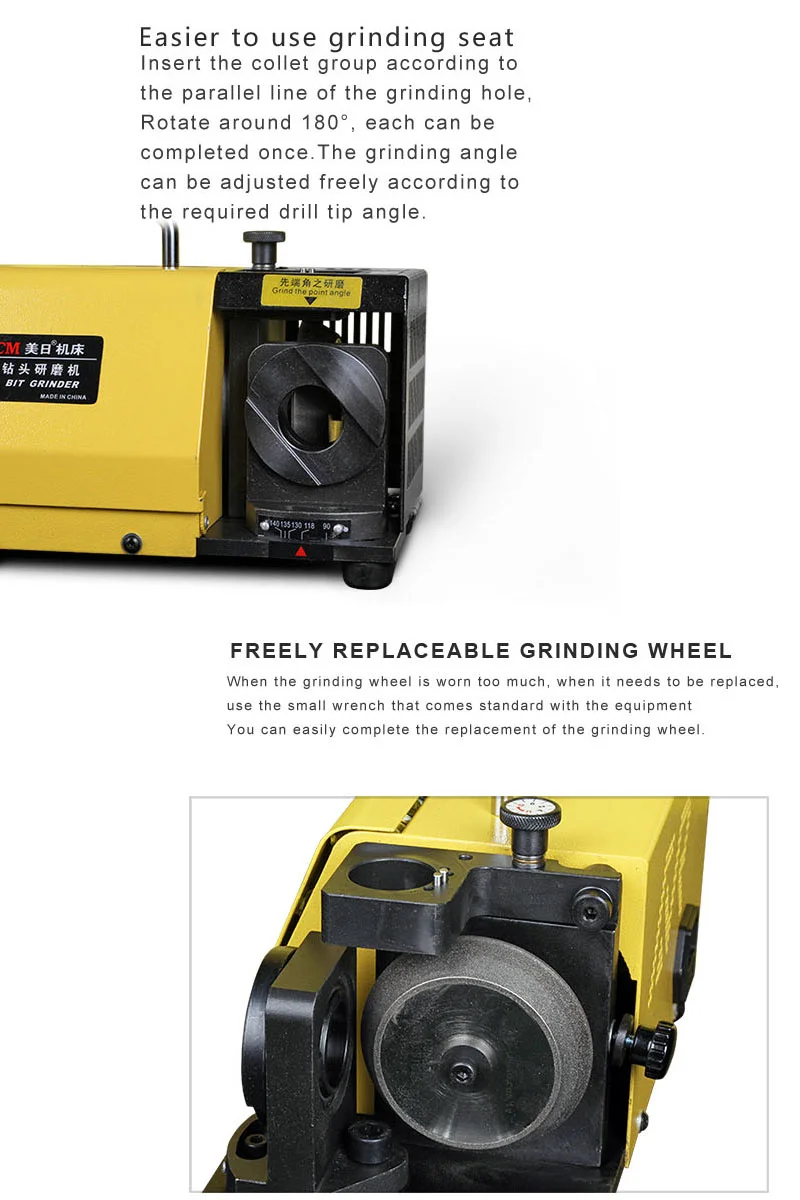

3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.
6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
|
Model |
MR-20G |
|
Grinding Range |
Ф3-ф20 |
|
Point Angle |
100(90)°~135° |
|
Power |
AC220V |
|
Motor |
120W |
|
Speed |
4400rpm |
|
Dimension |
32*19*20CM |
|
Weight |
11kg |
|

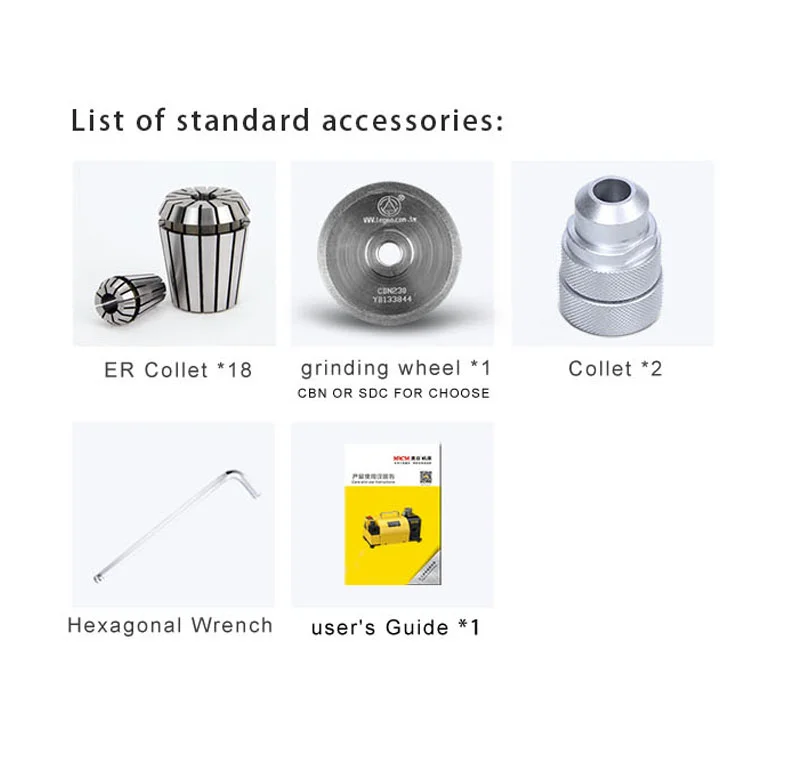

Standard Equipment |
grinding wheel :CBN (for HSS)×1 |
|
Eleven ER20 collets: ф3、ф4、ф5、ф6、ф7、ф8、ф9、ф10、ф11、ф12、ф13 Seven ER25 collets:ф14、ф15、ф16、ф17、ф18、ф19、ф20 |
|
|
collet chuck:(ф3-ф13)×1 collet chuck:(ф14-ф20)×1 |
|
|
Option Equipment |
grinding wheel :SD (for Carbide) |
|
collets: ф2.5、ф3.5、ф4.5、ф5.5、ф14、ф15 |
Specification
Additional information
| Weight | 100 kg |
|---|
