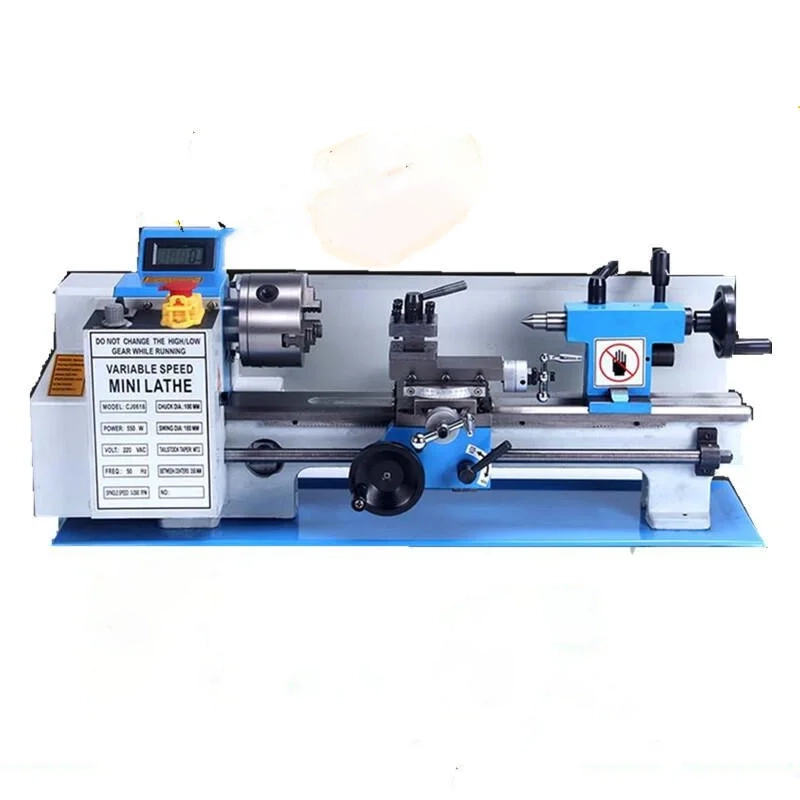

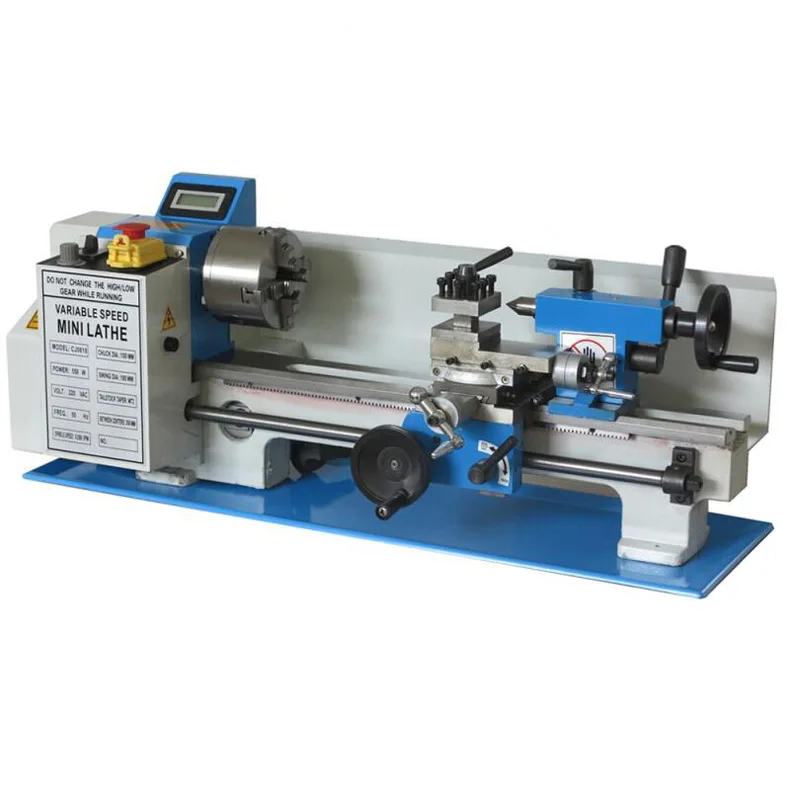

Brushless Motor Mini Lathe Machine Metalworking Digital Display 32mm Spindle hole 100mm Chuck Ordinary Small Lathe 550W – Brushless Motor
$1,101.20
- AUD: A$1,710.13
- GBP: £917.83
- EUR: €1,068.82
- JPY: ¥173,117
- CNY: ¥8,035.13
Description

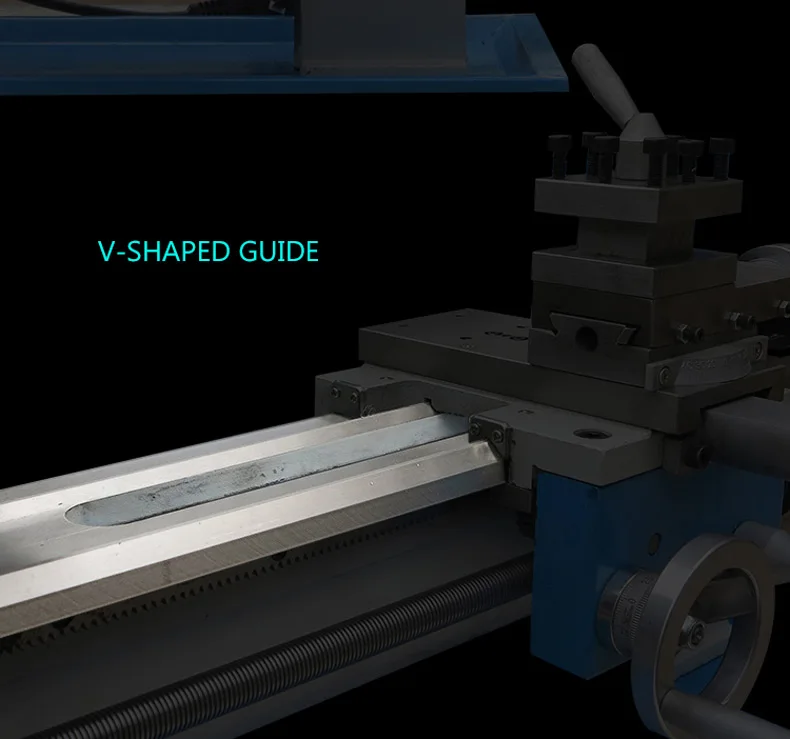

V-shaped rail model: 618*350
Bed turning diameter: 180mm
Rotary diameter of tool holder: 110mm
Distance between two centers: 350mm
Bed width: 100mm
Spindle through hole: 32mm

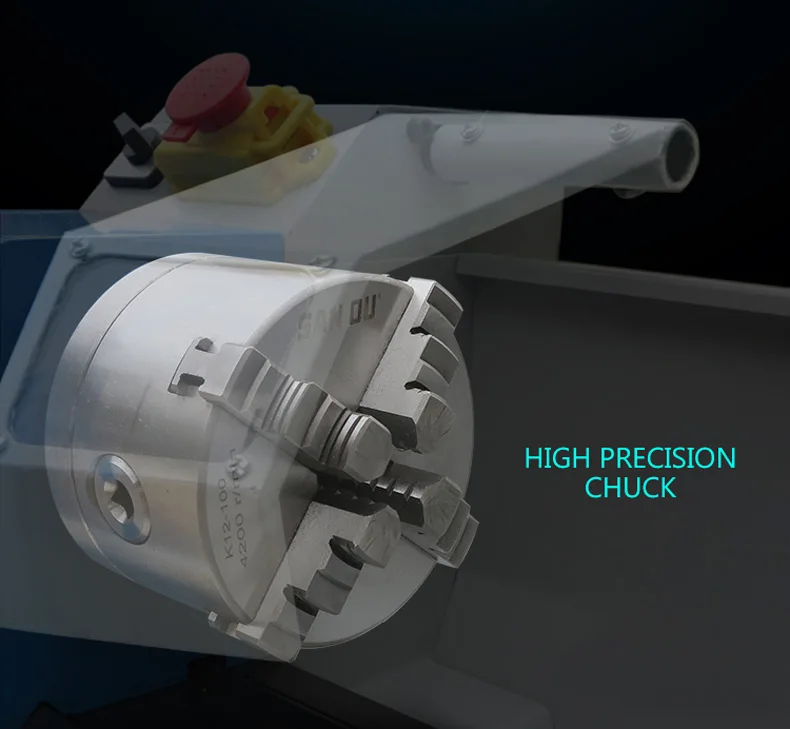

Chuck diameter: 100mm
Motor power: 550W
Spindle taper: Morse No. 3

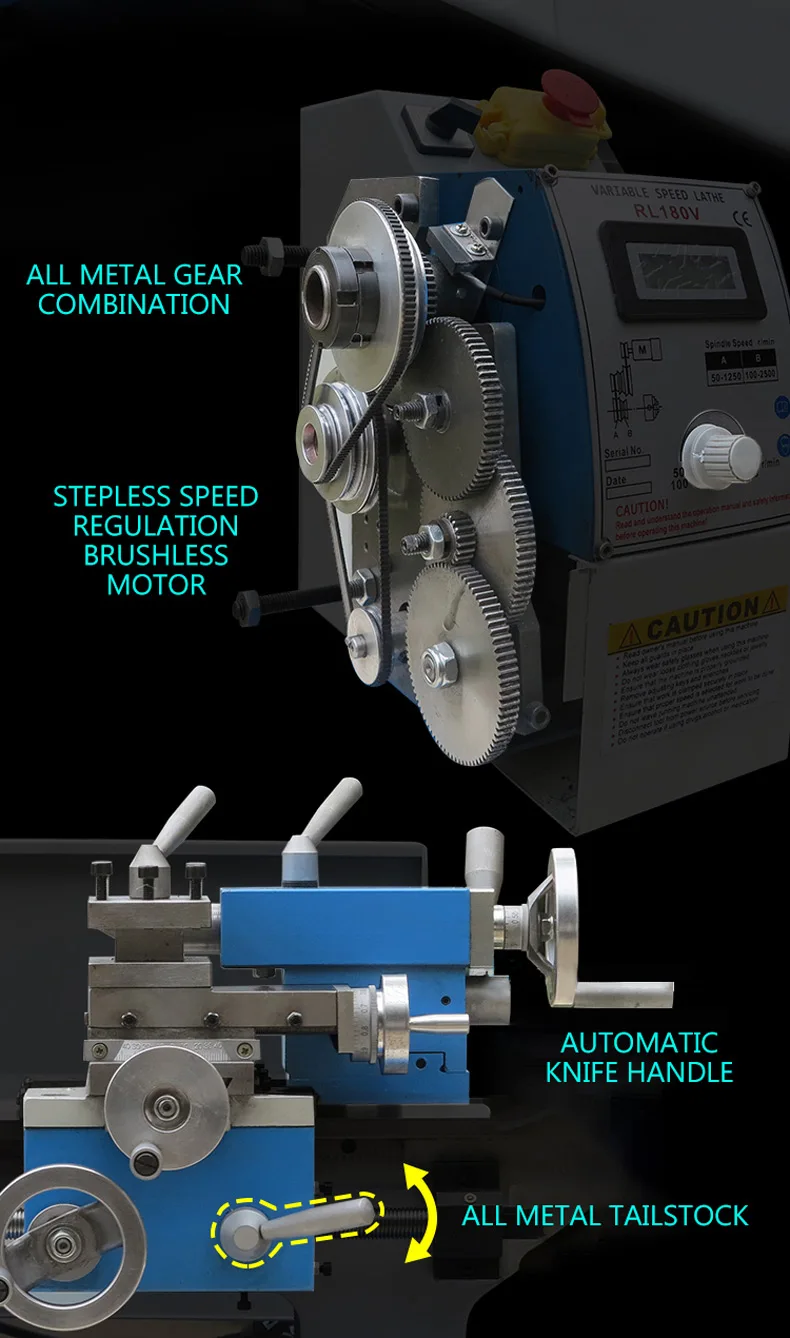

Gear shift level: stepless speed regulation
Speed range: 50-2500rpm
Metric thread grade: 10
Metric thread range: 0.5-3mm
Inch thread series: 8
Inch thread range: 8-44T.P.L
Automatic feed range: 0.1-0.2mm
Tool post station: four stations
The maximum stroke of the blade carriage: 35mm
The maximum stroke of the carriage: 65mm
Maximum stroke of large carriage: 195mm
Maximum travel of tailstock sleeve: 40mm
Tailstock taper: Morse 2
Voltage: 220V
Weight: 50kg
Packing size: 800*350*350mm
Specification
Additional information
| Weight | 100 kg |
|---|
