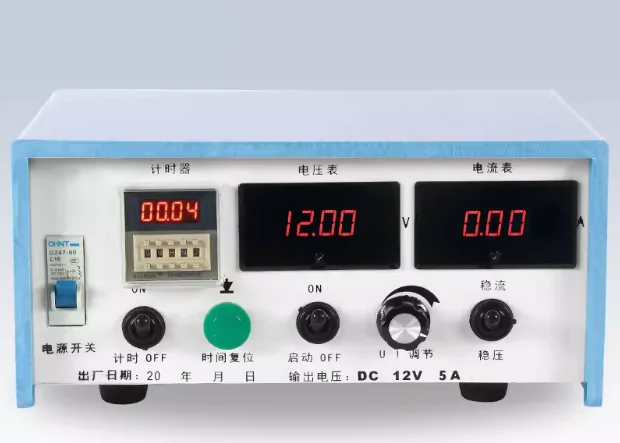

5A-100A Electroplating Rectifier Machine with Timer Brush Plating Electrolytic Oxidation Sewage Treatment Dc Pulse Power Supply – with timer – 100A 12V

100A-12V Electroplating Rectifier Machine Air Cooling Water Cooled Type Electroplating Power Supply

Product advantage:

1. The adoption of high-quality electronic components and advanced operating principles enables it to have stable and reliable functions.Perfect, energy – saving, portable, excellent output waveform and other advantages.

2. This product has obvious material saving effect. PWK series power conversion efficiency is as high as 95%.

3. This product has reliable protection function, which can automatically protect the output short circuit, overload, lack of phase of input power and excessive humidity in the machine.

4. Built-in stable flow/steady pressure/continuous adjustable function.

Product operation & and maintenance:

1. Under normal operation, the power supply operation indicates that the green light is normally on, and the protection red light flashes, indicating that the power supply is in the protection alarm state at this time.When protecting the state, the current and voltage output are zero, the power switch circuit breaker must be disconnected and restarted before the normal working state can be restored.

2, temperature protection: fan failure or overload power for a long time, may make the internal temperature over 85 °, the temperature inside the relay closed normally open contacts, make the control circuit protection alarm, the power source protection state, must be cooled, at this time to open the switch breaker can work.

3. Overcurrent protection: when the current output exceeds 15% of the rated current, it will enter the protection state.

4. Please disconnect all switches before opening the power supply, and then proceed in the following control order: external air switch — working (knob adjustment)
