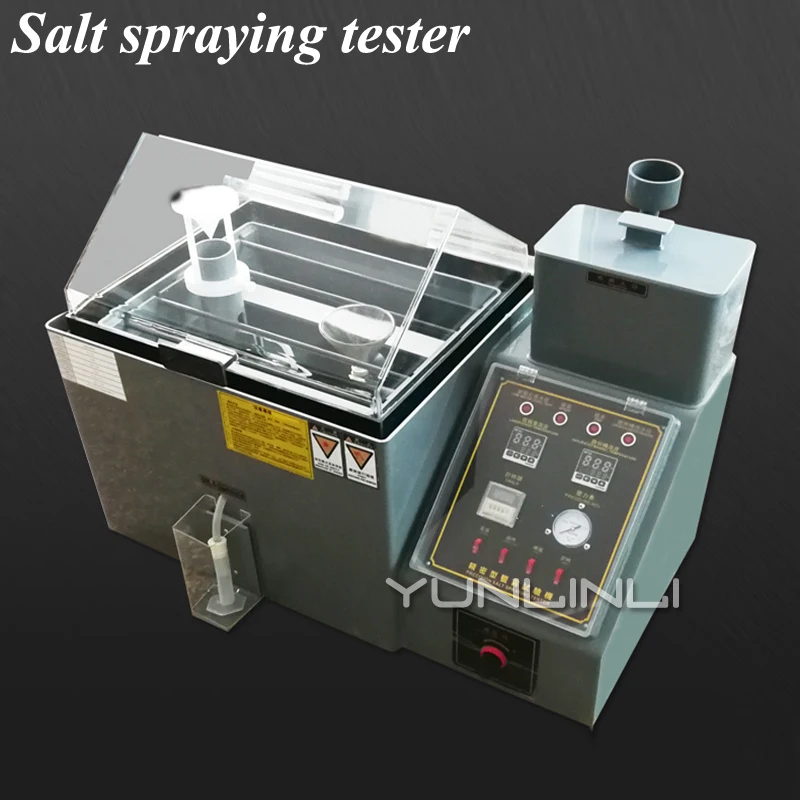

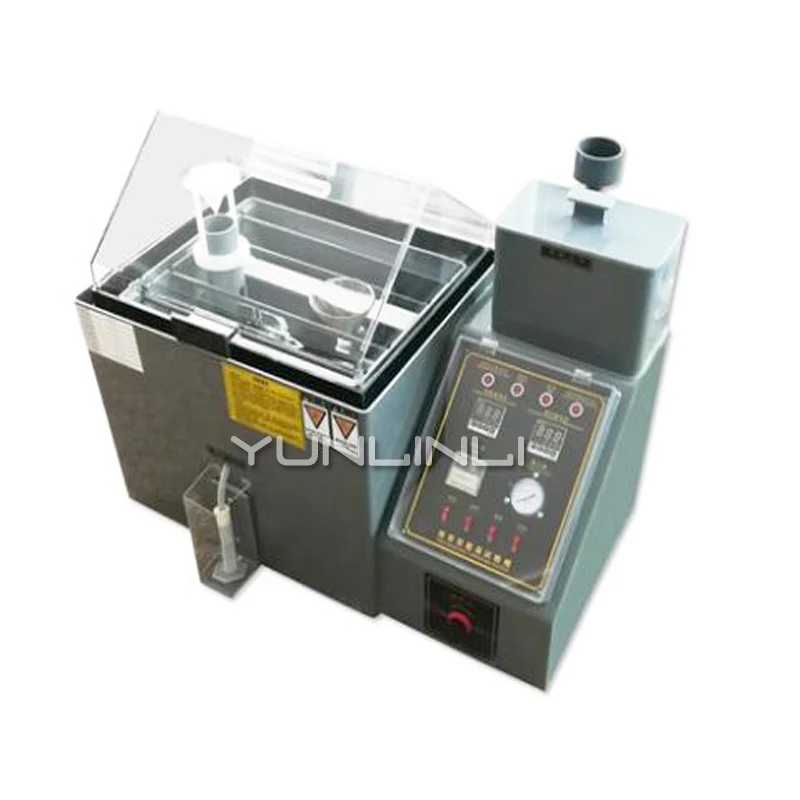

1500W Salt Spray Testing Machine 220V Continuous Test Salt Spraying Tester High Precision Laboratory Salt Mist Test Box LX-40B

33754



Salt Spray Testing Machine 1500W 220V Continuous Test Salt Spraying Tester High Precision Laboratory Salt Mist Test Box LX-40B

Parameter:

Name: salt spraying tester

Test room size: W450MM*D350MM*H300MM

Dimensions: W900MM*D450MM*H600MM

Power: 1500 w

Voltage: 220 v / 50 hz

Modulation method: the test solution with a concentration of 5% was prepared, 9.5kg of pure distilled water was added, 500g of NaCI was added, and mix it, that is the test drug was formed.

Weight: 28KG

Spray mode: continuous test

Test timing: adjustable type 1 ~ 9999 (S, M, H)

Salt spray test: laboratory temperature controller is set to 35 °, 47 ° saturated air barrel temperature controller is set (40 ° to 50 °)

Standard configuration: Round rod *1, V sample holder*1, measuring cylinder*1, NACI*1,  instruction manual*1

This test box conforms to :

GB2423.17-93,GB/T2423.18;GB/T10125-1997;GB10587;GB6460;GB1771;GJB150;DIN50021-75;ISO3768, 3769, 3770;CNS 3627, 3885, 4159, 7669, 8866;Standards such as jisd-0201, h-8502, h-8610, k-5400, z-2371, and equivalent IEC, MIL, DIN, ASTM, etc

How to use it?

Step 1: connect the 220V air leakage switch

Step 2: connect the compressed air behind the machine (adjust the air filter pressure to 2KG)

Step 3: turn on the power switch, and the low water level lamp and the low water level of the saturated barrel are turned on, indicating that there is a shortage of water in these two places

Step 4: use a bucket to the laboratory water (to be automatic and water connected to the behind soldering shuikou automatic water), add to lab low water lights, again through the combiner bao manual filler (automatic adding water can need not this step) of water, add to the low water saturation barrel lights, then look at the instructions add tuned brine from reagent to mouth with salt water, add salt to water tank more than half of the check.

Step 5: add water to the sealed tank of the box. Add water to the cup with more than two LIDS to seal it

Step 6: after putting into the test product sample, close the cover, open the operation switch and spray switch, and then pull out the front pressure regulating valve by rotating the handle, and adjust the pressure to the black 1KG position.Then start the spray timer action.
