Name: ▷ Buy New High Precision SHL400/250 CNC Slant Bed Lathe for Metal Cutting () - Available at MachineryGenie.com
SKU: 1005005386788284
Price: 33750.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

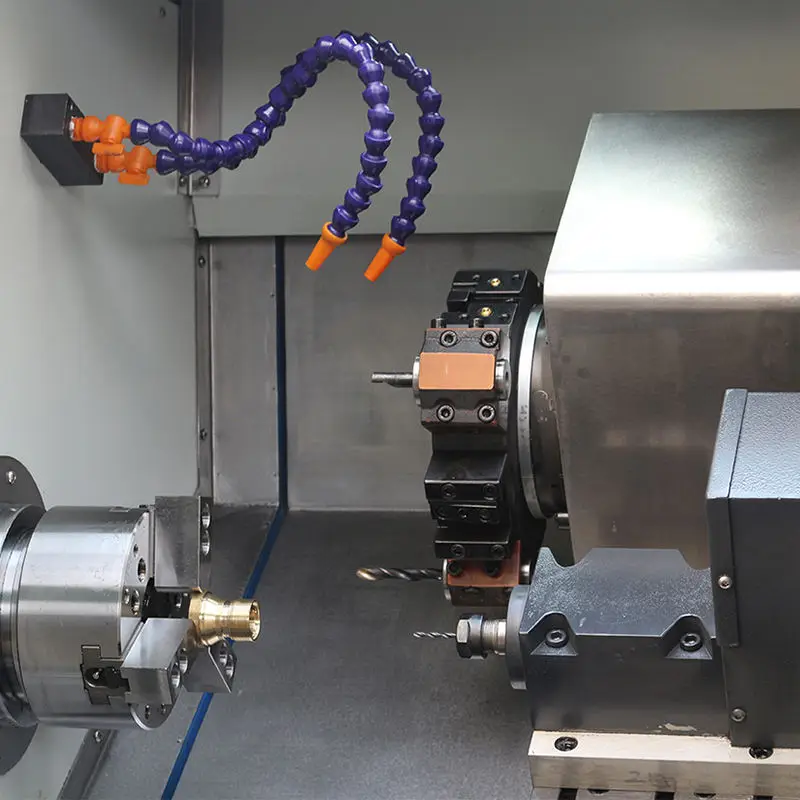

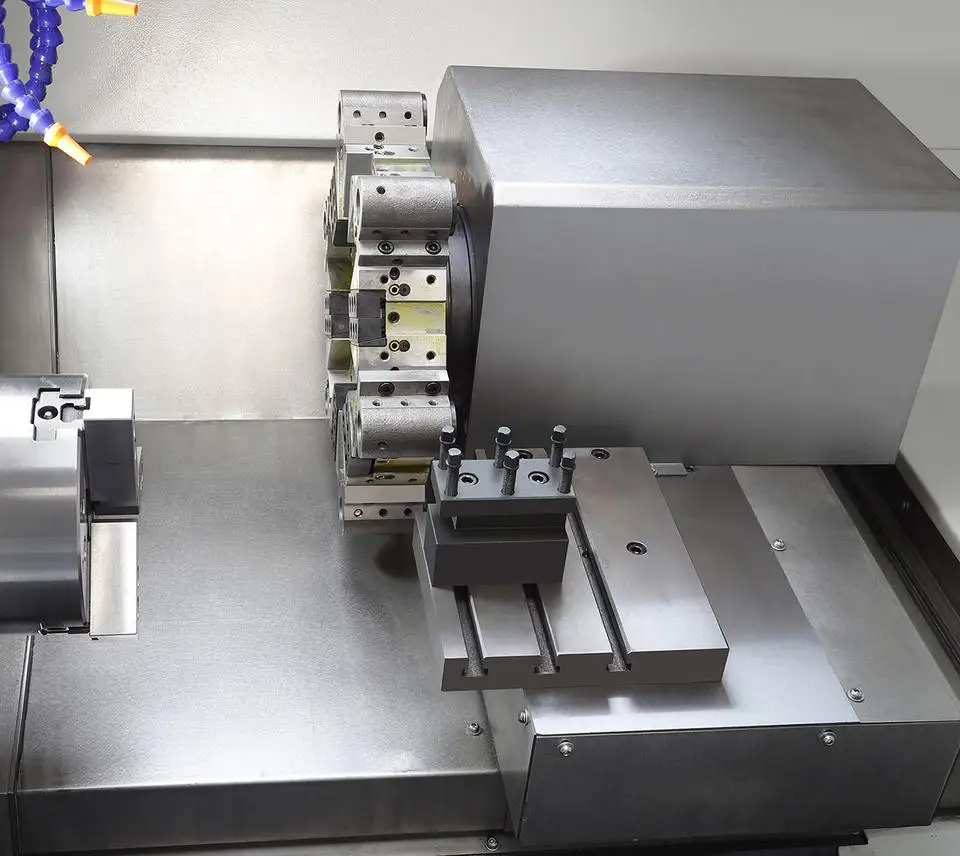

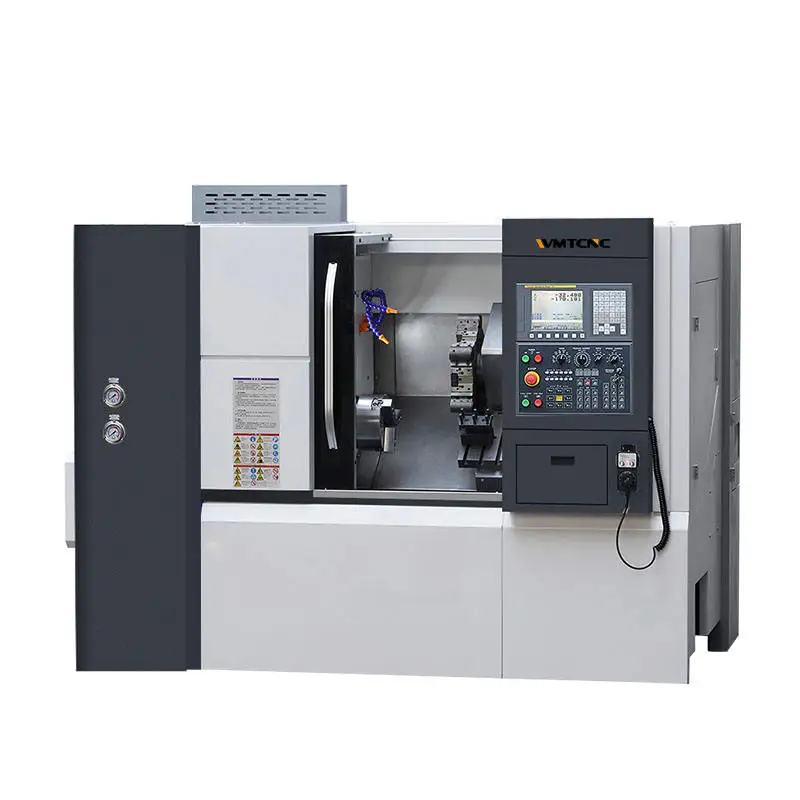

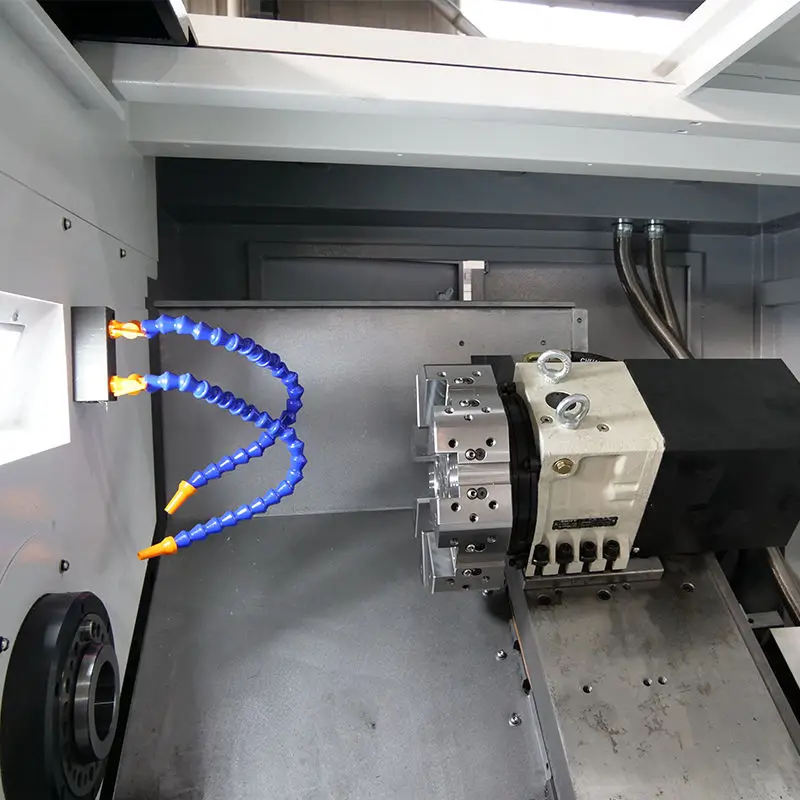

SHL400/250 CNC Slant Bed Lathe for Metal Cutting

Main Features:

1. SHL lathes have a heavy-duty cast base with “true align” slant bed design.

2. The machine bed, headstock and turret are aligned on the same plane.

3. This design reduces heat built-up and resulting thermal expansion.

4. You can expect to produce highly accurate parts with extremely fine surface finishes.

5. PLUS, properly aligned and balanced components.

6. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.

7.Ture slant bed extremely minimizes the impact of thermal expansion to precision.

8. 35 degree bed slant is more convenient for scrap iron;

9. Better dynamics and higher precision;

10. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable;

11. Increasing the versatility and automation of the lathe;

12. Better water-resistant and scrap-iron-resistant.

Specification		Unit	SHL400/350
Capacity	Chuck size	inch	6″, 8″, 10″
	Max. swing dia. over bed	mm	Ø400
	Max. length of workpiece	mm	350, *250
	Max. swing dia. over slide	mm	Ø210
Spindle	Spindle bore	mm	Ø55	*Ø62	*Ø81
	Max. dia. of through-hole	mm	Ø46	*Ø52	Ø70
	Spindle nose	type	A2-5	*A2-6	*A2-8
	Spindle speed	rpm	4500	2000	*1600
			*5000	*4000	*2500
	Main motor power	kW	5.5/7.5
Axis	X axis travel	mm	250
	Z axis travel	mm	350, *250
	X/Z rapid traverse	m/min	20/25
Turret	No. of tool stations	nos	8,*12
	Tool shank size	mm	20X20,*25X25
Structure	Slant bed degree		35
	Guideway type		LM
Others	Power capacity	kVA	13
	Overall dimension (LxWxH)	mm	2520X2050X1960
	Weight (about)	kg	2500
