High Precision CK36L CNC Slant Bed Lathe Machine for Metalworking
£24,191.76
- USD: $30,476.25
- AUD: A$45,074.95
- EUR: €28,171.66
- JPY: ¥4,562,962
- CNY: ¥211,786.71
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]

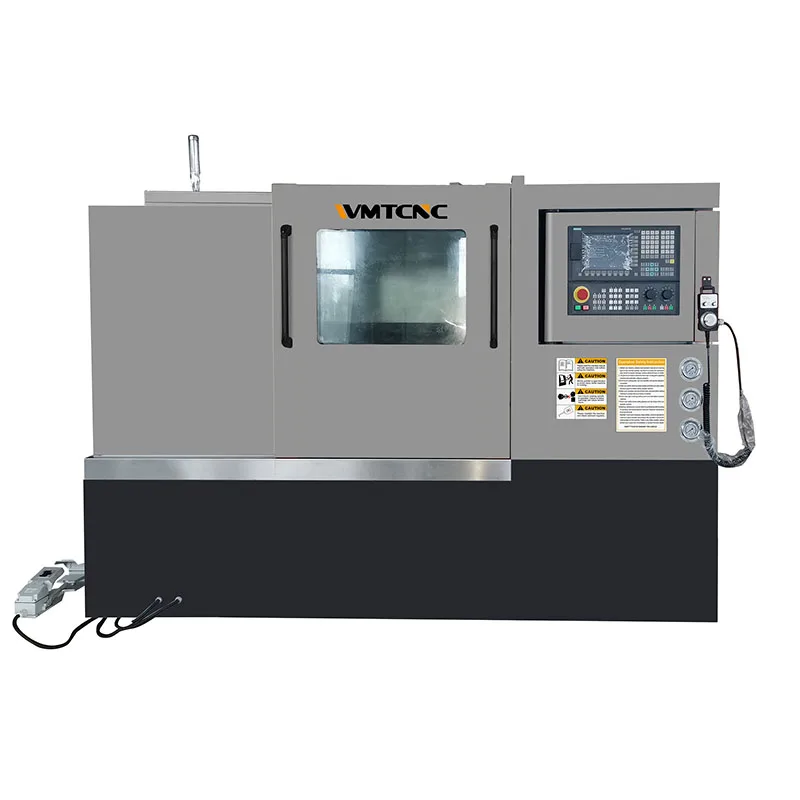

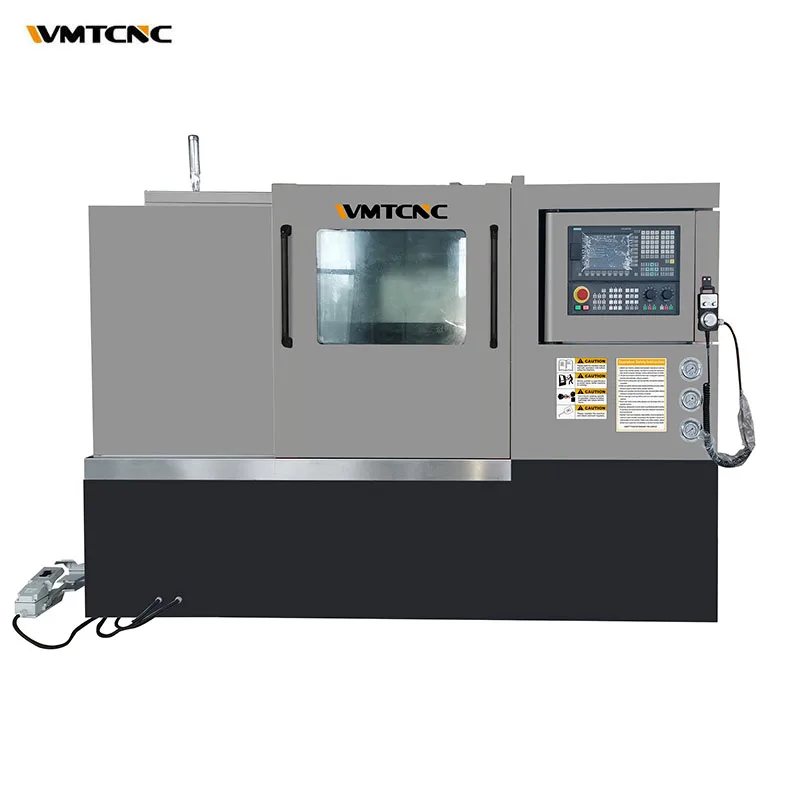

CK36L CNC Slant Bed Lathe Machine for Metalworking
CNC Slant Bed Lathe Machine Main Features:
1. High rigid 45 degree slant bed;
2. X/Z Taiwan linear guideway;
3. X/Z Taiwan precision ballscrew;
4. A2-5 spindle unit;
5. Artistic apprearance with high precision;
6. GSK, Siemens, Fanuc CNC system optional.
|
Specification
|
CK36L
|
|
Max.swing over bed
|
Ф360mm
|
|
Max.swing over carriage
|
Ф210mm
|
|
Max. cutting length
|
500/750mm
|
|
Rail width
|
284mm
|
|
Spindle nose
|
A2-5 (optional:A2-6)
|
|
Spindle bore
|
Ф56mm (65mm)
|
|
Taper of spindle bore
|
1:20
|
|
Chuck size
|
6 (optional:8)
|
|
Range of spindle speed
|
150-4200rpm
|
|
X-axis travel
|
210mm
|
|
Z-axis travel
|
500/750mm
|
|
X/Z rapid speed
|
20/20m/min
|
|

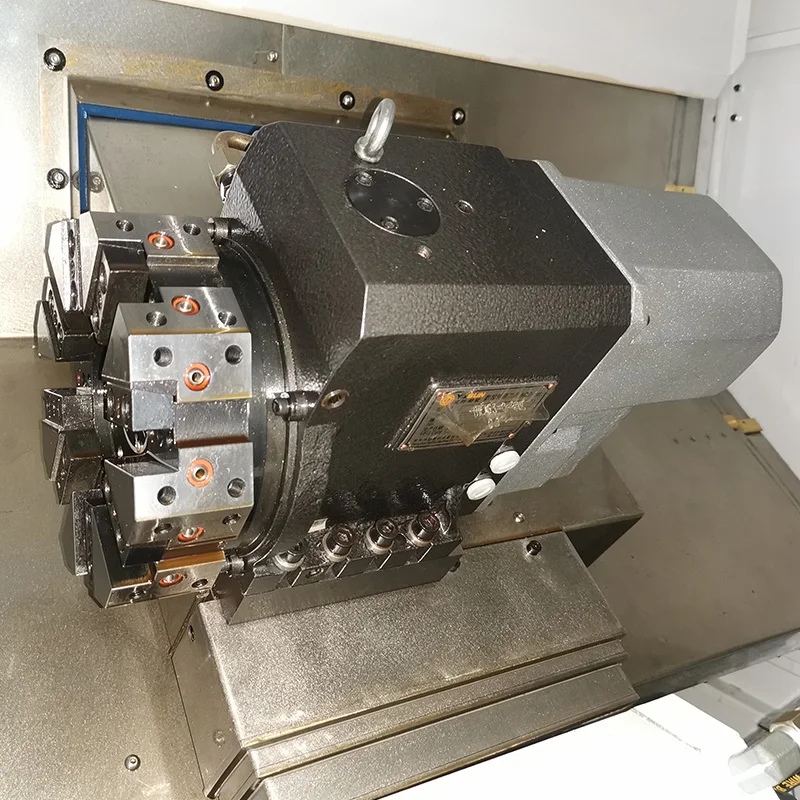

Electronic turret
|
8
|
|
Max.section of tool
|
20x20mm
|
|
Stroke of tailstock sleeve
|
80mm
|
|
Diameter/Hole of tailstock sleeve
|
Ф60mm/MT4
|
|
Main motor power
|
5.5kw (optiona:7.5kw)
|
|
Coolant pump power
|
370w
|
|
Overall dimensions L x W x H
|
2630/2910x1550x1750mm
|
|
Packing size L x W x H
|
2830/3130x1750x2150mm
|
|
Net weight
|
2700/3000kg
|
|
Gross weight
|
3100/3400kg
|
