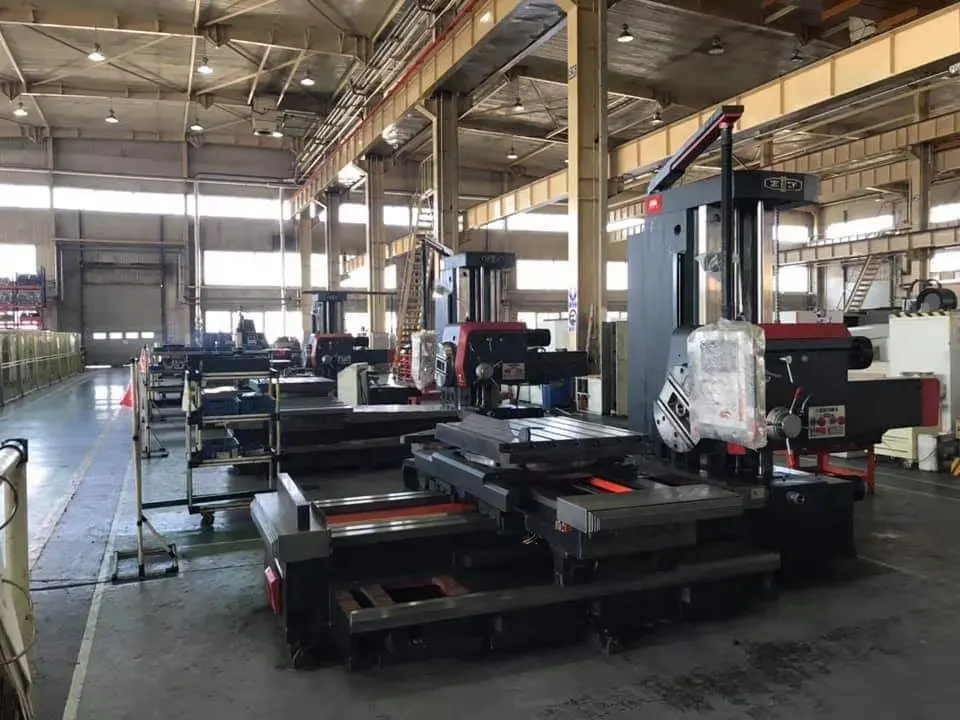

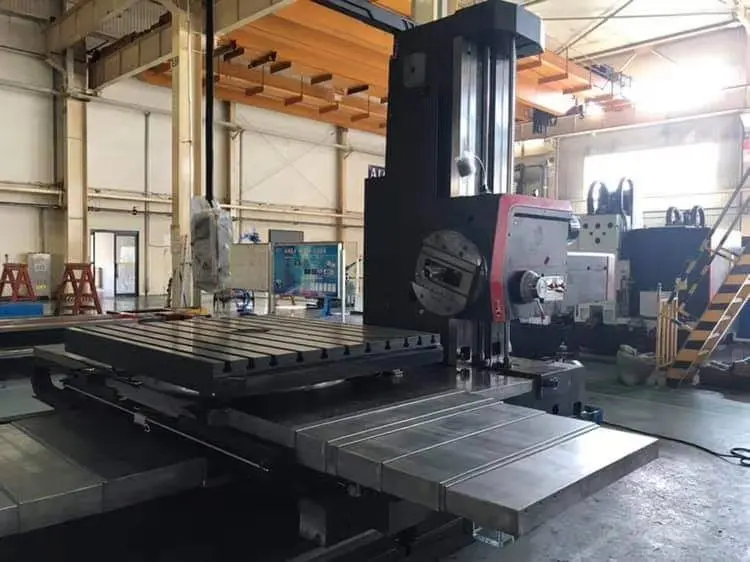

Heavy Duty Customized TPX6113 Horizontal Engine Boring Machine

$20,925.00

  • AUD: A$32,495.90
  • GBP: £17,440.57
  • EUR: €20,309.80
  • JPY: ¥3,289,578
  • CNY: ¥152,683.44

In stock

  Chat Now
SKU: ALMACO-TPX6113-1600194559207 Category: Tag: Brand:

$20,925.00

  • AUD: A$32,495.90
  • GBP: £17,440.57
  • EUR: €20,309.80
  • JPY: ¥3,289,578
  • CNY: ¥152,683.44

Description

Specification
Specifications
Unit
TPX6111
TPX6111A
TPX6111A/2
TPX6113
TPX6113A
TPX6113A/2
TPX6113A/3
Spindle bore diameter
mm
Φ110
Φ110
Φ110
Φ130
Φ130
Φ130
Φ130
Spindle taper
MT
6
6
6
80#
80#
80#
80#
Max, spindle torque
Nm
1225
1225
1225
3136
3136
3136
3136
Max. spindle axial thrust
N
12250
12250
12250
31360
31360
31360
31360
Steps of spindle speed
22
22
22
24
24
24
24
Range of spindle speed
r/min
8~1000
4~800
Power of main motor
kW
7.5
7.5
7.5
15
15
15
15
Max. facing head torque
Nm
1960
4900
Facing head diameter
mm
Φ600
Φ600
Φ600
Φ750
Range of facing head speed
r/min
4~200
4~200
4~200
2.5~125
Speed step of facing head speed
18
18
19
18
18
18
18
Table size
mm
1140 x1000
1140 x1000
1300 x1250
1600 x1400
1800 x1600
Max. load on table
kg
2500
8000
T- slot
mm
22
22
22
28
28
28
28
Number of T-slot
7
7
7
9
9
9
9
X- axis travel
mm
1000
1350
1600
1600
2000
2000
3000
Y – axis travel
mm
1000
1000
1300
1500
1800
2000
2000
Z – axis travel
mm
1000
1000
1000
1500
1500/2000(Without Rear Column)
W- axis travel (Spindle travel)
mm
600
600
600
900
U – axis travel (facing head spindle travel)
mm
180
180
180
250
250
250
250
B – axis work table rotary
360
360
360
360
360
360
360
Min. distance between spindle center and table surface
mm
0
0
0
0
0
0
0
Rapid travel (X/Y/Z)
mm/min
2500
Range of feed (X/Y/Z)
mm/rev
0.04~6
Precision of measurement accuracy (X/Y/Z)
mm
0.01
0.01
0.01
0.01
0.01
0.01
0.01
