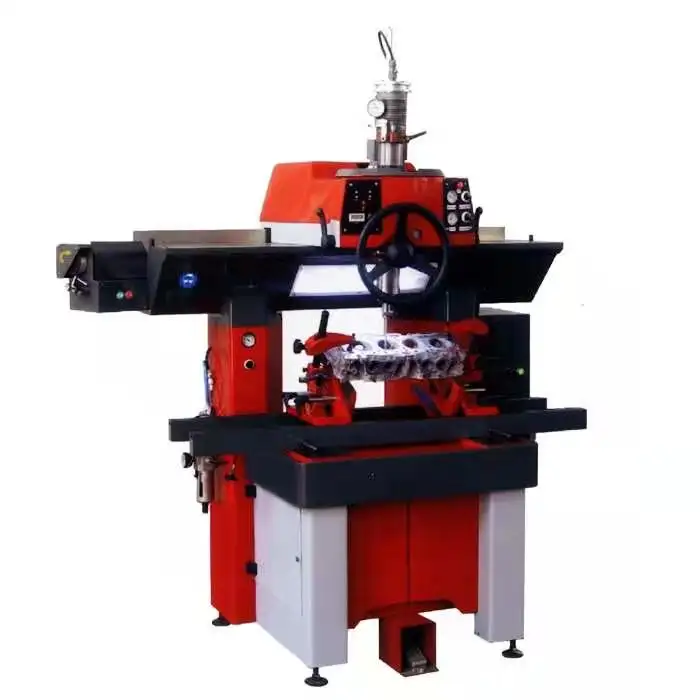

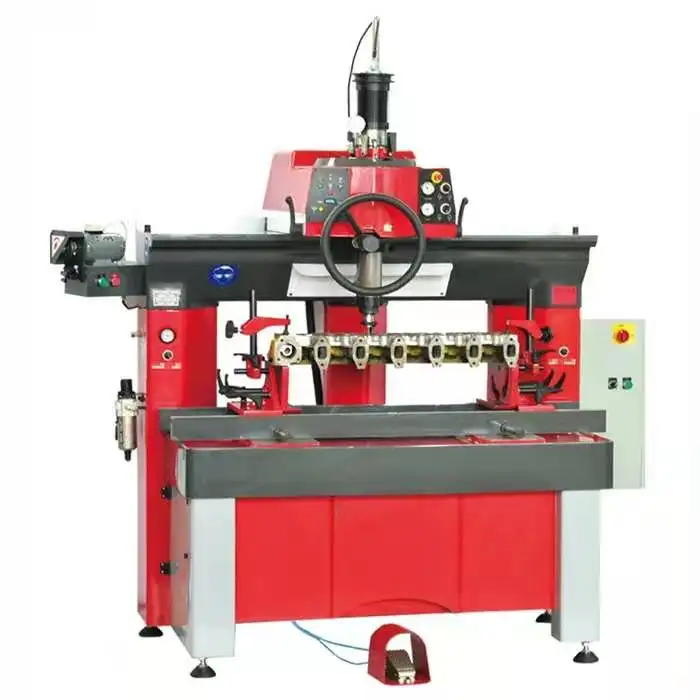

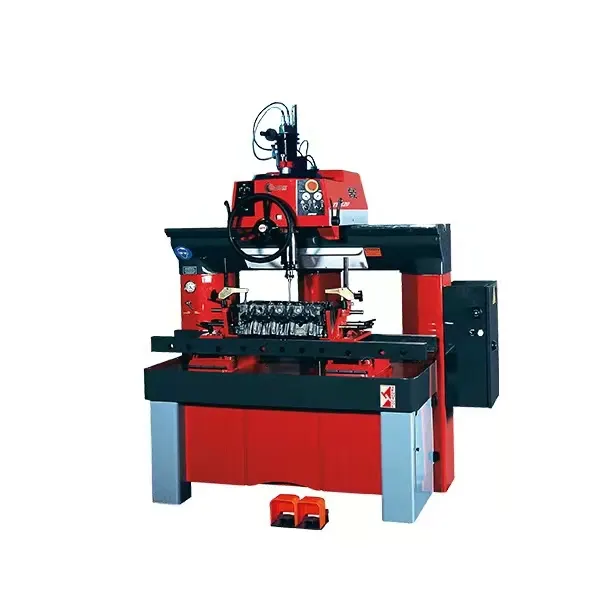

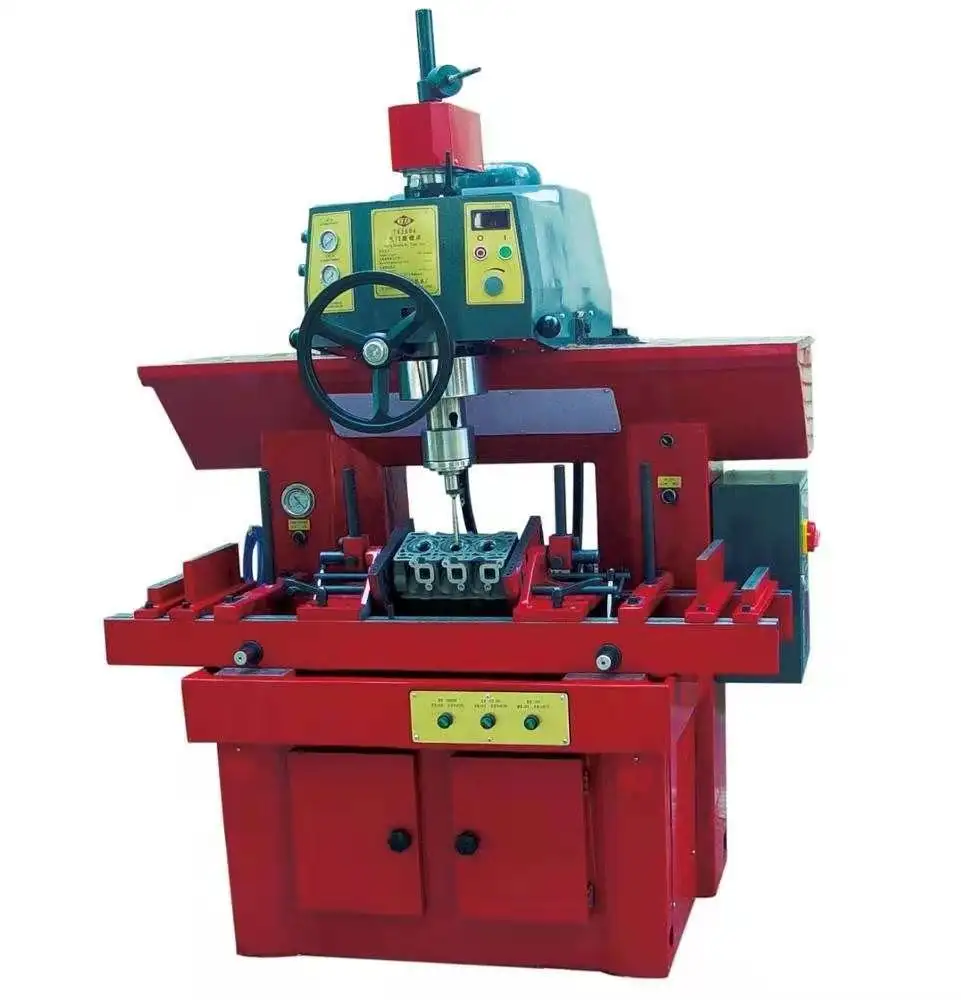

Factory Price Metal Cutter Insert Valve Seats Cutting Boring Machine

$16,200.00

  • AUD: A$25,158.11
  • GBP: £13,502.38
  • EUR: €15,723.72
  • JPY: ¥2,546,770
  • CNY: ¥118,206.54

In stock

  Chat Now
SKU: ALMACO-TQZ8560-1600522152868 Category: Tag: Brand:

$16,200.00

  • AUD: A$25,158.11
  • GBP: £13,502.38
  • EUR: €15,723.72
  • JPY: ¥2,546,770
  • CNY: ¥118,206.54

Description

It is a machine tool mainly used for boring the existing preformed hole of workpiece. Generally, the rotation of boring cutter is the main motion, and the movement of boring cutter or workpiece is the feed motion. It is mainly used for machining high-precision holes or finishing multiple holes at one time. In addition, it can also be engaged in machining other machining surfaces related to hole finishing.. In the process of machining, the workpiece does not move, the tool moves, the center of the tool is aligned with the center of the hole, and the tool rotates (main motion).. Main features of SAJ boring machine inverter: 1. Large low frequency torque, stable output2. High performance vector control 3. Fast torque dynamic response, high speed stability precision4. Fast deceleration and parking speed5. Strong anti-interference ability

Specification
Boring diameter
φ14-φ60mm
Max length for Cylinder head (L*W*H)
1200*300*400mm
Motor Power
0.4KW
Spindle Speeds
0-1000rpm
Spindle Travel
200mm
Plate longitudinal travel
35mm
Clamper swing angle
-45°~+55°
Air supply press
0.7Mpa
Air supply flow
300L/min
Overall dimensions (L*W*H)
1480*1050*2270mm
Packing dimensions (L*W*H)
1900*1300*2200mm
N.W./G.W.
1050/1250kg
