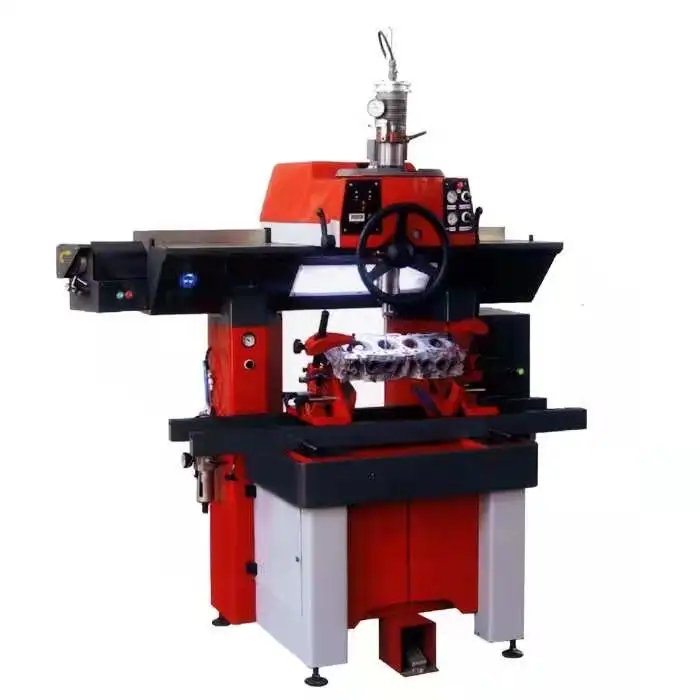

Engine Boring Metal Cylinder Head Valve Seat Grinding Machine
A$37,317.87
- USD: $25,231.50
- GBP: £20,028.52
- EUR: €23,323.52
- JPY: ¥3,777,708
- CNY: ¥175,339.70
Description
It is a machine tool mainly used for boring the existing preformed hole of workpiece. Generally, the rotation of boring cutter is the main motion, and the movement of boring cutter or workpiece is the feed motion. It is mainly used for machining high-precision holes or finishing multiple holes at one time. In addition, it can also be engaged in machining other machining surfaces related to hole finishing.. In the process of machining, the workpiece does not move, the tool moves, the center of the tool is aligned with the center of the hole, and the tool rotates (main motion).. Main features of SAJ boring machine inverter: 1. Large low frequency torque, stable output2. High performance vector control 3. Fast torque dynamic response, high speed stability precision4. Fast deceleration and parking speed5. Strong anti-interference ability
Specification
|
Boring diameter
|
φ14-φ60mm
|
|
Max length for Cylinder head (L*W*H)
|
1200*300*400mm
|
|
Motor Power
|
0.4KW
|
|
Spindle Speeds
|
0-1000rpm
|
|
Spindle Travel
|
200mm
|
|
Plate longitudinal travel
|
35mm
|
|
Clamper swing angle
|
-45°~+55°
|
|
Air supply press
|
0.7Mpa
|
|
Air supply flow
|
300L/min
|
|
Overall dimensions (L*W*H)
|
1480*1050*2270mm
|
|
Packing dimensions (L*W*H)
|
1900*1300*2200mm
|
|
N.W./G.W.
|
1050/1250kg
|
Specification
Additional information
| Weight | 100 kg |
|---|
