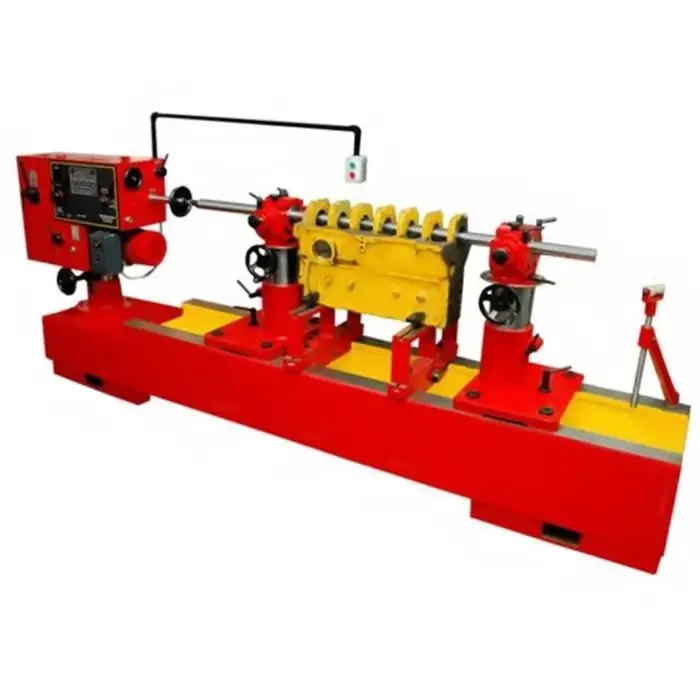

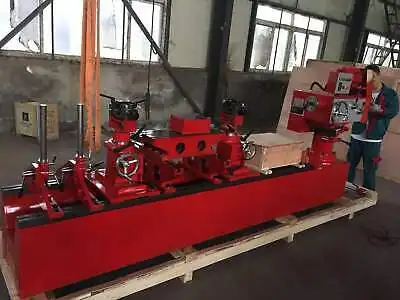

Aleseuse Bloc Moteur Cylinder Blocks Surfacing Horizontal Boring Machine
A$37,213.04
- USD: $25,160.63
- GBP: £19,972.26
- EUR: €23,258.00
- JPY: ¥3,767,097
- CNY: ¥174,847.17
Description
The modle T8120*20 and T8115B*16 cylinder body bushing boring machine which were developed in our factory,they can be used for boring masrer bushing and bushing of engine&generator’s cylinder bodier in automobiles,tractots and ships etc.
In order to reduce auxiliary manhours and labour intensity and guarantee machining quality,accessories for centering,sectifying tool,measuring inner diameter,boring tool microadjuster and for diatance tool sectifying device can be provided with the main machine. ⭐This machine is used for boring master bushing and bushing of engine & generator’s cylinder bodier in automobiles, tractors and
ships etc.
⭐With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
Specification
|
T8120A*20
|
T8120*20
|
T8115B*16
|
||
|
Bored hole diameter
|
Φ28- Φ225mm
|
Φ36- Φ220mm
|
Φ36- Φ150mm
|
|
|
Max.length of cylinder body
|
2250mm
|
2000mm
|
1600mm
|
|
|
Main shaft max elongation
|
300mm
|
300mm
|
||
|
Main shaft rotating speed
|
30-150(1)
|
210-945r/min(6step)
|
||
|
90-467(11)
|
30-467(stepless)
|
|||
|
Boring rod feed quantity
|
0.43,0.85,0.125mm/rad
|
0.044,0.167mm/rad
|
||
|
Motor power
|
1.5Kw
|
075/1.1Kw
|
||
|
1.5Kw
|
||||
|
Dimensions(L*W*H)
|
3900*650*1400
|
3910*650*1400
|
3510*650*1410
|
|
Specification
Additional information
| Weight | 100 kg |
|---|
