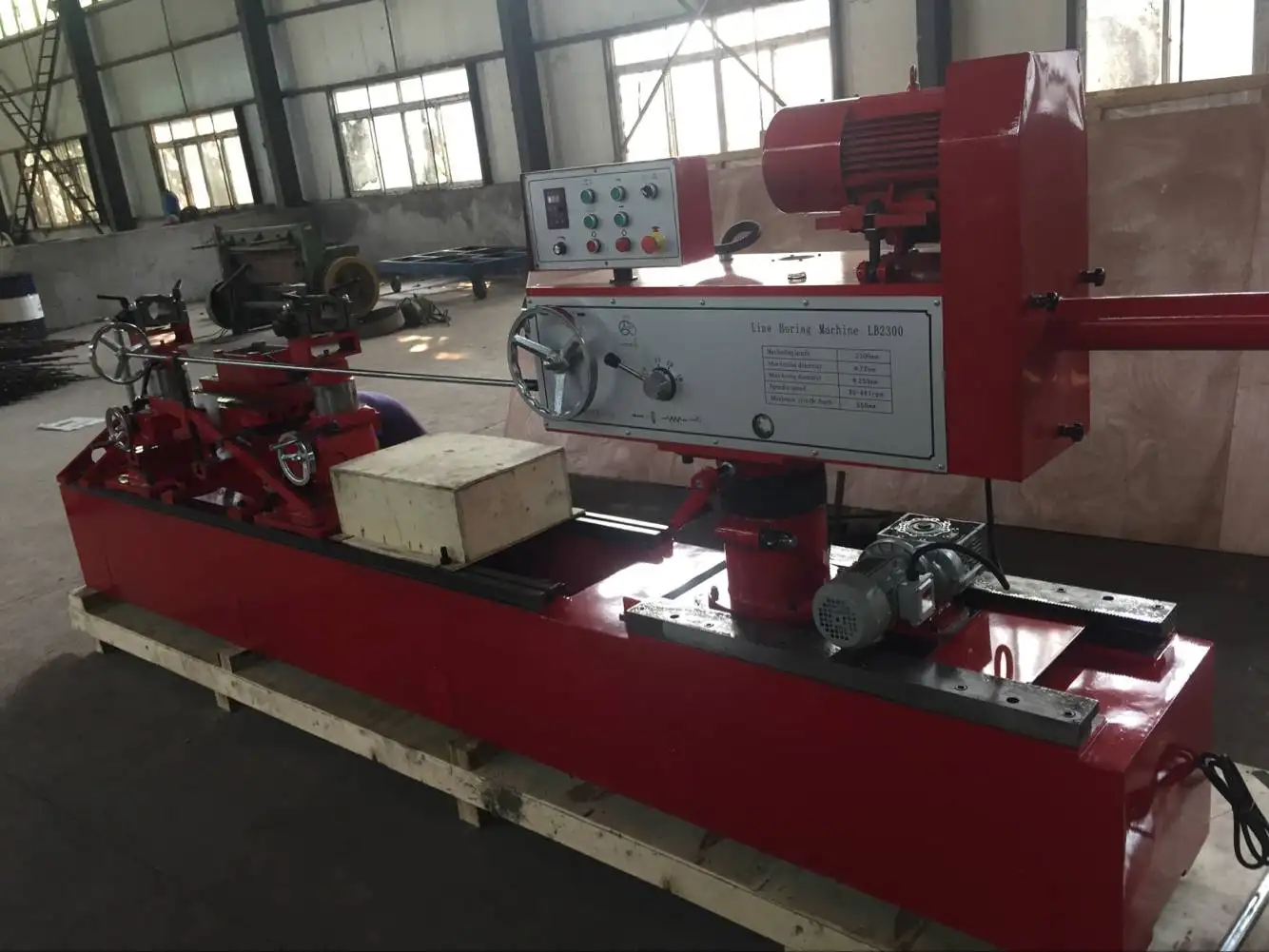

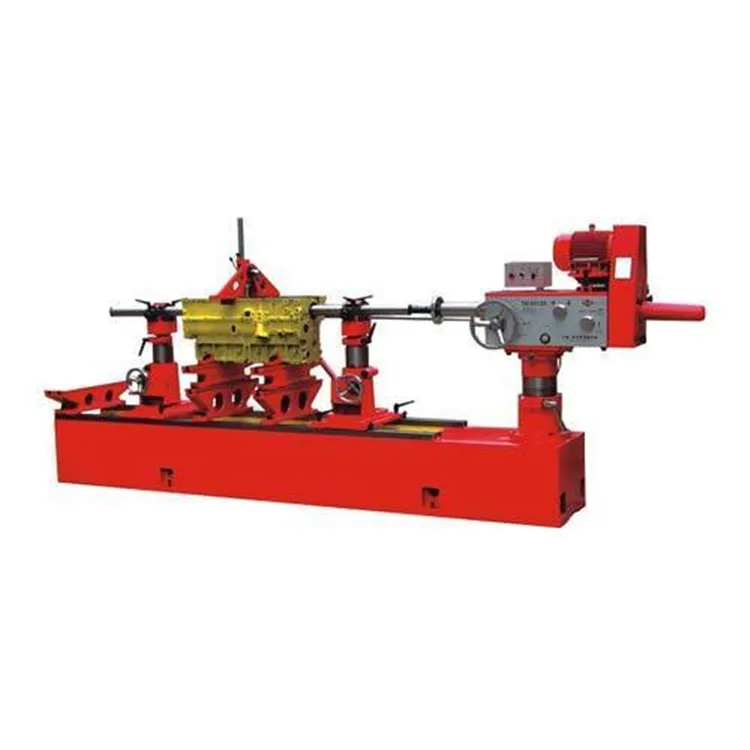

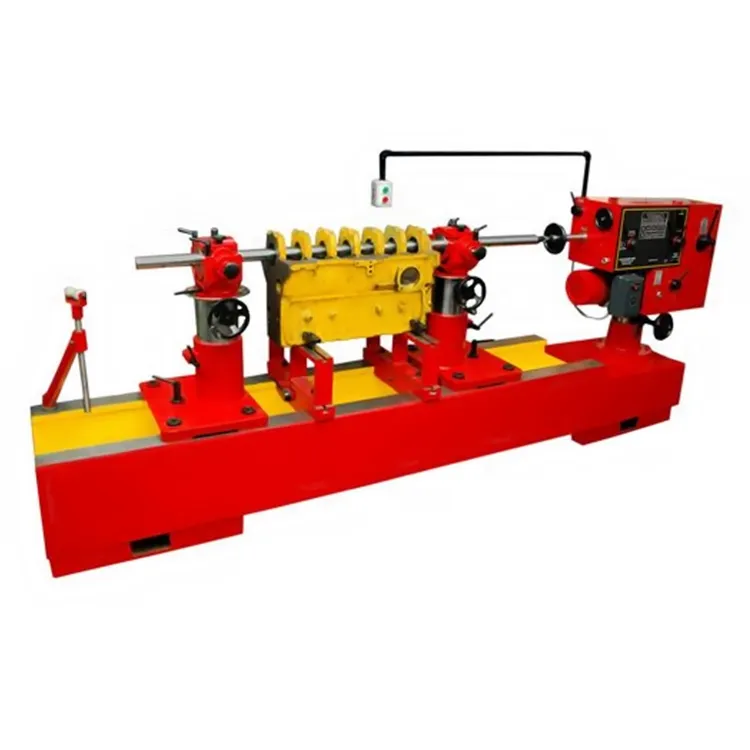

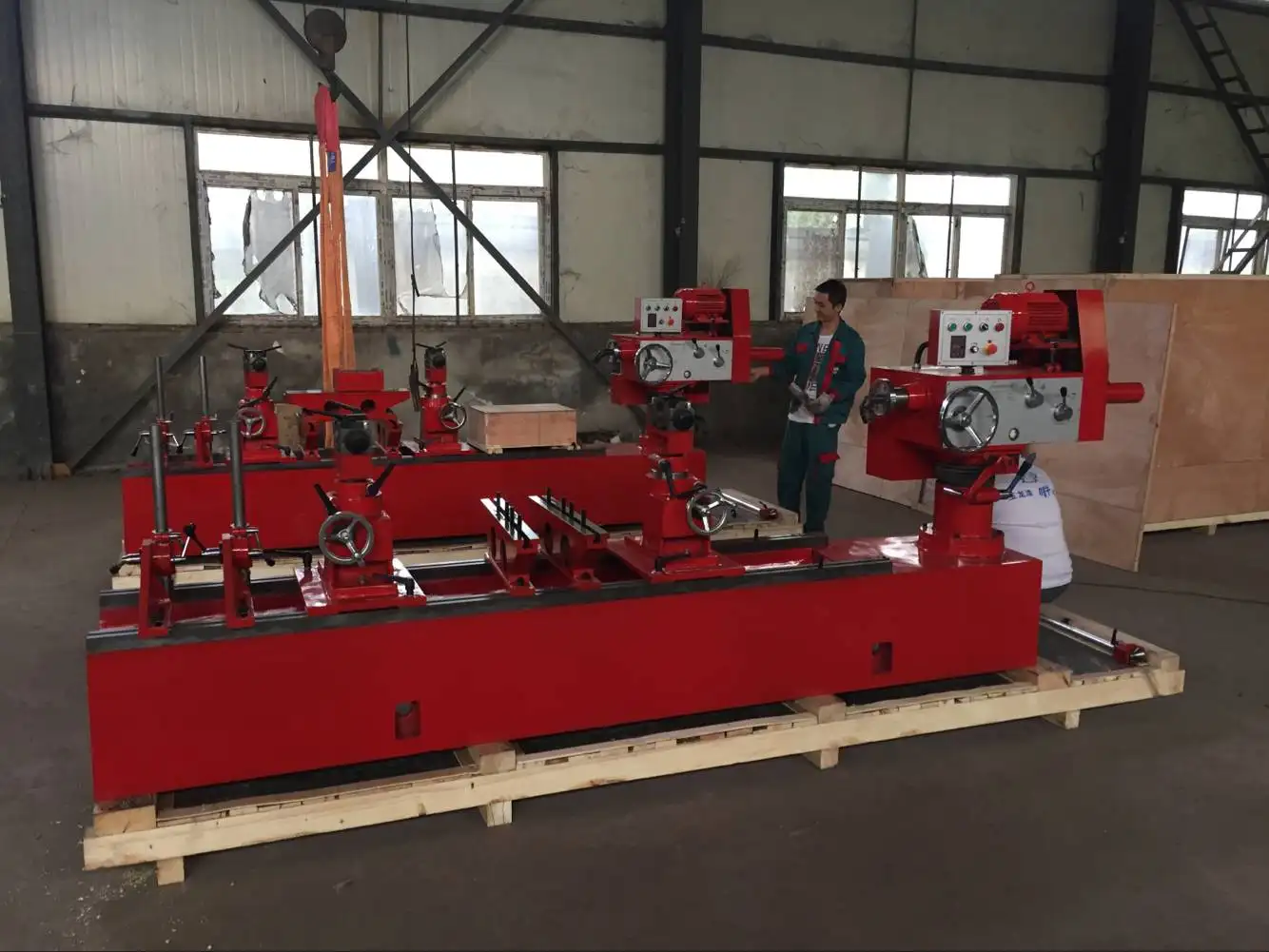

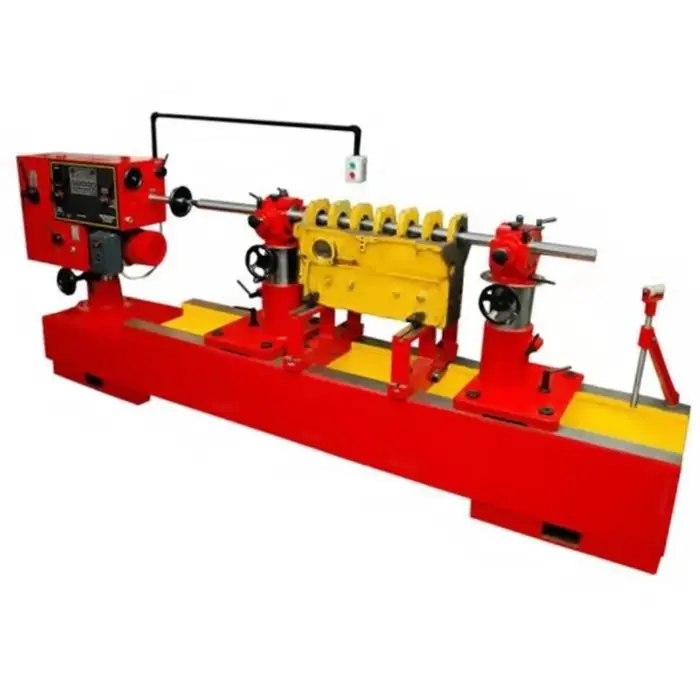

Engine Cylinder Heads Blocks Line Boring Block Machine
$16,200.00
- AUD: A$25,158.11
- GBP: £13,502.38
- EUR: €15,723.72
- JPY: ¥2,546,770
- CNY: ¥118,206.54
Description
It is a machine tool mainly used for boring the existing preformed hole of workpiece. Generally, the rotation of boring cutter is the main motion, and the movement of boring cutter or workpiece is the feed motion. It is mainly used for machining high-precision holes or finishing multiple holes at one time. In addition, it can also be engaged in machining other machining surfaces related to hole finishing.. In the process of machining, the workpiece does not move, the tool moves, the center of the tool is aligned with the center of the hole, and the tool rotates (main motion).. The boring axis is arranged horizontally and fed axially, the headstock moves vertically along the guide rail of the front column, and the worktable moves longitudinally or transversely for boring. This kind of machine tool is widely used and more economical. It is mainly used for hole machining of box (or bracket) parts and other machining surfaces related to holes.
Specification
|
T8120*20
|
T8115B*16
|
||
|
Bored hole diameter
|
Φ28- Φ225mm
|
Φ36- Φ150mm
|
|
|
Max.length of cylinder body
|
2250mm
|
1600mm
|
|
|
Main shaft max elongation
|
300mm
|
300mm
|
|
|
Main shaft rotating speed
|
30-150(1)
|
210-945r/min(6step)
|
|
|
90-467(11)
|
30-467(stepless)
|
||
|
Boring rod feed quantity
|
0.43,0.85,0.125mm/rad
|
0.044,0.167mm/rad
|
|
|
Motor power
|
1.5Kw
|
075/1.1Kw
|
|
|
1.5Kw
|
|||
|
Dimensions(L*W*H)
|
3900*650*1400
|
3510*650*1410
|
|
Specification
Additional information
| Weight | 100 kg |
|---|
