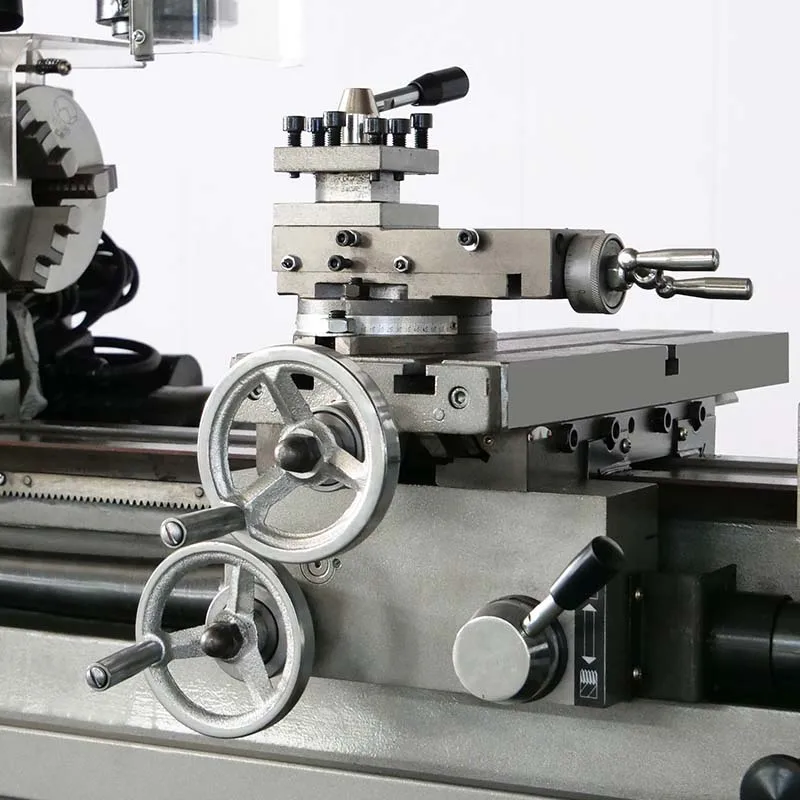

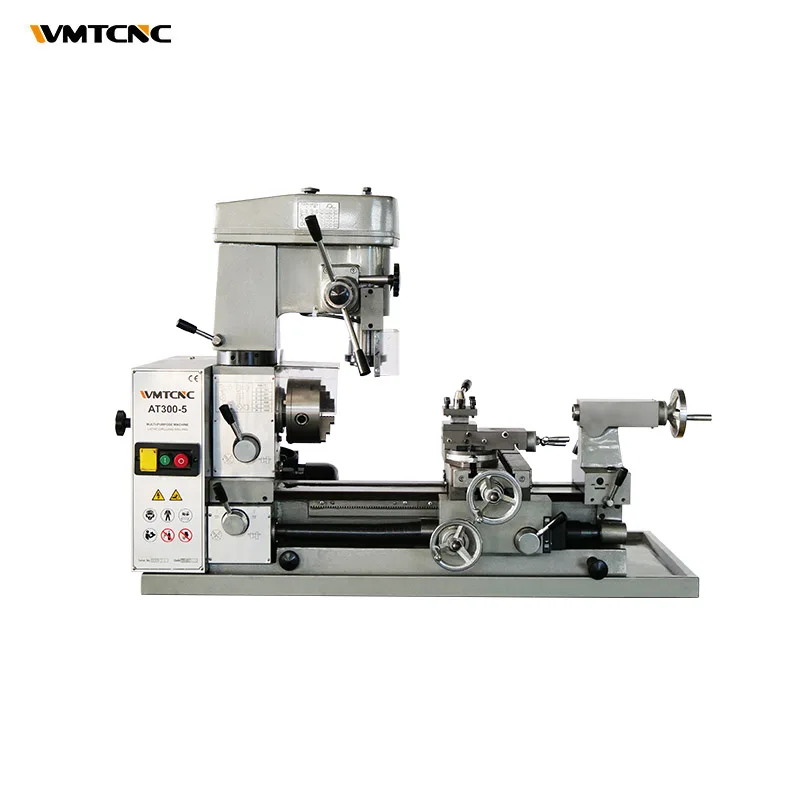

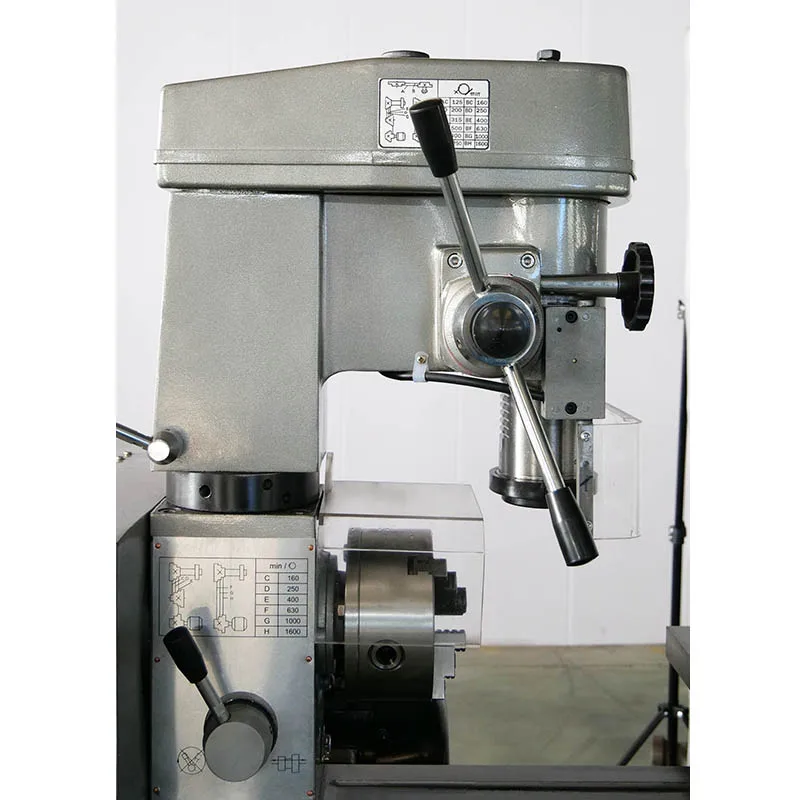

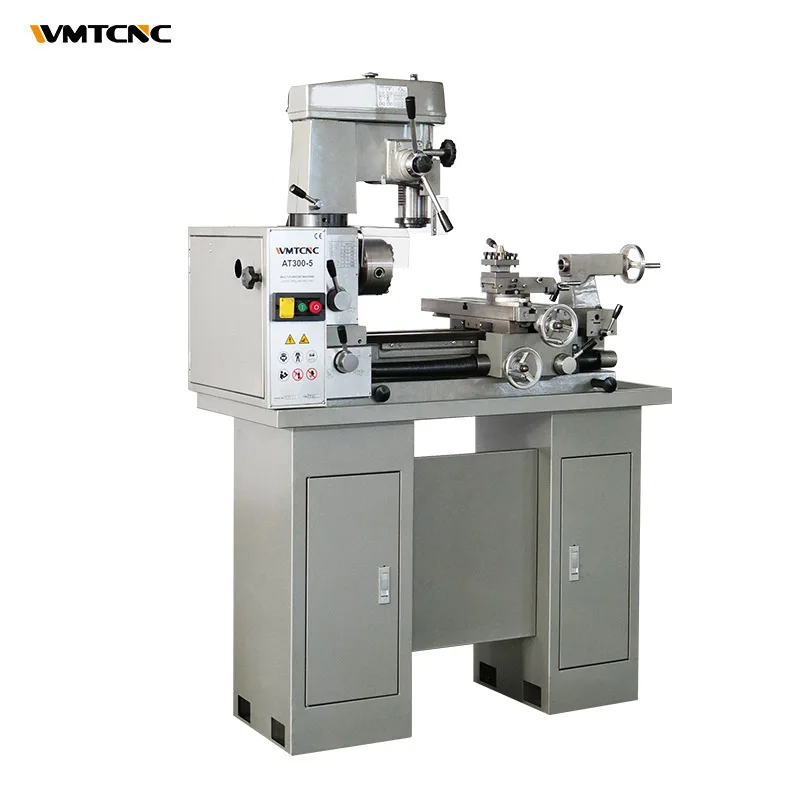

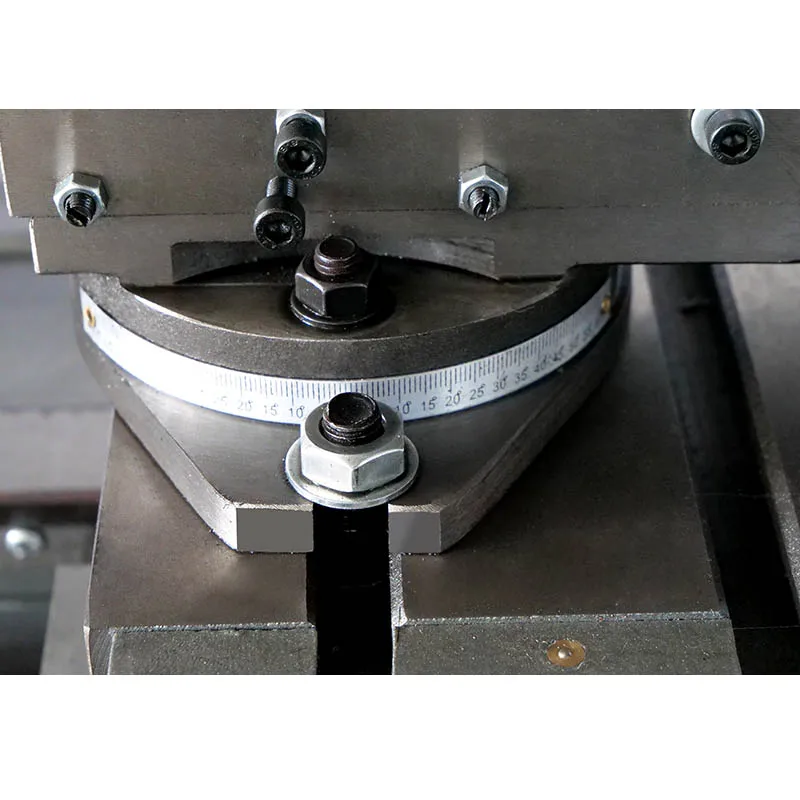

Name: ▷ Buy New AT300-5 Multi Purpose Metal Lathe Machine for Processing Metal () - Available at MachineryGenie.com
SKU: 1005005858624637
Price: 2025.00 AUD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Features:

1.Precision ground and hardened bed ways.
2.The spindle is supported with precision roller bearings.
3.Headstock gears are made of high quality steel, ground and hardened.
4.Easy operating speed change levers.
5.Easy operating gear box has various feeds and thread cutting function.
6.With or without cabinet according to requirement

Specifications

C0636B×750/1000mm

Swing over bed

Φ360mm(14″)

Swing over cross slide

Φ212mm(8-1/6″)

Swing over gap

Φ491mm(9-1/3″)

Distance between centers

750mm(30″)/1000mm(40″)

Bed width

187mm(7-3/8″)

Spindle bore and nose

Φ52mm(2″)/D1-5 camlock

Taper in nose

MT5

Speeds number

8 or 16(pole changeable motor:optional)

Speeds range

70-2000rpm or 35-2000 rpm(2 speed motor)

Leadscrew thread

8 TPI or 3mm pitch

Cutting tool max section

16×16mm(5/8″×5/8″)

Threads imperial pitches

36 Nos. 8-112TPI or (34 Nos. 4-56TPI)

Thread metric pitches

28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)

Longitudinal feeds imperial

36Nos. 0.0019-0.0273″/Rev or (32 Nos. 0.002-0.548″/Rev)

Longitudinal feeds metric

36Nos. 0.050-0.696″/Rev or (32 Nos. 0.052-0.392″/Rev)

Cross feeds imperial

36Nos.0.0006-0.0094″/Rev or (32 Nos. 0.007-0.0187″/Rev)

Cross feeds metric

36Nos. 0.013-0.188″/Rev or (32 Nos. 0.014-0.380″/Rev)

Tailstock barrel taper and travel

MT3 100mm (3-15/16″)

Main motor

1.5KW/3 PH or 1 PH

Cross slide travel

118mm(4-5/16″)

Compoud rest travel

68mm(2-11/16″)

Net /Gross weight

650/700kg

Packing size

1890/1940 X 750 X 1510mm

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
