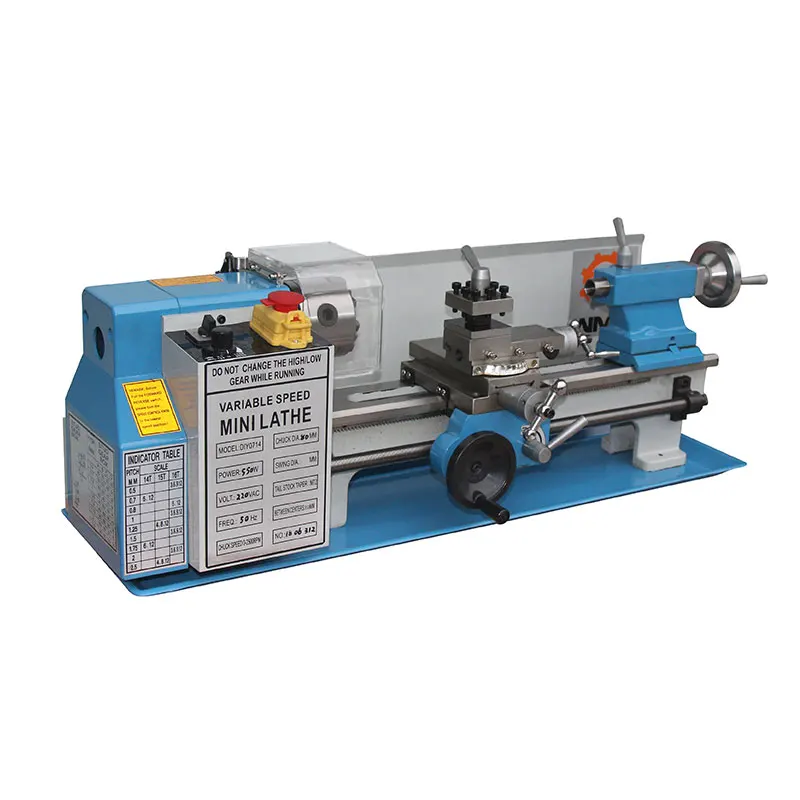

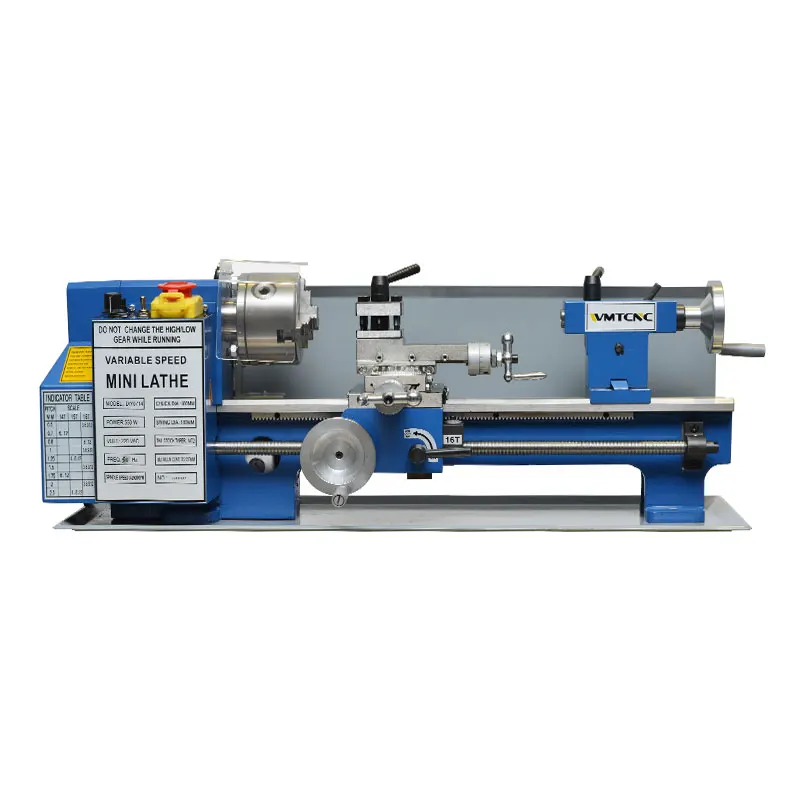

Name: ▷ Buy New DIY0714 Small Bench Metal Lathe with Variable Speed () - Available at MachineryGenie.com
SKU: 4000907084220
Price: 895.05 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

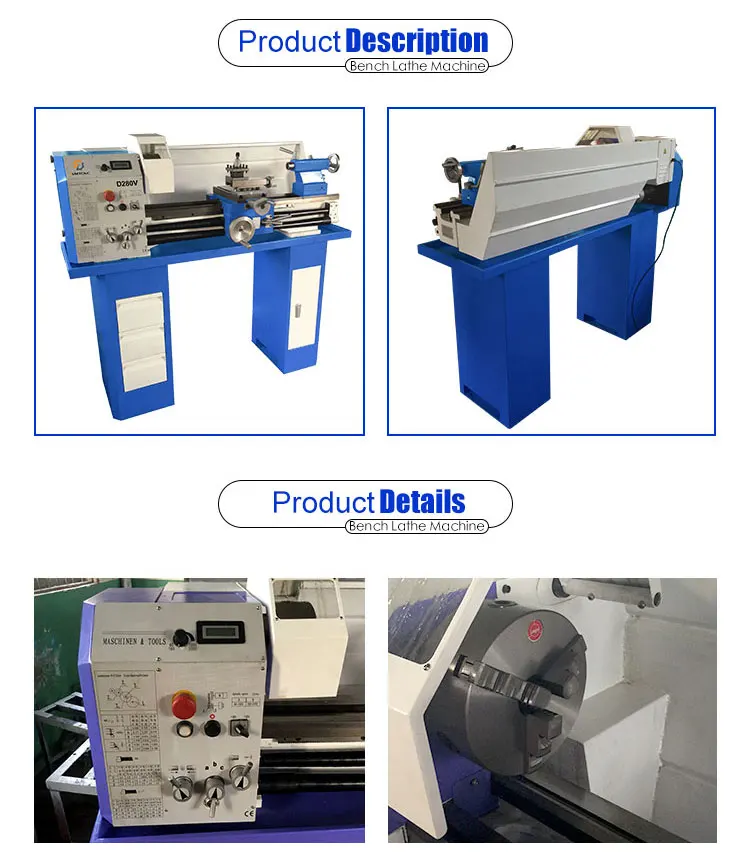

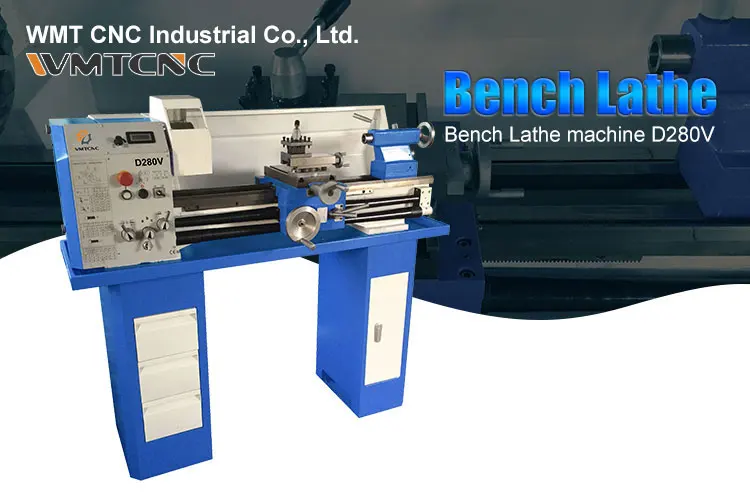

D280V Mini Metal Bench Lathe for Sale in China

Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Easy operating gear box has various feeds and thread cutting function.
6. With or without cabinet according to requirement.

Specifications	D280V
Max. swing over bed	φ280mm
Distance between centers	700mm
Max. swing over cross slide	125mm
Width of bed	180mm
Spindle bore	26mm
Taper of spindle bore	MT4
Spindle speed range 6 steps	50-2500rpm
Spindle speed range(variable speed)	150 300 600 500 1000 2000rpm
Metric threads can be cut	0.2-4mm
Inch threads can be cut	8-56TPI
Top slide travel	70mm
Cross slide travel	140mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT2
Motor power	1500W
NW/GW	200/230KG
Packing size(LXWXH)	1450X700X680mm
