Name: ▷ Buy New CQ6230 /1000 Horizontal Metal Precision Manual Bench Lathe Machine () - Available at MachineryGenie.com
SKU: 1005001469351333
Price: 5256.22 AUD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

CQ6230/1000 Manual Lathe Mini Lathe Machine Bench Lath

Features

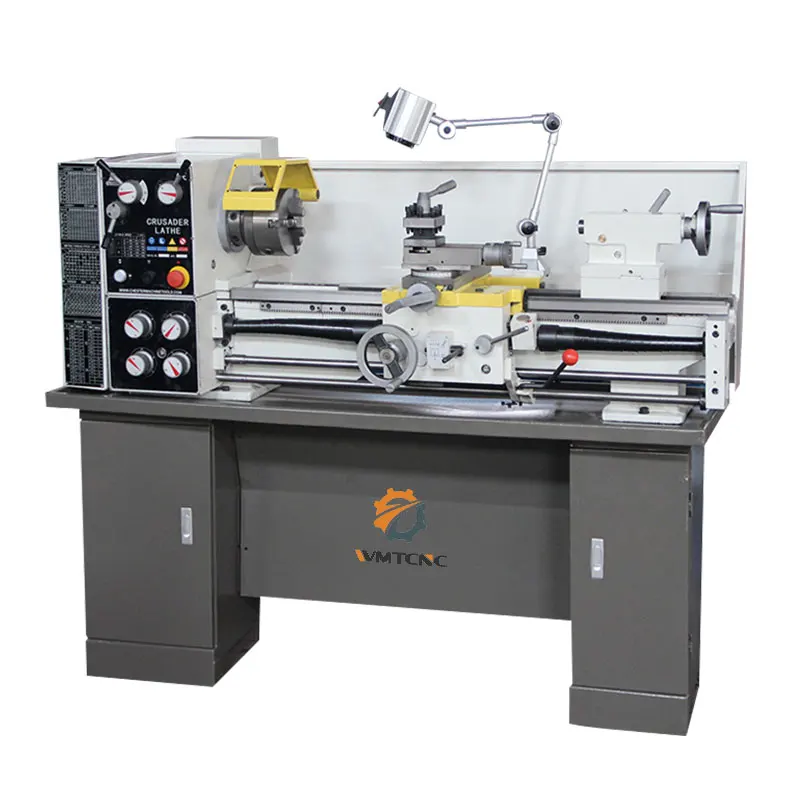

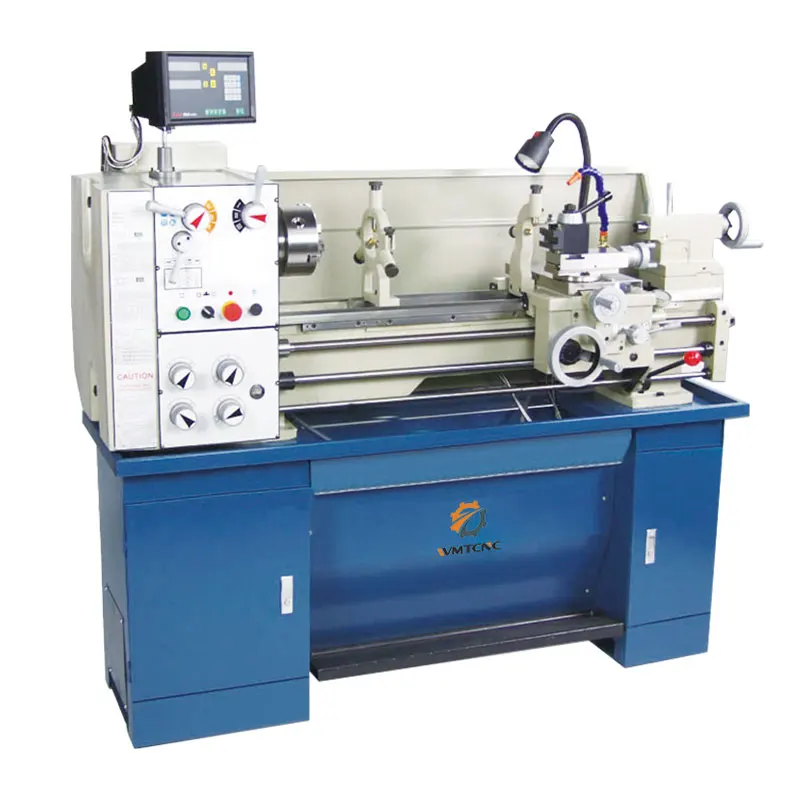

CQ6230 horizontal metal precision manual bench lathe machine
Bench lathe machine CQ6230
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.

Specifications	CQ6230
Swing over bed	310mm
Swing over cross slide	180mm
Swing over gap	450mm
Width of bed	181mm
Distance between centers	750/910/1000mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed range	65-1810rpm
Longitudinal feed range	0.0527-1.2912mm-rev 0.003″-0.0508″ /rev
Cross feed range	0.011-0.276 mm/rev 0.007″-0.0108″ /rev
Metric thread range	0.4-7mm
Inch thread range	4-60 TPI
Travel of tailstock	100mm
Taper of tailstock	MT3
Motor power	1.5kw
G.W	550/590/670kgs
N.W	500/540/640kgs
Packing size	1480/1680/1970x750x1400mm
