Name: ▷ Buy New CQ6133 750mm Manual Lathe Mini Lathe Machine Bench Lath () - Available at MachineryGenie.com
SKU: 1005001469209549
Price: 3246.75 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

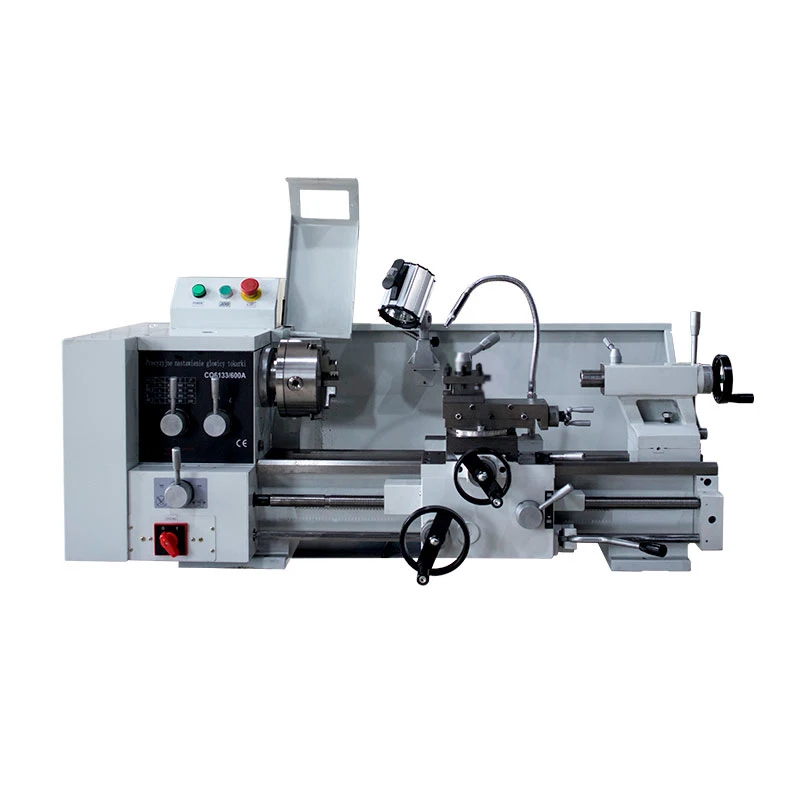

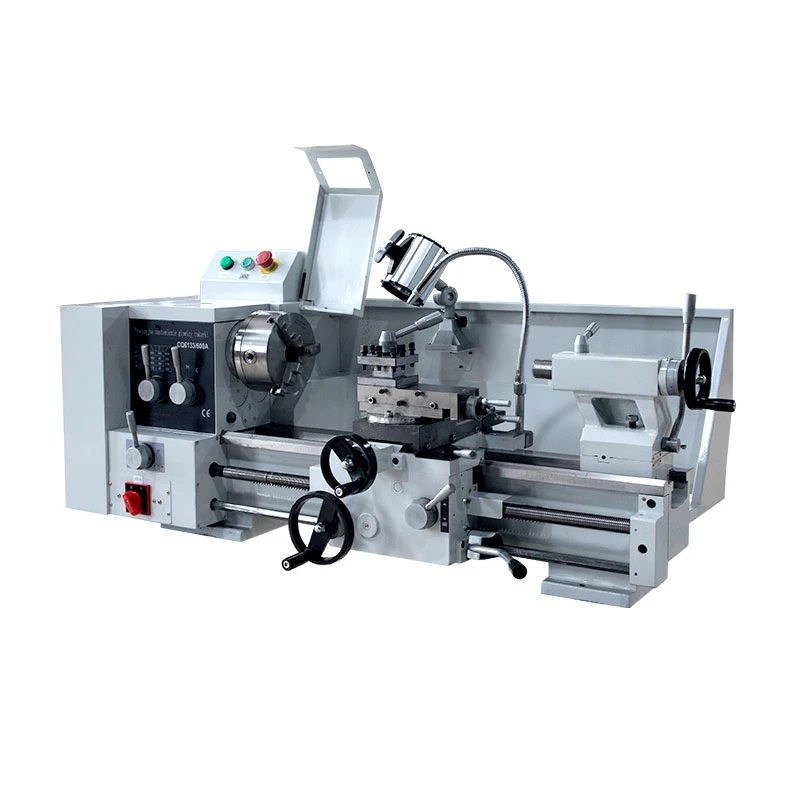

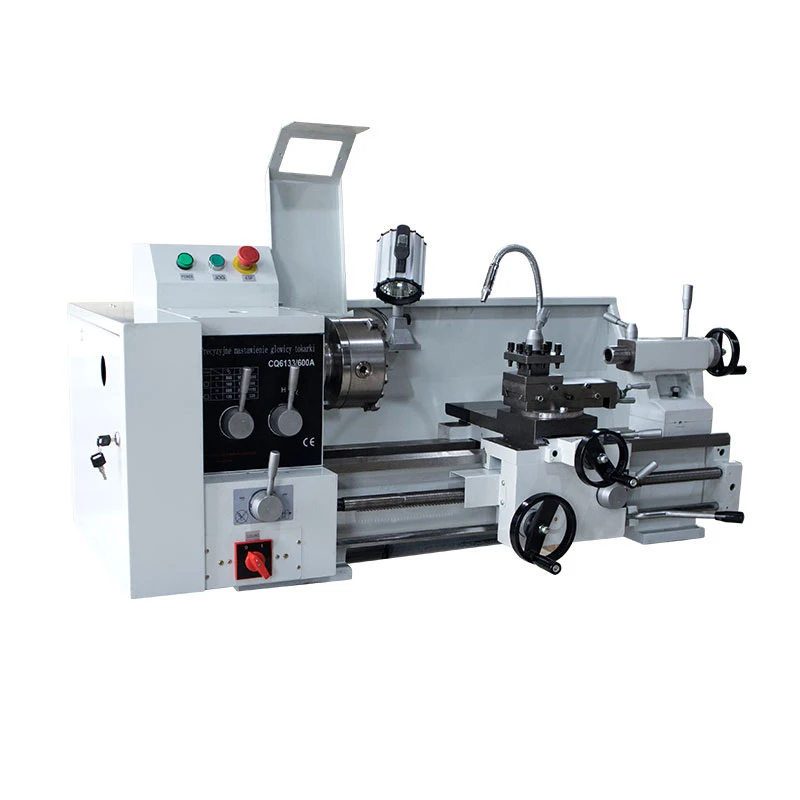

CQ6133 600mm Manual Lathe Mini Lathe Machine Bench Lath

Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Easy operating gear box has various feeds and thread cutting function.
6. With or without cabinet according to requirement.

Specification	CQ6133-600/750mm
Max. swing over bed	330mm
Max. swing over cross slide	220mm
Max. length of work piece	600mm/750mm
Width of bed	160mm
Spindle taper and bore	MT5/38mm
Max.lateral stroke over tool post	160mm
Metric pitches range	0.5-4 mm
Inch pitches range	9-40 T.P.I
Longitudinal-feed range	0.135-1.80mm/r
Max. travel of tailstock sleeve	70 mm
Tailstock sleeve taper	MT3
Spindle speeds range	60-1650r/min(50hz)
Motor	1.1Kw
NW/GW (without stand)	280/300kg 320/340Kg
Packing size (without stand)	1330x760x720/1550x760x720mm
Packing size	1330x760x1370/1550x760x1370mm
