Name: ▷ Buy New CJM280 750mm Mini Desktop Lathe Machine for Home Use () - Available at MachineryGenie.com
SKU: 4000929506327
Price: 3708.45 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

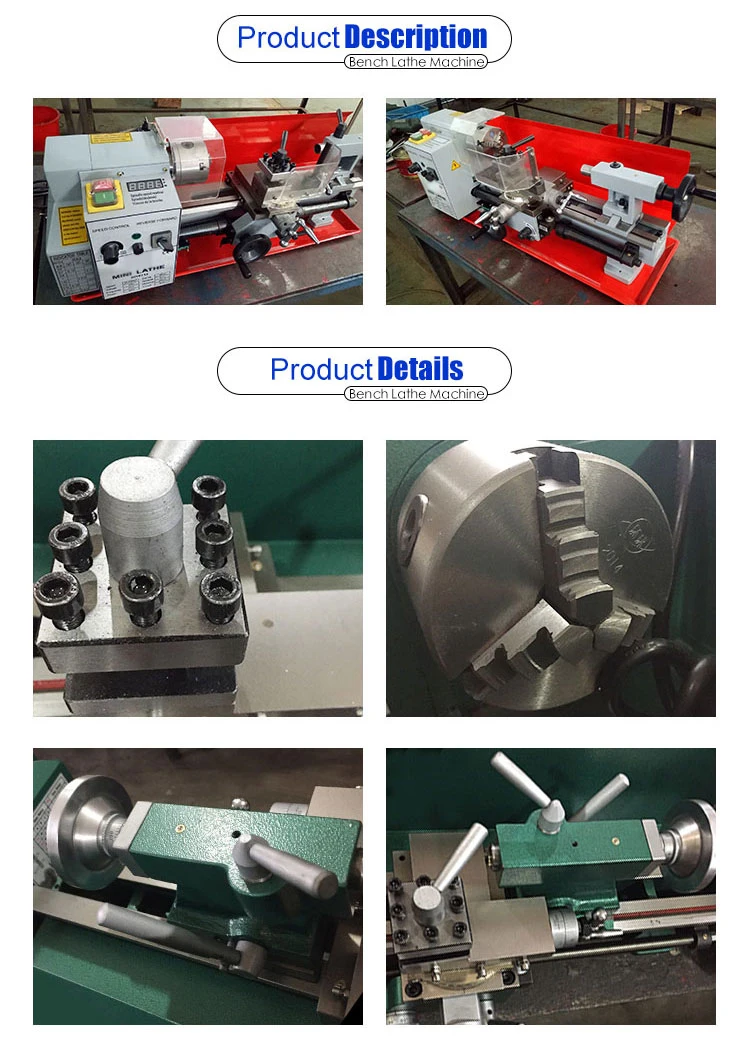

DIY0712 300mm Mini Desktop Metal Lathe for Hobby Use

Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 50-2500rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.

Specification	DIY0708/DIY0712/DIY0714	DIY0816
Distance between centers	200/300/350mm(8″/11-3/4″/13-3/4″)	400mm
Swing over bed	φ180mm(7″)	210mm
Spindle taper	MT3	MT3
Tailstock taper	MT2	MT2
Chuck diameter	φ80mm（3-1/4″)	80mm
Spindle bore	φ20mm（3/4″)	38mm
Range of metric threads	0.5-2.5	0.5-3mm
Range of imperial threads	12-52T.P.I	8-44T.P.I
Spindle speed	50-2500rpm	0-2500rpm
Power of motor	400/550W	600w
Packing size	660/760/810310370mm	800450450mm
Gross weight	38/42/45kg	85/95kg
