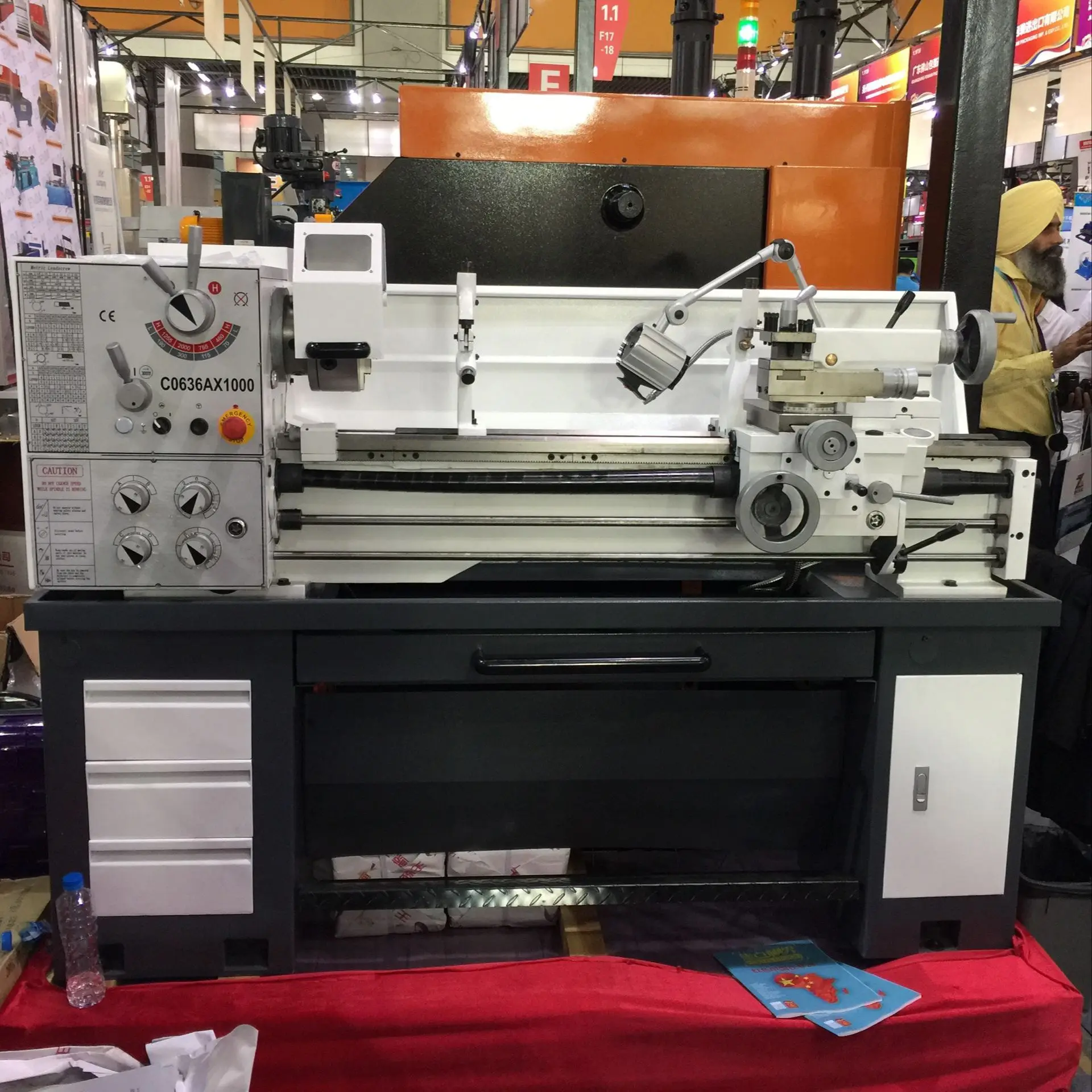

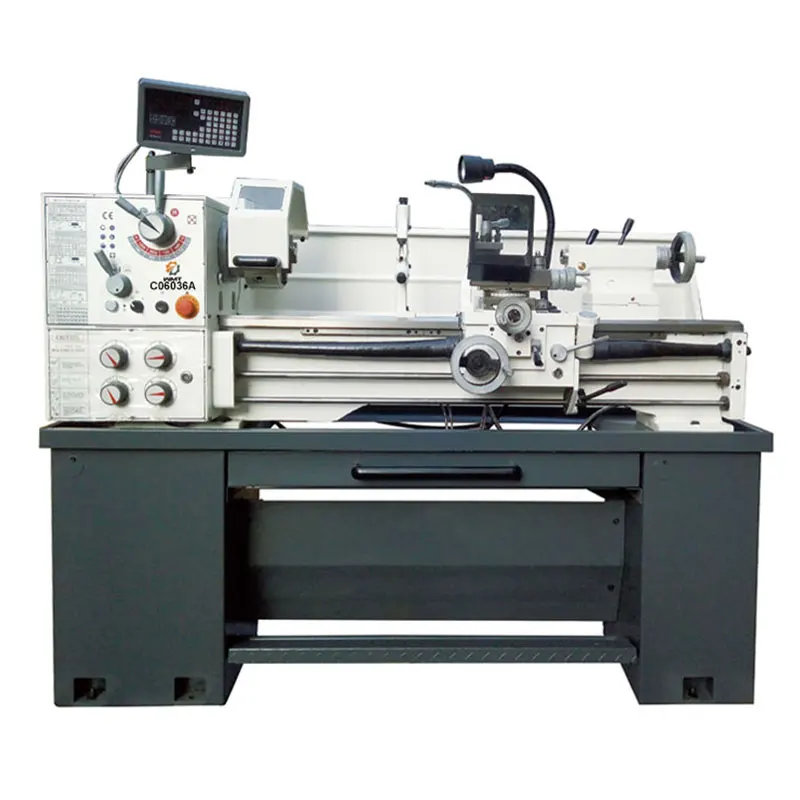

Name: ▷ Buy New C0636A Mini Bench Bed Lathe for Hobby () - Available at MachineryGenie.com
SKU: 1005002865860064
Price: 4806.00 JPY
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Specifications	C0632A×750/1000mm	C0636A×750/1000mm
	C0632B×750/1000mm	C0636B×750/1000mm
Swing over bed	Φ330mm(13″)	Φ360mm(14″)
Swing over cross slide	Φ198mm(7-25/32″)	Φ212mm(8-1/6″)
Swing over gap	Φ476mm(18-3/4″)	Φ491mm(9-1/3″)
Distance between centers	750mm(30″)/1000mm(40″)
Bed width	187mm(7-3/8″)
Spindle bore and nose	A: Φ38mm(1-1/2″) / D1-4 camlock
	B: Φ52mm(2″)/D1-5 camlock
Taper in nose	MT5
Speeds number	8 or 16(pole changeable motor:optional)
Speeds range	70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread	8 TPI or 3mm pitch
Cutting tool max section	16×16mm(5/8″×5/8″)
Threads imperial pitches	36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches	28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial	36Nos. 0.0019-0.0273″/Rev or (32 Nos. 0.002-0.548″/Rev)
Longitudinal feeds metric	36Nos. 0.050-0.696″/Rev or (32 Nos. 0.052-0.392″/Rev)
Cross feeds imperial	36Nos.0.0006-0.0094″/Rev or (32 Nos. 0.007-0.0187″/Rev)
Cross feeds metric	36Nos. 0.013-0.188″/Rev or (32 Nos. 0.014-0.380″/Rev)
Tailstock barrel taper and travel	MT3 100mm (3-15/16″)
Main motor	1.5KW/3 PH or 1 PH
Cross slide travel	160mm(6-5/16″)	118mm(4-5/16″)
Compoud rest travel	68mm(2-11/16″)
Net /Gross weight	570/620kg 620/670kg	610/660kg 650/700kg
Packing size	1890/1940 X 750 X 1510mm
