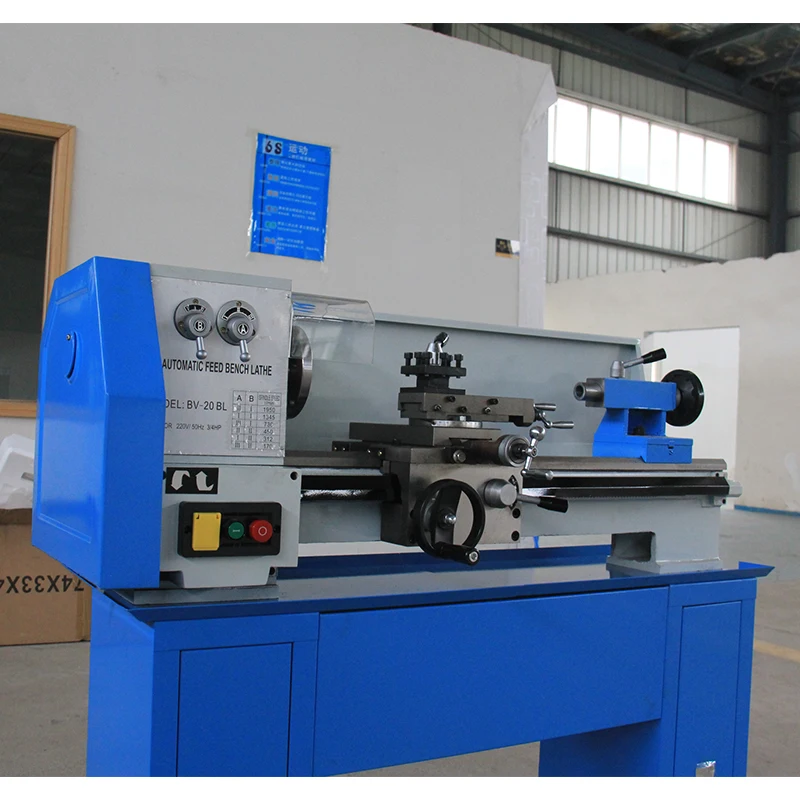

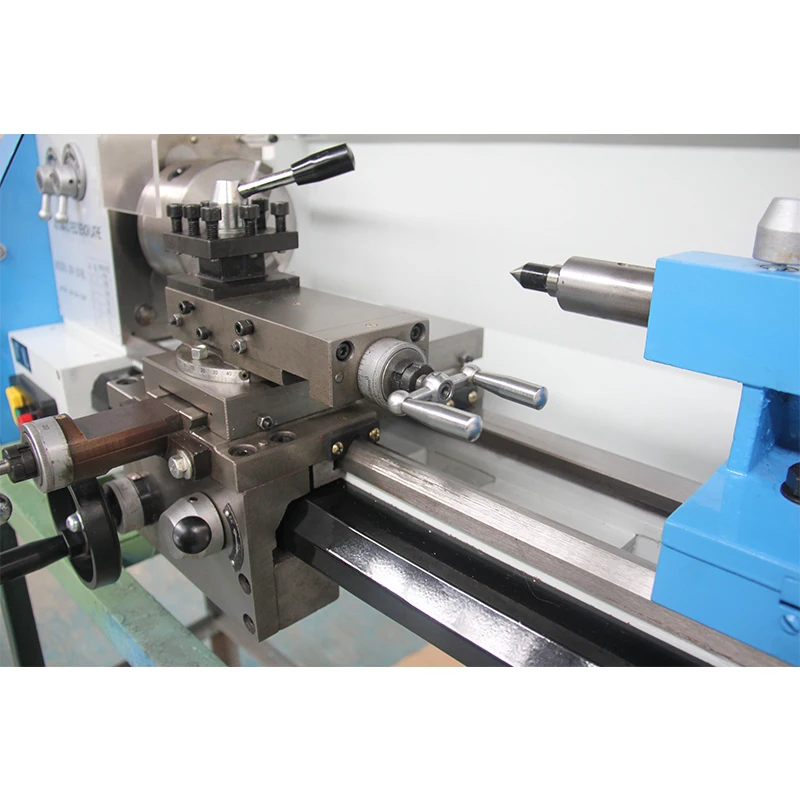

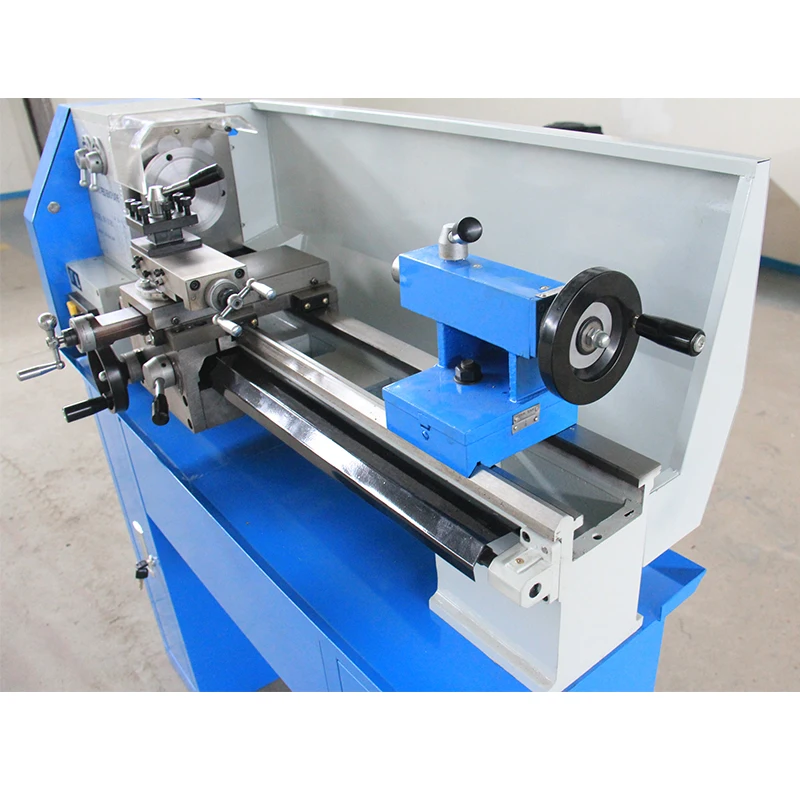

Name: ▷ Buy New BV20 Small Bench Lathe for Threading Cutting () - Available at MachineryGenie.com
SKU: 4000909224119
Price: 1404.00 GBP
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

D290V Variable Speed Mini Metal Bench Lathe in China

Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Easy operating gear box has various feeds and thread cutting function.
6. With or without cabinet according to requirement.

Specification	D290V
Distance between centers	700mm
Swing over bed	290mm
Swing over cross slide	180mm
Width of bed	182mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speed	Variable speed
Range of spindle speed	80-2000r/min
Range of cross feed	0.01~0.10mm/rev
Range of longitudinal feed	0.085~0.832mm/rev
Range of imperial thread	8~56 T.P.I.
Range of metric thread	0.2~3.5mm
Top slide travel	70mm
Cross slide travel	160mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT3
Main Motor	1.5KW
Packing size	1450X700X680mm
Net weight	260Kg
