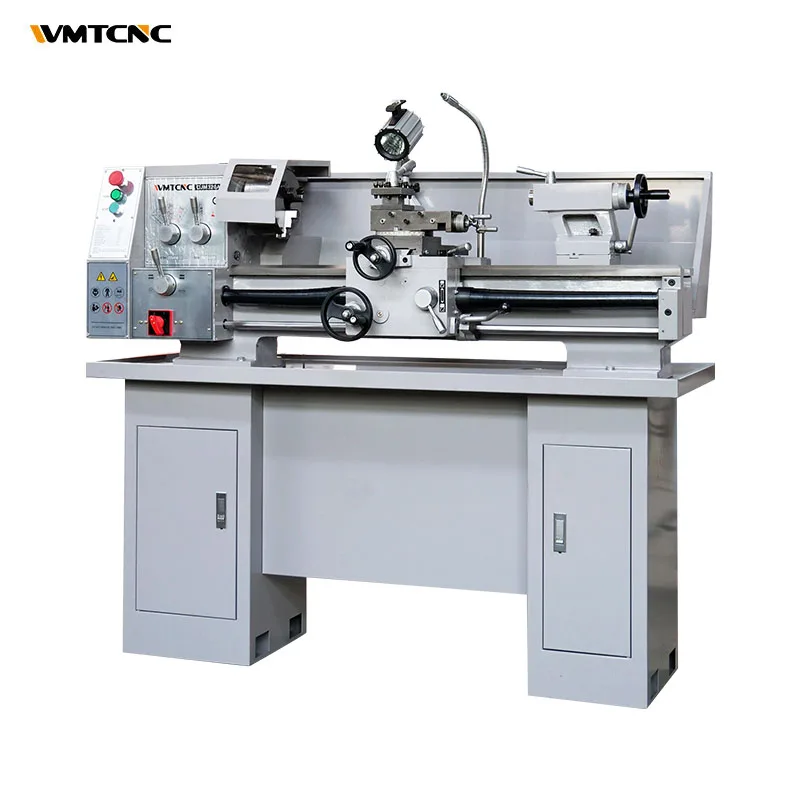

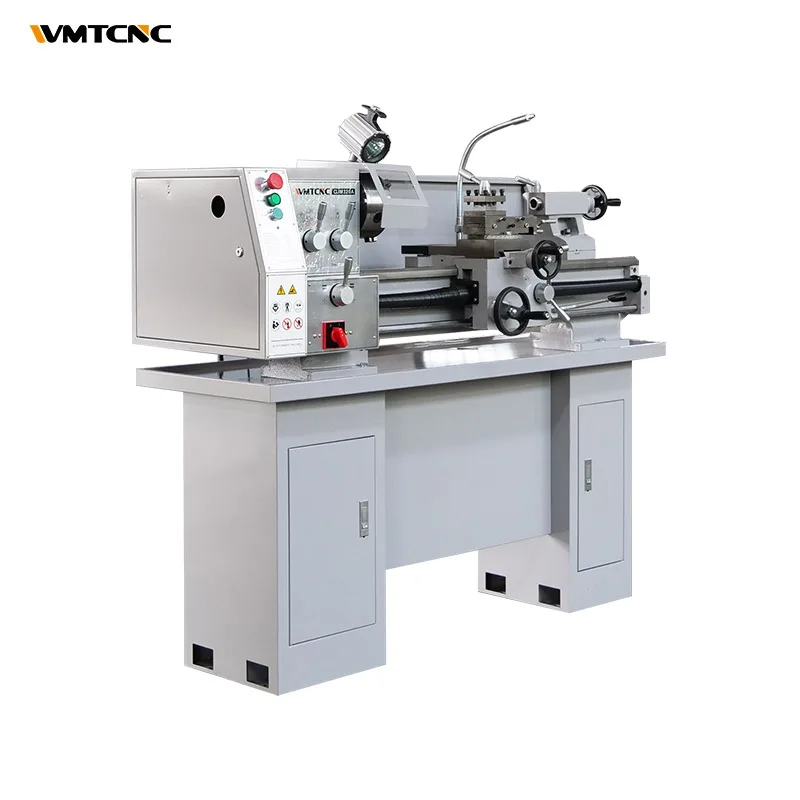

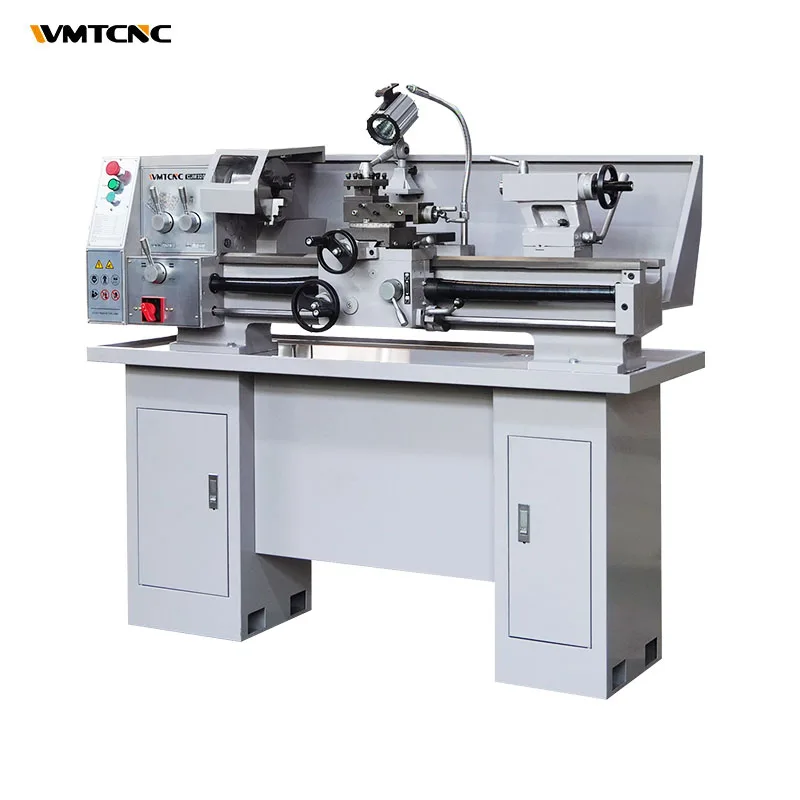

Name: ▷ Buy New 2023 WMT CJM320A Accuracy Bench Lathe Machine () - Available at MachineryGenie.com
SKU: 1005005860395882
Price: 2295.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

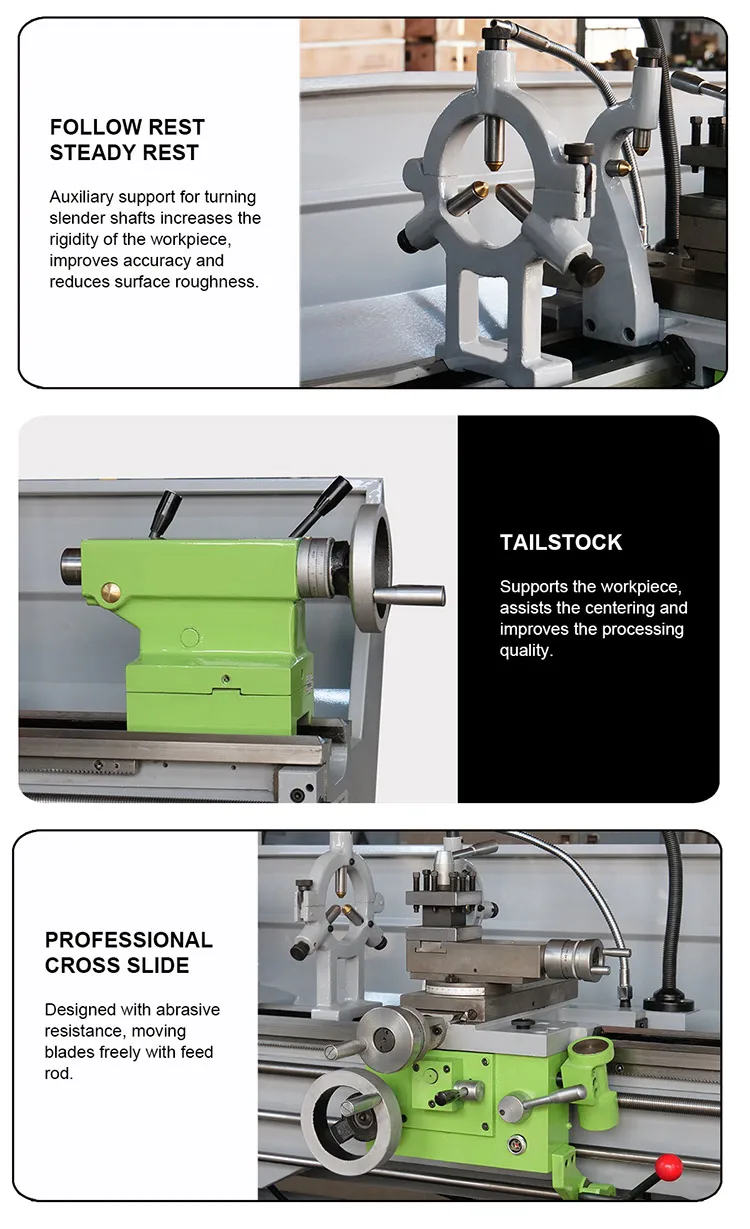

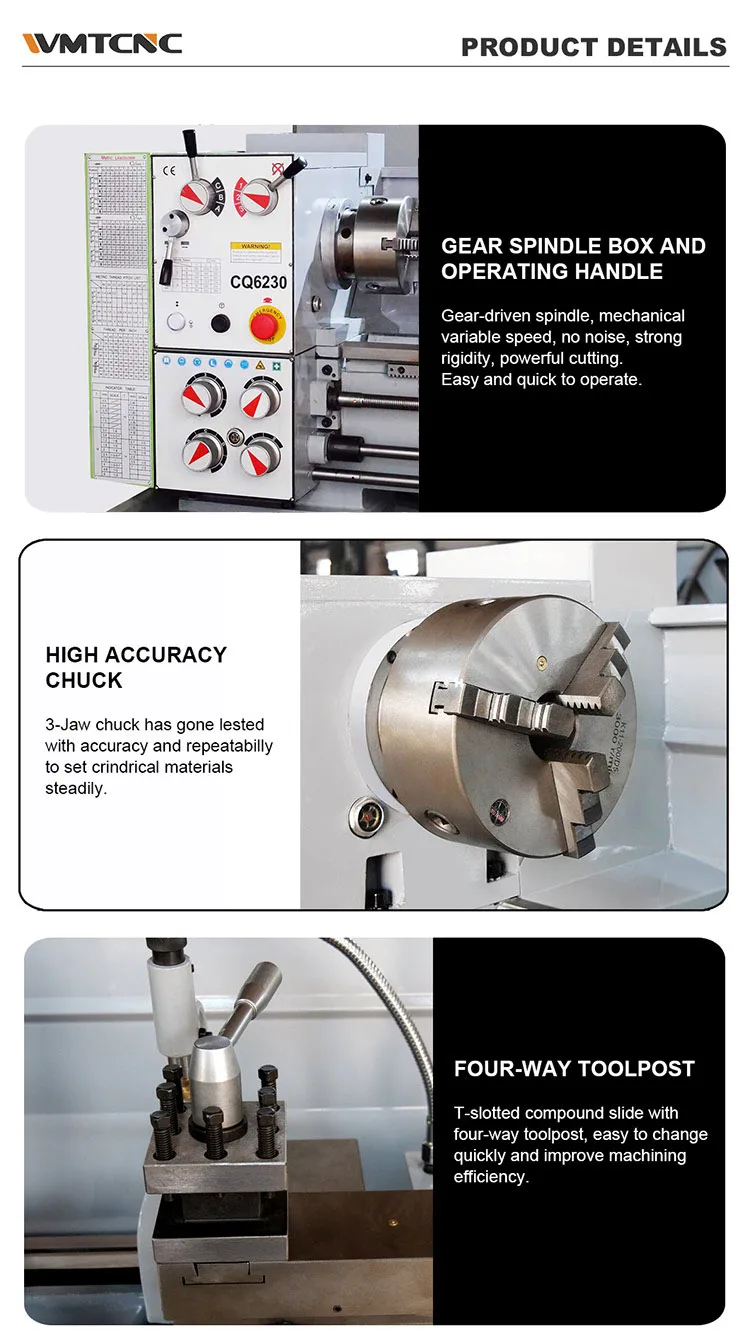

Main Features:
1. Precision ground and hardenedbed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.

6. Easy operating gear box has various feeds and thread cutting function.

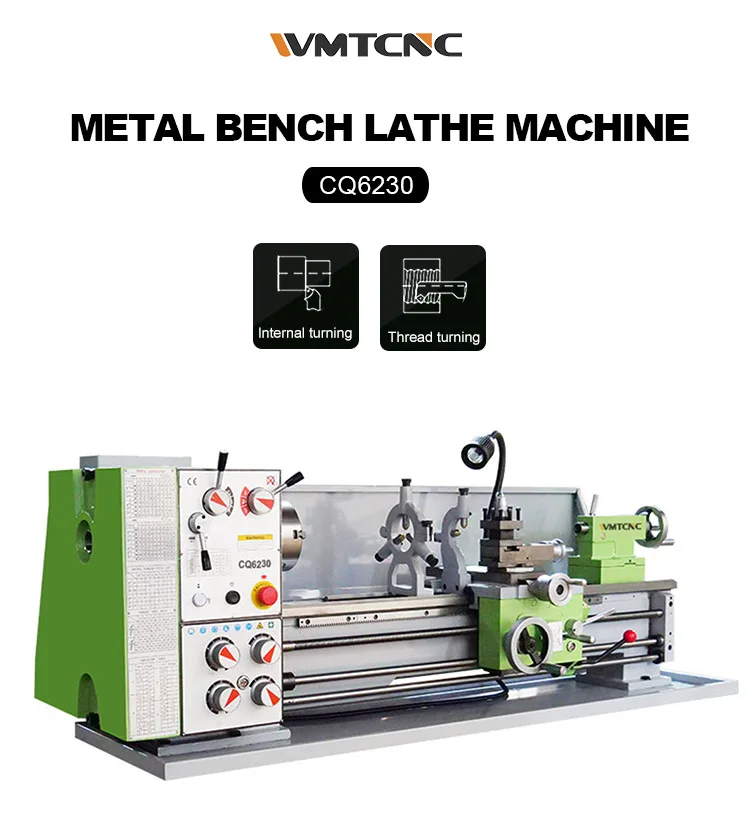

Specifications	CQ6230
Swing over bed	310mm
Swing over cross slide	180mm
Swing over gap	450mm
Width of bed	181mm
Distance between centers	750/910/1000mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed range	65-1810rpm
Longitudinal feed range	0.0527-1.2912mm-rev 0.003″-0.0508″ /rev
Cross feed range	0.011-0.276 mm/rev 0.007″-0.0108″ /rev
Metric thread range	0.4-7mm
Inch thread range	4-60 TPI
Travel of tailstock	100mm
Taper of tailstock	MT3
Motor power	1.5kw
G.W	550/590/670kgs
N.W	500/540/640kgs
Packing size	1480/1680/1970x750x1400mm

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
