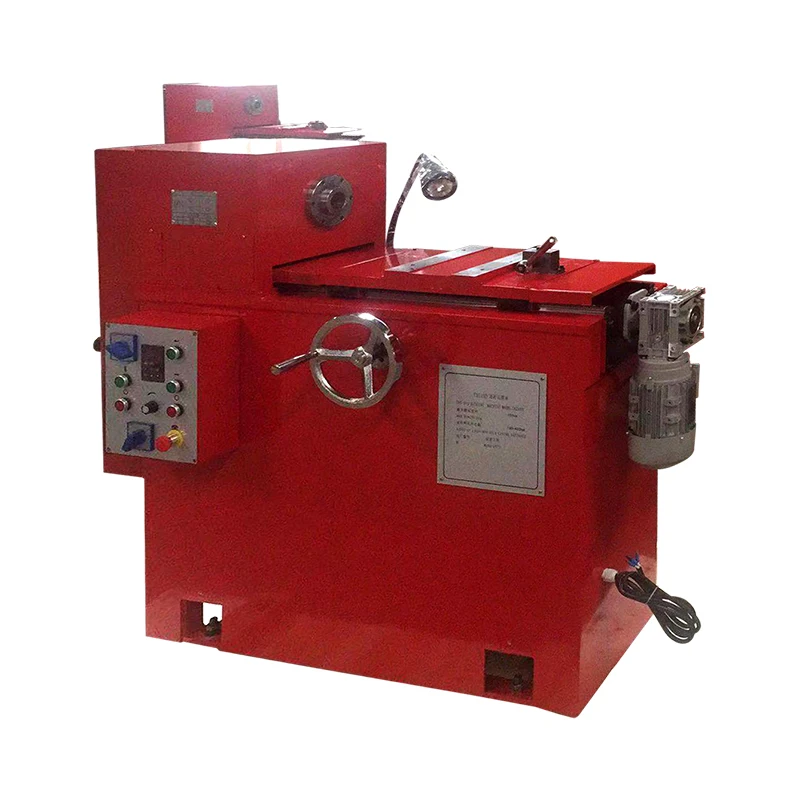

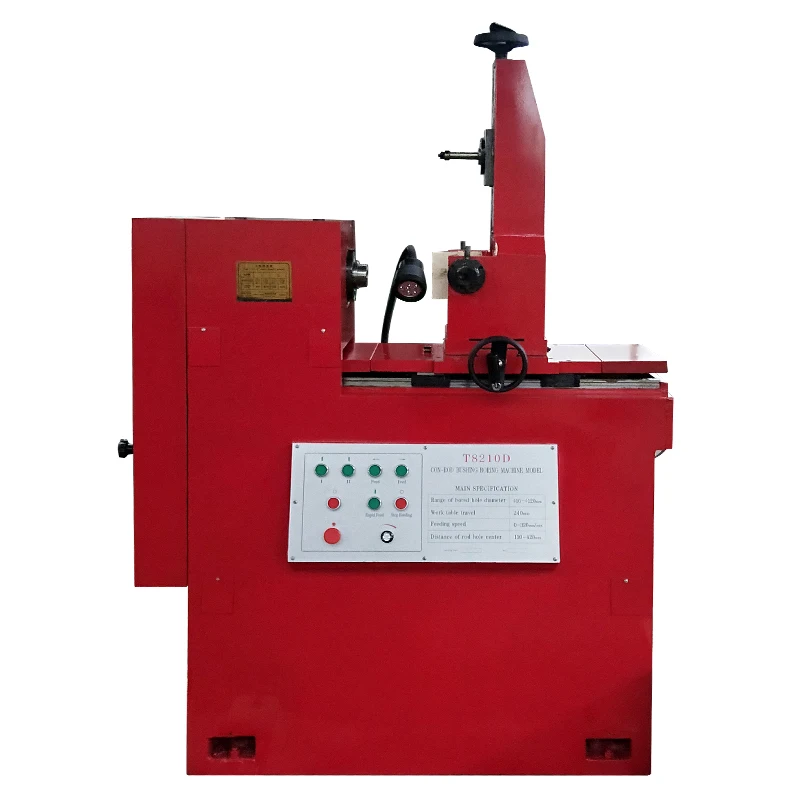

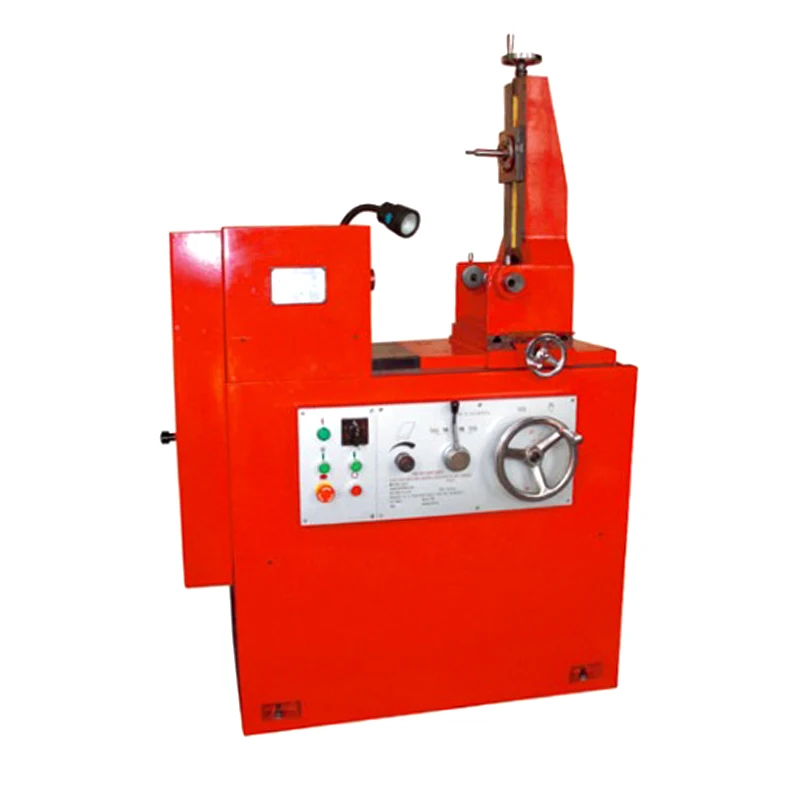

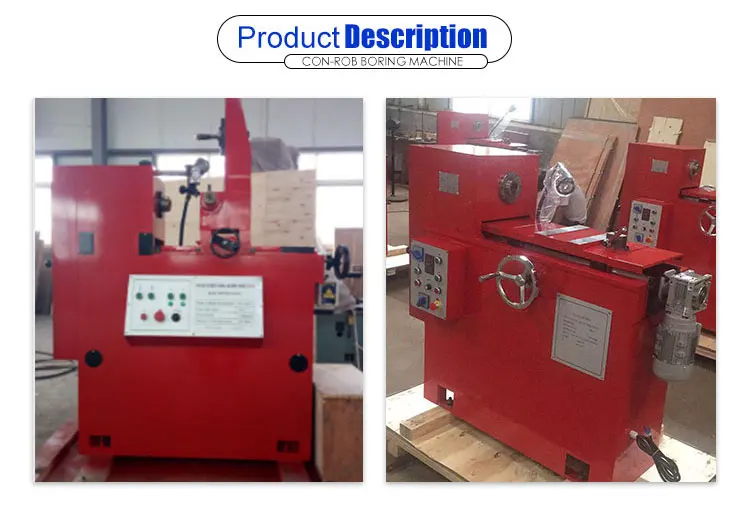

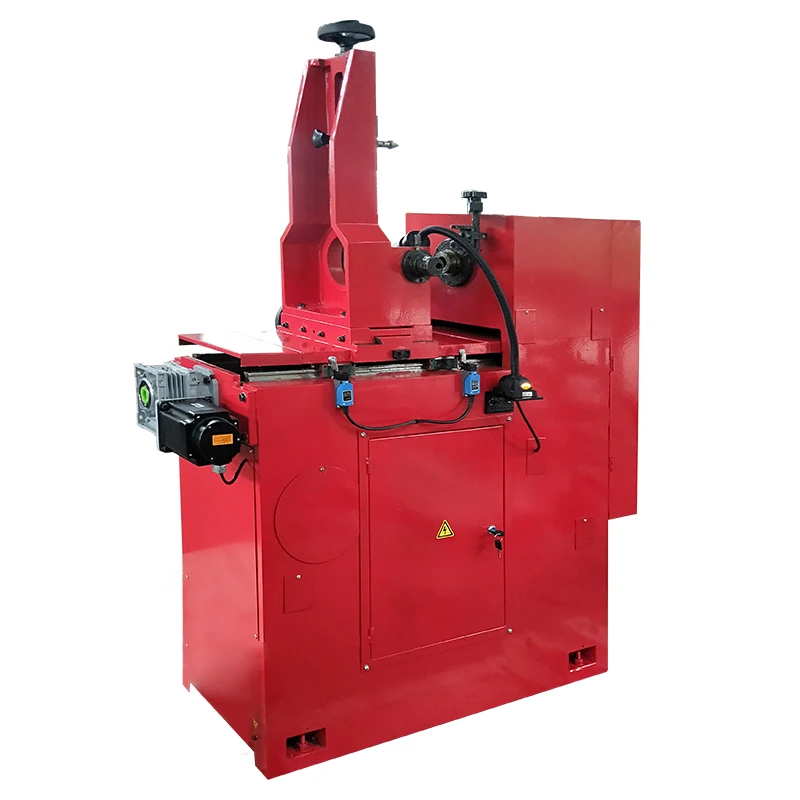

T8210D con-rod bushing boring machine for engine rebuild
A$24,801.71
- USD: $16,769.03
- GBP: £13,311.09
- EUR: €15,500.97
- JPY: ¥2,510,690
- CNY: ¥116,531.94
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Specifications:
Diameter range of boring hole 16-100 mm
Center distance of link two hole 100-425 mm
Longitudinal travel of worktable 220 mm
Spindle speed 350, 530, 780, 1180 rpm
Transverse adjusting amount of fixture 80 mm
Feeding speed of worktable 16-250 mm/min
Traveling speed of working 1800 mm/min
Diameter of boring bar (4 class) 14, 16, 24, 40 mm
Main motor power 0.65/0.85 Kw
Motor power of oil pump 0.55 Kw
Specification
Additional information
| Weight | 100 kg |
|---|
