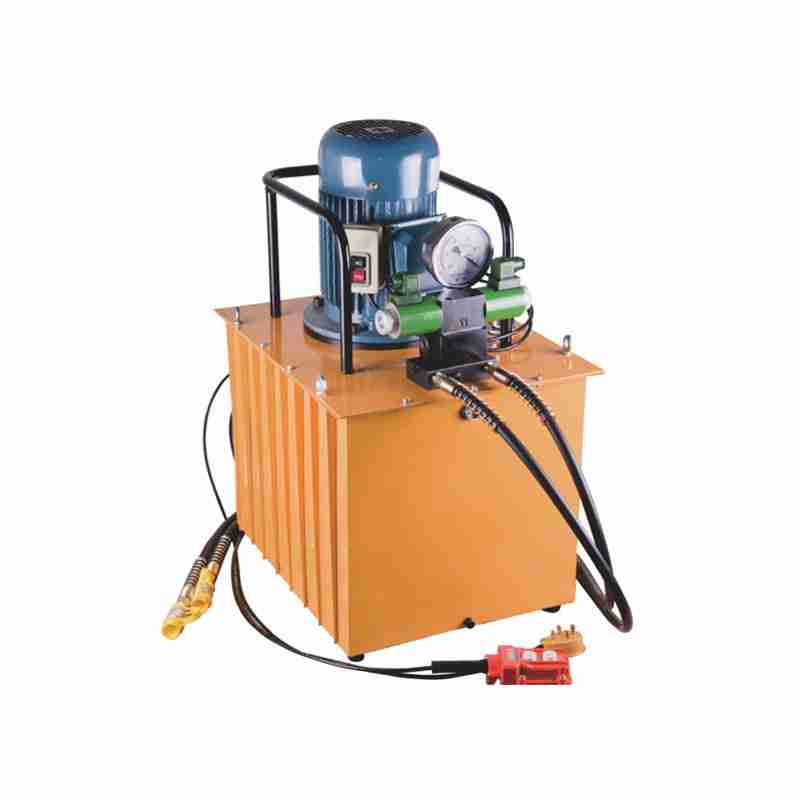

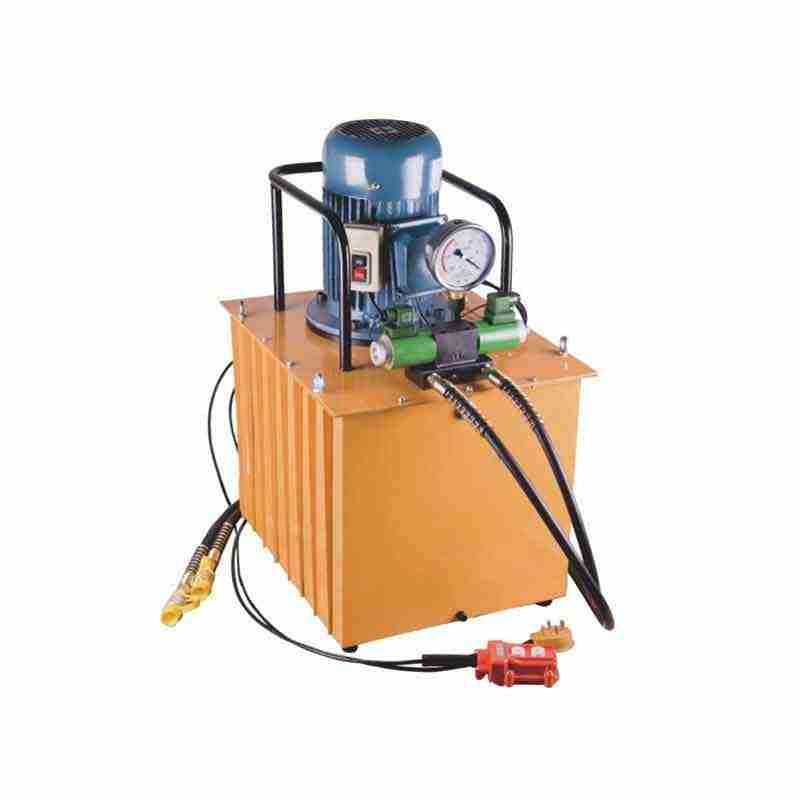

SMG HPAC-3000B Double Acting Electric Hydraulic Pump
¥17,446.41
- USD: $2,510.55
- AUD: A$3,713.15
- GBP: £1,992.85
- EUR: €2,320.70
- JPY: ¥375,884
Introducing SMG HPAC-3000B Double Acting Electric Hydraulic Pump, your new powerhouse companion that promises to elevate your operational efficiency to unprecedented heights. Imagine effortlessly controlling high-pressure tasks, confident in the knowledge that every component is designed for maximum performance and durability.
Description
Introducing SMG HPAC-3000B Double Acting Electric Hydraulic Pump, your new powerhouse companion that promises to elevate your operational efficiency to unprecedented heights. Imagine effortlessly controlling high-pressure tasks, confident in the knowledge that every component is designed for maximum performance and durability.
Features
- With a strong 3.0 kW motor, it offers a high pressure of 70 Mpa for tackling tough tasks effortlessly. It maintains consistent output of 14 L/min at low pressure and 2.8 L/min at high pressure, ensuring peak productivity for any job.
- Created to easily adjust to different operational requirements. It can handle a variety of input voltages, from single-phase to three-phase systems (50Hz/60Hz, 110/220/380V). This flexibility makes it perfect for a range of work settings, ensuring it fits in smoothly with your current setup.
- Crafted with durability in mind, this hydraulic pump features a substantial oil capacity of 30 liters, significantly reducing the need for frequent refills and maintenance.
- Dual-action mechanism for precise control of hydraulic operations. From fine-tuning low pressures to handling high-pressure tasks, this pump is versatile and dependable for every job.
Technical Specifications:
| Model | SMG HPAC-3000B |
| Input voltage – Single phase | 50Hz/240vac |
| Input voltage – Three phase | 60Hz/415vac |
| Power rating (KW): | 3.0 kW |
| Pressure rating(Mpa) | 70 Mpa |
| Low pressure rating(Mpa) | 10 Mpa |
| High pressure rating(Mpa) | 70 Mpa |
| Low rated output(L/min) | 14 L/min |
| High rated output(L/min) | 2.8 L/min |
| Oil capacity(L) | 30L |
| Size(mm) | 455 x 330 x 600 mm |
| Weight(kg) | 76.5 kg |
| Remarks | Double active |
Specification
Additional information
| Weight | 76.5 kg |
|---|---|
| Dimensions | 45.5 × 33 × 60 cm |
