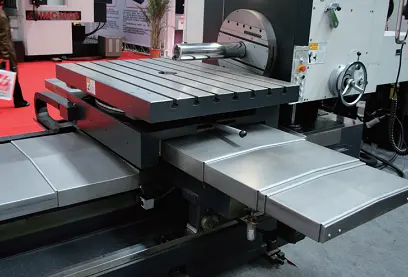

Cylinder Floor Type Cnc Horizontal Boring Machine
A$32,495.90
- USD: $21,971.25
- GBP: £17,440.57
- EUR: €20,309.80
- JPY: ¥3,289,578
- CNY: ¥152,683.44
Description
Specification
|
Specifications
|
Unit
|
TPX6111
|
TPX6111A
|
TPX6111A/2
|
TPX6113
|
TPX6113A
|
TPX6113A/2
|
TPX6113A/3
|
||||||
|
Spindle bore diameter
|
mm
|
Φ110
|
Φ110
|
Φ110
|
Φ130
|
Φ130
|
Φ130
|
Φ130
|
||||||
|
Spindle taper
|
MT
|
6
|
6
|
6
|
80#
|
80#
|
80#
|
80#
|
||||||
|
Max, spindle torque
|
Nm
|
1225
|
1225
|
1225
|
3136
|
3136
|
3136
|
3136
|
||||||
|
Max. spindle axial thrust
|
N
|
12250
|
12250
|
12250
|
31360
|
31360
|
31360
|
31360
|
||||||
|
Steps of spindle speed
|
22
|
22
|
22
|
24
|
24
|
24
|
24
|
|||||||
|
Range of spindle speed
|
r/min
|
8~1000
|
4~800
|
|||||||||||
|
Power of main motor
|
kW
|
7.5
|
7.5
|
7.5
|
15
|
15
|
15
|
15
|
||||||
|
Max. facing head torque
|
Nm
|
1960
|
4900
|
|||||||||||
|
Facing head diameter
|
mm
|
Φ600
|
Φ600
|
Φ600
|
Φ750
|
|||||||||
|
Range of facing head speed
|
r/min
|
4~200
|
4~200
|
4~200
|
2.5~125
|
|||||||||
|
Speed step of facing head speed
|
18
|
18
|
19
|
18
|
18
|
18
|
18
|
|||||||
|
Table size
|
mm
|
1140 x1000
|
1140 x1000
|
1300 x1250
|
1600 x1400
|
1800 x1600
|
||||||||
|
Max. load on table
|
kg
|
2500
|
8000
|
|||||||||||
|
T- slot
|
mm
|
22
|
22
|
22
|
28
|
28
|
28
|
28
|
||||||
|
Number of T-slot
|
7
|
7
|
7
|
9
|
9
|
9
|
9
|
|||||||
|
X- axis travel
|
mm
|
1000
|
1350
|
1600
|
1600
|
2000
|
2000
|
3000
|
||||||
|
Y – axis travel
|
mm
|
1000
|
1000
|
1300
|
1500
|
1800
|
2000
|
2000
|
||||||
|
Z – axis travel
|
mm
|
1000
|
1000
|
1000
|
1500
|
1500/2000(Without Rear Column)
|
||||||||
|
W- axis travel (Spindle travel)
|
mm
|
600
|
600
|
600
|
900
|
|||||||||
|
U – axis travel (facing head spindle travel)
|
mm
|
180
|
180
|
180
|
250
|
250
|
250
|
250
|
||||||
|
B – axis work table rotary
|
360
|
360
|
360
|
360
|
360
|
360
|
360
|
|||||||
|
Min. distance between spindle center and table surface
|
mm
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
||||||
|
Rapid travel (X/Y/Z)
|
mm/min
|
2500
|
||||||||||||
|
Range of feed (X/Y/Z)
|
mm/rev
|
0.04~6
|
||||||||||||
|
Precision of measurement accuracy (X/Y/Z)
|
mm
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
||||||
Specification
Additional information
| Weight | 100 kg |
|---|
