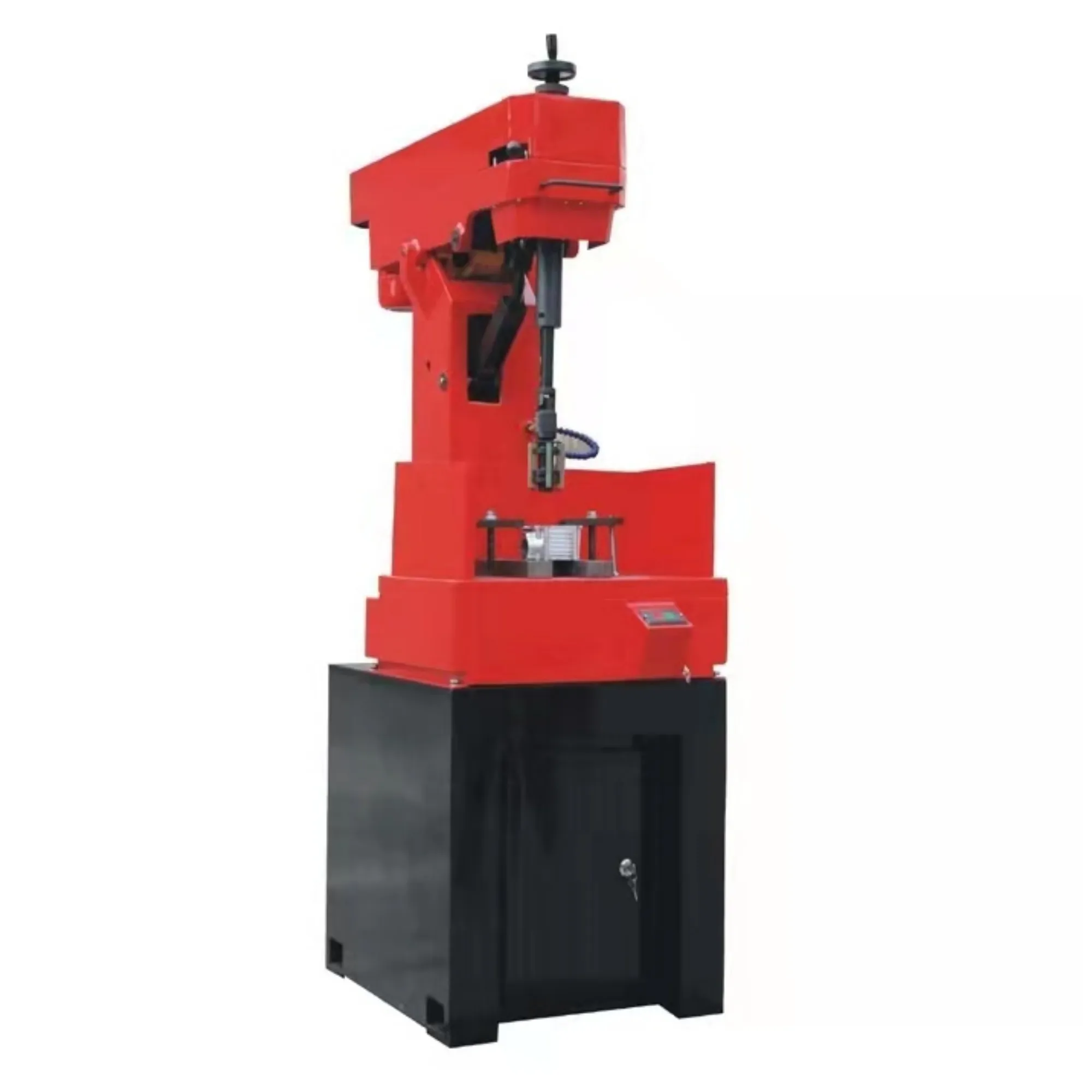

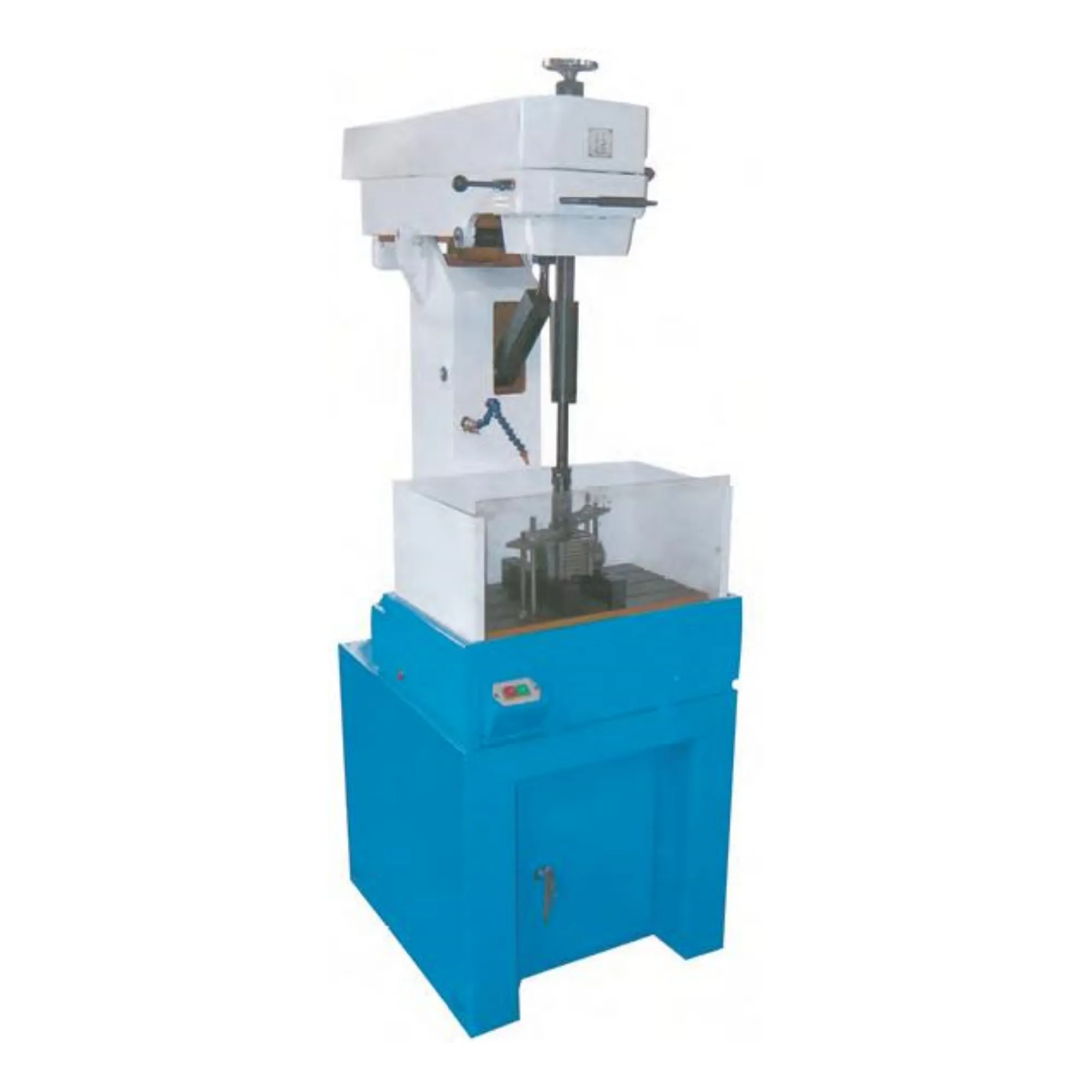

3MB9808 Automatic Metal Engine Boring Vertical Cylinder Honing Machine
A$5,870.23
- USD: $3,969.00
- GBP: £3,150.55
- EUR: €3,668.87
- JPY: ¥594,246
- CNY: ¥27,581.53
Description
A grinding machine that uses a honing head to honing the surface of a workpiece. It is mainly used for honing workpiece holes in automobile, tractor, hydraulic parts, bearing, aviation and other manufacturing industries. Honing machine has vertical and horizontal two kinds. The latest high-speed motor control chip DSP is adopted to ensure fast response of vector control
Modular design of hardware circuit ensures stable and efficient operation of the circuit
The appearance design combines with European automobile design concept, with smooth lines and beautiful appearance
The structure adopts independent air duct design, the fan can be disassembled freely, and the heat dissipation is good. ■ no PG vector control, PG vector control, torque control, v/f control can be selected
■ powerful input and output multifunctional programmable terminals, speed regulating pulse input, two analog output
■ unique “excavator” adaptive control feature, which automatically limits the upper limit of motor torque during operation, effectively suppresses frequent over-current tripping
■ wide voltage input, output voltage auto voltage stabilization (AVR), instant power off and no shutdown, and stronger adaptability
Specification
|
Model
|
3MB9808
|
|
Diameter of hole honed
|
Φ40-Φ82 mm
|
|
Max depth of hole honed
|
200 mm
|
|
Spindle speed (2 steps)
|
200;280 rpm
|
|
Spindle stork(2 steps)
|
19;27 s/min
|
|
Spindle vertical travel
|
70 mm
|
|
Power of main motor
|
0.55 Kw
|
|
Power of cooling pump motor
|
0.09 Kw
|
|
Machine working table dimensions
|
600×380 mm
|
|
Overall dimensions(L×W×H)
|
1000×600×1190 mm
|
|
Packing dimensions(L×W×H)
|
1250×710×2070 mm
|
|
N.W./G.W.
|
350/450 kg
|
Specification
Additional information
| Weight | 100 kg |
|---|
