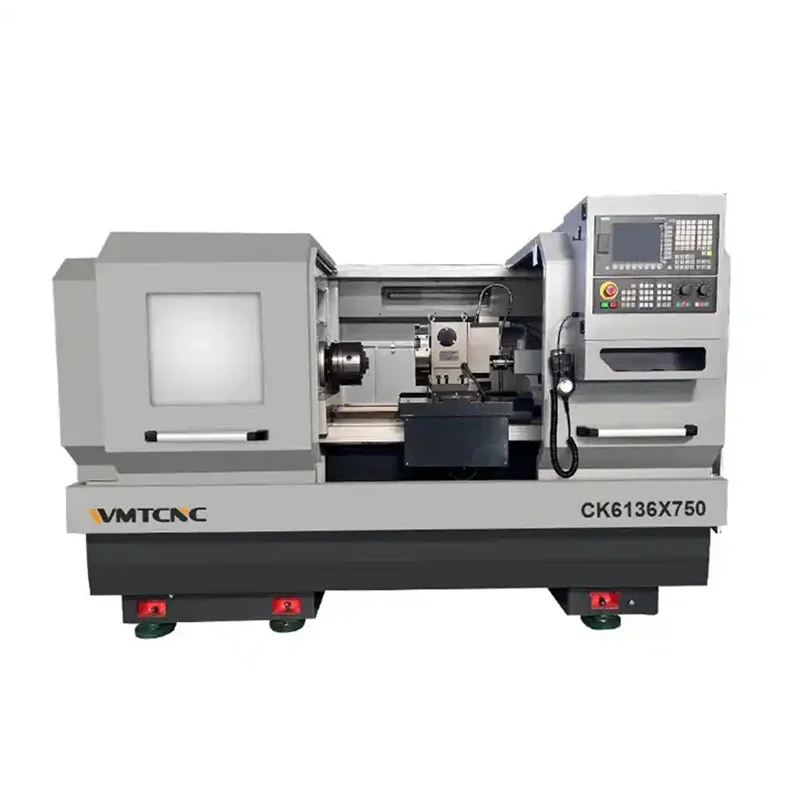

New Desigh CNC Lathe with Automatic Bar Feeder CK6136 Small CNC Lathe for Steel Parts Making
$12,150.00
- AUD: A$18,868.59
- GBP: £10,126.78
- EUR: €11,792.79
- JPY: ¥1,910,077
- CNY: ¥88,654.90
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
Main Features:
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
|
Specification
|
CK6136×750/1000mm
|
|
Max. swing over bed
|
Φ360mm
|
|
Max. swing over carriage
|
Φ210mm
|
|
Max length of work piece
|
750/1000mm
|
|
Range of spindle speed
|
150-2000rpm
|
|

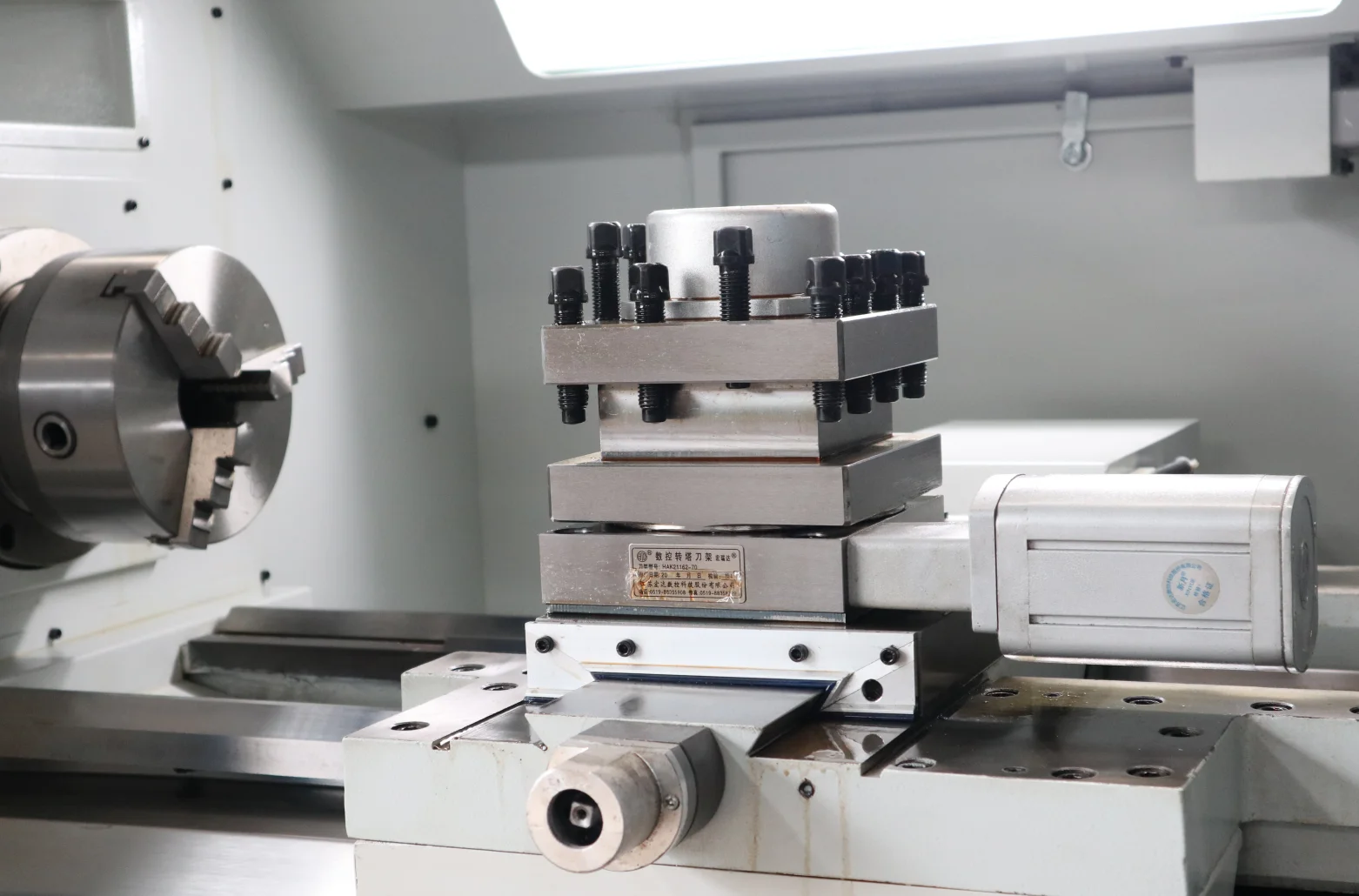

Stations of tool post
|
4/6/8 position or gang type tool holder
|
|
Spindle bore
|
Φ60mm(2-3/4″)
|
|
Taper of spindle bore
|
MT6
|
|
X-rapid speed
|
6m/min
|
|
Z-rapid speed
|
8m/min
|
|
Width of guide way
|
330mm(13″)
|
|
X-axis travel
|
210mm(10″)
|
|
Z-axis travel
|
750/1000mm
|
|
Max size of tool post
|
25×25mm
|
|
Taper of tail stock
|
MT4
|
|
Max range of tail stock quill
|
120mm(4-3/4″)
|
|
Power of main motor
|
5.5kw
|
|
Packing size(L×W×H)
|
2740/3240×1620×2100mm
|
|
Net weight
|
1700kg/2100kg
|
|
Coolant pump power
|
180w
|
|
Overall dimensions(L x W x H)
|
2100/2420/2860/3320x1600x1830mm
|
|
Packing size(L x W x H)
|
2300/2620/3060/3520x1800x2030mm
|
|
Net weight
|
2700/2750/3100/3350kg
|
|
Gross weight
|
2600/3000/3450/3650kg
|
