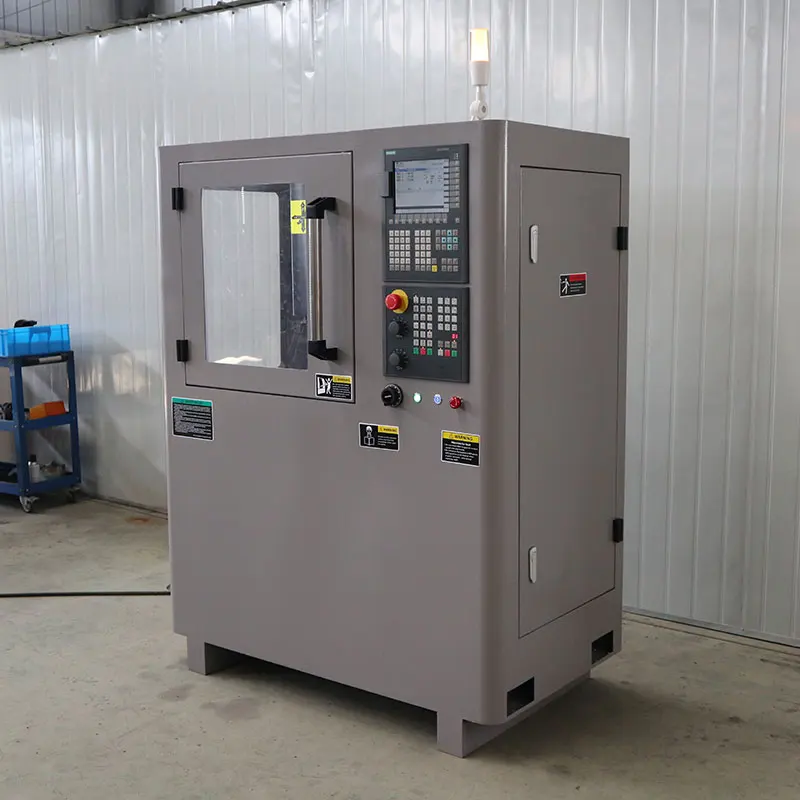

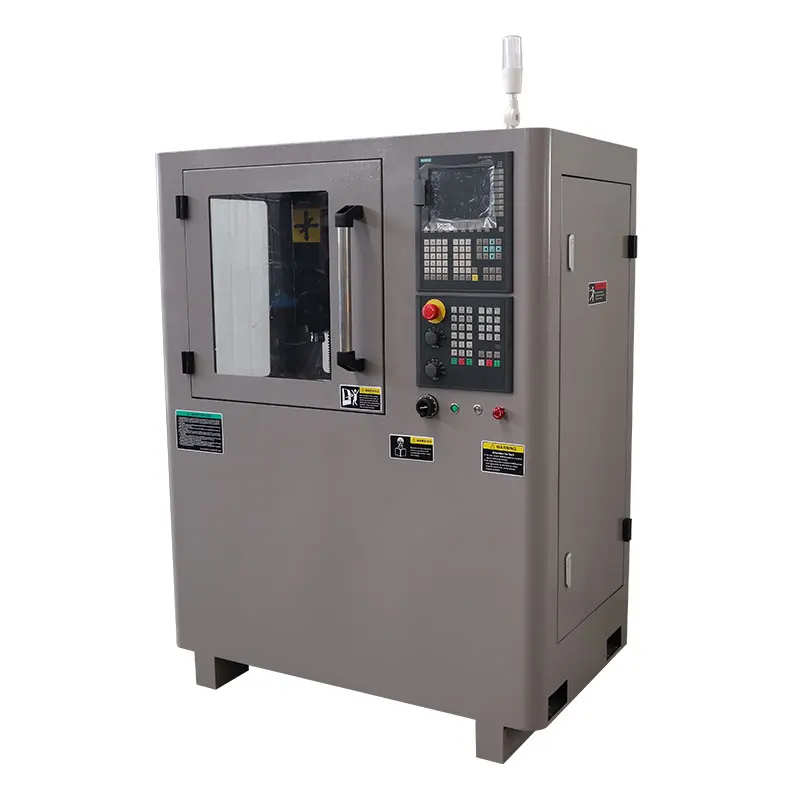

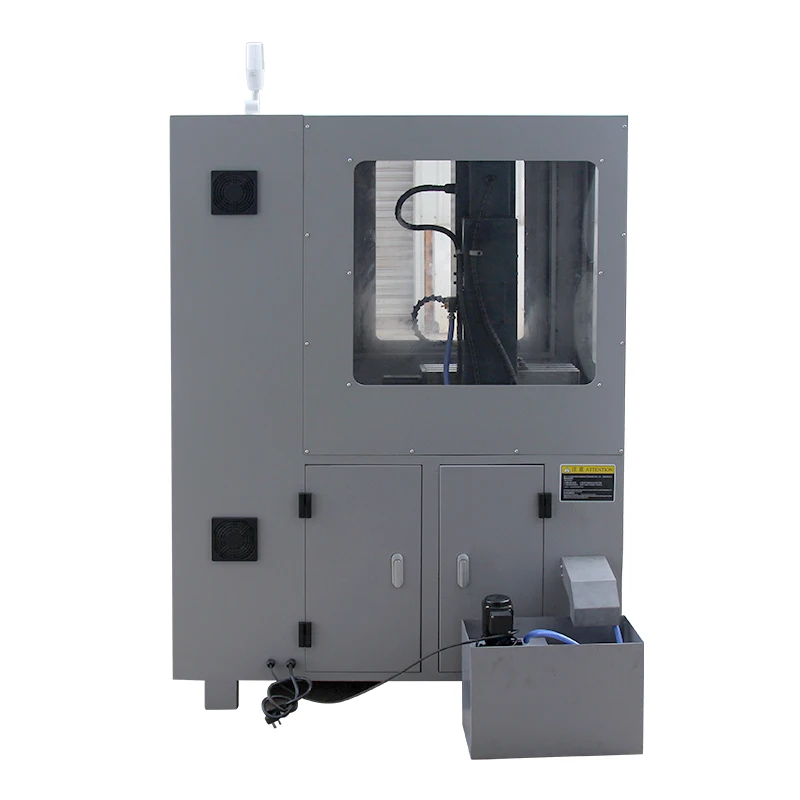

Mini CNC Milling Machine XK7113D with ALFA 1500MDC Controller
A$11,908.17
- USD: $8,051.40
- GBP: £6,391.12
- EUR: €7,442.56
- JPY: ¥1,205,471
- CNY: ¥55,951.09
Description
Attention please!!!
XK7113B Mini CNC Milling Machine with Mach 3 Controller
Features:
1. Small size and cheap price.
2. Low noise amd high precision.
3. Suitable for soft metal material processing.
4. Easy operation by P.C.
5. Popular for education training and mould machining.
6. Best choice for hobby users.
|
Specification |
XK7113A/B |
XK7113C |
XK7113D |
|
Max. drilling dia. |
13mm |
16mm |
13mm |
|
Max. milling dia. |
13mm |
16mm |
13mm |
|
Max. tapping dia. |
—- |
M8 |
—- |
|
Spindle speed |
3000rpm |
3000rpm |
12000rpm |
|
Spendle center to column distance |
189mm |
194mm |
200mm |
|
Spindle nose to table distance |
205mm |
215mm |
215mm |
|
Spindle taper |
ER20 |
ER25 |
ER20 |
|
T-slot size （NxWxD） |
3/12/40mm |
3/12/40mm |
3/12/40mm |
|
Worktable size |
400X140mm |
400X140mm |
400X140mm |
|
X axis travel |
220mm |
220mm |
220mm |
|
Y axis travel |
120mm |
120mm |
120mm |
|
Z axis travel |
200mm |
200mm |
200mm |
|
Main motor power |
400W |
1.2KW |
2.2KW |
|
Main motor type |
Brushless motor |
Servo motor |
Frequency motor |
|
Feeding motor torque |
2.6/2.6/3.2 N.m |
2.0/2.0/3.0 N.m |
|
|
Feeding motor type |
Stepper motor with open loop |
Stepper motor with closed loop, Z axis with brake |
|
|
Controller system |
Mach 3 |
After-CNC 1500MDC |
|
|
Overall size(LxWxH) |
590x590x780mm |
1100x600x1380mm |
|
|
N.W/G.W |
90/115kgs |
310/330kgs |
|
Specification
Additional information
| Weight | 100 kg |
|---|
