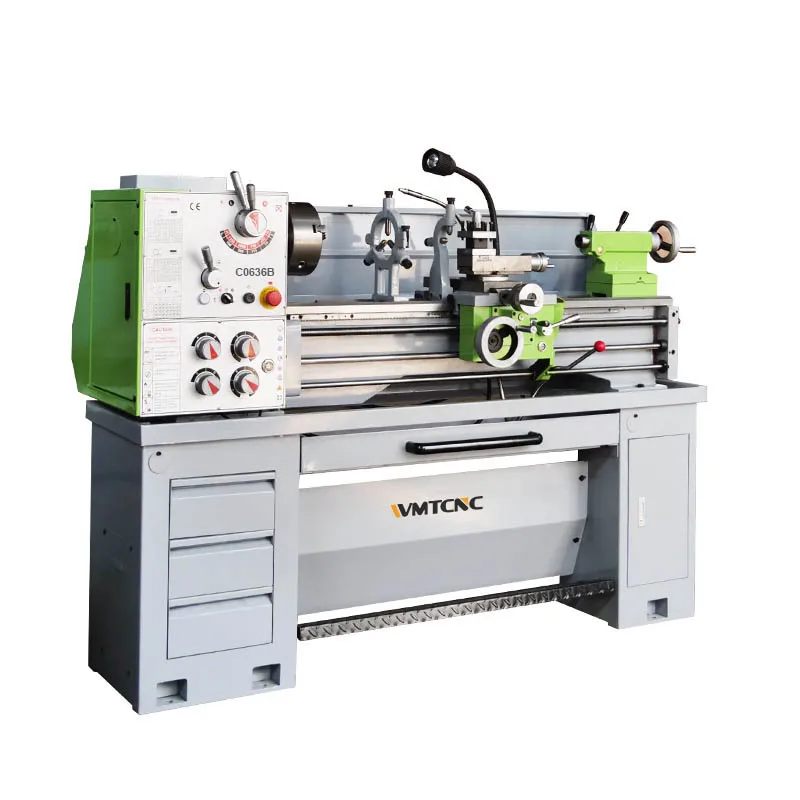

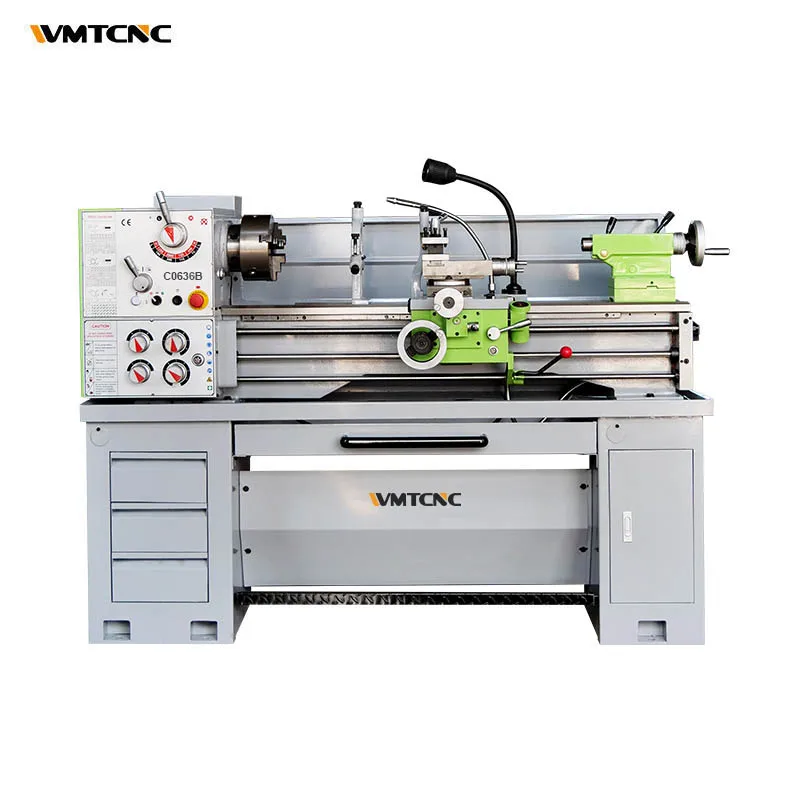

Name: ▷ Buy New Hot Selling C0636B Horizontal Metal Manual Lathe Made in Taiwan with Short Delivery Time () - Available at MachineryGenie.com
SKU: 1005005861622063
Price: 4320.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Features:

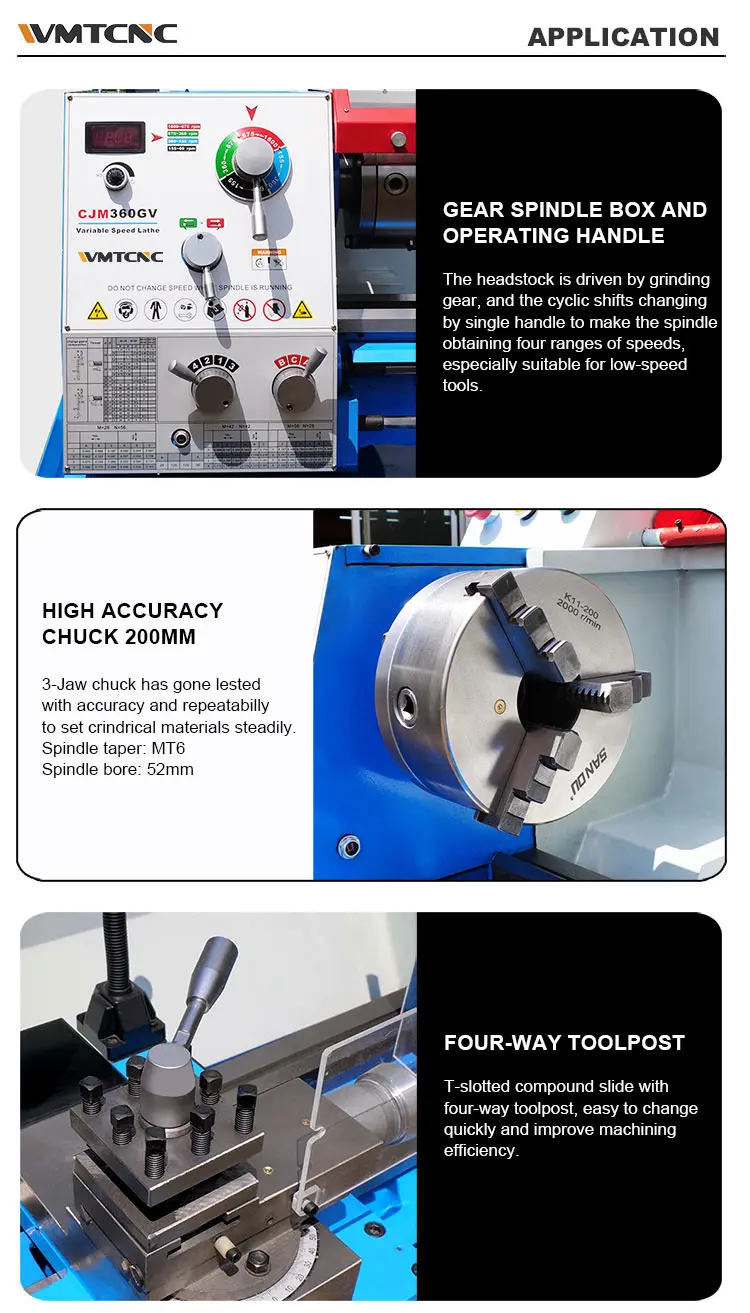

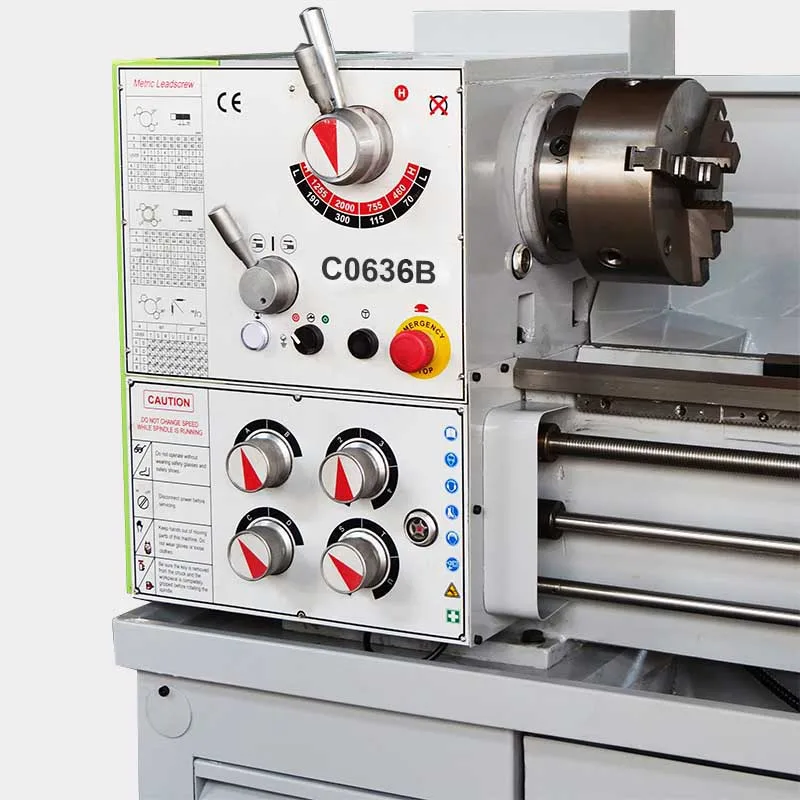

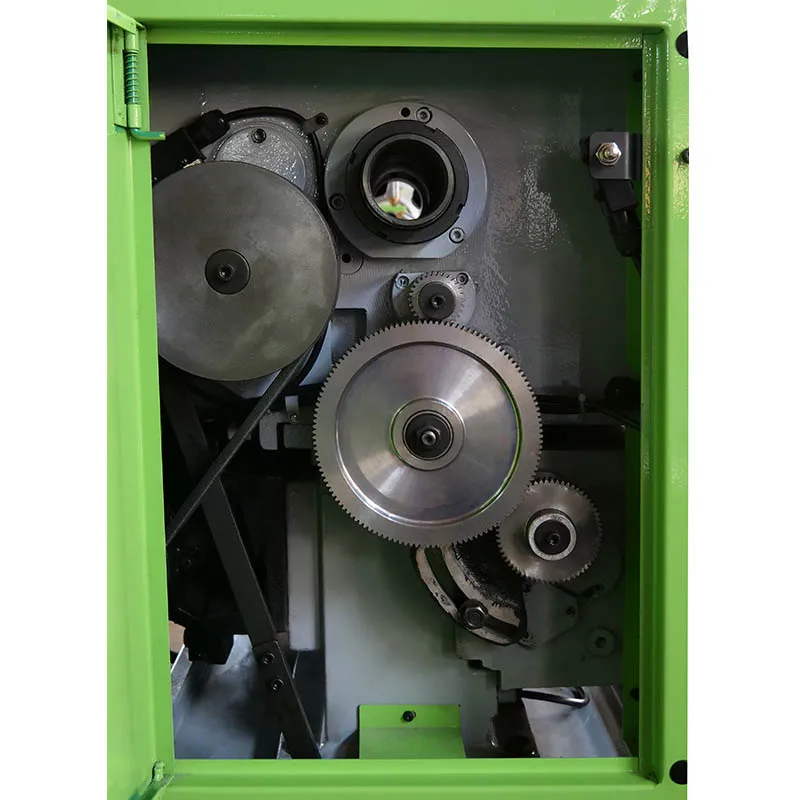

1. Full gears driven in the head stock , with 8 steps of cyclic speed-changing . Invention patent technology.Minimum speed 45rpm .
2. Feeding box with 12 steps of variable speeds , covering common threading pitches .
3. Longitudinal & cross auto feeding adopts inter-lock structure with good safety .
4. High frequency hardened Two V-type widened guideway with rigidity .

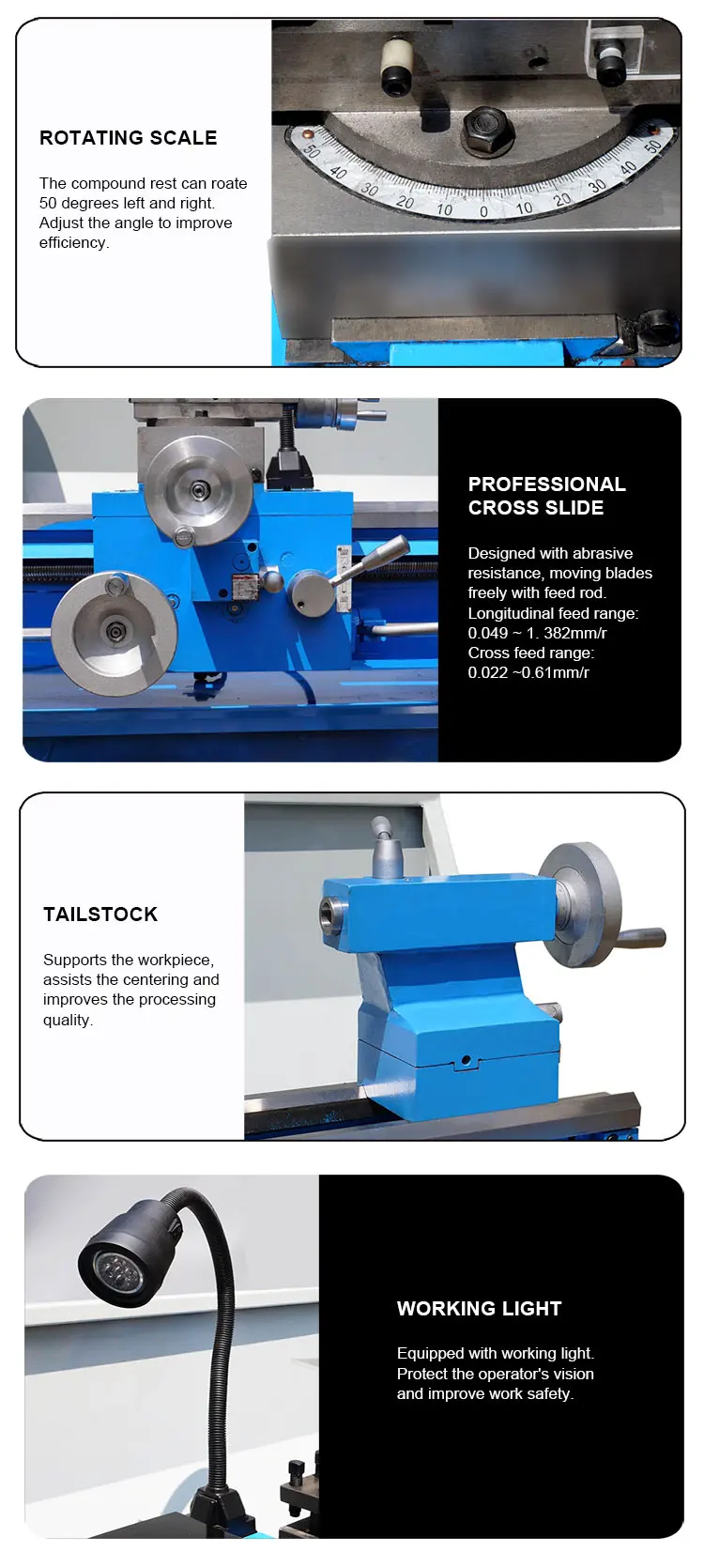

5. Inclined wedge toolpost carriage; Camlocked tailstock .Industrial lathe operation rod.

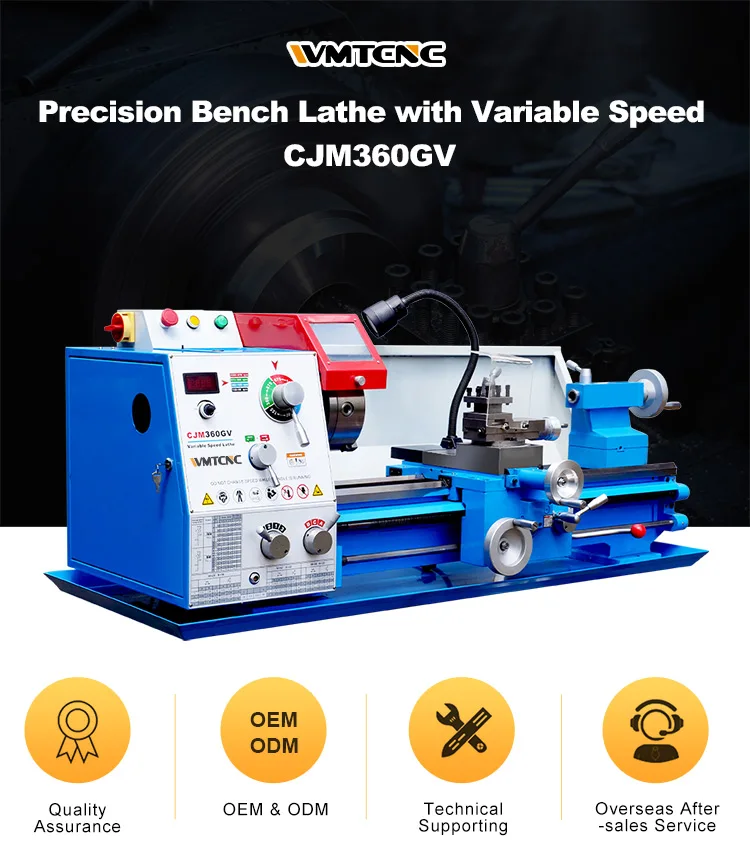

Technical parameters	Model
	CJM360GV/600	CJM360GV/750
Max. swing over bed	360mm
Max. work- piece length	600mm	750mm
Max. swing over cross slide	230mm
Main spindle bore	52mm
Main spindle taper	MT6
Max. cross travel of carriage	205mm
Max. travel longitudinal of toolpost	100mm
Metric threads range/No	0.25 ~7.0 mm/26
Imperial threads range/No	4 ~ 56T. P. I/ 37
Module threads range/No	0.2 ~7M. P/27
Diametrical threading range/No	4 ~216D. P/40
Toolpost longitudinal feeding per spindle rotation	0.049 ~ 1. 382mm/r
Toolpost cross feeding per spindle rotation	0.022 ~0.61mm/r
Max. travel of tailstock sleeve	90m m
Tailstock sleeve taper	MT3
Spindle speed steps	Four shifts + Speed adjustment
Main S pindle speed scope	60 ~ 1600 rpm
Main motor power	1.5 kw
Net weights/Gross weights	370/420kg	390/440kg
Overall dimensions(LWH)	140×70×64cm	152×70×64cm
Packing dimensions ( LWH)	150×76×77cm	163×76×77cm

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
