High Quality CK35L CNC Slant Bed Lathe Machine with CE
A$31,447.64
- USD: $21,262.50
- GBP: £16,877.97
- EUR: €19,654.65
- JPY: ¥3,183,462
- CNY: ¥147,758.17
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]

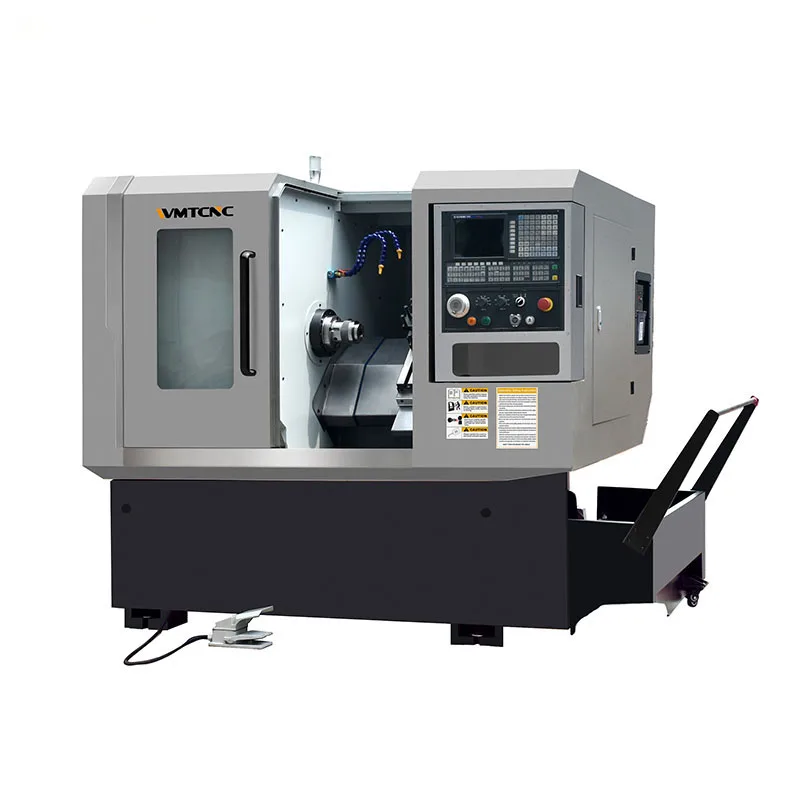

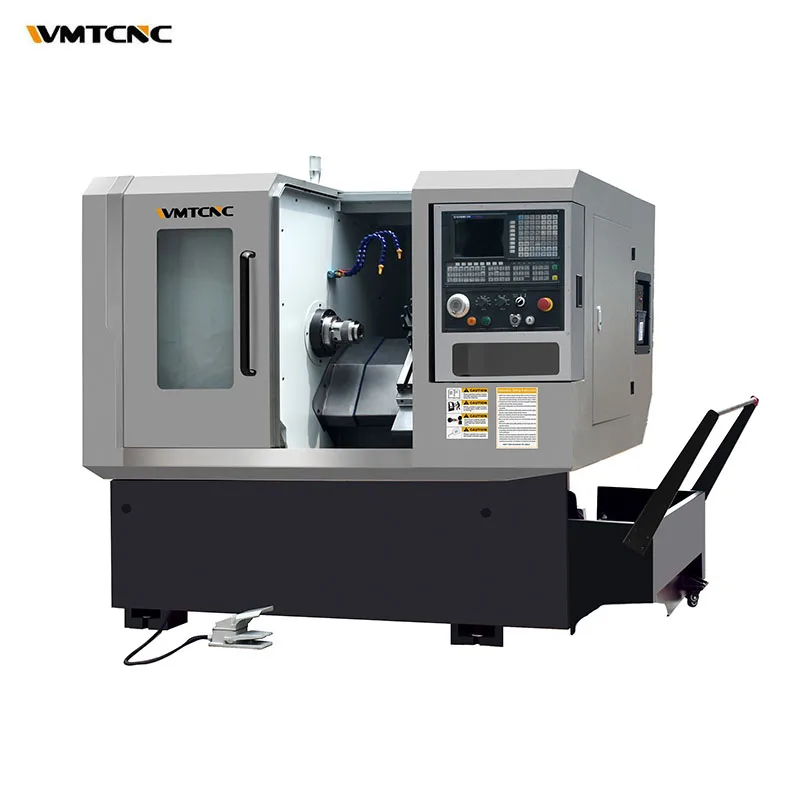

CK35L CNC Slant Bed Lathe Machine with CE
Main Features:
1. Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

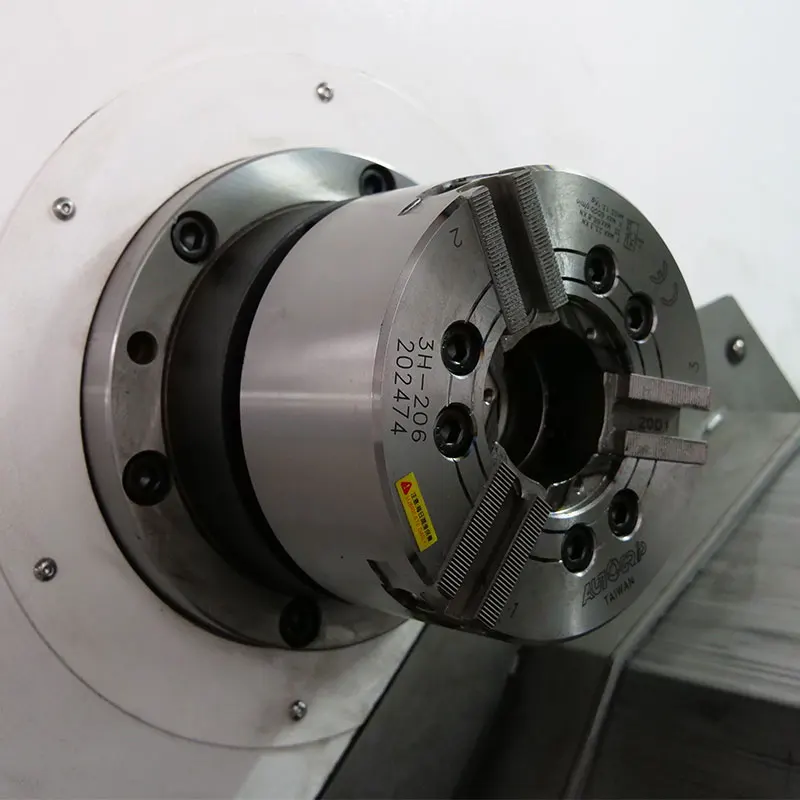

2. Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
3. The spindle system is high in rigidity and accuracy.

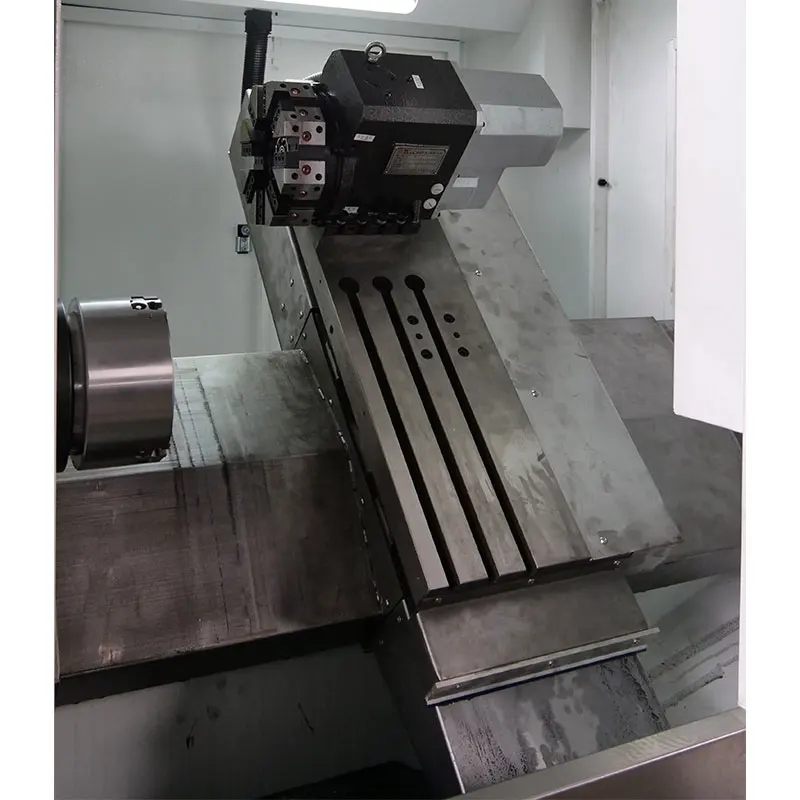

4. The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
|
Model
|
CK35L
|
|
Max. swing over bed
|
350mm
|
|
Distance between centers
|
250mm
|
|
Max.swing over cross slide
|
185mm
|
|
Max. spindle speed
|
4000rpm
|
|
Spindle bore
|
52mm
|
|
Spindle nose
|
A2-5
|
|
Taper of spindle bore
|
1:20
|
|
Chuck dia.
|
160mm
|
|
X-axis travel
|
350mm
|
|
Z-axis travel
|
300mm
|
|
Rapid traverse X/Z
|
12/15 m/min
|
|
Tool station
|
Tool array
|
|
Tool section
|
20x20mm
|
|
Spindle motor power
|
4kw Servo
|
|
Spindle pump power
|
120w
|
|
Type of guideway
|
Taiwan linear guideway
|
|
Overall size (LxWxH)
|
2600x1300x1700mm
|
|
Packing size (LxWxH)
|
2760x1700x2050mm
|
|
N.W/G.W
|
1350/1550kg
|
